COLSUR A6 Himalayan Salt Lamp and Ultrasonic Essential Oil Diffuser User Manual

1. المقدمة

The COLSUR A6 is a versatile 2-in-1 device combining a Himalayan salt lamp with an ultrasonic essential oil diffuser. This product is designed to enhance your environment by releasing negative ions from the natural salt rocks and diffusing essential oil fragrances. It features a 220ml water tank, offering continuous operation for up to 11 hours, and includes an intelligent waterless auto-off function for safety.

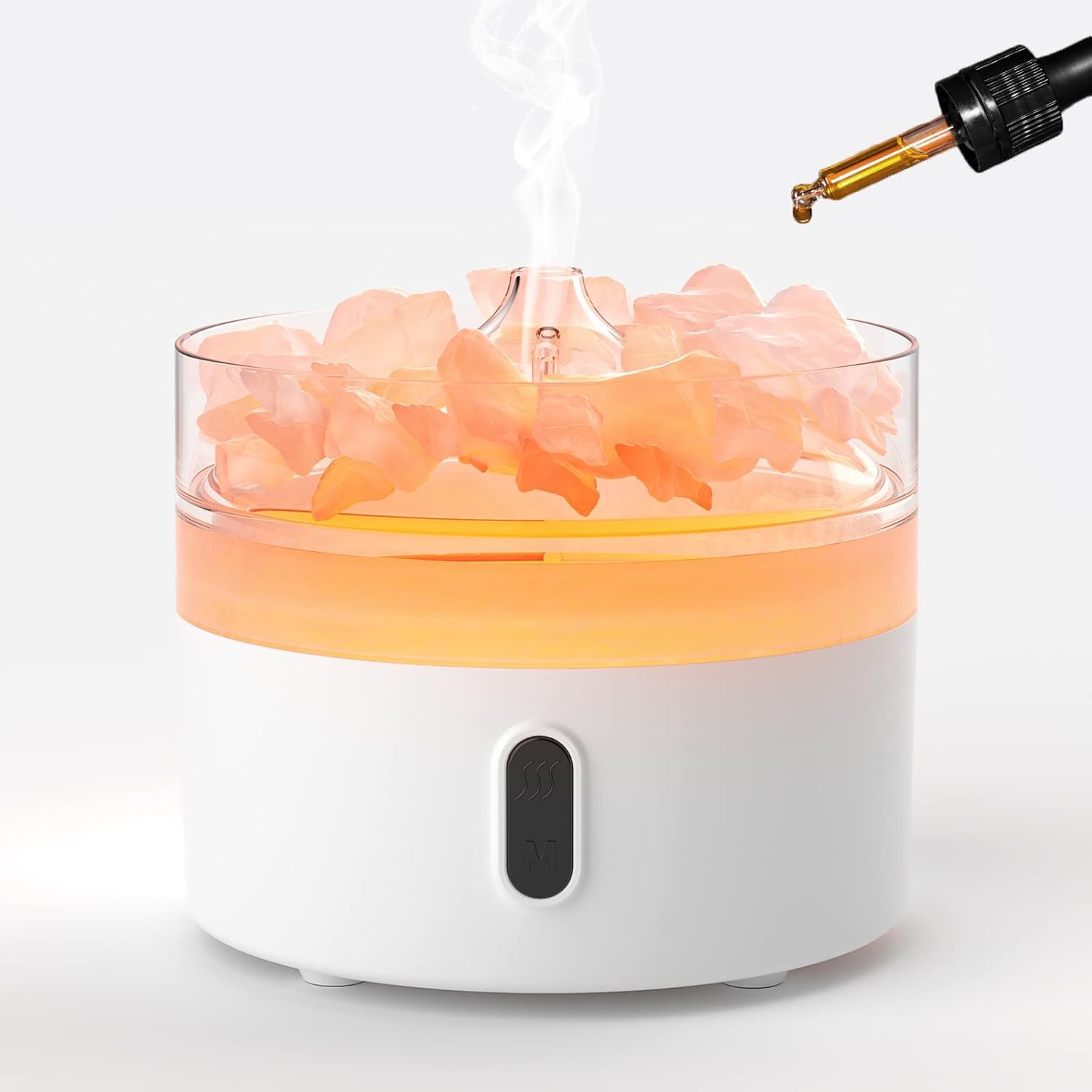

Image 1.1: The COLSUR A6 diffuser with Himalayan salt rocks and mist output.

2. محتويات العبوة

يرجى التحقق من الحزمة للعناصر التالية:

• 2-in-1 Himalayan Salt Lamp Essential Oil Diffuser (1 unit)
• كابل شحن USB-C (وحدة واحدة)
• دليل المستخدم (1 وحدة)
• 100% Natural Himalayan Salt Rocks (1 pack)

3. تعليمات الإعداد

1. ضع الموزع: ضع الموزع على سطح مستوٍ وثابت بعيدًا عن أشعة الشمس المباشرة أو مصادر الحرارة.
2. إضافة الماء: Carefully remove the top cover. Fill the water tank with clean tap water up to the maximum fill line (220ml). Do not overfill.
3. إضافة الزيوت العطرية: Add 3-5 drops of your preferred essential oil directly into the water tank. Adjust the amount based on personal preference.
4. Place Salt Rocks: Gently place the provided Himalayan salt rocks into the designated area on top of the diffuser.
5. توصيل الطاقة: Plug the USB-C charging cable into the port on the back of the diffuser and connect the other end to a suitable power adapter (not included) or USB port.

Image 3.1: Adding essential oil to the diffuser's water tank.

4. تعليمات التشغيل

The COLSUR A6 diffuser features two control buttons: one for mist (sprinkler) and one for light.

• زر التحكم في الضباب:
  • Press once: Activates continuous mist mode.
  • Press twice: Activates intermittent mist mode (mist on for 10 seconds, off for 10 seconds).
  • Press a third time: Turns off the mist function.
• زر التحكم في الضوء:
  • Press once: Turns on the warm light at 70% brightness.
  • Press twice: Increases the warm light to 100% brightness.
  • Press a third time: Turns off the light function.

The diffuser will automatically shut off when the water level is too low, indicated by the waterless auto-off chip.

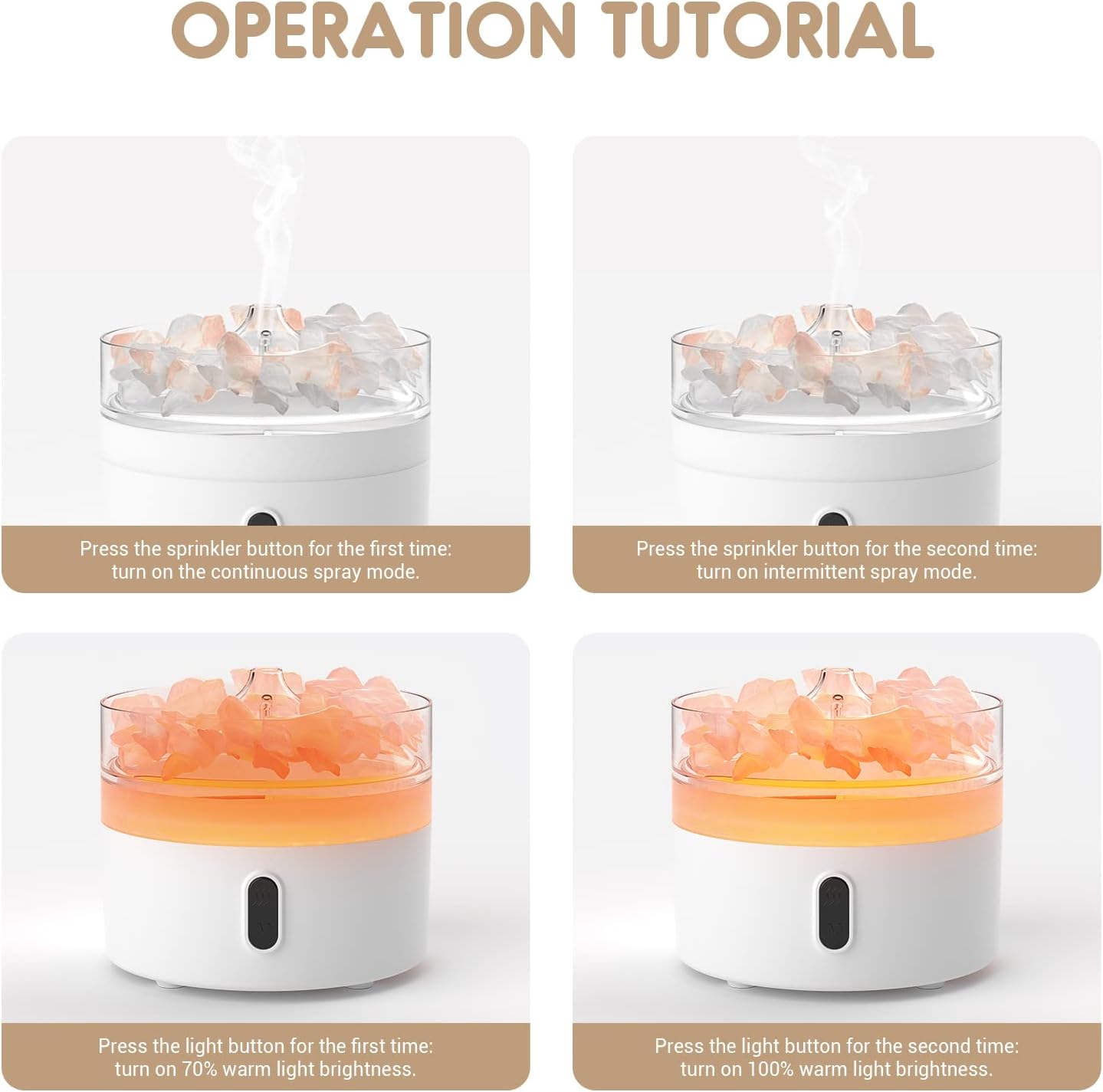

Image 4.1: Operational guide for mist and light settings.

5. الصيانة

• تنظيف خزان المياه: Regularly clean the water tank to prevent mineral buildup and ensure optimal performance. Unplug the device, empty any remaining water, and wipe the inside with a soft cloth. Do not use harsh detergents.
• Salt Rock Care: Himalayan salt rocks may naturally melt and shrink over time due to humidity and the release of negative ions. If salt residue accumulates on the surface, it can be gently washed off with water. Ensure the salt rocks are dry before placing them back on the diffuser.
• Essential Oils on Salt Rocks: Essential oils can be dripped directly onto the salt rocks. The oils will evaporate with the salt, contributing to the aromatherapy effect.

6. استكشاف الأخطاء وإصلاحها

If you encounter any issues with your COLSUR A6 diffuser, please refer to the following common solutions:

• Low Mist Output or Water Sprinkling:
  • Ensure the product is used with an appropriate power adapter to provide sufficient power for full functionality.
  • Check the water level. If the amount of water added exceeds 220ml, the mist output may be reduced. Adjust water to below the max fill line.
• Salt Rock Melting or Shrinking:
  • This is a natural process for 100% Himalayan salt stone as it releases beneficial ions into the air. It is normal for the salt to change over time.
  • Any melted salt residue on the surface can be washed off with water.
• المياه الفائضة:
  • Inspect the white flap at the bottom of the transparent cover. It may become loose during transportation. Re-secure it to prevent overflow.

7. المواصفات

Image 7.1: Product dimensions of the COLSUR A6 diffuser.

8. الضمان والدعم

For any product inquiries, technical support, or warranty claims, please contact COLSUR customer service. Refer to the product packaging or the official COLSUR webموقع للحصول على تفاصيل الاتصال.
