مقدمة
This manual provides detailed instructions for the installation, operation, and maintenance of your Lloyd's Advanced Video Doorbell Camera LC-1330. This wireless outdoor security device features Full HD 1080P video, two-way audio, night vision, and motion detection to enhance your home security.

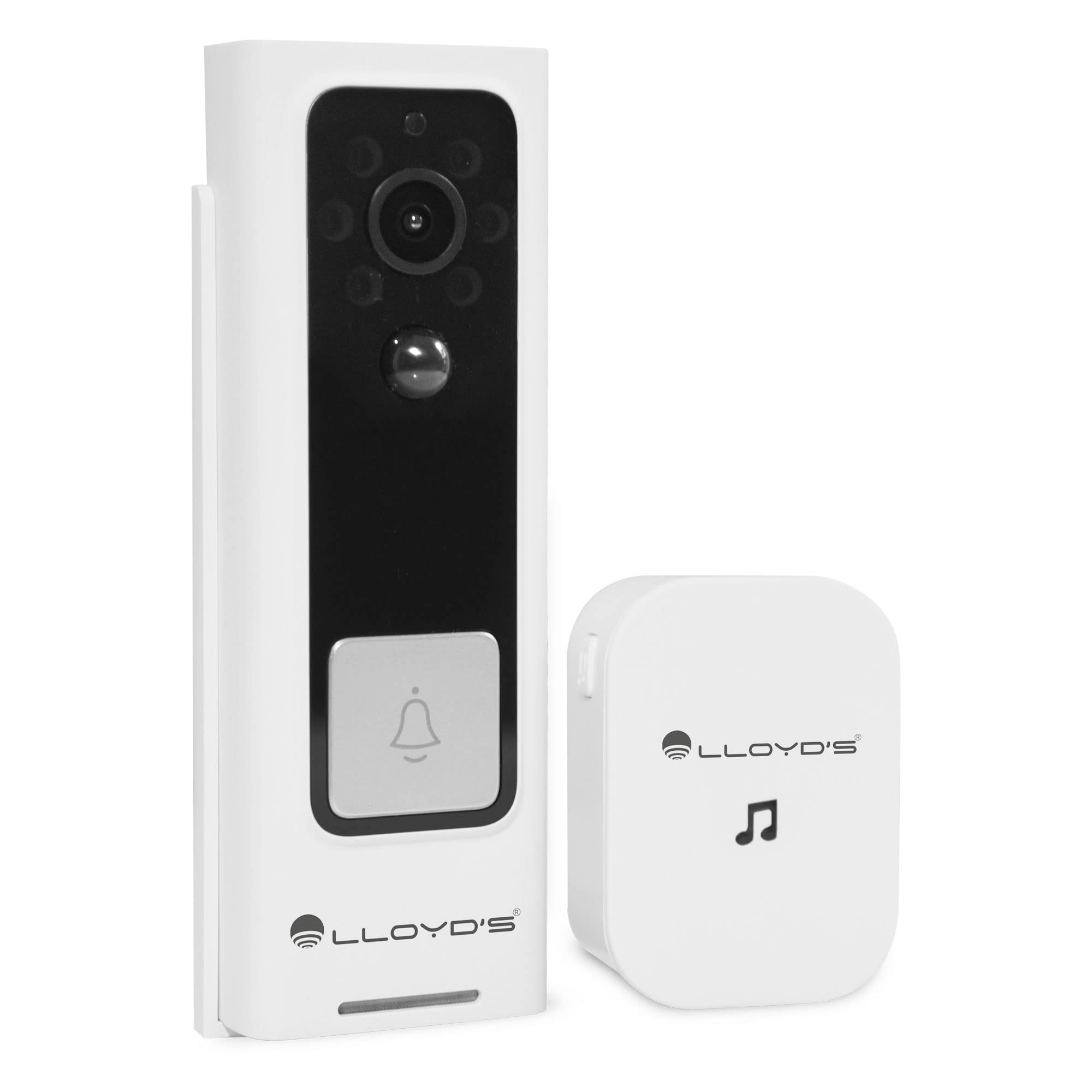

Figure 1: Lloyd's Advanced Video Doorbell Camera LC-1330 and Chime in packaging.
محتويات الحزمة
تأكد من تضمين جميع العناصر المدرجة أدناه في الحزمة الخاصة بك:
- 1 x Lloyd's Wi-Fi Video Doorbell Camera (LC-1330)
- جرس لاسلكي واحد
- 2 x 18650 Rechargeable Batteries (pre-installed in doorbell)
- 1 × كابل شحن USB
- شنومكس x تصاعد قوس
- 1 x Mounting Screw Kit (screws, wall anchors)
- 1 x Reset Pin / Ejector Tool
- 1 × دليل المستخدم
إذا كانت أي من العناصر مفقودة أو تالفة، يرجى الاتصال بدعم العملاء.
المنتج انتهىview
Familiarize yourself with the components of your video doorbell and chime:

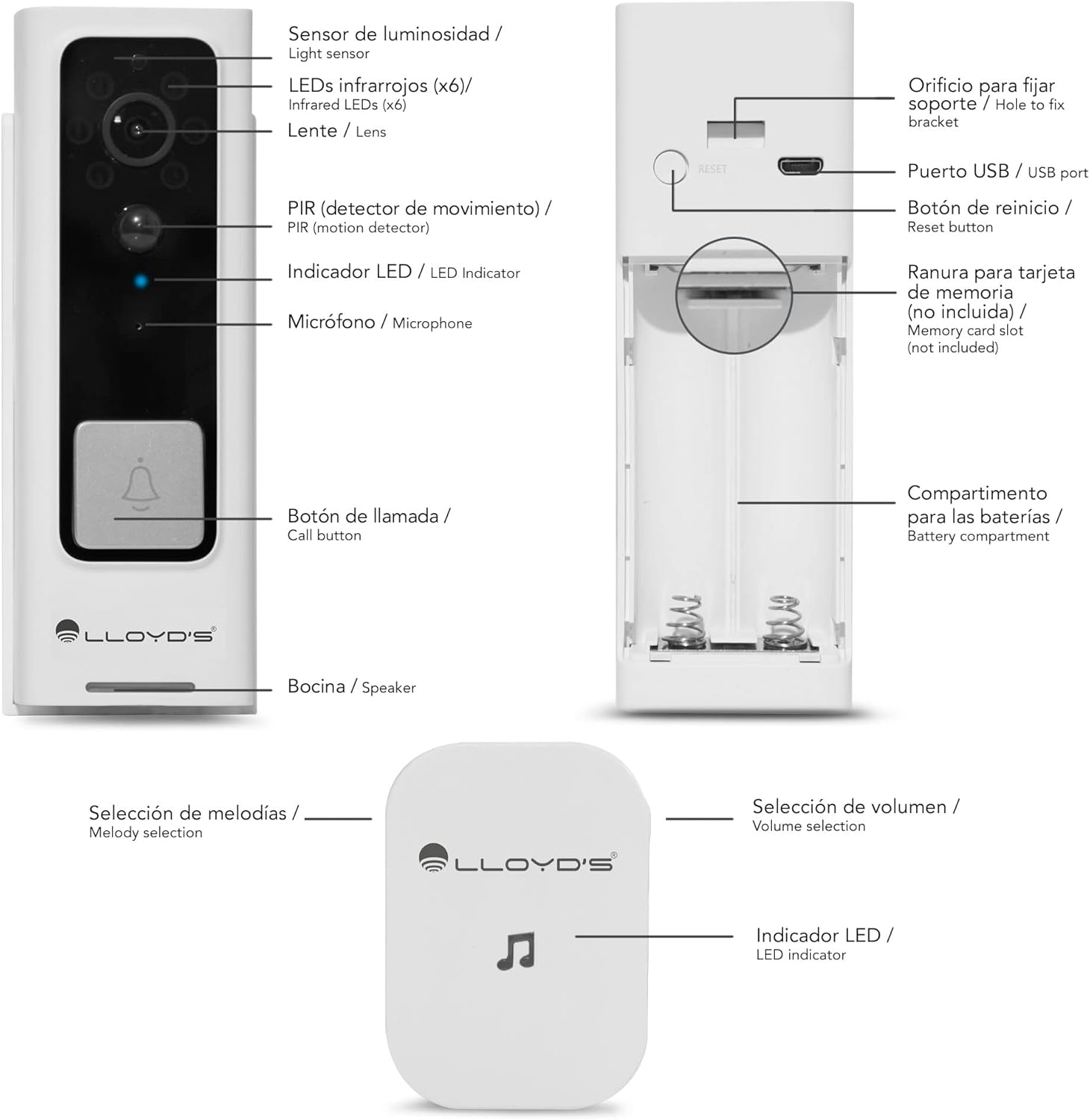

Figure 2: Doorbell Camera and Chime Components.
- مستشعر الضوء: يكتشف الضوء المحيط لتنشيط الرؤية الليلية تلقائيًا.
- Infrared LEDs (x6): يوفر إضاءة للرؤية الليلية.
- عدسة: Captures Full HD 1080P video with a 140° viewزاوية جي.
- PIR (Motion Detector): Detects human motion to trigger alerts.
- مؤشر LED: Shows device status (e.g., charging, recording, network).
- ميكروفون: يلتقط الصوت للتواصل ثنائي الاتجاه.
- زر الاتصال: Pressed by visitors to alert you.
- المتحدث: يُخرج الصوت للتواصل ثنائي الاتجاه.
- منفذ USB: For charging the doorbell's internal battery.
- زر إعادة الضبط: يستخدم لإعادة ضبط الجهاز على إعدادات المصنع.
- فتحة لبطاقة ذاكرة: Supports Micro SD cards up to 128GB for local storage.
- حجرة البطارية: Houses the two 18650 rechargeable batteries.
- Melody Selection (Chime): Button to change the chime melody.
- Volume Selection (Chime): Button to adjust the chime volume (5 levels, max 100dB).
- LED Indicator (Chime): Shows chime status.
يثبت
1. الشحن الأولي
Before first use, fully charge the doorbell camera. Open the rubber cover on the side to access the USB port. Connect the doorbell to a 5V DC power source using the provided USB cable. The LED indicator will show charging status.
2. تنزيل التطبيق وإنشاء الحساب
Download the 'Lloyd's Smart' app from the App Store (iOS) or Google Play Store (Android). Create an account and log in.
3. إقران الجهاز
- Open the 'Lloyd's Smart' app and tap '+' to add a new device.
- Select 'Video Doorbell' from the device list.
- Follow the in-app instructions to connect the doorbell to your 2.4GHz Wi-Fi network. This typically involves pressing the reset/sync button on the doorbell and scanning a QR code generated by the app.
4. إعداد الجرس
The wireless chime operates on 3 AAA batteries (not included). Insert the batteries into the chime. The chime will automatically pair with the doorbell once the doorbell is successfully connected to the app. You can select melodies and adjust volume using the buttons on the chime.
5. التثبيت
The doorbell can be installed using screws or adhesive tape. For secure installation, screw mounting is recommended.
- Remove the back cover from the doorbell using the provided ejector tool.
- Position the back cover on your desired mounting surface (door frame or wall) and mark the screw holes.
- قم بحفر ثقوب تجريبية وأدخل مثبتات الحائط إذا لزم الأمر.
- Secure the back cover to the surface with screws.
- Attach the doorbell camera to the secured back cover. Ensure it clicks into place securely.
الشكل 3: خيارات تركيب جرس الباب.
Video 1: Installation guide for a similar doorbell model.
تعليمات التشغيل
1. حي View & صوت ثنائي الاتجاه
Access the 'Lloyd's Smart' app to view the live video feed from your doorbell. Use the microphone and speaker icons in the app to engage in two-way communication with visitors at your door.
Figure 4: Two-way audio communication via the app.
2. تنبيهات اكتشاف الحركة
The doorbell's PIR sensor detects motion and sends instant notifications to your smartphone. You can customize motion detection sensitivity and activity zones within the app to reduce false alerts.
Figure 5: Instant alerts on your smartphone when the doorbell is pressed.
3. الرؤية الليلية
The doorbell automatically switches to night vision mode in low-light conditions, providing clear black-and-white video footage.
4. التخزين المحلي والسحابي
Recordings can be stored locally on a Micro SD card (up to 128GB, not included) inserted into the doorbell's slot, or via optional cloud storage services (subscription may be required).
5. مُغيّر الصوت
Utilize the voice changer feature in the app during two-way communication to alter your voice for added privacy or security.
سمات
- Full HD 1080P Video: يلتقط مقاطع فيديو واضحة ومفصلةtage (1920*1080P).
- زاوية واسعة 140 درجة View: يوفر مجالًا واسعًا من view to monitor your entryway.
- ضغط H.264: Efficient video compression for optimized storage and streaming.
- بطارية قابلة لإعادة الشحن: Powered by two 18650 batteries, offering up to 2 months of use on a single charge.
- التنبيهات الذكية: Receive instant notifications for motion detection and low battery status.
- Virtual Assistant Compatibility: Compatible with Siri, Google Assistant, and Amazon Alexa for voice control and integration into smart home routines.
Figure 6: Monitor and control your doorbell from your smartphone.
Figure 7: Automate your home with Lloyd's smart products.
Video 2: A closer look at the doorbell camera and chime.
صيانة
1 البطارية تشحن
The doorbell's battery can be charged while installed or by removing the doorbell from its mount. Connect the USB charging cable to the doorbell's USB port and a power source. A full charge can last up to 2 months, depending on usage.
2. التنظيف
Wipe the doorbell's lens and body with a soft, damp cloth to remove dust and debris. Avoid using harsh chemicals or abrasive materials that could damage the device.
استكشاف الأخطاء وإصلاحها
- لا يوجد طاقة: Ensure the batteries are correctly inserted and fully charged.
- لا يوجد اتصال واي فاي: Check your Wi-Fi router and ensure the doorbell is within range. Try resetting the doorbell using the reset button and re-pairing it with the app.
- لا تنبيهات الحركة: Verify that motion detection is enabled in the app and sensitivity settings are appropriate. Check activity zones.
- جودة الفيديو رديئة: Ensure the lens is clean and free from obstructions. Check your Wi-Fi signal strength.
- الجرس لا يرن: Check the chime's batteries. Ensure the chime is paired with the doorbell.
تحديد
| الشركة المصنعة | Lloyd's |
| رقم القطعة | ال سي-1330 |
| أبعاد المنتج | 3.48 × 4.98 × 13.39 سم |
| وزن العنصر | 450 جرام |
| لون | أبيض/أسود |
| المجلدtage | 7.4 فولت (تيار مستمر) |
| واتtage | 170 مليamp_ساعات |
| البطاريات | 2 x 18650 Lithium (included) |
| دقة الفيديو | Full HD 1920*1080P |
| Viewزاوية جي | مجال رؤية 140 درجة |
| تخزين | بطاقة ذاكرة مايكرو إس دي (حتى 128 جيجابايت)، تخزين سحابي (اختياري) |
| الاتصال | واي فاي (2.4 جيجا هرتز) |
| مقاومة الطقس | IP66 Weatherproof (from video) |
الضمان والدعم
This product comes with a 2-year manufacturer warranty. For technical support, troubleshooting, or warranty claims, please refer to the 'Lloyd's Smart' app or visit the official Lloyd's webموقع.
