FVTLED Smart Recessed Lighting 6-Inch RGBCW LED Downlight Instruction Manual

مقدمة

This manual provides comprehensive instructions for the FVTLED Smart Recessed Lighting 6-Inch RGBCW LED Downlight. Please read this manual thoroughly before installation and operation to ensure proper use and safety.

Image: FVTLED Smart Recessed Lighting 4-pack, including the downlights, remote control, and smart bridge.

محتويات الحزمة

تأكد من وجود جميع المكونات في العبوة:

• 4 x LED Recessed Downlights
• 1 × جهاز التحكم عن بعد
• جسر ذكي واحد
• 1 × دليل المستخدم (هذه الوثيقة)

تحديد

Image: Detailed product dimensions and key components including PC plastic housing, heat-resistant LED chip, fixed card, E26 lamp holder, and connector.

الإعداد والتثبيت

Reminder: Always turn off the main power supply before beginning any electrical installation to prevent electric shock.

1. Physical Installation of Downlights

1. تحضير فتحة التثبيت: Ensure the ceiling hole size is between 5.90 inches and 6.29 inches (150mm-160mm) for a 6-inch fixture.
2. Install E26 Lamp رأس: برغي E26 lamp head into the existing lamp holder in your recessed can.
3. Connect the Downlight: Connect the downlight's connector to the E26 lamp head's connector.
4. Secure the Downlight: محاذاة لamp body with the hole. Push the downlight into the recessed can. The spring clips on the side will secure it in place.

Image: Visual guide for installing the recessed downlight, showing hole drilling, E26 lamp head installation, connector connection, and final placement.

2. Smart Bridge and App Connection

The Smart Bridge facilitates communication between your mobile app and the downlights, enabling smart control features.

1. Plug in the Smart Bridge: Insert the Smart Bridge into a power outlet. Ensure it is within range of your Wi-Fi network.
2. تنزيل التطبيق: Download the "Hao Deng" app from your smartphone's app store.
3. Pair the Smart Bridge:
   • Open the "Hao Deng" app.
   • Navigate to the device addition section (usually indicated by a '+' or "Add Device").
   • Select "Smart Bridge" from the options.
   • Follow the on-screen instructions to connect the bridge to your Wi-Fi network. This typically involves pressing a button on the bridge and confirming in the app.
4. Pair the Downlights:
   • Once the Smart Bridge is connected, the app will guide you to scan for and add the downlights.
   • Ensure the downlights are powered on.
   • The app should detect the lights. Select them to add to your smart home system.

تعليمات التشغيل

1. التحكم في التطبيق

The "Hao Deng" mobile application provides comprehensive control over your FVTLED Smart Recessed Lights.

• تعديل اللون: Select from 16 million colors to create custom scenes and ambiances.
• التحكم في السطوع: ضبط السطوع من 10% إلى 100%.
• درجة حرارة اللون: Change the white light from 2700K (warm white) to 6500K (cool white).
• الأوضاع الديناميكية: Access various pre-set dynamic lighting modes or create your own.
• مزامنة الموسيقى: Lights can change color and rhythm with music played through your device.
• وظيفة التوقيت: قم بجدولة تشغيل/إيقاف الأضواء في أوقات محددة.

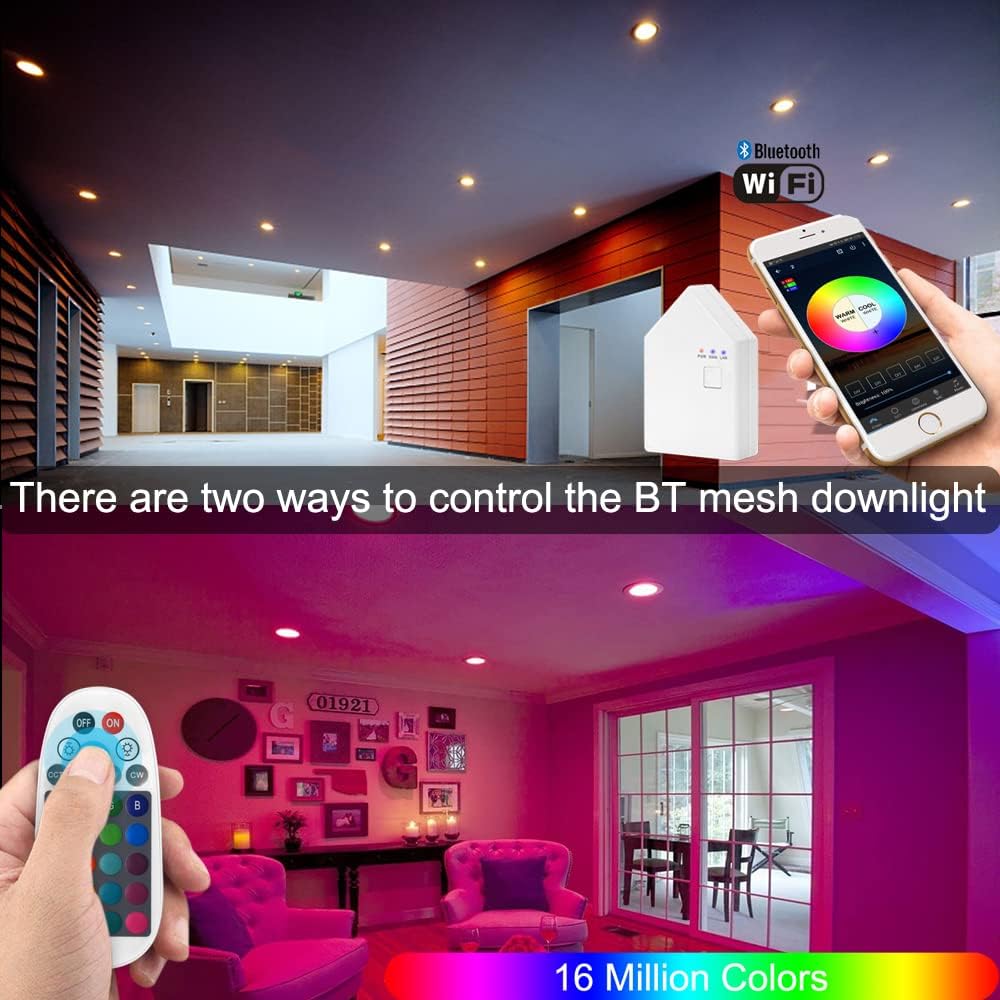

Image: Demonstrates control of the smart downlights via a mobile application and a physical remote control, showcasing color selection.

Image: Illustrates the adjustable color temperature from 2700K to 6500K and brightness dimming from 0% to 100% for the FVTLED Smart Recessed Lighting.

2. جهاز التحكم عن بعد

The included remote control offers direct access to basic lighting functions without needing the app.

• تشغيل/إيقاف الطاقة
• ضبط السطوع
• Color Selection (pre-set colors)
• Warm White/Cool White Adjustment

3. التحكم الصوتي (أليكسا ومساعد جوجل)

After connecting the Smart Bridge, you can integrate your FVTLED lights with Amazon Alexa or Google Assistant for convenient voice commands.

• Ensure your Smart Bridge is successfully registered and connected to your Wi-Fi network.
• Enable the "Hao Deng" skill/action in your Alexa or Google Home app.
• اكتشف الأجهزة.
• استخدم الأوامر مثل:
  • "Alexa/Hey Google, turn on the living room lights."
  • "Alexa/Hey Google, set the kitchen lights to blue."
  • "Alexa/Hey Google, dim the bedroom lights to 50%."

4. التحكم في المجموعة

Organize your lights into groups within the "Hao Deng" app for simultaneous control. Up to 64 Bluetooth mesh devices can be added to a single group.

• Create groups for different rooms or areas (e.g., "Kitchen," "Bedroom," "Hallway").
• Adjust all lights in a group simultaneously or control individual lights within a group.

Image: Depicts the group control feature, allowing users to manage multiple lights in different areas of a home using the mobile application.

5. وضع الموسيقى

Activate Music Mode in the app to synchronize your lights with audio, creating a dynamic and immersive lighting experience.

Image: Shows the Music Mode feature where the lighting changes in rhythm with music, controlled via the mobile app.

6. الوضع الموقت

Set schedules for your lights to automatically turn on or off, enhancing convenience and energy efficiency.

Image: Displays the timer mode interface in the mobile app, allowing users to schedule lights to turn on and off at specific times.

صيانة

To ensure the longevity and optimal performance of your FVTLED Smart Recessed Lighting, follow these maintenance guidelines:

• تنظيف: Gently wipe the surface of the downlights with a soft, dry cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or electronic components.
• إيقاف التشغيل قبل التنظيف: Always turn off the power to the light fixture at the circuit breaker before cleaning.
• الفحوصات الدورية: Periodically inspect the downlights for any signs of damage or loose connections. If any issues are found, consult a qualified electrician.
• تحديثات البرامج: Keep the "Hao Deng" app updated to the latest version to ensure compatibility and access to new features and bug fixes.

استكشاف الأخطاء وإصلاحها

If you encounter issues with your FVTLED Smart Recessed Lighting, refer to the following common troubleshooting steps:

الضمان والدعم

Specific warranty information for this product is not provided in the available data. Please refer to the product packaging or the manufacturer's official webالموقع للحصول على شروط وأحكام الضمان التفصيلية.

For technical support or further assistance, please contact FVTLED customer service through their official channels.
