1. المقدمة
Welcome to the world of smart cooking with the CREATE IKOHS Chefbot Touch. This innovative kitchen robot is designed to simplify your cooking process, offering a wide range of functions and pre-programmed recipes to help you prepare delicious meals with ease. With its intuitive touch screen and integrated WiFi, the Chefbot Touch brings convenience and versatility to your kitchen.
يرجى قراءة هذا الدليل بعناية قبل استخدام الجهاز لضمان التشغيل الآمن والمثالي. احتفظ بهذا الدليل للرجوع إليه مستقبلاً.
Image: The CREATE IKOHS Chefbot Touch, a versatile kitchen robot featuring a stainless steel mixing bowl and an interactive touchscreen interface.
2. الميزات الرئيسية
The CREATE IKOHS Chefbot Touch is equipped with advanced features to enhance your culinary experience:
- شبكة واي فاي مدمجة: Allows for periodic updates of recipes and software.
- شاشة لمس مقاس 5 بوصات: For easy navigation and recipe selection.
- 24 برامج تلقائية: Pre-set functions for various cooking tasks.
- 12 Speeds + Turbo Function: For precise control over mixing and processing.
- نطاق درجة الحرارة: قابلة للتعديل من 37 درجة مئوية إلى 120 درجة مئوية.
- وقت الطبخ: Up to 90 minutes of continuous operation.
- 140+ Preloaded Recipes: A wide variety of recipes available directly on the device.
- وظائف متعددة الاستخدامات: Capable of beating, whipping, emulsifying, mixing, stirring, confiting, precision cooking (degree by degree), kneading, boiling, keeping warm, fermenting, poaching, bain-marie, low-temperature cooking, slow cooking, steaming, crushing, chopping, grinding, grating, peeling, slicing, dicing, and pulverizing.
Image: An illustration highlighting the "All-in-One" capabilities of the Chefbot Touch, including functions such as beating, emulsifying, mixing, and more.
Image: A visual summary of the Chefbot Touch's core features: 24 automatic programs, 12 speeds with turbo, and over 140 pre-installed recipes.
3. المكونات والملحقات
The Chefbot Touch comes with a comprehensive set of accessories to support its many functions:
- Ice-crushing Blades: For crushing ice and hard ingredients.
- مجداف الخلط: للتحريك والخلط اللطيف.
- Hand Spatula: For scraping and stirring.
- Separator Basket: For cooking ingredients separately within the bowl.
- كوب القياس: لقياسات دقيقة للسوائل.
- Butterfly Whisk: For whipping and emulsifying.
- Reversible Cutting Disc: For slicing and grating.
- Food Processor Lid: For use with the cutting disc.
- دافع الطعام: For safely guiding food into the cutting disc.
- 2-level Steamer Basket: For steaming multiple ingredients simultaneously.
Image: The Chefbot Touch displayed with its full set of ten accessories, designed for various cooking tasks.
4. الإعداد
4.1 فك الصندوق والوضع الأولي
Carefully remove all components from the packaging. Place the Chefbot Touch on a stable, flat, and dry surface. Ensure there is adequate ventilation around the unit. Keep the appliance away from heat sources and direct sunlight.
4.2 توصيل الطاقة
قم بتوصيل سلك الطاقة بمأخذ كهربائي مؤرض. تأكد من مستوى الصوتtagيتوافق مع مواصفات جهازك (110 فولت).
4.3 التنظيف الأولي
Before first use, clean all removable parts (bowl, lid, accessories) with warm soapy water. Rinse thoroughly and dry completely. Wipe the main unit with a damp قماش. لا تغمر الوحدة الرئيسية في الماء.
4.4 اتصال واي فاي
To access online recipes and updates, connect your Chefbot Touch to your home WiFi network.
- Turn on the Chefbot Touch.
- Navigate to the settings menu on the touch screen.
- Select "WiFi" or "Network Settings".
- Choose your WiFi network from the list.
- أدخل كلمة مرور WiFi إذا طُلب منك ذلك.
- Confirm the connection. Once connected, the device will be able to download recipe updates.
5. تعليمات التشغيل
5.1 التشغيل العام
The Chefbot Touch is operated primarily through its 5-inch touch screen and the control knob.
- شاشة اللمس: Use to select programs, recipes, and adjust settings.
- مقبض التحكم: Rotate to adjust values (time, temperature, speed) and press to confirm selections.

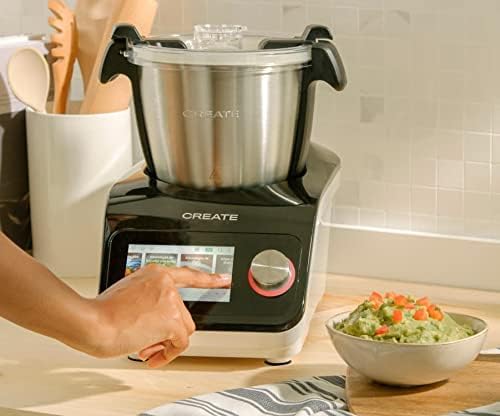

Image: A user demonstrating interaction with the Chefbot Touch's intuitive touchscreen interface.
5.2 استخدام البرامج التلقائية
The 24 automatic programs simplify complex cooking tasks.
- From the main menu, select "Programs".
- Browse through the available programs (e.g., Knead, Steam, Chop).
- Select the desired program. The device will guide you through the necessary steps and settings.
5.3 Following Preloaded Recipes
Access over 140 preloaded recipes directly on the device.
- اختر "الوصفات" من القائمة الرئيسية.
- Browse or search for a recipe.
- Select the recipe. The screen will display step-by-step instructions, including ingredients, quantities, and cooking parameters.
- Follow the on-screen prompts to add ingredients and operate the machine.
5.4 الوضع اليدوي
For custom cooking, use the manual mode to set time, temperature, and speed independently.
- Select "Manual" or "Custom" mode.
- Use the touch screen and control knob to set the desired cooking time (up to 90 minutes), temperature (37°C to 120°C), and speed (1-12 or Turbo).
- اضغط على زر البدء لبدء الطهي.
5.5 احتياطات السلامة أثناء التشغيل
- Always ensure the lid is properly secured before operating, especially when using high speeds or hot liquids.
- لا تملأ الوعاء أكثر من اللازم.
- Be cautious when handling hot liquids or steam.
- Use the provided spatula or other appropriate utensils to scrape down ingredients, always stopping the machine first.
- Keep hands and utensils away from moving blades.
6. الصيانة والتنظيف
Regular cleaning ensures the longevity and optimal performance of your Chefbot Touch.
6.1 تنظيف الوعاء والملحقات
- The stainless steel bowl should be washed by hand with warm soapy water. Rinse thoroughly and dry immediately to prevent water spots.
- Most accessories are dishwasher safe. Refer to individual accessory instructions for specific cleaning guidelines.
- لإزالة بقايا الطعام العنيدة، انقع الأجزاء في ماء دافئ وصابون قبل التنظيف.
6.2 تنظيف الوحدة الرئيسية
- امسح الجزء الخارجي من الوحدة الرئيسية بقطعة قماش ناعمة.amp قطعة قماش.
- لا تستخدم المنظفات الكاشطة أو إسفنجات التنظيف الخشنة، لأنها قد تتلف السطح.
- لا تغمر الوحدة الرئيسية في الماء أو أي سائل آخر.
- تأكد من فصل الوحدة قبل التنظيف.
6.3 التخزين
Store the Chefbot Touch and its accessories in a clean, dry place when not in use. Ensure all parts are completely dry before storage.
7. استكشاف الأخطاء وإصلاحها
If you encounter issues with your Chefbot Touch, refer to the following common problems and solutions:
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| الجهاز لا يعمل. | غير متصل بالكهرباء؛ إيقاف تشغيل الطاقة؛ فصل الطاقةtage. | Ensure power cord is securely plugged in. Check the main power switch. Verify power supply. |
| يتوقف المحرك أثناء التشغيل أو يسخن بشكل مفرط. | Overload; prolonged continuous use; safety mechanism activated. | Reduce the amount of ingredients. Allow the appliance to cool down for at least 30-60 minutes before resuming use. This is a safety feature to prevent damage. |
| Lid not closing properly. | Obstruction; incorrect alignment. | Check for any food particles or accessories blocking the lid. Ensure the lid is correctly aligned and locked into place. |
| مشاكل الاتصال بالواي فاي. | كلمة مرور خاطئة؛ إشارة ضعيفة؛ مشاكل في جهاز التوجيه (الراوتر). | Double-check the WiFi password. Move the unit closer to the router. Restart your router. |
| رسالة خطأ على الشاشة. | مشكلة تشغيلية محددة. | Note the error code or message. Refer to the digital manual on the device or contact customer support for specific guidance. |
إذا استمرت المشكلة بعد تجربة هذه الحلول، يرجى الاتصال بدعم عملاء CREATE.
8. المواصفات
Technical specifications for the CREATE IKOHS Chefbot Touch:
| ميزة | مواصفة |
|---|---|
| ماركة | يخلق |
| نموذج | Chefbot Touch |
| لون | أسود |
| قوة | 1400 واط |
| المجلدtage | 110 فولت |
| مادة | Stainless Steel (bowl), Aluminum (body) |
| عدد السرعات | 12 + توربو |
| مدى درجة الحرارة | 37 درجة مئوية إلى 120 درجة مئوية |
| Max Continuous Operation | 90 دقائق |
| الأجهزة المتوافقة | اي او اس، اندرويد |
| أبعاد المنتج (الطول × العرض × الارتفاع) | 38 × 24 × 23 سم |
| وزن المنتج | 10 كجم |

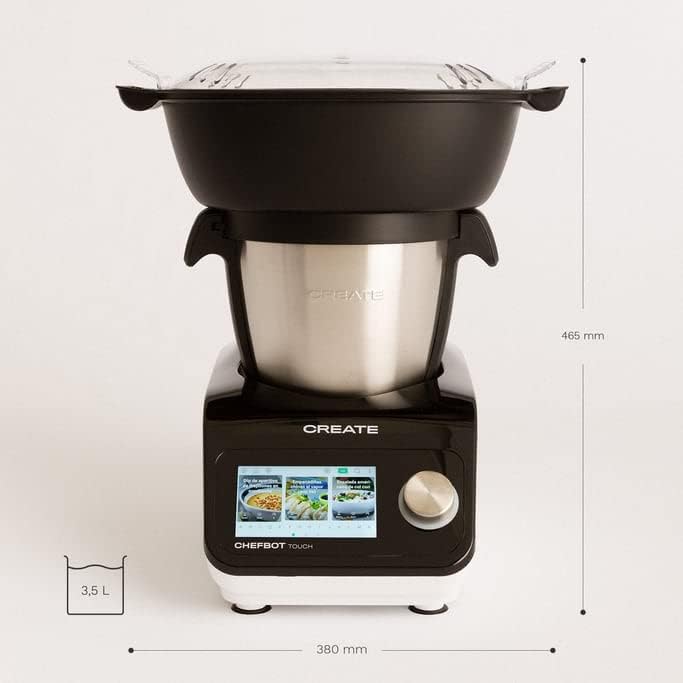

الصورة: الجبهة view of the Chefbot Touch, illustrating its dimensions (465mm height, 380mm width) and 3.5L bowl capacity.
الصورة: الجانب view of the Chefbot Touch, showing its depth dimension of 380mm.
9. الضمان والدعم
For information regarding warranty coverage, terms, and conditions, please refer to the documentation included with your purchase or visit the official CREATE webموقع.
If you require technical assistance, have questions about your product, or need to report an issue, please contact CREATE customer support through their official channels.
الشركة المصنعة: إنشاء إيكوهس
