مقدمة
Thank you for choosing the morpilot Ice Maker. This appliance is designed to provide you with fresh ice cubes quickly and conveniently. Please read this manual thoroughly before operating your new ice maker to ensure safe and efficient use.
The morpilot Ice Maker is capable of producing 9 ice cubes in as little as 8 minutes, with a daily production capacity of up to 26 pounds (12 kg) of ice. It features a 1.5-liter water capacity and comes with a BPA-free plastic ice scoop and a removable ice basket. Its compact design makes it suitable for various settings, including homes, offices, and small businesses.
Image: The morpilot Ice Maker, black with a clear lid, shown alongside a white ice basket filled with ice cubes and a bottle. This illustrates the product and its primary output.
يثبت
- Unpack the Ice Maker: Carefully remove the ice maker and all accessories from the packaging. Ensure all components, including the ice scoop and ice basket, are present.
- الموقع: Place the ice maker on a stable, level surface away from direct sunlight and heat sources. Ensure there is adequate ventilation around the unit.
- التنظيف الأولي: قبل الاستخدام الأول، نظّف الجزء الداخلي من صانع الثلج. راجع قسم "الصيانة" للاطلاع على تعليمات التنظيف التفصيلية.
- إضافة الماء: افتح الغطاء واملأ خزان المياه بماء نظيف صالح للشرب حتى الحد الأقصى. لا تملأه أكثر من اللازم.
- توصيل الطاقة: قم بتوصيل سلك الطاقة بمأخذ كهربائي أرضي.
Image: A detailed diagram of the morpilot Ice Maker, pointing out key features such as the simple press buttons, transparent window, ice scoop, large air vent, drain plug, and removable ice basket. This visual aid helps users identify components during setup.
تعليمات التشغيل
- بدء إنتاج الثلج: After adding water and plugging in, press the "ON/OFF" button on the control panel. The "ICE MAKING" indicator light will illuminate.
- Ice Cube Formation: The ice maker will begin the ice-making cycle. You can expect the first batch of 9 ice cubes in approximately 8 minutes.
- Monitoring Ice and Water:
- If the "ADD WATER" indicator light illuminates, it means the water reservoir is low. Add more water to continue ice production.
- If the "ICE FULL" indicator light illuminates, the ice basket is full. The machine will automatically stop making ice. Remove ice from the basket to resume production.
- الكشف بالأشعة تحت الحمراء: The machine uses infrared detection to sense when the ice basket is full, automatically pausing operation for safety and efficiency.
- جمع الجليد: Use the provided ice scoop to remove ice cubes from the basket. For best results, transfer freshly made ice to a freezer for storage, as the ice maker is not a freezer and ice may melt over time.
- إيقاف العملية: To stop ice production at any time, press the "ON/OFF" button again.

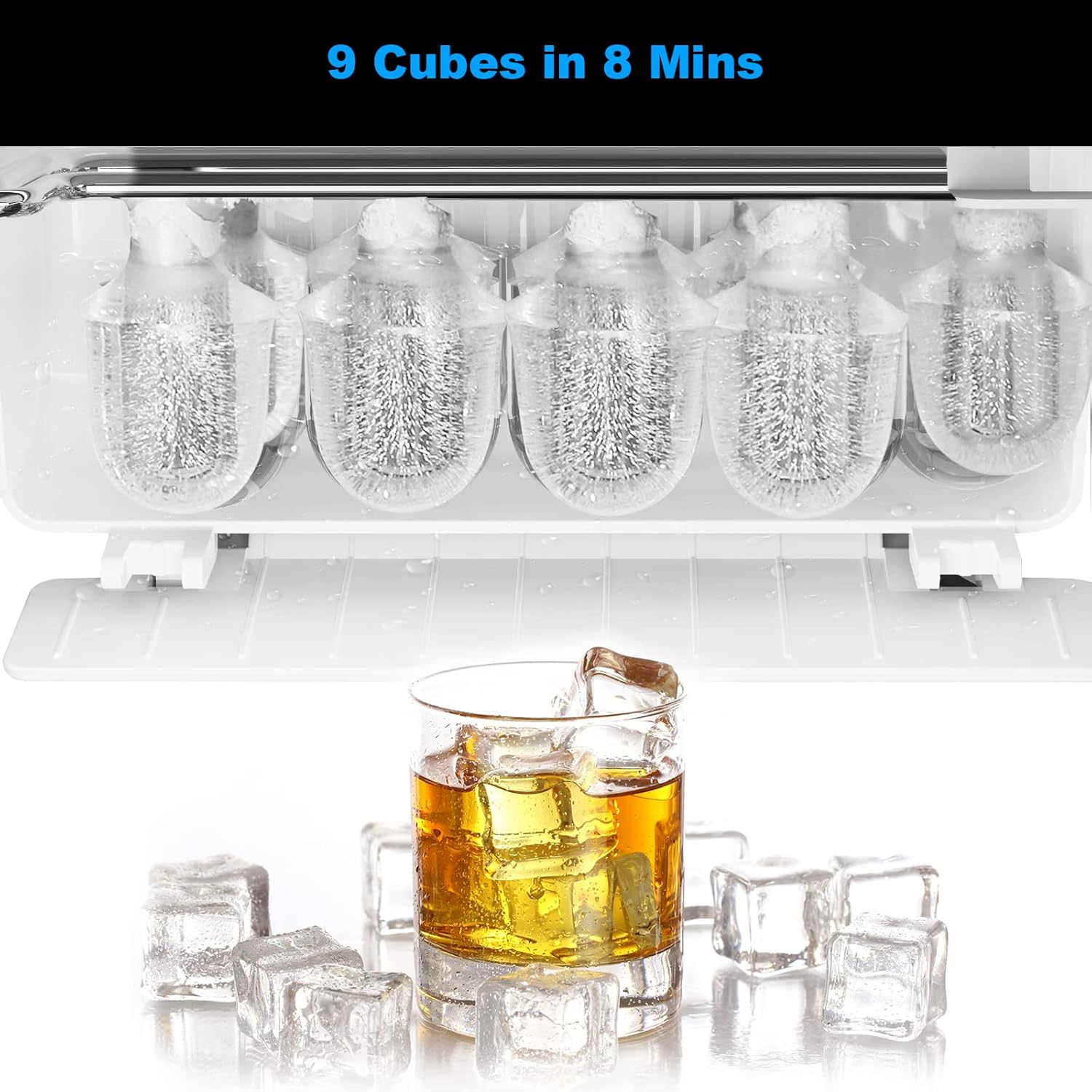

الصورة: لقطة مقربة view of the ice maker's internal mechanism, showing 9 ice bullet-shaped cubes forming. This highlights the rapid ice production capability of the machine.
صيانة
Regular cleaning and maintenance will ensure the longevity and optimal performance of your morpilot Ice Maker.
وظيفة التنظيف التلقائي:
- تأكد من أن خزان المياه مملوء بالماء النظيف.
- Press and hold the "CLEAN" button for a few seconds. The machine will initiate an automatic cleaning cycle.
- Once the cleaning cycle is complete, the water from the internal reservoir will drain through the bottom drain of the machine.
التنظيف اليدوي:
- استنزاف المياه: When the machine is not in use, completely drain any remaining water from the reservoir using the drain plug located at the bottom.
- مسح الداخلية: استخدم قطعة قماش ناعمةampened with mild detergent and water to wipe down the interior surfaces, including the ice basket and water reservoir. Rinse thoroughly with clean water.
- جفف جيدا: Ensure all internal parts are completely dry before storing the machine or using it again. This prevents mold and mildew growth.
- التنظيف الخارجي: امسح الجزء الخارجي من الوحدة بقطعة قماش ناعمة دamp القماش. لا تستخدم المنظفات أو المذيبات الكاشطة.

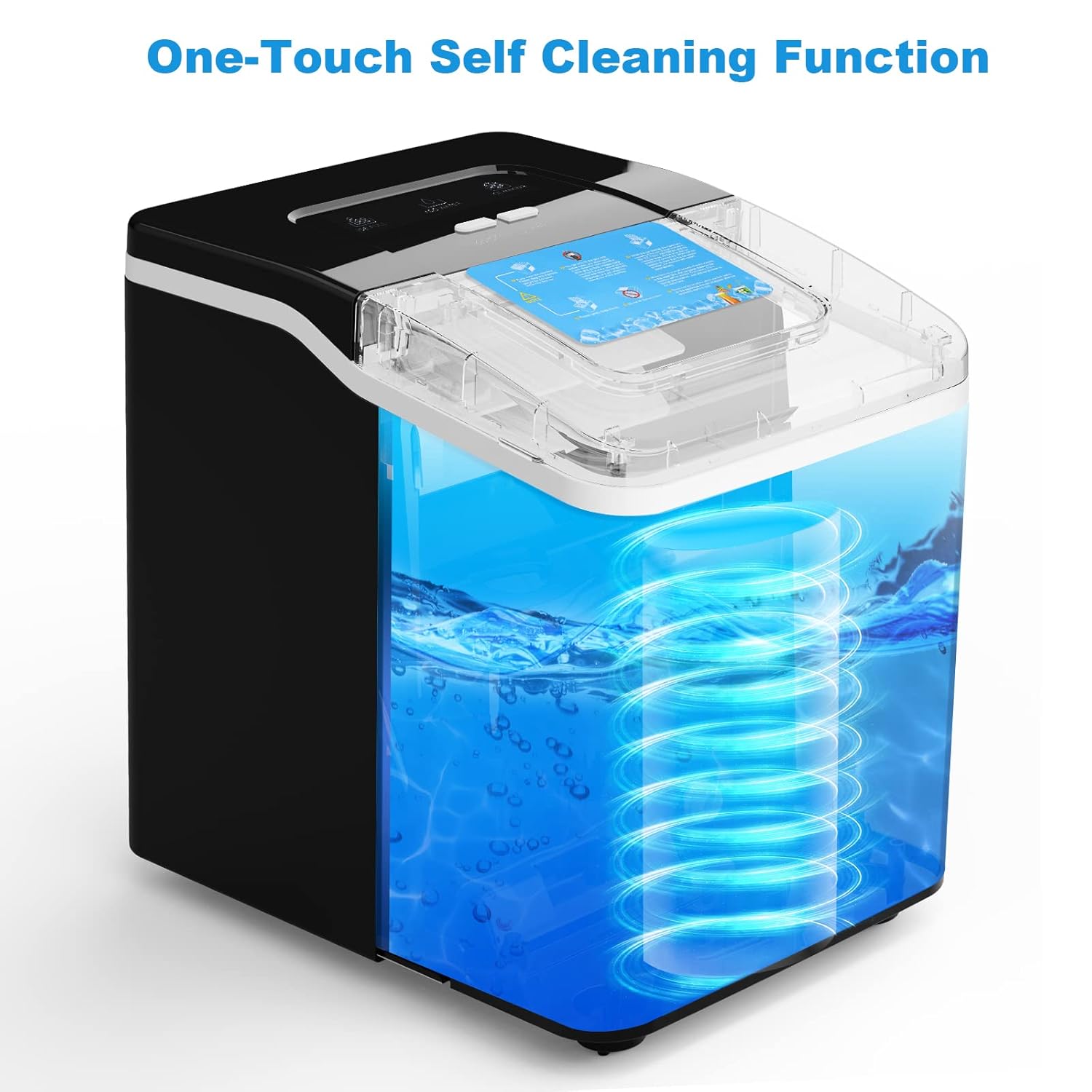

Image: An illustrative diagram demonstrating the internal water circulation during the one-touch self-cleaning function. This visual helps users understand how the automatic cleaning process works.
استكشاف الأخطاء وإصلاحها
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| صانع الثلج لا يعمل. | غير متصل بالكهرباء؛ الطاقة غير متوفرةtagهـ؛ منفذ معيب. | Ensure power cord is securely plugged in. Check circuit breaker. Try a different outlet. |
| مؤشر "إضافة الماء" مضاء. | خزان المياه فارغ أو منخفض. | أضف الماء النظيف الصالح للشرب إلى الخزان حتى خط التعبئة الأقصى. |
| مؤشر "ICE FULL" قيد التشغيل. | سلة الثلج ممتلئة. | Remove ice from the basket. The machine will resume ice production automatically. |
| مكعبات الثلج صغيرة جدًا أو لا تتشكل بشكل صحيح. | درجة حرارة الماء مرتفعة للغاية؛ درجة الحرارة المحيطة مرتفعة للغاية؛ كمية الماء غير كافية. | Use colder water. Ensure the machine is in a cool, well-ventilated area. Check water level. |
| الآلة تصدر ضجيجاً أثناء التشغيل. | Normal operation sounds (compressor, water pump); machine not level. | Some noise is normal. Ensure the machine is on a stable, level surface. |
| للثلج طعم أو رائحة غير عادية. | Stagnant water; machine needs cleaning. | Perform a thorough cleaning cycle. Use fresh, clean water. |
تحديد
- اسم الموديل: Morpilot Ice Maker
- الأبعاد (الطول × العرض × الارتفاع): 28.3 سم عرض × 22.4 سم طول × 30.8 سم ارتفاع (حوالي 11.14 × 8.82 × 12.13 بوصة)
- وزن: 9.07 كجم (حوالي 20 رطلاً)
- قوة: 120 واط
- المجلدtage: 120 فولت
- سعة المياه: 1.5 لتر
- Ice Production (per cycle): 9 مكعب
- Ice Production (daily): حتى 26 أرطال (12 كجم)
- التبريد: R600a
- مادة: بلاستيك
- رمز المنتج العالمي: 810074384063

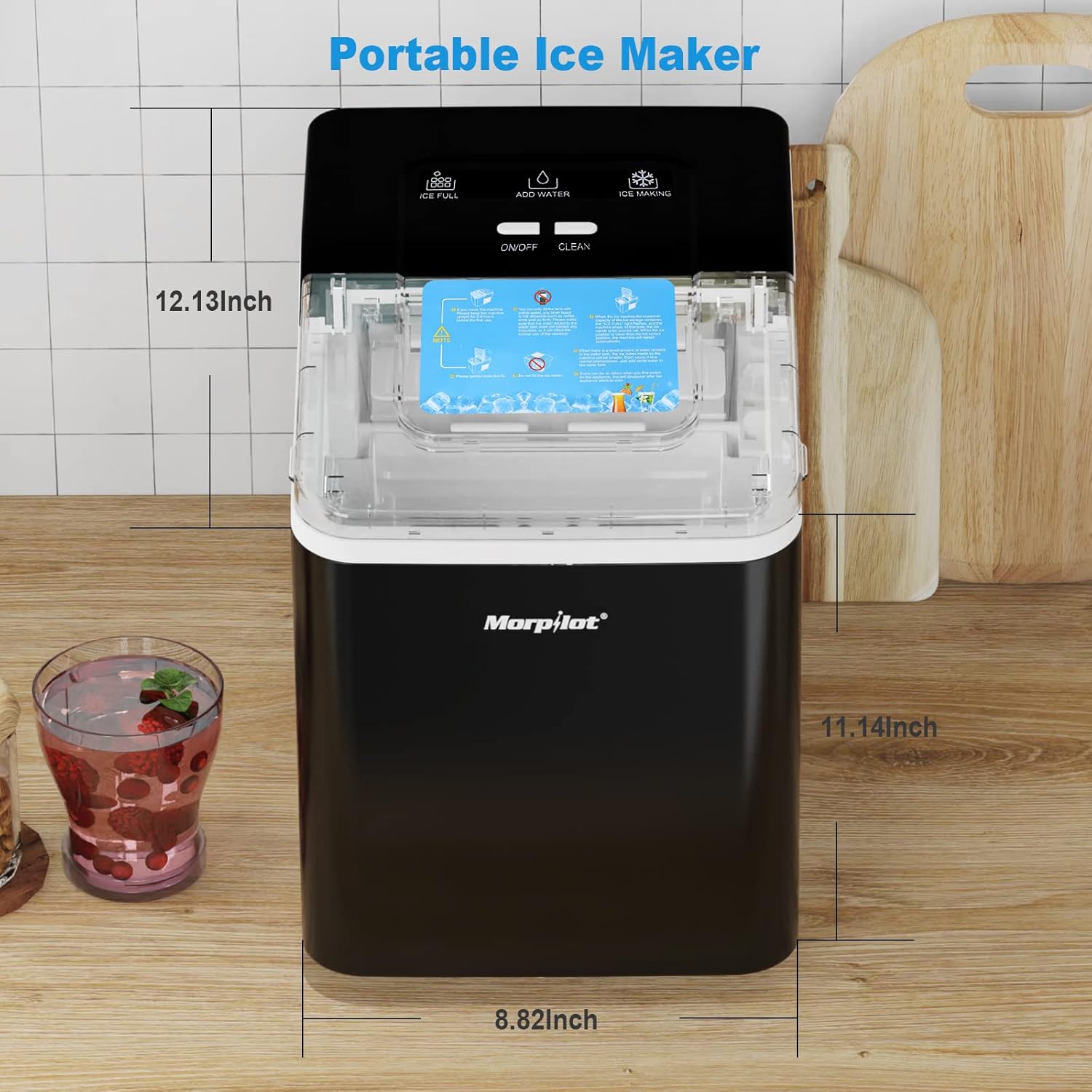

Image: The morpilot Portable Ice Maker displayed on a kitchen counter, with its key dimensions (height, width, depth) clearly labeled. This provides a visual reference for the product's size.
يدعم
If you encounter any problems during the use of your morpilot Ice Maker, or have any questions not covered in this manual, please do not hesitate to contact morpilot customer support for assistance.
For the most up-to-date contact information, please visit the official morpilot webالموقع أو الرجوع إلى وثائق الشراء الخاصة بك.
