دليل المستخدم لساعة المنبه الرقمية

مقدمة

شكرا لك على الشراءasing the Senicare Digital Alarm Clock. This alarm clock is designed to provide clear time display, customizable night lighting, and convenient charging options for your devices. Its large LED display ensures readability from a distance, making it suitable for all ages. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance and longevity of your device.

Figure 1: Senicare Digital Alarm Clock Overview

محتويات الحزمة

يرجى التحقق من محتويات العبوة عند فتحها للتأكد من وجود جميع العناصر:

• 1 x Senicare Digital Alarm Clock (Model: ZH027)
• 1 × محول الطاقة
• 1 x USB Power Cable (approx. 59.06 inches / 1.5 meters)
• 1 × دليل المستخدم (هذه الوثيقة)

الشكل 2: محتويات الحزمة المضمنة

يثبت

Follow these steps to set up your Senicare Digital Alarm Clock:

1. توصيل الطاقة: Connect the provided USB power cable to the "INPUT 5V===2A" port on the back of the alarm clock. Plug the other end into the power adapter, and then plug the adapter into a standard electrical outlet (100-240V AC). The display will light up.
2. النسخ الاحتياطي للبطارية (اختياري): For power failure memory, insert 2 x AAA batteries (not included) into the battery compartment on the bottom of the clock. This feature ensures that time and alarm settings are retained during a power outage, though the screen will go blank.
3. ضبط الوقت الأولي:
   • اضغط على الوقت المحدد button on the back of the clock. The hour digits will start flashing.
   • استخدم ساعة و مين buttons on the top of the clock to adjust the hour and minute respectively.
   • يضعط الوقت المحدد مرة أخرى لتأكيد الوقت.
4. تنسيق 12/24 ساعة: اضغط على 12/24ساعة button on the back to switch between 12-hour (with AM/PM indicator) and 24-hour time formats.

Figure 3: Power Failure Memory Feature

الشكل 4: الميزات الرئيسيةview

تعليمات التشغيل

ضبط المنبه

1. اضغط على آل سيت زر موجود في الجزء الخلفي من الساعة. ستومض أرقام ساعة المنبه.
2. استخدم ساعة و مين توجد أزرار في الأعلى لضبط وقت التنبيه المطلوب.
3. يضعط آل سيت مرة أخرى للتأكد من وقت التنبيه.
4. لتنشيط المنبه أو إلغاء تنشيطه، استخدم تشغيل / إيقاف الإنذار slider switch on the back of the clock. When the alarm is active, an alarm icon will appear on the display.

وظيفة الغفوة

عندما يصدر صوت التنبيه، اضغط على الزر الكبير ضوء الغفوة button on the top of the clock to activate the snooze function. The alarm will pause for 9 minutes and then sound again. You can repeat this process multiple times.

الشكل 5: وظيفة الغفوة

ضبط مستوى صوت التنبيه

The alarm volume can be adjusted to High (HI), Medium (MI), or Low (LO) using the مقدار slider switch located on the back of the clock.

Figure 6: Volume and Alarm Controls

وظيفة الإضاءة الليلية

The clock features a 7-color soft night light. Tap the large ضوء الغفوة button on the top of the clock to cycle through the different colors or turn the night light off. This provides a gentle illumination for your room.

Figure 7: 7-Color Soft Night Light

Figure 8: Night Light Color Options

باهتة أوتوماتيكية

The clock is equipped with a photosensitive sensor that automatically adjusts the display brightness (0-100%) to a comfortable level based on ambient light conditions, ensuring clear visibility day and night without being too bright in the dark.

Figure 9: Auto Dimmer Display Brightness

Figure 10: Automatic Brightness Adjustment

منافذ شحن USB مزدوجة

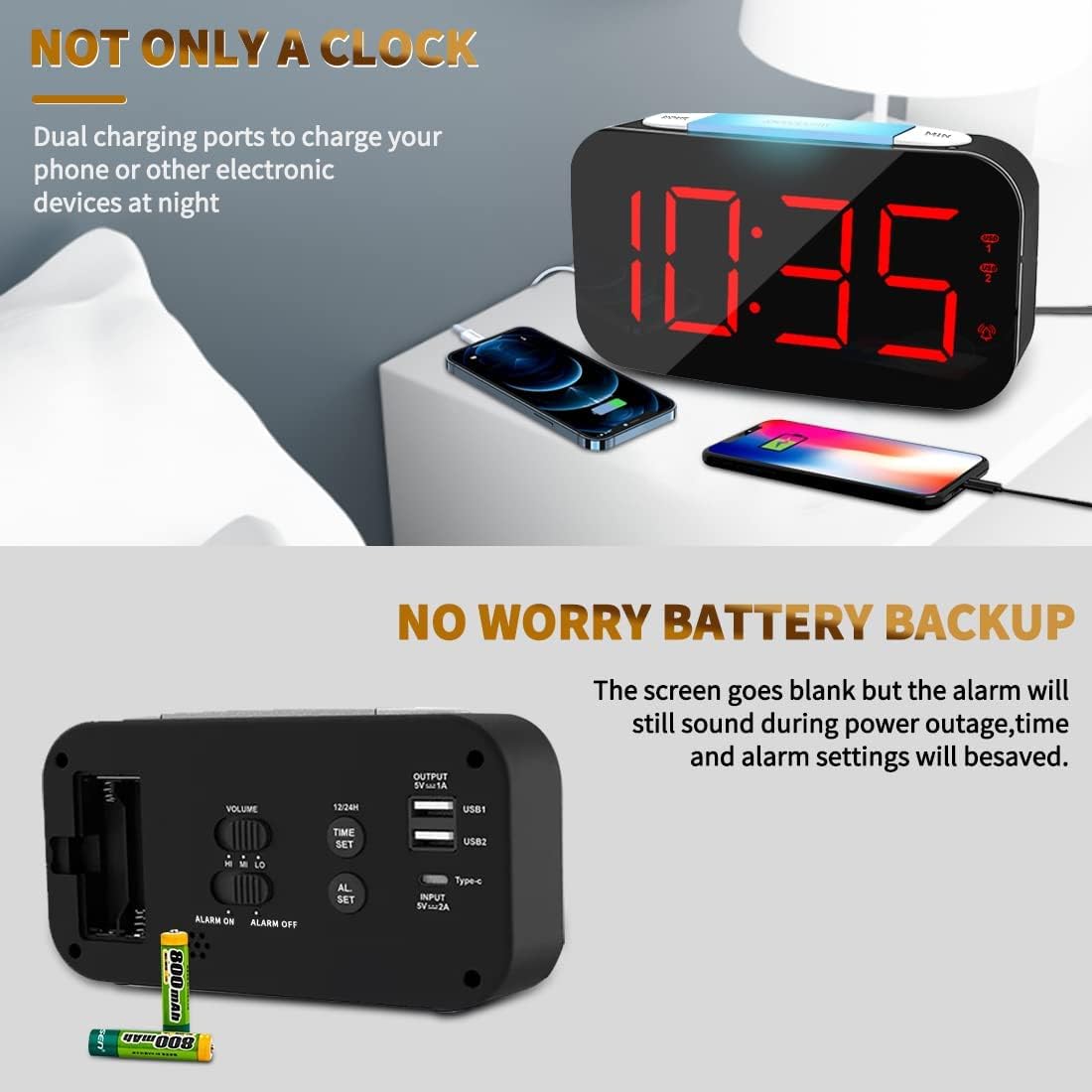

The back of the alarm clock features two 5V 1A USB charging ports (USB1, USB2) and one Type-C output port (5V 1A). These ports allow you to conveniently charge your smartphone, tablet, or other USB-powered devices directly from the alarm clock, eliminating the need for extra wall adapters.

Figure 11: Dual USB Charging Ports in Use

Figure 12: USB and Type-C Output Ports

صيانة

To ensure the longevity and proper functioning of your Senicare Digital Alarm Clock, please follow these simple maintenance guidelines:

• تنظيف: Use a soft, dry cloth to wipe the surface of the clock. Do not use abrasive cleaners, waxes, or solvents as they may damage the finish.
• الموقع: ضع الساعة على سطح ثابت ومستوٍ بعيدًا عن أشعة الشمس المباشرة ومصادر الحرارة والرطوبة الزائدة.
• قوة: Always use the original power adapter and cable provided with the device.
• استبدال البطارية: If using the battery backup feature, replace the AAA batteries annually or when the power failure memory function becomes unreliable.

استكشاف الأخطاء وإصلاحها

If you encounter any issues with your alarm clock, please refer to the following common problems and solutions:

تحديد

الضمان والدعم

Senicare offers a hassle-free ضمان لمدة 18 شهرًا for this Digital Alarm Clock. We are committed to providing high-quality products and excellent customer service.

For any questions, concerns, or warranty claims, please contact our friendly customer service team through the platform where you purchased the product. Please have your order number and product model (ZH027) ready for faster assistance.

We also offer an easy return policy. Refer to the retailer's return guidelines for more details.
