1. المقدمة
Thank you for choosing the SUITU Portable Cordless Handheld Vacuum Cleaner, Model ST-8001. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new vacuum cleaner. Please read it thoroughly before first use and keep it for future reference.
This vacuum cleaner is designed for both wet and dry cleaning tasks in various environments, including cars, homes, and offices. It features a powerful 10000Pa suction, a 120W motor, and a washable HEPA filter for effective cleaning.
2. محتويات العبوة
Carefully unpack your SUITU Portable Cordless Handheld Vacuum Cleaner and check for the following items:

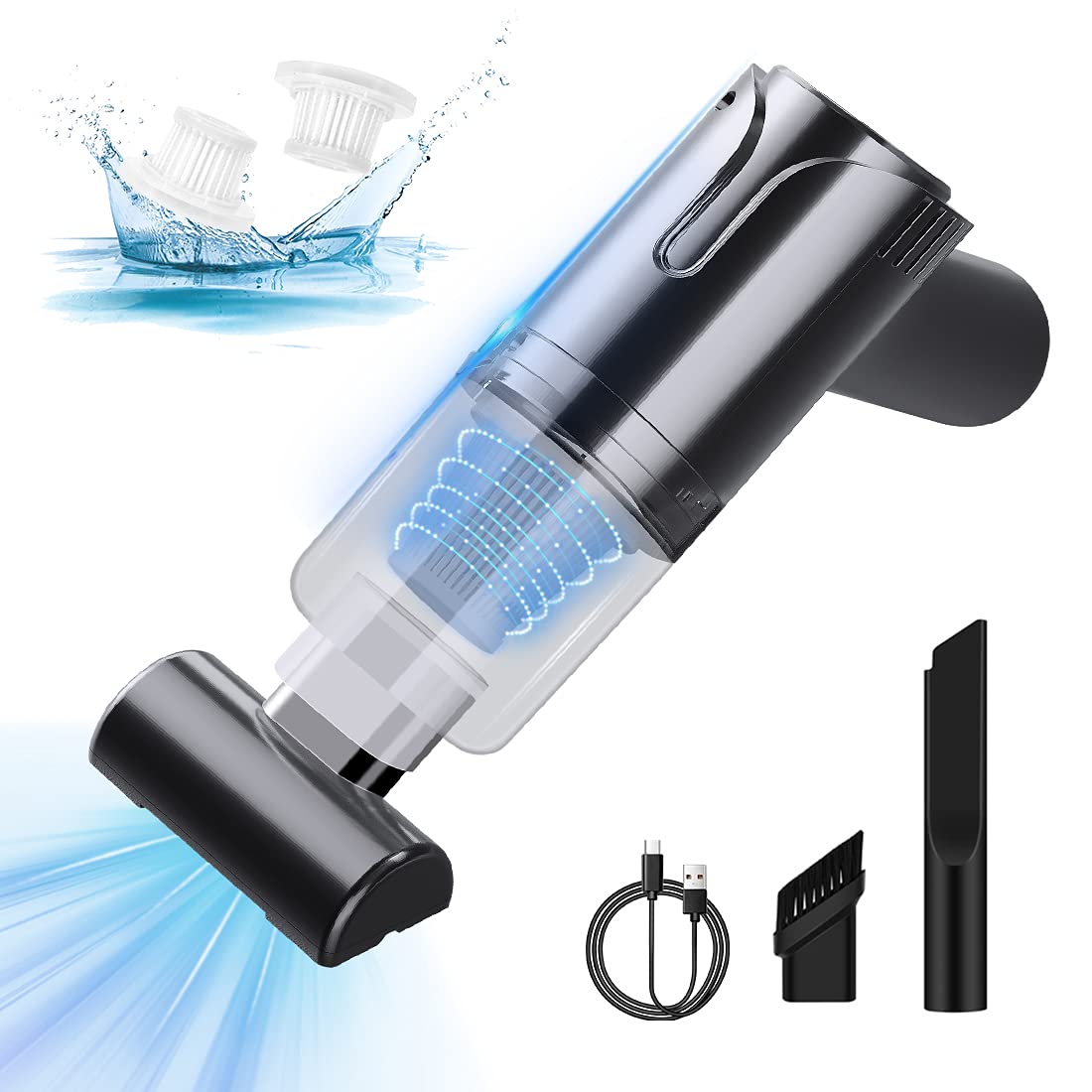

- SUITU Portable Cordless Handheld Vacuum Cleaner (Main Unit)
- فوهة الشقوق
- فوهة الفرشاة
- فوهة بفتحة واسعة
- كابل شحن USB
- فلتر هيبا قابل للغسل (مثبت مسبقًا)
- Additional HEPA Filter (may vary by package)
3. انتهى المنتجview
Familiarize yourself with the main components of your vacuum cleaner:
- النص الرئيسي: يحتوي على المحرك والبطارية وأزرار التحكم.
- Dust Collection Cup: حاوية شفافة لجمع المخلفات.
- فلتر HEPA: Located inside the dust collection cup, filters fine particles.
- زر الطاقة: Activates and deactivates the vacuum.
- منفذ الشحن: منفذ USB لشحن الجهاز.
- زر تحرير الفوهة: For detaching and attaching different nozzles.
4. الإعداد
4.1. الشحن الأولي
Before first use, fully charge the vacuum cleaner. Connect the provided USB charging cable to the vacuum's charging port and to a compatible USB power source (e.g., car USB port, wall adapter, power bank, laptop). The charging time is approximately 3.5 hours for a full charge, providing up to 60 minutes of continuous use.
4.2. تركيب الفوهات
Select the appropriate nozzle for your cleaning task. Align the nozzle with the vacuum's suction opening and push firmly until it clicks into place. To remove, press the nozzle release button and pull the nozzle off.
Video 1: This video demonstrates the assembly of the vacuum cleaner with its various attachments and shows its application in both dry and wet cleaning scenarios.
5. تعليمات التشغيل
5.1. تشغيل / إيقاف التشغيل
Press the power button located on the handle to turn the vacuum cleaner on. Press it again to turn the device off.
5.2. Dry Cleaning
For general dry debris like dust, crumbs, or pet hair, use the wide mouth nozzle for larger areas or the brush nozzle for upholstery and delicate surfaces. The crevice nozzle is ideal for tight spaces and corners.
5.3. Wet Cleaning
The vacuum cleaner is suitable for absorbing small amounts of liquid spills. Use the crevice nozzle for precise liquid pickup. Ensure the dust collection cup is not overfilled with liquid to prevent damage to the motor. After wet cleaning, empty and thoroughly dry the dust cup and filter.
5.4. سيناريوهات الاستخدام
This versatile vacuum is designed for various cleaning tasks:
- السيارة الداخلية: Easily clean car seats, floor mats, dashboards, and hard-to-reach areas like cup holders and door pockets.
- بيت: Ideal for quick clean-ups of spills, crumbs on tables, pet hair on furniture, or dust on shelves.
- مكتب: Keep your workspace tidy by vacuuming desks, keyboards, and office chairs.
6. الصيانة
6.1. Emptying the Dust Collection Cup
Regularly empty the dust collection cup to maintain optimal suction power. To empty, twist or press the release button on the dust cup to detach it from the main body. Dispose of the collected debris and reattach the cup securely.
6.2. تنظيف فلتر HEPA
The HEPA filter is washable and reusable. After detaching the dust cup, carefully remove the HEPA filter. Rinse it under running water until clean. Allow the filter to air dry completely before reinserting it into the dust cup. Do not use the vacuum with a wet filter. Replace the filter if it becomes damaged or excessively clogged.
6.3. العناية العامة
امسح الجزء الخارجي من المكنسة الكهربائية بقطعة قماش ناعمة.amp cloth. Do not use harsh chemicals or abrasive cleaners. Store the vacuum in a cool, dry place away from direct sunlight.
7. استكشاف الأخطاء وإصلاحها
إذا واجهت أي مشاكل مع المكنسة الكهربائية الخاصة بك، راجع المشاكل والحلول الشائعة التالية:
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| لا يوجد طاقة/لا يعمل | نفدت طاقة البطارية. | اشحن المكنسة الكهربائية بالكامل. |
| قوة شفط منخفضة | Dust collection cup is full. | Empty the dust collection cup. |
| قوة شفط منخفضة | فلتر HEPA مسدود. | نظف فلتر HEPA أو استبدله. |
| قوة شفط منخفضة | Nozzle or suction inlet is blocked. | Remove any obstructions from the nozzle or inlet. |
| توقف الفراغ بشكل غير متوقع | البطارية ضعيفة. | قم بإعادة شحن المكنسة الكهربائية. |
| توقف الفراغ بشكل غير متوقع | Overheating due to prolonged use or blockage. | Turn off the vacuum, clear any blockages, and allow it to cool down before resuming use. |
8. المواصفات
Key technical specifications for the SUITU Portable Cordless Handheld Vacuum Cleaner ST-8001:
- ماركة: سويتو
- اسم الموديل: ST-8001
- مصدر الطاقة: تعمل بالبطارية
- قوة المحرك: 120W (0.161 horsepower)
- قوة الشفط: 10000 باسكال
- نوع الفلتر: فلتر HEPA
- عمر البطارية: حتى 60 دقيقة
- وقت الشحن: حوالي 3.5 ساعات
- أبعاد المنتج: 9.61 بوصة طول × 2.83 بوصة عرض × 6.18 بوصة ارتفاع
- وزن السلعة: 1.41 رطل
- مستوى الضوضاء: 55 ديسيبل
- طريقة التحكم: زر اللمس / الضغط
- تقنية الاتصال: USB
- لون: أسود
9. معلومات الضمان
This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package or contact customer support for specific details regarding warranty coverage and terms.
10. دعم العملاء
For any questions, technical assistance, or service requests, please contact SUITU customer support through the retailer where you purchased the product or visit the official SUITU webموقع لمعلومات الاتصال.
