1. المقدمة
Thank you for choosing the Aigostar HU-XI-152 European Plug Adapter. This manual provides essential information for the safe and efficient use of your new adapter. Please read it thoroughly before use and retain it for future reference.
This compact adapter is designed to expand a single wall outlet into multiple power points, featuring one Schuko socket and two Euro sockets, making it suitable for various electronic devices and small household appliances in most European countries.
2. تعليمات السلامة
لضمان التشغيل الآمن ومنع الضرر، يرجى مراعاة إرشادات السلامة التالية:
- Do not exceed the maximum load: The adapter supports a maximum wattage of 3680W and a current of 16A at 250V. Overloading can cause overheating and fire hazards.
- حماية الطفل: This adapter is equipped with an integrated child protection mechanism. This feature helps prevent accidental electric shock and blocks foreign objects from entering the sockets.
- للاستخدام الداخلي فقط: This product is intended for indoor use in dry environments. Do not use it in wet or damp شروط.
- الإدراج السليم: Ensure all plugs are fully and securely inserted into the adapter's sockets. Loose connections can generate heat.
- تجنب الضرر: Do not attempt to disassemble, modify, or repair the adapter. If damaged, discontinue use immediately and contact customer support.
- احفظه بعيدًا عن الماء: Do not immerse the adapter in water or expose it to liquids.
3. انتهى المنتجview

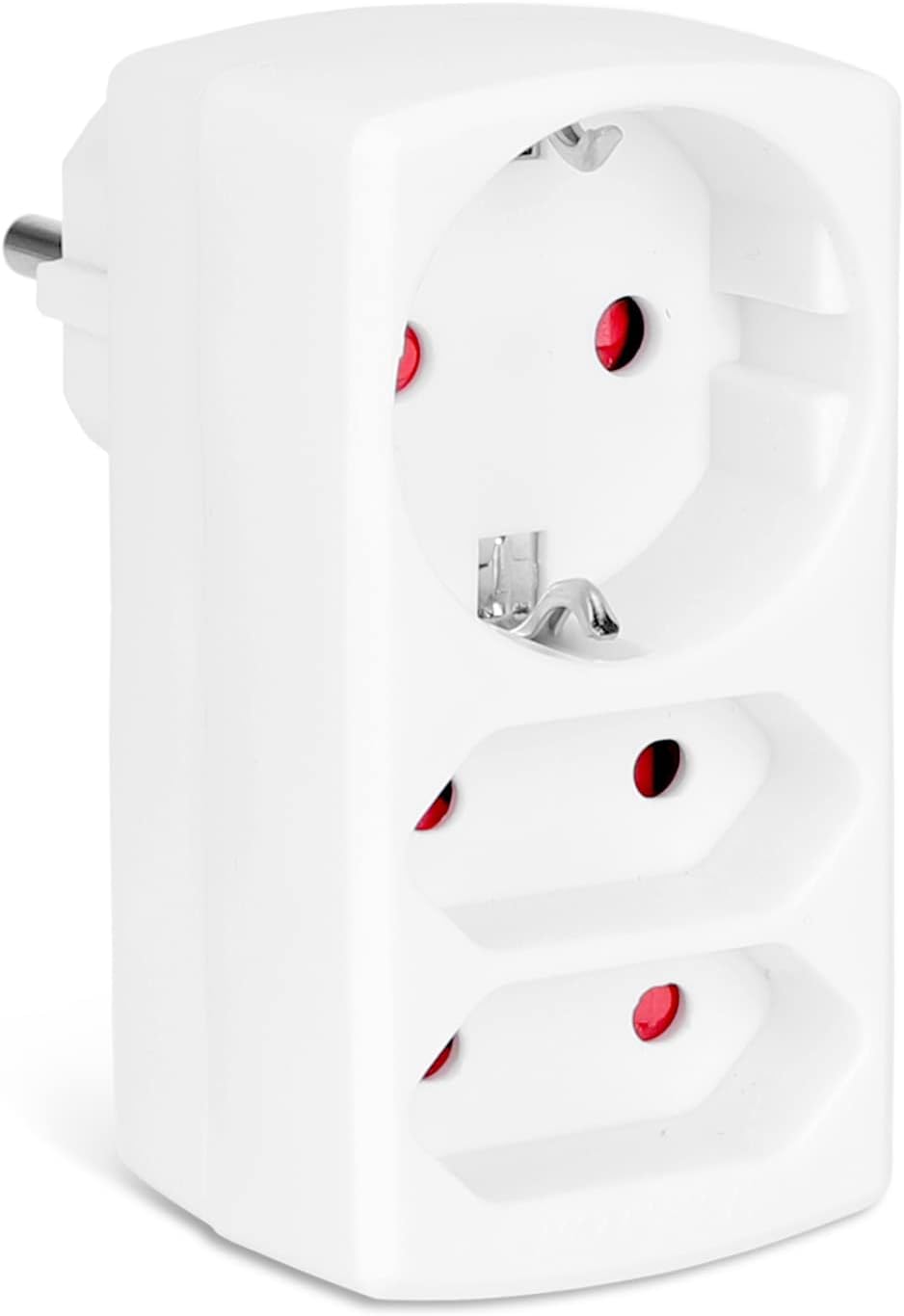

The Aigostar HU-XI-152 is a compact and versatile plug adapter designed for European wall outlets. It converts a single socket into three, providing convenient power access for multiple devices.
3.1 مكونات
- القابس الرئيسي: Standard European Type F (Schuko) plug for insertion into a wall socket.
- Schuko Socket: One Type F (Schuko) socket for devices requiring an earthed connection.
- Euro Sockets: Two Type C (Europlug) sockets for devices with two-pin plugs.
3.2 الأبعاد
The adapter features a compact design, making it suitable for various spaces and travel.
| قياس | قيمة |
|---|---|
| طول | 8.8 سم |
| عرض | 7.5 سم |
| Height (from wall) | 4.5 سم |
| وزن | 130 جرام |
4. الإعداد
The Aigostar HU-XI-152 plug adapter is designed for simple plug-and-play installation.
- Identify a suitable wall socket: Ensure the wall socket is easily accessible and not obstructed.
- Insert the adapter: Plug the Aigostar adapter firmly into a standard European wall socket. Ensure it is fully seated.
- قم بتوصيل أجهزتك: Plug your electronic devices into the available Schuko and Euro sockets on the adapter.
ملحوظة: The adapter's design allows it to be used in a double wall socket without obstructing the second outlet, thanks to its offset plug.
5. التشغيل
Once the adapter is plugged into a wall socket, it is ready to power your devices. Simply connect your appliances to the appropriate sockets.
- ال مقبس Schuko is suitable for devices with earthed plugs (Type F).
- ال Euro sockets are suitable for devices with two-pin plugs (Type C).
Always ensure that the total power consumption of all connected devices does not exceed the adapter's maximum rating of 3680W (16A at 250V).
6. الصيانة
The Aigostar HU-XI-152 adapter requires minimal maintenance to ensure its longevity and safe operation.
- تنظيف: Disconnect the adapter from the wall socket before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or abrasive materials.
- تخزين: عند عدم الاستخدام، قم بتخزين المحول في مكان بارد وجاف، بعيدًا عن أشعة الشمس المباشرة والرطوبة.
- تقتيش: Periodically inspect the adapter for any signs of damage, such as cracks, frayed wires, or discoloration. If any damage is observed, discontinue use.
7. استكشاف الأخطاء وإصلاحها
If you encounter issues with your Aigostar HU-XI-152 adapter, consider the following common solutions:
- لا توجد طاقة للأجهزة:
- Ensure the adapter is fully and securely plugged into the wall socket.
- Check if the wall socket itself is functional by plugging in another device directly.
- Verify that the connected devices are properly plugged into the adapter.
- تأكد من أن إجمالي الماءtagلا تتجاوز الطاقة الإجمالية للأجهزة المتصلة 3680 واط.
- المحول يشعر بالدفء:
- A slight warmth is normal during operation. However, if the adapter feels excessively hot, immediately unplug all devices and the adapter from the wall.
- Reduce the number of connected devices or their total power consumption.
- Child Protection Mechanism: If you have difficulty inserting a plug, ensure you are applying even pressure to both pins simultaneously to engage the child protection mechanism. Do not force plugs.
إذا استمرت المشكلة بعد تجربة هذه الخطوات، يرجى الاتصال بدعم العملاء.
8. المواصفات
| ميزة | مواصفة |
|---|---|
| ماركة | أيجوستار |
| رقم الموديل | هو-شي-152 |
| حجم الإدخالtage | 250 فولت |
| الحد الأقصى الحالي | 16 أمبير |
| الأعلى. واتtage | 3680 واط |
| عدد المقابس | 3 (1 Schuko, 2 Euro) |
| نوع القابس | European Type F (Schuko) |
| مادة | Copper (internal circuit), Heat-resistant plastic (housing) |
| لون | أبيض |
| أبعاد المنتج | 8.8 × 7.5 × 4.5 سم |
| المميزات الخاصة | Compact design, Child protection device |
9. الضمان والدعم
Aigostar products are manufactured to high-quality standards. For any questions regarding your product, including operational assistance or warranty claims, please contact Aigostar customer support. Refer to your purchase documentation or the Aigostar webالموقع للحصول على شروط الضمان المحددة ومعلومات الاتصال.
If you have any questions about our products, you can always contact us and we will be happy to help you.
