SAMSUNG 12.0 Cu Ft BESPOKE Compact Refrigerator User Manual

1. المقدمة

This manual provides essential information for the safe and efficient use of your SAMSUNG 12.0 Cu Ft BESPOKE Compact Refrigerator. Please read these instructions thoroughly before installation and operation, and retain them for future reference.

The Samsung BESPOKE Bottom Freezer refrigerator offers a flexible design, allowing it to be used as a standalone unit or combined with another BESPOKE Bottom Freezer refrigerator or Flex Column to suit your home's needs. It features a slim, sleek design, multi-vent technology for even cooling, a reversible door, and interior LED lighting. This appliance is Energy Star certified, promoting eco-friendly and energy-efficient operation.

2. الإعداد والتثبيت

2.1. الموقع والأبعاد

Careful measurement of your space is crucial before installation. Ensure adequate clearance for proper ventilation and door opening.

• عرض: Measure at the upper cabinets, countertop, and base of bottom cabinets (if molding is present). Note the thinnest point.
• ارتفاع: Measure from the floor to the lowest point on the cabinet above.
• عمق: For counter-depth, measure from the back wall to the edge of your counter. For standard depth, measure from the back wall to about 6 inches past your cabinets.

Allow for breathing room to prevent overheating: 0.5 inches on both sides, 1 inch above the unit, and 2 inches at the back. Always consult the manufacturer's specifications in your product manual for precise requirements.

Figure 1: Refrigerator Dimensions (Width: 23.38", Depth: 26.38", Height: 73")

2.2. المتطلبات الكهربائية

The refrigerator requires a standard 110 V, 3-prong, grounded electrical outlet. This outlet must be located within 5 feet of the refrigerator's intended position. Ensure existing electrical connections are in good condition.

2.3. Water Connection (for Ice & Water Dispensing Models)

If your model includes an ice and water dispenser, verify that a water shutoff valve is available within 6 feet of the refrigerator and on the same floor. The shutoff valve must be in working condition, corrosion-free, and made of metal (excluding copper).

2.4. Delivery Path Considerations

Plan the delivery path from your front door to the installation location. Measure all doorways from jamb to jamb. Account for any stairs, tight turns, or obstacles that could impede movement. If the refrigerator is to be placed next to a wall, ensure at least 2.5 inches of clearance between the wall and the hinge side of the door for full door swing.

2.5. Pre-Delivery Preparation

If you are replacing an old refrigerator, empty and unplug it at least two hours in advance of your scheduled delivery appointment.

3. تعليمات التشغيل

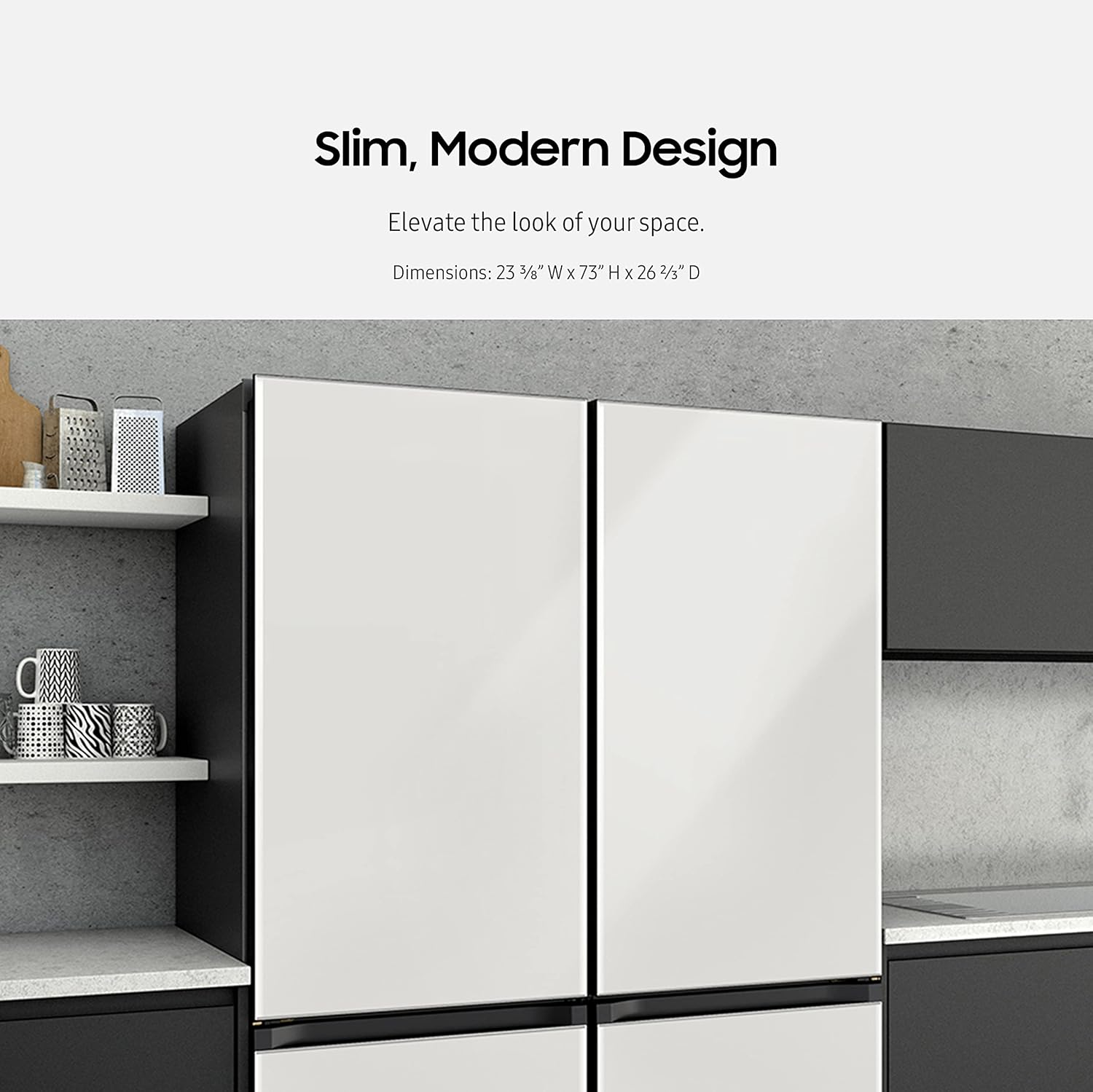

3.1. Flexible Design

Your BESPOKE refrigerator can function as a standalone unit or be seamlessly combined with other BESPOKE Bottom Freezer refrigerators or Flex Columns to create a customized storage solution.

Figure 2: Flexible Design - Standalone Refrigerator

Figure 3: Flexible Design - Combined Units

3.2. Even Cooling (Multi-Vent Technology)

The multi-vent technology ensures that every shelf within the refrigerator is evenly cooled, maintaining optimal freshness for your food items.

Figure 4: Even Cooling System

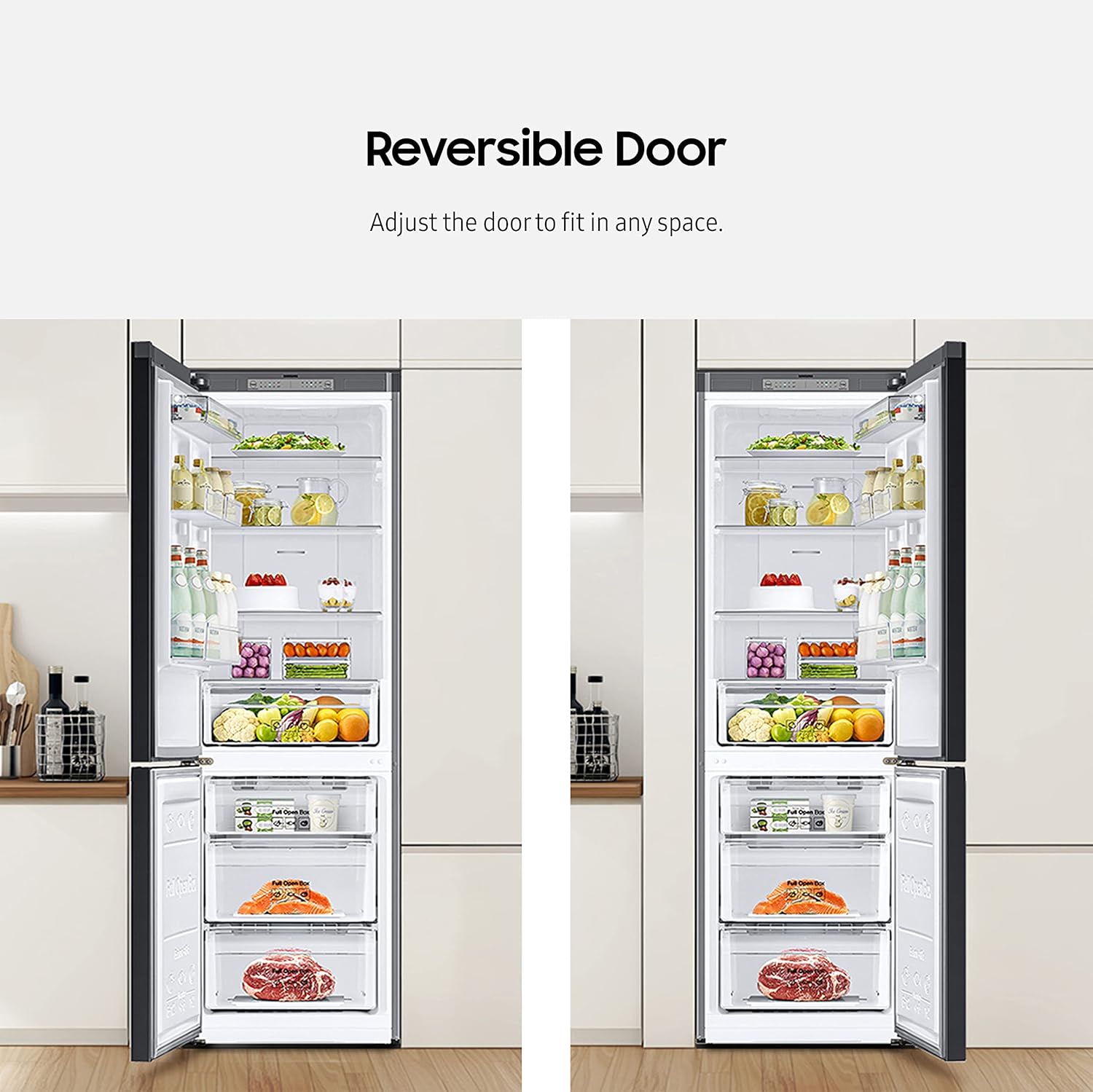

3.3. باب ذو وجهين

The bottom freezer's door is reversible, allowing you to adjust its opening direction (right or left) to best suit your kitchen layout and space constraints.

الشكل 5: ميزة الباب القابل للعكس

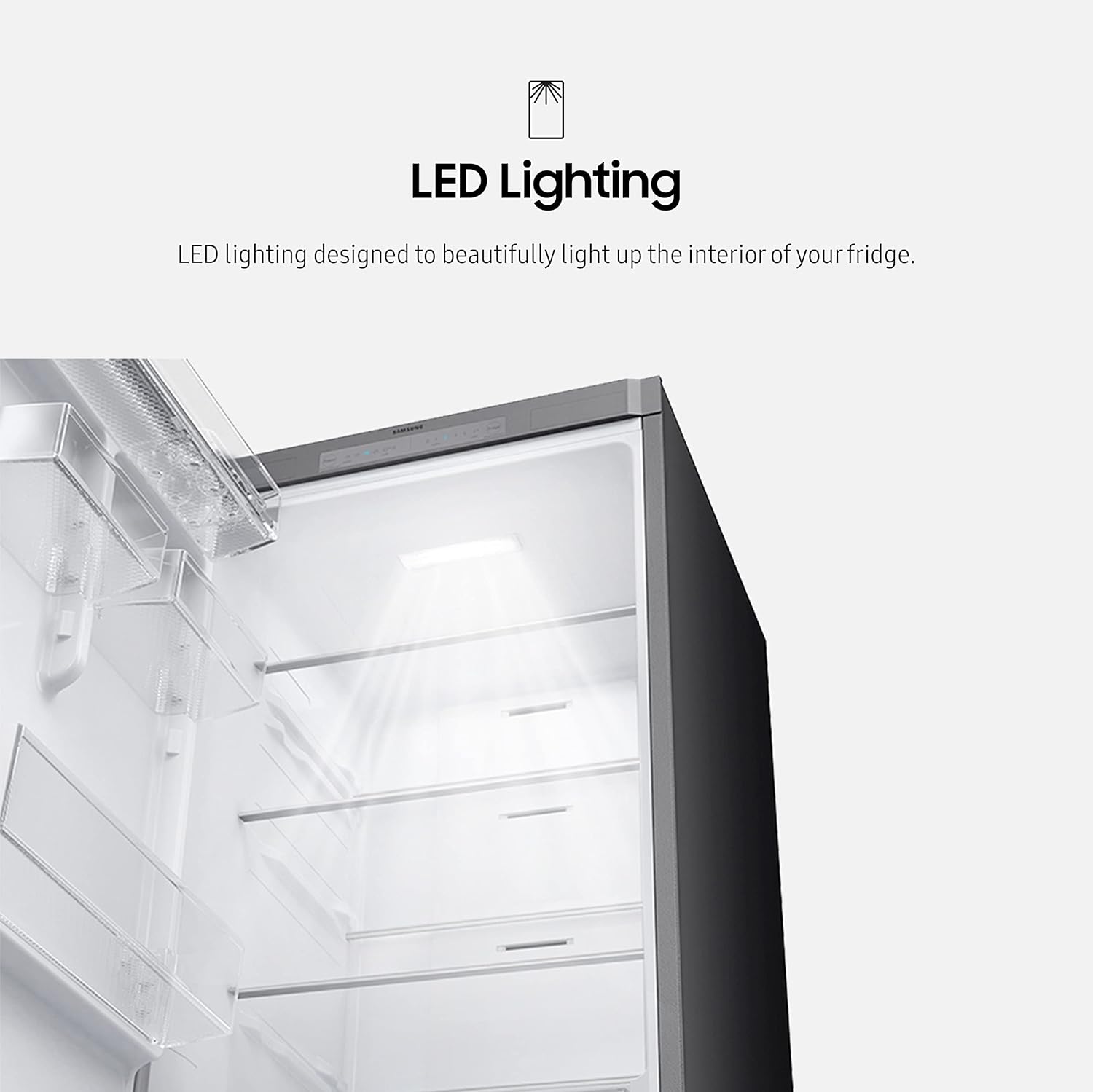

3.4. إضاءة LED

Interior LED lighting illuminates the fridge's interior, making it easy to locate items quickly and efficiently.

Figure 6: Interior LED Lighting

4. الصيانة

Regular maintenance ensures optimal performance and longevity of your refrigerator. Always unplug the appliance before cleaning or performing any maintenance.

• تنظيف: Clean the interior and exterior surfaces regularly with a mild detergent and soft cloth. Avoid abrasive cleaners or solvents.
• ملفات المكثف: Periodically clean the condenser coils located at the back or bottom of the refrigerator to maintain energy efficiency. Refer to the full product manual for detailed instructions.
• حشوات الباب: Inspect and clean door gaskets regularly to ensure a tight seal, preventing energy loss.

5. استكشاف الأخطاء وإصلاحها

قبل الاتصال بالخدمة، قم بـview القضايا والحلول الشائعة التالية:

• الثلاجة لا تبرد: تأكد من توصيل سلك الطاقة بإحكام، ومن عدم تعطل قاطع الدائرة. تأكد من ضبط درجة الحرارة بشكل صحيح.
• ضوضاء غير عادية: Some operational noises are normal (e.g., compressor hum, fan sounds). If noises are excessive or unusual, ensure the refrigerator is level and not touching a wall or cabinet.
• تسرب المياه: Verify that the water line (if applicable) is properly connected and not kinked. Check the drain pan for overflow.
• Door Not Sealing: Ensure door gaskets are clean and free from obstructions. Check if the refrigerator is level.

For more detailed troubleshooting steps, please consult the comprehensive manual provided with your appliance or visit the Samsung support webموقع.

6. المواصفات

7. الضمان والدعم

Your SAMSUNG 12.0 Cu Ft BESPOKE Compact Refrigerator is covered by a ضمان الشركة المصنعة لمدة عامين. For warranty claims, technical assistance, or customer support, please refer to the contact information provided in your product packaging or visit the official Samsung support webموقع.

For additional support, you can also visit the متجر سامسونج على أمازون.

8. الموارد الإضافية
