MOKiN USB C Docking Station 13-in-1 Triple Display Hub

1. المقدمة

The MOKiN USB C Docking Station (Model MUC0219US) is a versatile 13-in-1 hub designed to expand the connectivity of your USB-C enabled laptop. This device allows for triple display output on Windows systems, high-speed data transfer, fast power charging, and reliable network connectivity, making it suitable for various computing environments.

This manual provides detailed instructions for setting up, operating, and maintaining your docking station to ensure optimal performance.

2. مواصفات المنتج

• اتصال 13 في 1: Expands your laptop's capabilities with 2x 4K HDMI ports, 1x DisplayPort (DP), 1x Gigabit Ethernet port, 1x 3.5mm Audio port, 1x USB-C Power Delivery (PD) port, 1x SD card reader, 1x TF card reader, 3x USB 3.0 ports, and 2x USB 2.0 ports.
• Triple Display Support (Windows Only): Supports triple display configurations on Windows systems. Under Extended Mode, you can achieve four multiple displays (2x HDMI, 1x DP, and laptop screen). For Collage Mode, it supports triple display (1x HDMI, 1x HDMI+DP, and laptop screen). Note: Mac OS does not support triple display.
• Reliable Data Syncing: Features 3x USB 3.0 ports for 5Gbps high-speed data transfer and 2x USB 2.0 ports for broader compatibility.
• جيجابت إيثرنت: Provides a stable and fast 1000Mbps Gigabit RJ45 Ethernet connection.
• قارئات بطاقات SD/TF: تتيح فتحات بطاقات SD وTF المدمجة الوصول المتزامن إلى files from both standard SD and Micro SD memory cards.
• Fast Power Charging: The USB-C PD charging port supports up to 100W power input, delivering up to 87W for charging your Type-C devices or MacBook. Ensure your device supports the PD protocol.
• توصيل الصوت: Includes a 3.5mm audio port for connecting speakers or a microphone.
• التوصيل والتشغيل: No additional drivers are required for most functions, ensuring ease of use.

3. متطلبات التوافق

To ensure full functionality of the MOKiN USB C Docking Station, your laptop's USB-C port must support data transfer, display output (Display Alt Mode), and charging (Power Delivery). Please verify your laptop's USB-C port capabilities before use.

Compatible with laptops featuring Thunderbolt 3 port or USB 3.1 Type C Gen2 port. Examples include Dell XPS13/15, Lenovo Yoga 720/910/920/930, Microsoft Surface Book 2/Surface Go/Surface Laptop 3, Dell Latitude 13 7000/Latitude 13 E7370, and many other Type-C laptops.

Figure 1: USB-C Port Compatibility Guide. Ensure your laptop's USB-C port supports Full Function (Data Transfer + Display Alt + Charging) or Thunderbolt 3 for optimal performance.

4. دليل الإعداد

Follow these steps to set up your MOKiN USB C Docking Station:

1. Connect the Docking Station to your Laptop: قم بتوصيل كابل USB-C المدمج من محطة الإرساء بمنفذ USB-C متوافق على الكمبيوتر المحمول الخاص بك.
2. توصيل الطاقة (اختياري ولكن موصى به): For stable operation and charging your laptop, connect a USB-C Power Delivery charger to the PD port on the docking station.
3. ربط الشاشات الخارجية:
   • بالنسبة لشاشات HDMI، قم بتوصيل كابلات HDMI من شاشاتك بمنافذ HDMI الموجودة على محطة الإرساء.
   • For DisplayPort displays, connect a DP cable from your monitor to the DP port on the docking station.
4. توصيل الأجهزة الطرفية: Plug in your USB devices (keyboard, mouse, external hard drives, etc.) into the available USB 3.0 and USB 2.0 ports.
5. توصيل كابل الشبكة: For a wired internet connection, plug an Ethernet cable into the RJ45 Gigabit Ethernet port.
6. توصيل أجهزة الصوت: إذا رغبت في ذلك، قم بتوصيل سماعات الرأس أو مكبرات الصوت بمقبس الصوت 3.5 ملم.
7. أدخل بطاقات SD/TF: If needed, insert your SD or TF memory cards into the corresponding slots.

الشكل 2: انتهىview of the MOKiN 13-in-1 USB C Docking Station with labeled ports.

Figure 3: Power Delivery and High-Speed Data Transfer via USB 3.0 ports.

Figure 4: Gigabit Ethernet and SD/TF Card Reader functionality.

5. تعليمات التشغيل

5.1 Windows Display Configuration

For Windows operating systems, the docking station supports various display modes including Mirror Mode and Extend Mode across multiple monitors.

1. قم بتوصيل الشاشات الخارجية بمخرجات HDMI و/أو DisplayPort الموجودة على محطة الإرساء.
2. Right-click on your desktop and select "Display settings" or navigate to الإعدادات > النظام > الشاشة.
3. Under "Multiple displays", you can detect and arrange your monitors.
4. Select each display (1, 2, 3, etc.) and choose your preferred display option:
   • قم بتكرار هذه الشاشات: يعرض نفس المحتوى على جميع الشاشات المتصلة.
   • قم بتوسيع شاشات العرض هذه: Expands your desktop across all connected screens, allowing for more workspace.
   • Show only on 1/2/3: Uses only the selected display.
5. Adjust resolution and orientation (Landscape/Portrait) as needed for each display. For optimal performance, ensure refresh rates are set correctly (e.g., 60Hz for 4K displays if supported by your laptop and monitor).

Figure 5: Windows Triple Display Modes.

5.2 Mac OS Display Configuration

Mac OS supports Mirror Mode and Extended Display Mode with the docking station. However, Mac OS does لا support Multi-Stream Transport (MST) for triple independent displays. Therefore, all external monitors will mirror each other or extend as a single combined display.

1. قم بتوصيل الشاشات الخارجية بمخرجات HDMI و/أو DisplayPort الموجودة على محطة الإرساء.
2. اذهب الى إعدادات النظام > الشاشات.
3. You will see your built-in display and the connected external display(s).
4. To extend your desktop, ensure "Extended display" is selected. To mirror your display, select "Mirror for Built-in Display".
5. Adjust resolution and refresh rate as needed. Note that refresh rates for 4K displays on Mac OS might be limited to 30Hz depending on the specific Mac model and port capabilities.

Figure 6: Mac OS Display Modes.

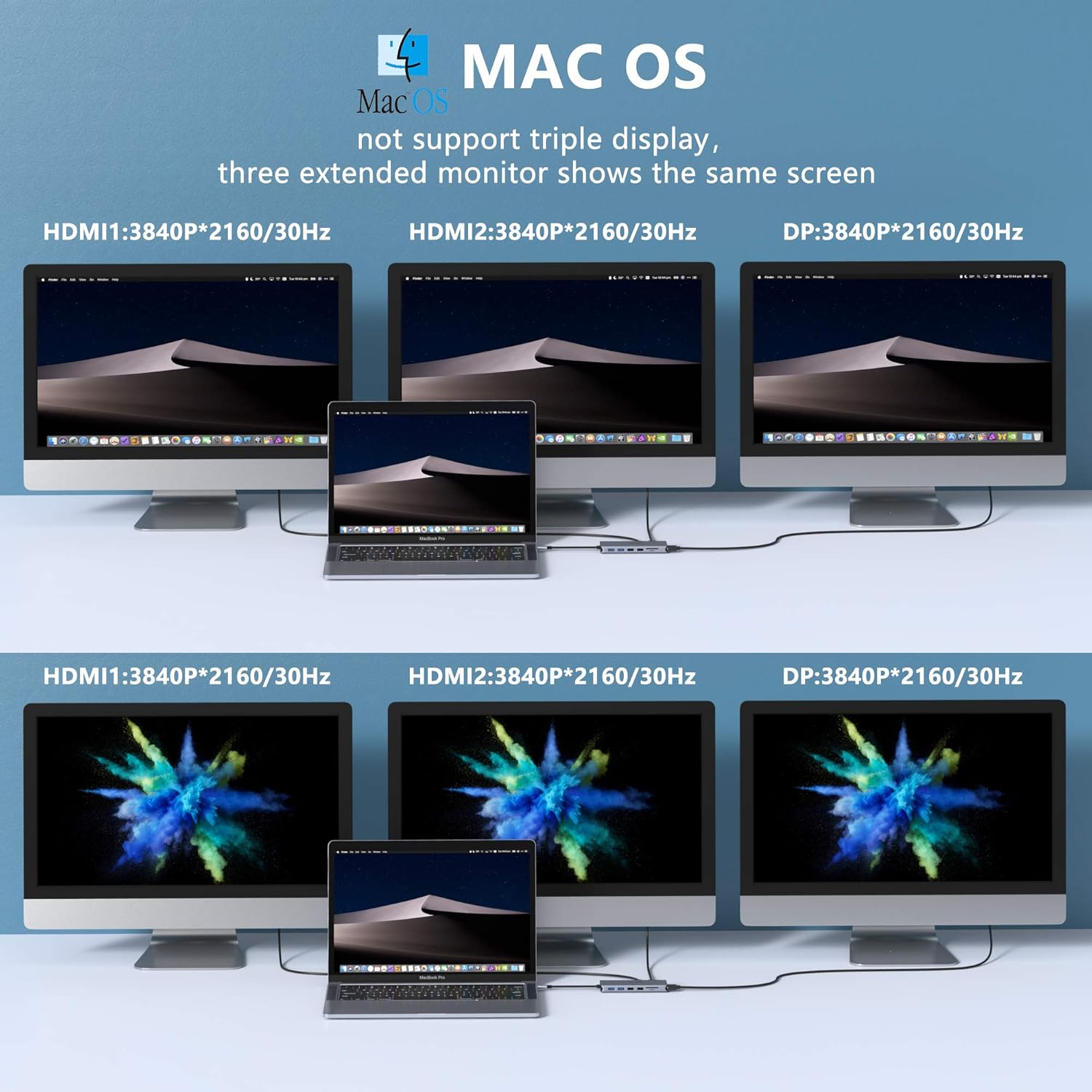

Figure 7: Mac OS Display Limitations with DP1.4.

6. المواصفات

7. استكشاف الأخطاء وإصلاحها

• لا يوجد إخراج للعرض:
  • Ensure your laptop's USB-C port supports Display Alt Mode. Refer to the "Compatibility Requirements" section.
  • Check all cable connections (USB-C to laptop, HDMI/DP to monitors).
  • Verify display settings on your operating system (Windows/Mac OS) to ensure monitors are detected and configured for "Extend" or "Duplicate" mode.
  • حاول إعادة تشغيل جهاز الكمبيوتر المحمول الخاص بك وإعادة توصيل محطة الإرساء.
  • Ensure external monitors are powered on and set to the correct input source.
• Intermittent Display Blackouts:
  • This can sometimes occur after screen time-outs or sleep mode. Try unplugging and replugging the cables in sequence: 1. Laptop to Hub, 2. Power to Hub (if applicable), 3. HDMI/DP to Hub.
  • تأكد من توصيل كافة الكابلات بشكل آمن.
  • Check for updated graphics drivers for your laptop.
• لا يوجد توصيل للطاقة/شحن:
  • تأكد من أن منفذ USB-C في جهاز الكمبيوتر المحمول الخاص بك يدعم خاصية توصيل الطاقة.
  • Verify that the power adapter connected to the docking station's PD port is functional and provides sufficient wattage (up to 100W input).
  • Check the USB-C cable connecting the power adapter to the docking station.
• أجهزة USB غير معترف بها:
  • تأكد من توصيل قاعدة التوصيل بجهاز الكمبيوتر المحمول الخاص بك بشكل آمن.
  • Try connecting the USB device directly to your laptop to confirm it's functional.
  • If using a high-power USB device, ensure the docking station is connected to an external power source.
• مشاكل اتصال الإيثرنت:
  • تحقق من اتصال كابل Ethernet بكل من محطة الإرساء وجهاز التوجيه/المودم الخاص بك.
  • تحقق من إعدادات الشبكة على جهاز الكمبيوتر المحمول الخاص بك.
  • تأكد من أن خدمة الإنترنت لديك فعّالة.

8. الصيانة

To ensure the longevity and optimal performance of your MOKiN USB C Docking Station, follow these maintenance guidelines:

• تنظيف: استخدم قطعة قماش ناعمة وجافة لتنظيف الجزء الخارجي من قاعدة الشحن. تجنب استخدام المنظفات السائلة أو المواد الكاشطة.
• تخزين: قم بتخزين محطة الإرساء في مكان بارد وجاف بعيدًا عن أشعة الشمس المباشرة ودرجات الحرارة القصوى.
• التعامل: Avoid dropping or subjecting the device to strong impacts. Do not bend or pull the integrated USB-C cable excessively.
• تهوية: Ensure the docking station has adequate ventilation to prevent overheating, especially during prolonged use with multiple connected devices.

9. الضمان والدعم

For warranty information, technical support, or further assistance with your MOKiN USB C Docking Station, please refer to the official MOKiN website or contact MOKiN customer service directly. Contact details can typically be found on the product packaging or the manufacturer's official support page.

MOKiN is committed to providing high-quality products and professional after-sales service.
