1. المقدمة
Welcome to your new SoFlow SO4 Pro Gen 2 Electric Scooter. This manual provides essential information for safe operation, maintenance, and troubleshooting. Please read it thoroughly before using your scooter to ensure a safe and enjoyable experience.
2. تعليمات السلامة
سلامتكم هي الأهم. التزموا دائمًا بالإرشادات التالية:
- احرص دائمًا على ارتداء خوذة ومعدات الحماية المناسبة (واقيات الركبة، واقيات المرفق) عند ركوب الدراجة.
- Check the brakes, tire pressure, and overall condition of the scooter before each ride.
- التزم بجميع قوانين ولوائح المرور المحلية.
- لا تركب الدراجة في ظروف رطبة، أو تحت أمطار غزيرة، أو عبر البرك المائية.
- The maximum load capacity is 150 kg. Do not exceed this limit.
- Utilize the integrated turn signals for enhanced visibility when changing direction.
- The contactless anti-theft feature with the integrated NFC chip provides additional security.
- Avoid riding on uneven surfaces, steep slopes (over 18%), or in crowded areas.
3. محتويات العبوة
Upon opening your package, ensure all the following items are present:
- SoFlow SO4 Pro Gen 2 Electric Scooter (1 piece)
- بطارية الليثيوم (مثبتة مسبقًا أو منفصلة)
- شاحن البطارية
- دليل المستخدم
4. انتهى المنتجview
Familiarize yourself with the main components of your SoFlow SO4 Pro Gen 2 Electric Scooter.
الشكل 4.1: أمام view of the SoFlow SO4 Pro Gen 2 Electric Scooter, highlighting the handlebars, front wheel, and deck.

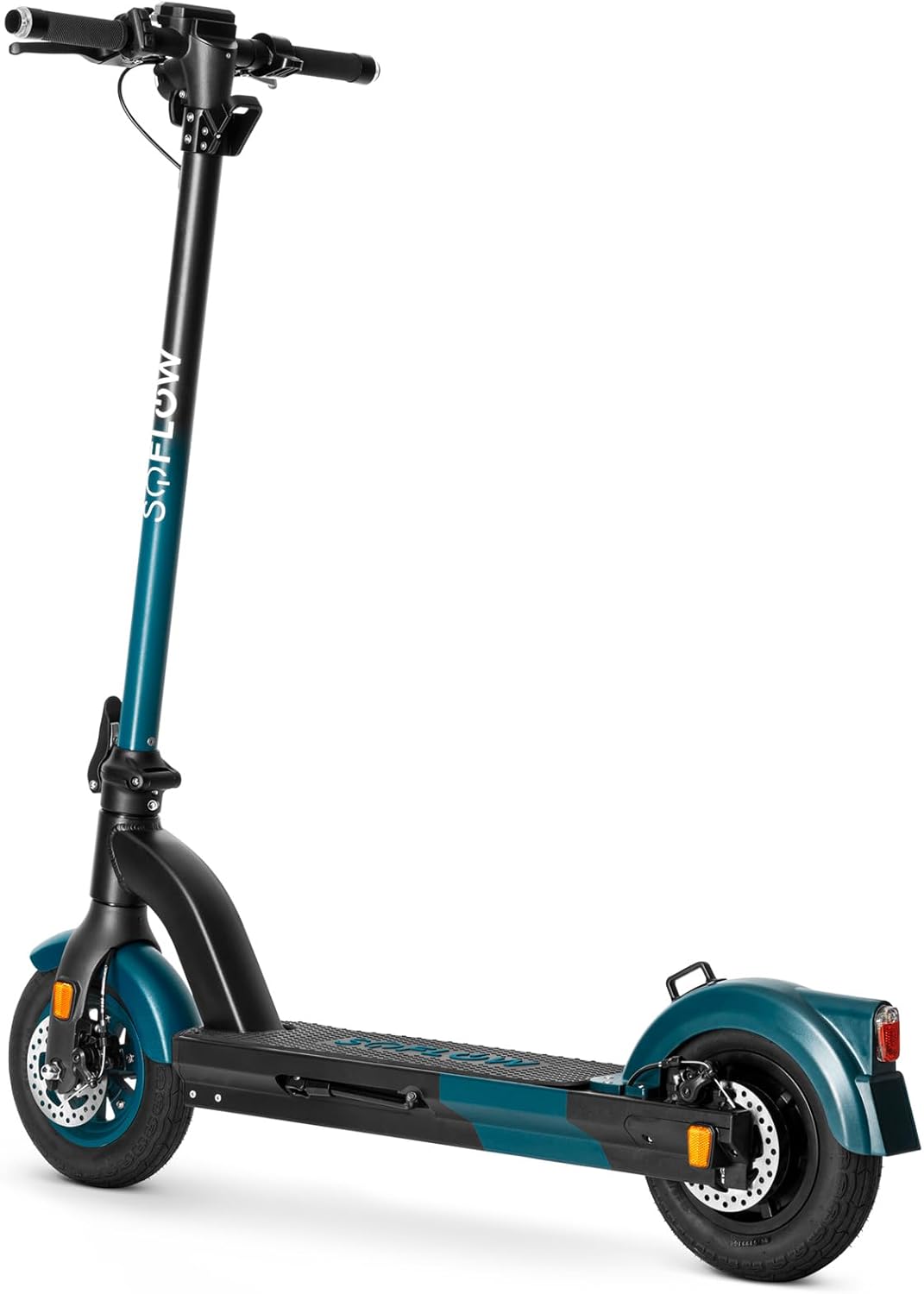

الشكل 4.2: الجانب الامامي view of the SoFlow SO4 Pro Gen 2 Electric Scooter, showing the front disc brake and tire.
الشكل 4.3: جانب view of the SoFlow SO4 Pro Gen 2 Electric Scooter, illustrating the overall profile and rear wheel.
الشكل 4.4: مؤخرة view of the SoFlow SO4 Pro Gen 2 Electric Scooter, showing the rear fender, brake light, and disc brake.

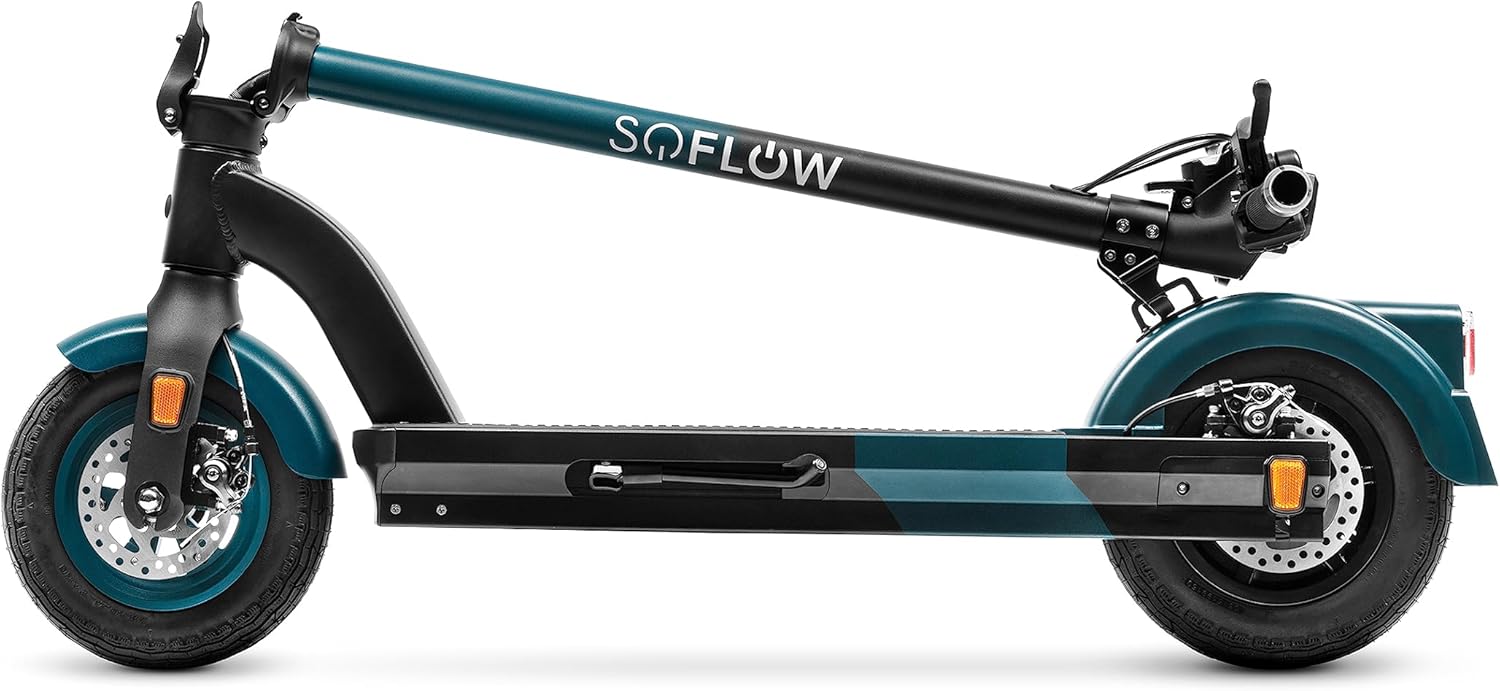

الشكل 4.5: The SoFlow SO4 Pro Gen 2 Electric Scooter in its folded position, demonstrating its compact design for transport.
الشكل 4.6: A hand removing the lithium battery from the scooter's deck compartment, illustrating the removable battery feature.

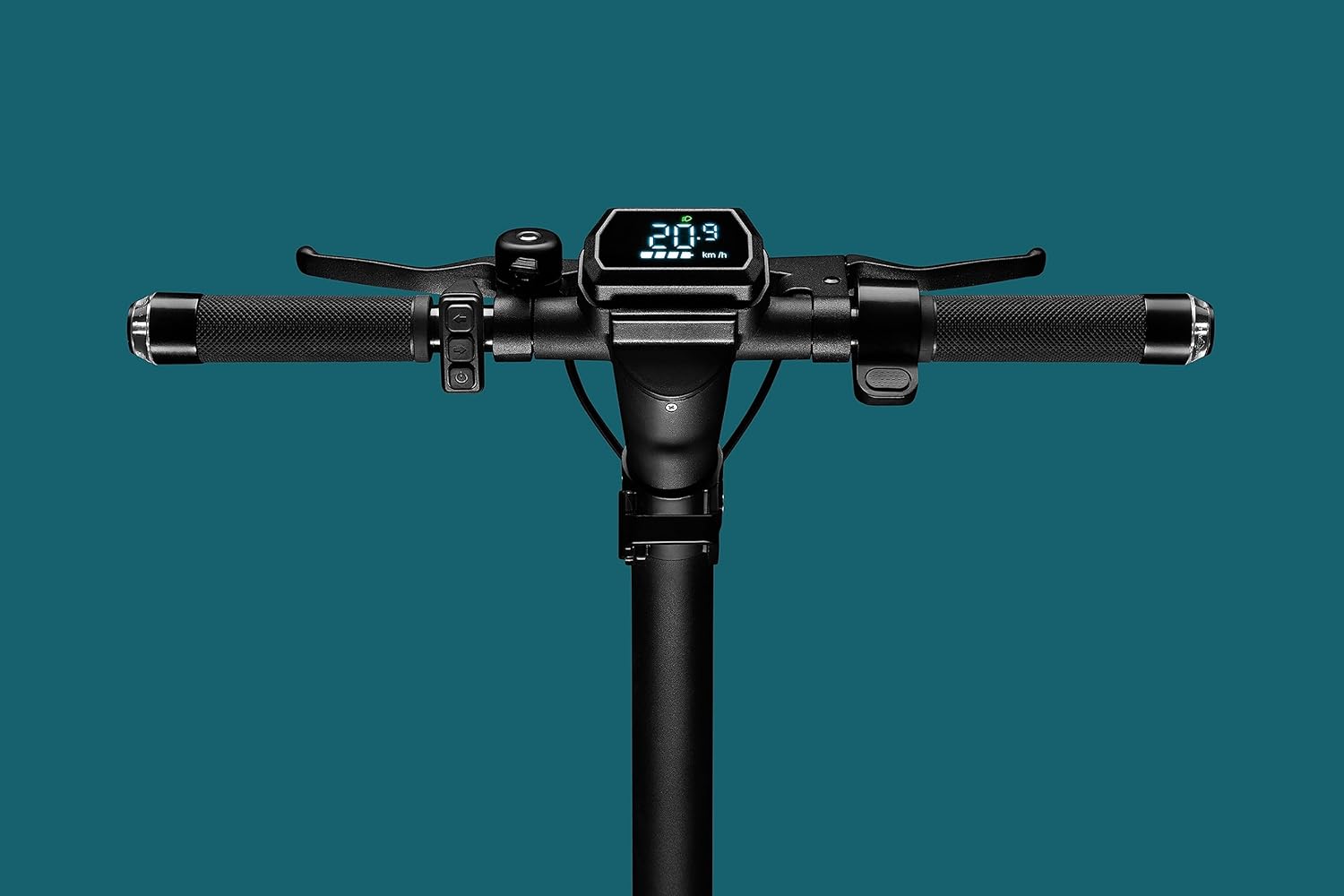

الشكل 4.7: Close-up of the handlebar display, showing the digital screen with speed and battery indicators, along with controls.
الشكل 4.8: The scooter's headlight illuminated, with integrated turn signals on the handlebars also lit, emphasizing visibility features.
الشكل 4.9: مفصل view of the front wheel and disc brake assembly.
الشكل 4.10: مفصل view of the rear wheel and disc brake assembly.
5. الإعداد
5.1 فتح السكوتر
- ضع السكوتر على سطح مستو.
- Release the folding mechanism latch, usually located near the base of the handlebar stem.
- Carefully lift the handlebar stem until it locks securely into the upright position. Ensure the locking mechanism is fully engaged.
- Adjust the handlebars to your desired height if adjustable, and tighten any quick-release clamps.
5.2 شحن البطارية
The SoFlow SO4 Pro Gen 2 is equipped with a Lithium battery. For optimal performance and battery longevity, follow these charging instructions:
- حدد موقع منفذ الشحن على السكوتر.
- Connect the charger to the charging port, then plug the charger into a standard power outlet.
- The charging indicator on the charger will show the charging status (e.g., red for charging, green for fully charged).
- A full charge takes approximately 3 hours and 50 minutes with the special "fast charge" charger.
- Always ensure the battery is fully charged before your first ride and after each use for maximum range.
6. تعليمات التشغيل
6.1 تشغيل/إيقاف التشغيل
- لتشغيل: Press and hold the power button on the handlebar display until the screen illuminates.
- لإيقاف التشغيل: اضغط مع الاستمرار على زر الطاقة مرة أخرى حتى تنطفئ الشاشة.
6.2 ركوب السكوتر
- ضع إحدى قدميك بثبات على سطح السفينة وادفع بالقدم الأخرى لاكتساب الزخم الأولي.
- Once moving, place your second foot on the deck.
- Gently press the accelerator lever (throttle) to engage the motor.
- The 500-watt motor provides ample power for speeds up to 25 km/h and inclines up to 18%.
- Use the integrated turn signals on the handlebars to indicate your direction changes.
6.3 الكبح
The scooter is equipped with front and rear disc brakes for precise and controlled stopping.
- To slow down or stop, gently squeeze the brake levers on the handlebars.
- Apply both brakes simultaneously for more effective stopping power.
- تجنب الفرملة المفاجئة أو القاسية، خاصة عند السرعات العالية، لمنع فقدان السيطرة.
6.4 Using the SoFlow App
Enhance your riding experience by connecting your scooter to the intuitive SoFlow application:
- Download the SoFlow app from your smartphone's app store.
- Enable Bluetooth on your smartphone and open the SoFlow app.
- Follow the in-app instructions to pair your scooter.
- The app provides important details such as battery capacity, current speed, Bluetooth status, and light indicators.
- You can also track your completed journeys and electronically lock the scooter for added security.
7. الصيانة
Regular maintenance ensures the longevity and optimal performance of your SoFlow SO4 Pro Gen 2 Electric Scooter.
- تنظيف: امسح السكوتر بالإعلانamp cloth after each use. Avoid using high-pressure water or harsh chemicals.
- ضغط الإطارات: Regularly check the tire pressure of the 10-inch pneumatic tires. Maintain recommended pressure for optimal ride quality and range.
- فحص الفرامل: Periodically inspect the front and rear disc brakes for wear and proper function. Adjust or replace brake pads as needed.
- العناية بالبطارية: Charge the battery regularly, even if the scooter is not in use for extended periods, to maintain battery health. Store the scooter in a cool, dry place.
- الفحص العام: Routinely check all screws, bolts, and connections to ensure they are tight and secure.
8. استكشاف الأخطاء وإصلاحها
يتناول هذا القسم المشكلات الشائعة التي قد تواجهها مع دراجتك النارية.
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| السكوتر لا يعمل | Low or depleted battery; Loose battery connection; Power button malfunction | Charge the battery fully; Ensure battery is securely seated; Contact support if issue persists |
| Reduced range/autonomy | Under-inflated tires; Heavy load; Riding uphill frequently; Cold weather | Check and inflate tires to recommended pressure; Reduce load; Adjust riding style; Battery performance may be reduced in cold temperatures |
| الفرامل تشعر بالضعف | Worn brake pads; Loose brake cable; Disc brake misalignment | Inspect brake pads and replace if worn; Adjust brake cable tension; Consult a technician for disc brake alignment |
| أصوات غير عادية أثناء التشغيل | Loose components; Debris in wheels/brakes; Motor issue | Check all fasteners; Clean wheels and brakes; If noise persists, contact customer support |
9. المواصفات الفنية
Detailed specifications for the SoFlow SO4 Pro Gen 2 Electric Scooter:
| ميزة | مواصفة |
|---|---|
| ماركة | سوفلو |
| اسم الموديل | SO4 PRO Gen2 |
| رقم موديل العنصر | 300.450.01 |
| أبعاد المنتج (الطول × العرض × الارتفاع) | 109.1 × 46.6 × 114.5 سم |
| وزن | 17.50 كجم |
| الحد الأقصى لوزن السعة | 150 كيلوغرام |
| قوة المحرك | 500 واط |
| نوع البطارية | ليثيوم أيون |
| وقت الشحن | حوالي 3 ساعات و 50 دقائق |
| السرعة القصوى | 25 كم/ساعة |
| Range (Autonomy) | Approx. 40 KM |
| أقصى انحدار | 18% |
| حجم العجلة | 10 بوصة |
| الفرامل | Front and Rear Disc Brakes, Regenerative Braking |
| مادة الإطار | الألومنيوم |
| المميزات الخاصة | NFC Anti-theft, Integrated Turn Signals, SoFlow App Connectivity, Foldable |
10. الضمان والدعم
Your SoFlow SO4 Pro Gen 2 Electric Scooter comes with a standard manufacturer's warranty covering defects in materials and workmanship under normal use. Please refer to the warranty card included in your package for specific terms and conditions, including the warranty period and coverage details.
For technical support, warranty claims, or any questions regarding your scooter, please contact SoFlow customer service through their official webالموقع أو معلومات الاتصال المقدمة في وثائق الشراء الخاصة بك.
