1. المقدمة
Thank you for choosing the FLYLINKTECH CF800 Portable Car Jump Starter. This device is designed to provide a reliable solution for jump-starting 12V vehicles, serving as a powerful portable power bank, and offering a multi-functional LED light. Please read this manual thoroughly before use to ensure safe and optimal operation.
محتويات الحزمة:
- FLYLINKTECH CF800 Portable Car Jump Starter
- سمارت جامبر Clamps
- كابل ميكرو يو اس بي
- دليل المستخدم
- EVA Hard Case
2. معلومات السلامة
Always observe the following safety precautions when using the jump starter to prevent electric shock, explosion, fire, or injury.
- اقرأ التعليمات: اقرأ جميع التعليمات وافهمها جيداً قبل تشغيل الجهاز.
- حماية العين: Wear safety glasses and protective clothing when working with batteries.
- تهوية: Ensure the area is well-ventilated during jump-starting.
- ممنوع التدخين/إشعال الشرر: Do not smoke or allow sparks or flames near the battery or engine.
- احفظه جافًا: لا تعرض جهاز تشغيل المحرك للمطر أو الظروف الرطبة.
- أطفال: احتفظ بالجهاز بعيدًا عن متناول الأطفال.
- القطبية الصحيحة: قم بتوصيل وصلة العبور clamps to the correct battery terminals (red to positive, black to negative). Reverse polarity can cause damage.
- تجنب الدوائر القصيرة: لا تسمح للأحمر والأسود clampس للمس بعضنا البعض.
- درجة حرارة: Do not operate the device in extremely high or low temperatures outside the specified range.
- الجهاز التالف: Do not use the jump starter if it is damaged, cracked, or leaking.
Image: Visual representation of the CF800's integrated safety protections, including short-circuit, reverse charge, reverse polarity, over-discharge, over-current, over-voltage, and high-temperature protection.
3. انتهى المنتجview
The FLYLINKTECH CF800 is a compact and powerful device designed for emergency vehicle starting and portable power needs.
ميزات الوحدة الرئيسية:
- زر الطاقة: Activates the device and LED light.
- أضواء مؤشر البطارية: Show the remaining battery charge level.
- منفذ بدء التشغيل: Connects to the smart jumper clamps.
- منافذ إخراج USB (x2): لشحن الأجهزة الإلكترونية.
- منفذ الإدخال من النوع C: لإعادة شحن وحدة تشغيل السيارة.
- مصباح يدوي LED: Multi-mode light for illumination, strobe, and SOS.
سمارت جامبر Clamps:
The included smart jumper clamps feature built-in protection mechanisms and a digital display for enhanced safety and ease of use.
- عكس حماية قطبية: يمنع حدوث الضرر في حالة الاحتكاكampتم توصيلها بشكل غير صحيح.
- الحماية من التيار الزائد: وسائل الحماية من التدفق الزائد للتيار الكهربائي.
- زيادة الحجمtagهـ- الحماية: يحمي من الفولtagه العواصف.
- حماية ماس كهربائى: يمنع الضرر الناتج عن الدوائر القصيرة العرضية.
- عرض رقمي: Provides real-time feedback on battery voltage and protection status.
Image: The complete FLYLINKTECH CF800 kit, showcasing the jump starter unit, smart jumper clamps, USB charging cable, and the protective EVA hard case.
4. شحن جهاز بدء التشغيل
Before first use, fully charge the FLYLINKTECH CF800. It is recommended to recharge the unit at least once every three months to maintain battery health, even when not in use.
إجراء الشحن:
- Connect the provided Micro USB cable to the Type-C input port on the jump starter.
- Connect the other end of the USB cable to a 5V/2A or 9V/2A USB wall adapter (not included).
- The battery indicator lights will illuminate and flash during charging. All lights will be solid when fully charged.
A full charge typically takes several hours. Disconnect the charger once the unit is fully charged.

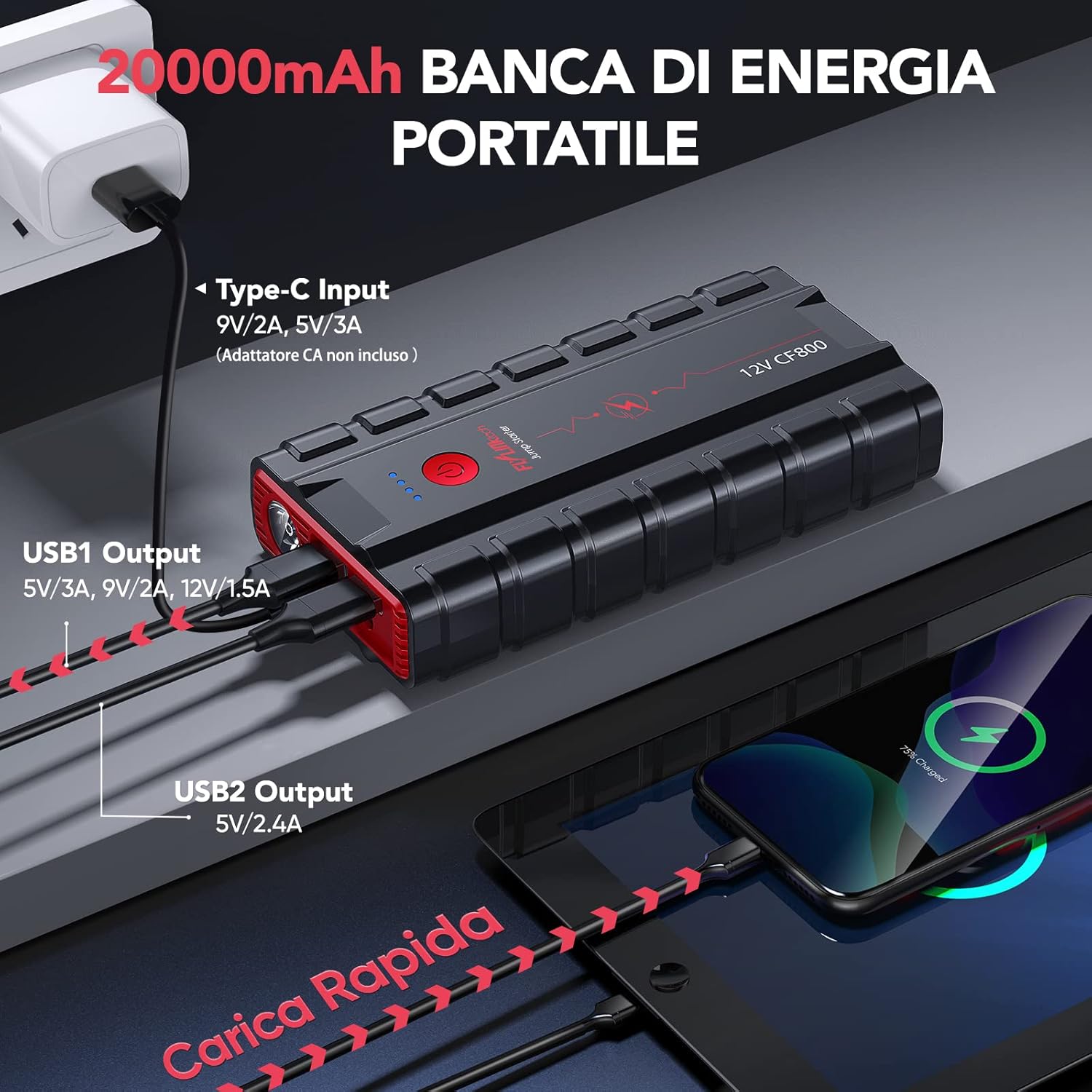

Image: The FLYLINKTECH CF800 unit connected to a power source for charging via its Type-C input, while simultaneously demonstrating its capability to charge external devices like a smartphone and tablet using its USB output ports.
5. Setup for Jump Starting
Before attempting to jump start a vehicle, ensure the jump starter is adequately charged (at least 75% recommended).
- Turn off the vehicle's ignition and all accessories (lights, radio, air conditioning).
- Engage the parking brake and place the vehicle in park (automatic) or neutral (manual).
- Ensure the vehicle's battery terminals are clean and free of corrosion.
6. تعليمات التشغيل (تشغيل السيارة باستخدام كابلات التوصيل)
The FLYLINKTECH CF800 is designed to jump start 12V vehicles with up to 10.0L gasoline engines or 9.0L diesel engines.
Image: The FLYLINKTECH CF800 jump starter unit positioned in a car's engine bay, with its smart clamps correctly connected to a vehicle battery, ready for jump-starting.
دليل خطوة بخطوة:
- قم بتوصيل Clamps إلى Jump Starter: Insert the blue plug of the smart jumper clamps firmly into the jump start port on the CF800 unit. Ensure a secure connection.
- قم بتوصيل Clampس لبطارية السيارة:
- قم بإرفاق أحمر (+) clamp to the vehicle's positive battery terminal.
- قم بإرفاق أسود (-) clamp إلى الطرف السالب لبطارية السيارة.
الذكية clamps' digital display will show the battery voltage and indicate if the connection is correct. If an error is displayed, check the connections.
Image: Close-up of the smart jumper clamps featuring a digital display that provides real-time feedback on battery status and active safety protections, such as low voltage, reverse polarity, reverse charge, short circuit, over-temperature, and over-voltage.
- بدء تشغيل السيارة: بمجرد أن يتمamps are correctly connected and the smart display shows a ready status, start the vehicle's engine.
- إزالة Clamps: As soon as the engine starts, immediately remove the smart jumper clamps from the car battery, first the black (-) clamp، ثم اللون الأحمر (+)amp. Then, disconnect the clampمن وحدة بدء التشغيل.
If the vehicle does not start after the first attempt, wait at least 30 seconds before trying again. Do not attempt more than three consecutive jump starts.
7. وظيفة بنك الطاقة
The FLYLINKTECH CF800 features a 20000mAh capacity and two USB output ports to charge your electronic devices.
- مخرج USB1: 5V/3A, 9V/2A (Quick Charge 3.0 compatible)
- مخرج USB2: 5 فولت/2.4 أمبير
To Charge Devices:
- Connect your device's USB charging cable to one of the USB output ports on the CF800.
- The CF800 will automatically begin charging your device.
- Monitor the battery indicator lights on the CF800 to check its remaining charge.
8. وظائف إضاءة LED
يوفر مصباح LED المدمج أوضاعًا متعددة لمختلف المواقف.
Image: The FLYLINKTECH CF800 jump starter held in hand, demonstrating its powerful LED flashlight in action, with icons illustrating its various modes: standard illumination, SOS signal, warning light, and strobe.
تشغيل ضوء LED:
- تشغيل/إيقاف: Press and hold the power button for 3 seconds to turn the LED light on or off.
- تغيير الأوضاع: Once the light is on, short press the power button to cycle through the modes: Steady On (Torch) → Strobe → SOS → Off.
9. الصيانة والتخزين
Proper maintenance ensures the longevity and readiness of your FLYLINKTECH CF800.
- إعادة الشحن بانتظام: Recharge the jump starter at least once every 3 months to prevent deep discharge and prolong battery life.
- تنظيف: امسح الجهاز بقطعة قماش جافة وناعمة. لا تستخدم مواد كيميائية قاسية أو منظفات كاشطة.
- تخزين: Store the device in a cool, dry place, away from direct sunlight, moisture, and flammable materials.
- مقاومة درجة الحرارة: The CF800 is designed to operate and be stored within a wide temperature range, typically from -20°C to 50°C.
Image: The FLYLINKTECH CF800 jump starter demonstrating its robust design and ability to withstand extreme temperatures, depicted in both a hot environment at 50°C and a cold environment at -20°C.
10. استكشاف الأخطاء وإصلاحها
If you encounter issues with your FLYLINKTECH CF800, refer to the following common problems and solutions.
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| السيارة لا تبدأ | Jump starter battery low; Incorrect clamp connection; Vehicle battery severely discharged; Engine issues. | تأكد من شحن جهاز تشغيل المحرك بالكامل. تحقق من حالة البطارية.amp connections for correct polarity. Wait 30 seconds before reattempting. If still no start, vehicle may have other issues. |
| سمارت clamps show error | عكس القطبية؛ ماس كهربائي؛ زيادة في مستوى الصوتtage; Low voltage. | راجع الفصل الذكيamp display for the specific error code. Disconnect and reconnect clamps correctly. Ensure battery voltage is within acceptable range. |
| جهاز تشغيل المحرك لا يشحن | Charging cable faulty; Wall adapter insufficient; Charging port damaged. | Try a different USB cable and wall adapter. Ensure the adapter meets the specified output (5V/2A or 9V/2A). |
| مخرج USB لا يشحن الأجهزة | Jump starter battery low; Device cable faulty; Device not compatible. | Ensure jump starter has sufficient charge. Try a different USB cable or device. |
If the problem persists after trying these solutions, please contact FLYLINKTECH customer support.
11. المواصفات
| ميزة | مواصفة |
|---|---|
| نموذج | سي اف 800 |
| ذروة التيار | 3000 أمبير |
| سعة البطارية | 20000 مللي أمبير |
| بدء المجلدtage | 12 فولت |
| توافق محرك الغاز | حتى 10.0 لتر |
| توافق محرك الديزل | حتى 9.0 لتر |
| مخرج USB1 | 5V/3A, 9V/2A (Quick Charge 3.0) |
| مخرج USB2 | 5 فولت/2.4 أمبير |
| مدخل من النوع C | 5V/2A, 9V/2A, 5V/3A |
| الأبعاد (الطول × العرض × الارتفاع) | 17.8 × 8.8 × 3.8 سم |
| وزن | 700 جرام |
| درجة حرارة التشغيل | -20 درجة مئوية إلى 50 درجة مئوية |
12. الضمان والدعم
FLYLINKTECH provides a worry-free ضمان لمدة 12 شهرًا for the CF800 Portable Car Jump Starter, along with efficient خدمة ما بعد البيع مدى الحياة.
If you have any questions, encounter problems during use, or require technical assistance, please contact FLYLINKTECH customer support. Our professional technical team is available to help resolve issues within 24 hours.
For support, please refer to the contact information provided with your purchase or visit the official FLYLINKTECH webموقع.
