Raptor Series RB-0101-BK Installation Manual

مقدمة

This manual provides detailed instructions for the installation and care of your Raptor Series RB-0101-BK Slide Track Bracket Kits. These kits are designed to facilitate the mounting of Raptor Series side steps on 2015-2022 Chevy Colorado/GMC Canyon Extended Cab/Crew Cab models.

The bracket kits feature heavy-duty, high-carbon steel construction, ensuring durability and a secure fit. Installation is designed to be quick and straightforward, often requiring no drilling.

معلومات السلامة

Please read all safety warnings and instructions carefully before beginning installation. Always wear appropriate personal protective equipment, such as safety glasses and gloves, during installation.

تحذير:

This product and/or related accessories can expose you to chemicals and/or components which are known to the State of California to cause cancer and birth defects or other reproductive harm.

لمزيد من المعلومات انتقل إلى www.P65Warnings.ca.gov

ماذا يوجد في الصندوق

Your Raptor Series RB-0101-BK kit includes the following components:

• Heavy-duty, E-coated steel brackets (vehicle-specific)
• مسامير التثبيت
• الغسالات
• المكسرات
• معدات التثبيت

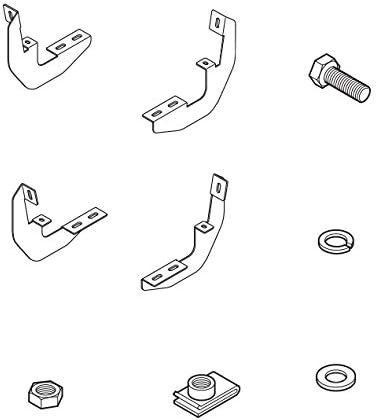

Figure 1: Included components of the RB-0101-BK bracket kit.

Figure 2: Packaging for the Raptor Series RB-0101-BK Slide Track Bracket Kits.

الإعداد والتثبيت

The installation of the Raptor Series RB-0101-BK bracket kit is designed to be quick and easy. In most cases, no drilling is required as the brackets utilize existing factory mounting points on your vehicle's frame.

الأدوات المطلوبة (غير مدرجة):

• مجموعة وجع القياسية
• مجموعة وجع المقبس
• مفتاح عزم الدوران (موصى به للربط الصحيح)
• نظارات السلامة
• قفازات

خطوات التثبيت:

1. تجهيز السيارة: Park your vehicle on a level surface and engage the parking brake. For safety, it is recommended to disconnect the negative terminal of the battery.
2. تحديد مواقع التركيب: Locate the factory mounting points on the vehicle's frame, typically along the rocker panel area. Refer to your vehicle's owner's manual or a vehicle-specific installation guide if unsure.
3. ربط الأقواس: Align the Raptor Series brackets with the identified mounting points. Secure them using the provided bolts, washers, and nuts. Hand-tighten all hardware initially.
4. Install Side Steps (Sold Separately): Once all brackets are loosely attached, position your Raptor Series side steps onto the brackets. Secure the side steps to the brackets using the appropriate hardware (typically included with the side steps).
5. الشد النهائي: Once all components are in place and aligned, progressively tighten all hardware to the manufacturer's recommended torque specifications. Start from the front of the vehicle and work your way back. Ensure all connections are secure.
6. فحص: After tightening, visually inspect all connections to ensure proper installation and stability.

For detailed vehicle-specific instructions, please refer to the installation guide provided with your Raptor Series side steps or visit the Raptor Series webموقع.

التشغيل

The Raptor Series RB-0101-BK is an installation bracket kit and does not have operational functions in itself. Once installed, it serves as a secure mounting foundation for compatible Raptor Series side steps, enabling safe and convenient entry and exit from your vehicle.

Ensure that any side steps mounted to these brackets are used according to their own manufacturer's guidelines and weight limits.

صيانة

To ensure the longevity and performance of your Raptor Series bracket kit, follow these maintenance guidelines:

• التفتيش الدوري: Periodically inspect all mounting hardware for tightness. Vibrations from driving can sometimes loosen bolts over time. Re-tighten as necessary.
• تنظيف: Clean the brackets with mild soap and water. Avoid harsh chemicals or abrasive cleaners that could damage the E-coating.
• الوقاية من التآكل: The brackets are E-coated for superior strength and corrosion resistance. However, in harsh environments (e.g., areas with road salt), regular cleaning can help prevent long-term corrosion.
• فحص الأضرار: If the vehicle is involved in an accident or if the brackets sustain any impact, inspect them for damage, bends, or cracks. Replace any damaged components immediately.

استكشاف الأخطاء وإصلاحها

إذا واجهت مشكلات أثناء التثبيت أو بعده، ففكر فيما يلي:

• Brackets Don't Fit:
  • Verify that the RB-0101-BK model is correct for your vehicle's year, make, and model (2015-2022 Chevy Colorado/GMC Canyon Extended Cab/Crew Cab).
  • Ensure you are attempting to install the brackets on the correct side of the vehicle (driver vs. passenger) and in the correct orientation.
• Loose or Rattling Side Steps:
  • Check all mounting bolts on both the brackets to the vehicle frame and the side steps to the brackets. Re-tighten to specifications.
  • Ensure all washers and nuts are correctly installed.
• الأجهزة المفقودة:
  • Carefully check the packaging and surrounding area.
  • Contact Raptor Series customer support for replacement parts if necessary.

If problems persist, please contact Raptor Series customer support for assistance.

تحديد

معلومات الضمان

The Raptor Series RB-0101-BK Slide Track Bracket Kits come with a Limited 1 Year Manufacturer Warranty.

This warranty covers defects in materials and workmanship under normal use. For specific terms, conditions, and to file a warranty claim, please refer to the official Raptor Series warranty policy available on their webالموقع أو الاتصال بخدمة دعم العملاء الخاصة بهم.

يدعم

For further assistance, technical support, or inquiries regarding your Raptor Series RB-0101-BK bracket kit, please contact Raptor Series customer service.

You can often find contact information, FAQs, and additional resources on the official Raptor Series website. Please have your product model number (RB-0101-BK) and purchase details ready when contacting support.

Visit the Raptor Series Store on Amazon: Raptor Series Store
