This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Scotsman UC2724SA-1 Undercounter Ice Machine. Please read this manual thoroughly before installing or operating the unit.

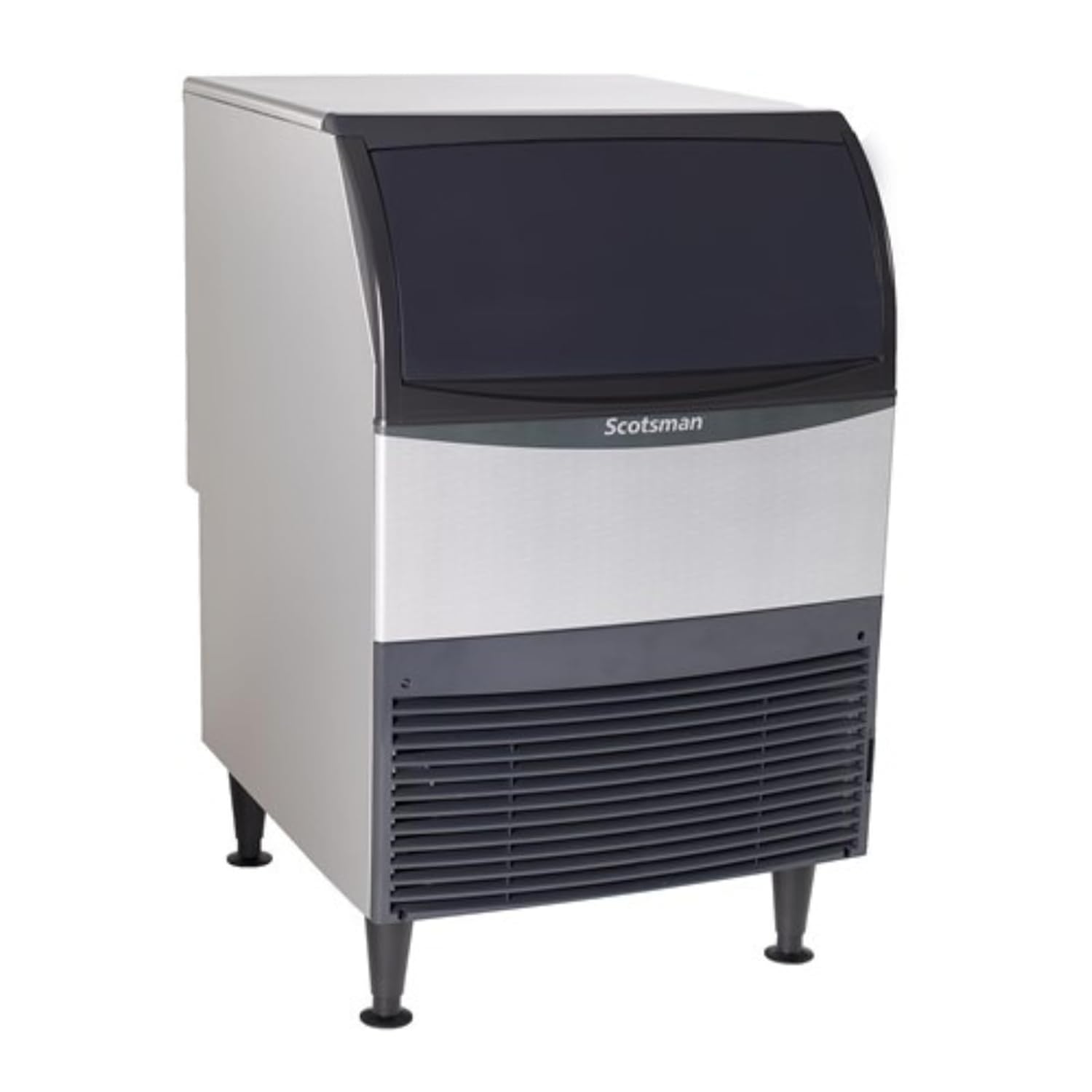

The Scotsman UC2724SA-1 Undercounter Ice Machine, designed for commercial use, produces crystal-clear small cube ice.
The Scotsman UC2724SA-1 is a 24-inch air-cooled undercounter ice machine with an 80 lb. storage capacity and a daily production rate of 282 lbs. It operates on 115V and uses R134a refrigerant. Key features include a slide-back door for easy ice access and a removable air filter for simplified maintenance.
The compact design allows for seamless integration into various commercial kitchen layouts.
2. معلومات السلامة
Always adhere to local and national electrical and plumbing codes. Disconnect power before performing any service or maintenance. This appliance must be properly grounded. Do not operate the machine if any parts are damaged or missing.

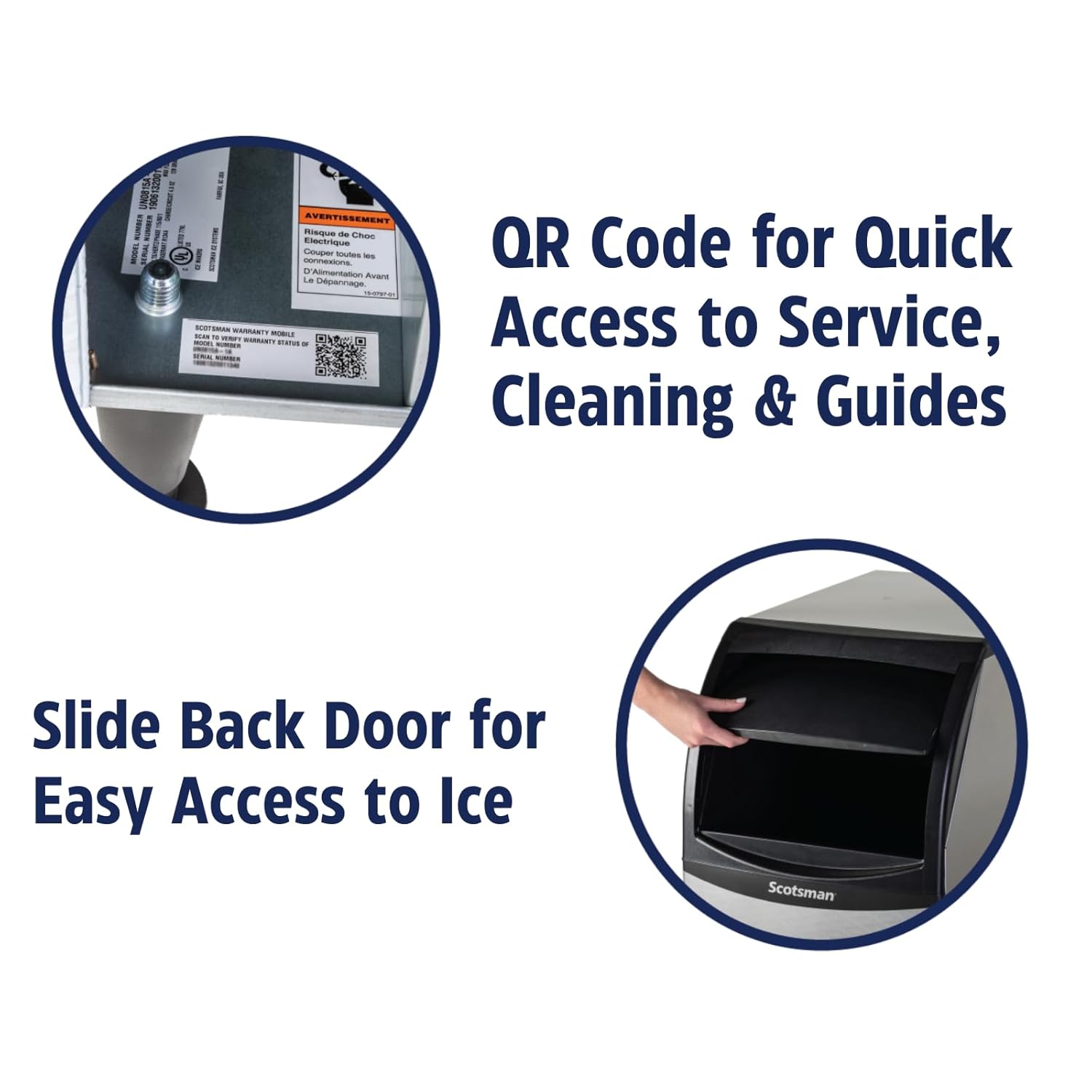

The product label includes important safety warnings and a QR code for quick access to service and guides.
Keep hands and foreign objects out of the ice storage bin and ice-making area during operation. Ensure proper ventilation around the unit to prevent overheating and maintain optimal performance.
3. الإعداد والتثبيت
3.1 فك التعبئة
Carefully remove the unit from its packaging. Inspect for any shipping damage. Report any damage immediately to the carrier.
3.2 الموقع
Place the ice machine on a level, sturdy surface capable of supporting its weight when full of ice and water. Ensure adequate clearance for air circulation, especially around the front air intake and exhaust. Avoid direct sunlight or heat sources.
3.3 التوصيل الكهربائي
The unit requires a dedicated 115V electrical supply. Consult a qualified electrician for proper wiring and grounding according to local codes.
3.4 Water Supply and Drain
Connect the ice machine to a potable water supply with appropriate pressure. Install a water filter for optimal ice quality and machine longevity. Connect the drain line to an open, indirect drain with proper slope to prevent standing water.
مؤخرة view illustrating the internal components and connection points for electrical, water, and drain lines.
3.5 التسوية
Adjust the leveling feet at the bottom of the unit to ensure it is perfectly level. This is crucial for proper water flow and ice formation.
4. تعليمات التشغيل
4.1 بدء التشغيل الأولي
- Ensure all connections (electrical, water, drain) are secure.
- قم بتشغيل مصدر المياه للوحدة.
- Plug in the unit or turn on the dedicated circuit breaker.
- The machine will begin its initial fill and ice-making cycle. The first batch of ice may be smaller or irregular; discard it.
4.2 إنتاج الثلج
The UC2724SA-1 automatically produces crystal-clear small cube ice. The ice-making process is continuous until the storage bin is full. The machine will then pause and resume production as ice is removed.
Small cube ice dimensions are 7/8" x 7/8" x 3/8". Ideal for mixed drinks, carbonated beverages, ice dispensing, and banquet services.
Examples of the small cube ice produced by the machine.
4.3 Accessing Ice
The unit features a convenient slide-back door for easy access to the ice storage bin. Simply slide the door open to retrieve ice.
The ice bin, easily accessible via the slide-back door, can hold up to 80 lbs of ice.
5. الصيانة
Regular maintenance is crucial for the longevity and efficient operation of your ice machine.
5.1 تنظيف مرشح الهواء
The air-cooled condenser requires a clean air filter for optimal performance. The filter is easily removable for cleaning.
The air filter slides out for easy cleaning. Clean it regularly with warm, soapy water, rinse, and dry before reinserting.
5.2 Cleaning the Ice Storage Bin
Periodically clean and sanitize the ice storage bin to prevent bacterial growth and maintain ice quality. Use a mild, food-safe cleaner and sanitizer. Rinse thoroughly.
5.3 Descaling the Water System
Mineral deposits can build up in the water system, affecting ice production. Descale the unit regularly using a Scotsman-approved descaling solution. Follow the product instructions carefully.
5.4 الخدمة المهنية
For comprehensive cleaning of internal components and condenser coils, or for any complex issues, it is recommended to schedule professional servicing at least once a year.
6. استكشاف الأخطاء وإصلاحها
قبل الاتصال للخدمة، راجعview القضايا الشائعة التالية وحلولها المحتملة:
- لا إنتاج للثلج: Check power supply, water supply, and ensure the unit is not in a defrost cycle. Verify the air filter is clean and not obstructed.
- انخفاض إنتاج الثلج: Clean the air filter and condenser. Check water pressure. Ensure ambient temperature is within operating limits.
- ضوضاء غير عادية: Verify the unit is level. Check for any loose components or obstructions in the fan or water pump.
- تسرب المياه: Inspect water lines and drain connections for tightness. Check for blockages in the drain system.
إذا استمرت المشكلة بعد تجربة هذه الحلول، فاتصل بفني خدمة مؤهل.
Scan the QR code on the unit for quick access to additional service, cleaning, and troubleshooting guides.
7. المواصفات
| ميزة | مواصفة |
|---|---|
| رقم الموديل | UC2724SA-1 |
| ماركة | اسكتلندي |
| أبعاد المنتج | 60.96 × 72.39 × 99.06 سم |
| سعة تخزين الثلج | 80 رطل |
| إنتاج الثلج اليومي | 282 رطل / يوم |
| المجلدtage | 115 فولت |
| مادة التبريد | R134a |
| نوع الجليد | Small Cube (7/8" x 7/8" x 3/8") |
8. الضمان والدعم
For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official Scotsman website. It is recommended to register your product to facilitate warranty claims and receive important updates.
When contacting support, please have your model number (UC2724SA-1) and serial number ready. The serial number can typically be found on the product label, often near the QR code.
