SCS Enterprises Total Invisible 940nM IR Light Bulb Lamp دليل المستخدم

مقدمة

This manual provides essential information for the proper installation, operation, and maintenance of your SCS Enterprises Total Invisible 940nM IR Light Bulb Lamp. This device is designed to enhance the night vision capabilities of compatible security cameras by providing an invisible infrared light source. Please read these instructions thoroughly before use.

المنتج انتهىview

The SCS Enterprises 940nM IR Light Bulb Lamp is a specialized infrared illuminator featuring 6 high-power LED elements. It is engineered to emit 940nM wavelength infrared light, which is generally invisible to the human eye, providing discreet illumination for night vision cameras.

الشكل 1: SCS Enterprises 940nM IR Light Bulb Lamp. This image displays the overall design of the infrared light bulb, featuring a clear dome over the LED elements and a finned heat sink base.

المميزات الرئيسية:

• Invisible 940nM IR: Provides illumination that is generally undetectable by the human eye.
• تغطية زاوية واسعة: Offers a 160-degree beam angle to cover a broad area.
• نطاق ممتد: Effective range up to 20 feet, with an optimal range of 15 feet (results may vary based on camera sensitivity).
• عملية الحرارة المنخفضة: Designed with a heat sink for efficient heat dissipation and long-lasting performance.
• قاعدة E26 القياسية: Compatible with standard American E26 light sockets.
• للاستخدام الداخلي فقط: This device is intended for indoor applications.

الشكل 2: Labeled components of the IR Light Bulb. This image highlights key parts such as the 940nM LEDs, glass cover, heat sink, and E26 American Standard Socket Thread. It also indicates "Indoor Use Only."

الإعداد والتثبيت

1. إيقاف التشغيل: تأكد من فصل التيار الكهربائي عن مقبس الإضاءة قبل التركيب.
2. برغي في: Carefully screw the SCS Enterprises 940nM IR Light Bulb Lamp into a standard E26 light socket.
3. Optional Gooseneck Adapter: If additional positioning flexibility is required, attach the provided 4-inch flexible gooseneck extension adapter to the E26 socket first, then screw the IR bulb into the adapter.

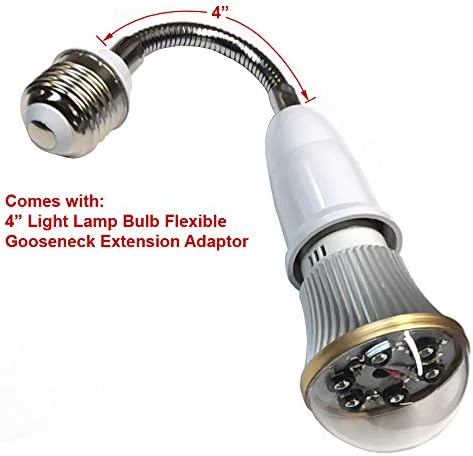

الشكل 3: IR Light Bulb with Gooseneck Extension Adapter. This image shows the IR bulb connected to a 4-inch flexible gooseneck extension adapter, illustrating how it can be used for adjustable positioning.
4. تشغيل الطاقة: Restore power to the light socket. The IR bulb will illuminate.

مهم: This IR bulb is designed for indoor use only. Do not install in outdoor fixtures or areas exposed to moisture.

عملية

Once installed and powered, the SCS Enterprises 940nM IR Light Bulb Lamp operates continuously. It does not feature a light sensor for automatic on/off functionality. The infrared light it emits is intended to be invisible to the human eye, providing supplemental illumination for compatible night vision cameras.

الشكل 4: Range Diagram. This diagram illustrates the optimal and effective range of the IR light bulb, indicating an effective range of 20 feet and an optimal range within that, emphasizing that actual range depends on the camera's light sensitivity. It also suggests using a reflector to increase range.

التوافق

This IR illuminator is specifically designed for use with 940nM IR capable cameras.

• 940nM Cameras: For cameras equipped with a 940nM IR filter, this lamp will provide optimal night vision enhancement, allowing the camera to "see" in total darkness with minimal to zero visible glow from the IR source.
• 850nM Cameras: While the bulb may function with 850nM cameras, the infrared effect will be significantly lessened (approximately 30-50% reduction in effectiveness). 850nM IR LEDs typically emit a faint red glow, which may be visible.

To determine your camera's compatibility: If your camera's built-in IR LEDs remain completely dark at night, it likely has a 940nM IR filter. If the LEDs emit a visible red glow when viewed directly, it is an 850nM system.

صيانة

The SCS Enterprises 940nM IR Light Bulb Lamp لا يتطلب صيانة كبيرة.

• تنظيف: Ensure the bulb is powered off and cool before cleaning. Gently wipe the glass cover with a soft, dry cloth to remove dust or smudges. Do not use liquid cleaners or abrasive materials.
• طول العمر: The quality LED elements are designed for long-lasting operation. Avoid frequent power cycling if possible to maximize lifespan.

استكشاف الأخطاء وإصلاحها

تحديد

الشكل 5: Product Dimensions. This image provides the physical dimensions of the IR light bulb, showing a length of 3.6 inches and a width of 1.9 inches.

الضمان والدعم

Specific warranty details for the SCS Enterprises Total Invisible 940nM IR Light Bulb Lamp are not provided in this manual. For warranty information or technical support, please refer to the product packaging or contact SCS Enterprises directly through their official channels.

يمكنك عادةً العثور على معلومات الدعم على موقع الشركة المصنعة webالموقع أو من خلال بائع التجزئة الذي تم شراء المنتج منه.
