1. انتهى المنتجview
The InnoGear Essential Oil Diffuser is a versatile 5-in-1 device designed to enhance your home or office environment. It functions as an aromatherapy diffuser, air humidifier, and features a 7-color LED light system. Utilizing ultrasonic technology, it produces a fine, cool mist to disperse essential oils, promoting relaxation and improving air quality. Its compact design and quiet operation make it suitable for various settings, including bedrooms, large rooms, and offices. The diffuser also includes an automatic shut-off safety feature when water runs out.
الشكل 1: الجبهة view of the InnoGear Essential Oil Diffuser, showcasing its white-grey wood grain finish and control buttons at the base.
2. الميزات الرئيسية
- وظيفة 5 في 1: Aromatherapy diffuser, air humidifier, and ambient light.
- تقنية الموجات فوق الصوتية: Emits a fine nano mist without harsh chemicals.
- Premium PP Materials: Ensures durability and safe operation.
- Flexible Misting Modes: Two settings available:
- ضباب متقطع: 6-8 hours working time, mists and pauses every 30 seconds.
- ضباب مستمر: 3-4 hours working time, mists until water runs out.
- مدمج وقوي: Covers 100-250 sq feet with a noise level lower than 23 dB.
- Romantic Ambient Light: 7-color LED light system with independent control for light and mist functions. Adjustable brightness, fixed color, or rotating color options.
- Waterless Auto-off: Automatically shuts off when water runs out to prevent overheating and ensure safety.
Figure 2: Illustration of the two misting modes: Intermittent (6-8 hours) and Continuous (3-4 hours).
Figure 3: Depiction of the diffuser's ability to operate light and mist functions independently or together.
Figure 4: Visual representation of the 7-color LED mood light options, including adjustable brightness, fixed color, rotating color, and light off.
3. محتويات العبوة
The InnoGear Essential Oil Diffuser package includes the following items:
- 1 x 100ml Essential Oil Diffuser (Model: MT-039W)
- 1 × محول AC / DC
- 1 × دليل المستخدم
4. المواصفات
| ميزة | مواصفة |
|---|---|
| ماركة | إينوجير |
| اسم الموديل | MT-039W |
| لون | أبيض رمادي |
| مادة | البولي بروبلين (PP) |
| سعة | 100 مليلتر |
| أبعاد المنتج (الطول × العرض × الارتفاع) | 3.94 بوصة طول × 3.94 بوصة عرض × 5.51 بوصة ارتفاع |
| وزن العنصر | 10.6 أونصات |
| مصدر الطاقة | كهرباء سلكية |
| واتtage | 10 واط |
| منطقة التغطية | 100-250 sq feet |
| نوع مصدر الضوء | قاد |
| الإغلاق التلقائي | Yes (Waterless Auto-off) |
| رمز المنتج الموحد | 810015620502 |
5. تعليمات الإعداد
Follow these steps for the initial setup of your InnoGear Essential Oil Diffuser:
- أفرغ: قم بإزالة جميع المكونات بعناية من العبوة.
- ينظف: Before first use, gently clean the water tank and lid with a soft cloth.
- مكان: Position the diffuser on a stable, flat surface away from direct sunlight, heat sources, and electronic devices. Ensure proper ventilation around the unit.
- ملء خزان المياه: Remove the top cover. Fill the water tank with clean tap water or distilled water up to the maximum water line indicated inside the tank. لا تتجاوز الخط الأقصى.
- إضافة الزيوت العطرية: Add 3-5 drops of your preferred natural essential oil directly into the water tank. Adjust the number of drops based on desired scent intensity.
- استبدال الغطاء: Securely place the top cover back onto the diffuser. Ensure it is properly aligned.
- توصيل الطاقة: Plug the AC/DC adapter into the power input port at the base of the diffuser, then plug the adapter into a standard wall outlet.

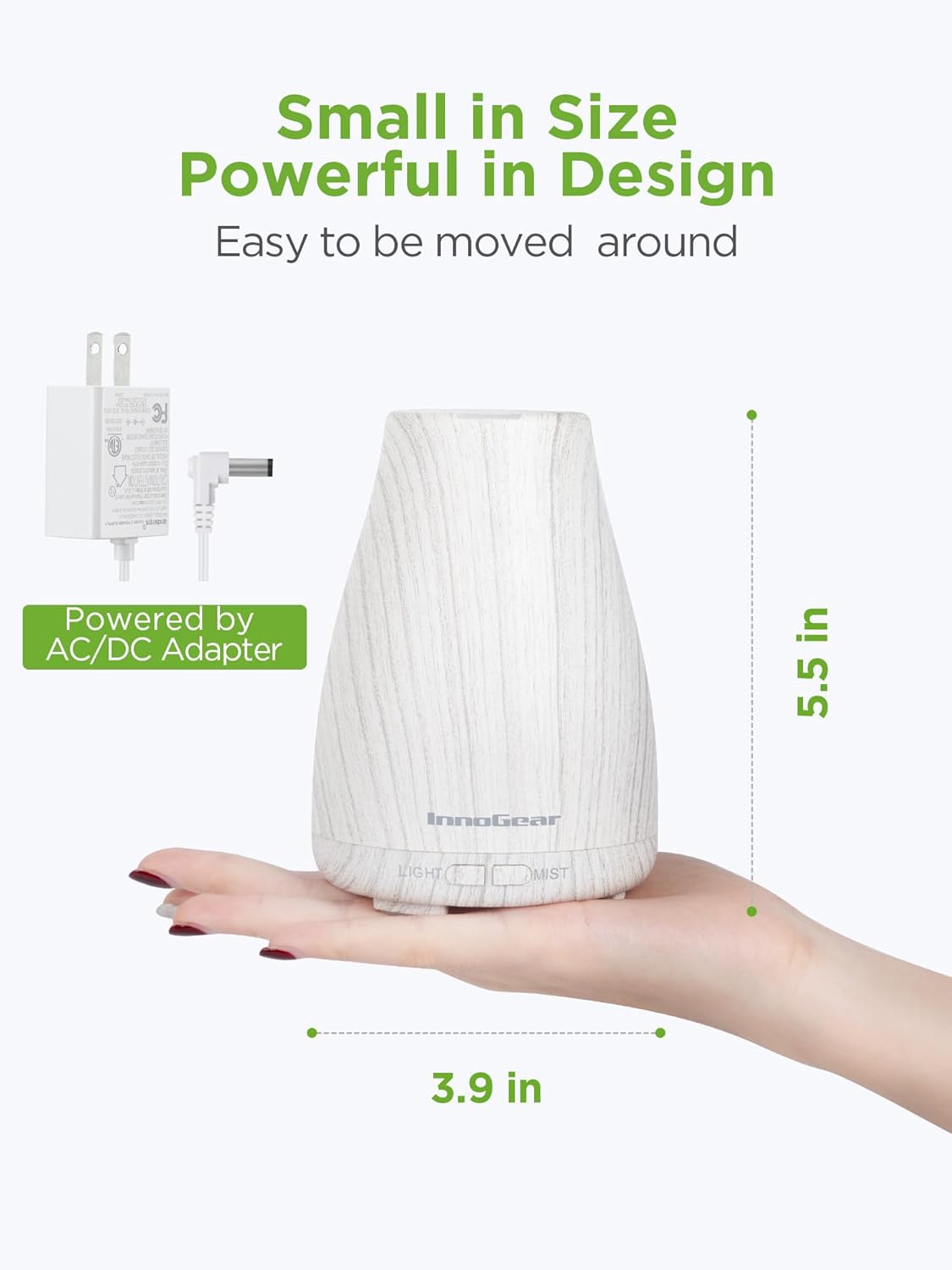

Figure 5: The compact size of the diffuser and its AC/DC power adapter, illustrating its portability and power connection.
6. تعليمات التشغيل
The InnoGear Essential Oil Diffuser features two control buttons: LIGHT and MIST.
6.1. Mist Control
اضغط على شَبُّورَة button to cycle through misting modes:
- الضغط الأول: ينشط Continuous Mist mode (3-4 hours operation).
- الضغط الثاني: ينشط Intermittent Mist mode (6-8 hours operation, mists for 30 seconds, pauses for 30 seconds).
- الصحافة الثالثة: Turns off the mist function.
6.2. التحكم في الضوء
اضغط على ضوء button to control the LED ambient light:
- الضغط الأول: Turns on the light with rotating colors. The diffuser will cycle through 7 different colors.
- إصدارات لاحقة: Freezes the light on the current color. Each press will cycle to the next fixed color.
- الضغط لفترة طويلة (2 ثوان): Turns off the light function.
Note: The mist and light functions can be operated independently or simultaneously.
7. الصيانة والعناية
Regular cleaning and proper maintenance will extend the lifespan of your diffuser and ensure optimal performance.
- الصيانة اليومية:
- After each use, unplug the diffuser and remove the cover.
- Pour out any remaining water from the DRAIN SIDE of the water tank. Avoid pouring water into the air outlet.
- Wipe the inside of the water tank and the ultrasonic atomizing chip with a clean, soft cloth or cotton swab.
- Allow all parts to air dry completely before next use or storage.
- Weekly Cleaning (or every 5-6 uses):
- افصل الناشر.
- Add 1 tablespoon of white vinegar to the water tank.
- Fill the tank with water up to the MAX line.
- Run the diffuser in continuous mist mode for 15-20 minutes to help remove mineral buildup.
- Drain the water and wipe the tank clean with a soft cloth.
- Rinse thoroughly with clean water to remove any vinegar residue.
- ملاحظات هامة:
- Do not use corrosive detergents or solvents to clean the diffuser.
- Do not immerse the diffuser base in water.
- Use only natural essential oils. Synthetic oils may damage the unit.
- Keep the diffuser dry when not in use for extended periods.
8. استكشاف الأخطاء وإصلاحها
If you encounter issues with your diffuser, please refer to the following common problems and solutions:
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| لا يوجد ضباب أو مخرج ضباب منخفض. | Insufficient water in the tank; water level exceeds MAX line; mineral buildup on ultrasonic disc; diffuser not placed on a flat surface; fan blocked. | Add water (ensure it's below MAX line); empty excess water; clean the ultrasonic disc; place on a stable, flat surface; check for obstructions around the fan opening. |
| Diffuser automatically shuts off prematurely. | Water level is too low (auto-off safety feature); unit is tilted. | Refill water tank; ensure diffuser is on a level surface. |
| لا يوجد طاقة. | Power adapter not properly connected; power outlet issue. | Ensure adapter is securely plugged into both the diffuser and the wall outlet; try a different power outlet. |
| Light function not working. | Light button not pressed correctly; internal malfunction. | Press the LIGHT button to cycle through modes; if issue persists, contact customer support. |
| ضوضاء غير عادية. | Water level too low; foreign object in water tank; fan obstruction. | Refill water; check for and remove any foreign objects; ensure fan is clear. |
9. معلومات السلامة
Please read and adhere to the following safety guidelines to ensure safe operation and prevent damage to the product or injury:
- Use natural essential oils only. Do not use corrosive or synthetic oils.
- Do not exceed the maximum water tank capacity.
- Place the diffuser on a stable, level surface to prevent tipping.
- يحفظ بعيدًا عن متناول الأطفال والحيوانات الأليفة.
- تأكد من وجود تهوية مناسبة أثناء الاستخدام.
- The device will automatically shut off when water runs out to prevent overheating. Do not attempt to bypass this safety feature.
- Do not block the mist outlet or air inlet.
- افصل موزع العطر عن مأخذ الطاقة قبل التنظيف أو إعادة التعبئة.
- لا تقم بتفكيك الجهاز أو محاولة إصلاحه بنفسك. تواصل مع خدمة العملاء للحصول على المساعدة.
Figure 6: The automatic shut-off feature, which prevents overheating when the water level is too low, ensuring user safety.
10. الضمان والدعم
InnoGear stands behind the quality of its products. This essential oil diffuser comes with a solid one-year warranty and lifetime technical support.
- فترة الضمان: سنة واحدة (1) من تاريخ الشراء.
- الدعم الفني: Lifetime technical support is provided for all InnoGear diffusers.
- معلومات الاتصال: For warranty claims, technical assistance, or any product-related inquiries, please visit the official InnoGear webالموقع أو اتصل بخدمة العملاء الخاصة بهم مباشرة.
لمزيد من المعلومات، قم بزيارة متجر InnoGear على أمازون.
