GYSFLASH 30.12 PL Smart Charger User Manual

1. المقدمة

Welcome to the user manual for the GYSFLASH 30.12 PL, a versatile smart charger designed for 12V lead-acid and lithium iron phosphate (LiFePO4) batteries. This manual provides essential information for safe and effective operation, setup, and maintenance of your charger. Please read this manual thoroughly before using the device.

2. تعليمات السلامة الهامة

To ensure safe operation and prevent damage to the charger or battery, observe the following safety precautions:

• Always read the entire instruction manual before operating the charger.
• Ensure adequate ventilation during charging to prevent heat buildup.
• Avoid short-circuiting the charging clamps.
• The charger is equipped with reverse polarity protection; however, always connect the red (+) clamp to the positive (+) terminal and the black (-) clamp إلى الطرف السالب (-).
• Disconnect the charger from the mains power before connecting or disconnecting the battery clamps.
• لا تعرض الشاحن للمطر أو الرطوبة الزائدة.
• يحفظ بعيدًا عن متناول الأطفال.
• لا تحاول شحن البطاريات غير القابلة لإعادة الشحن.

3. انتهى المنتجview

The GYSFLASH 30.12 PL is a high-power, auto-sensing battery support unit with advanced features for various battery types and applications.

المميزات الرئيسية:

• Double Technology: Compatible with both 12V lead-acid (GEL, AGM, liquid, calcium) and lithium iron phosphate (LiFePO4) batteries.
• انتاج طاقة عالية: Delivers a continuous 30 A at 100% duty cycle (40°C).
• Three Charging Currents: Selectable charging currents of 7 A, 15 A, and 30 A to match battery capacity.
• وضع صالة العرض: Provides a stable power supply of up to 30A for maintaining battery charge in exhibited vehicles or during diagnostic procedures.
• وضع التزويد: Offers a stable on-board power supply, useful for maintaining vehicle electronics during battery changes or software updates.
• Wide Battery Capacity Range: Charges 12V lead-acid batteries from 15 Ah to 375 Ah and LiFePO4 batteries from 7 Ah to 375 Ah.
• نسخة إحتياطية للذاكرة: Retains vehicle memory information during battery removal.
• Optimized Battery Retention: Can remain connected to the battery during hibernation with an auto-restart function in case of power failure.
• حجم منخفضtagالشحن الإلكتروني: Capable of initiating charging for batteries as low as 2 V.

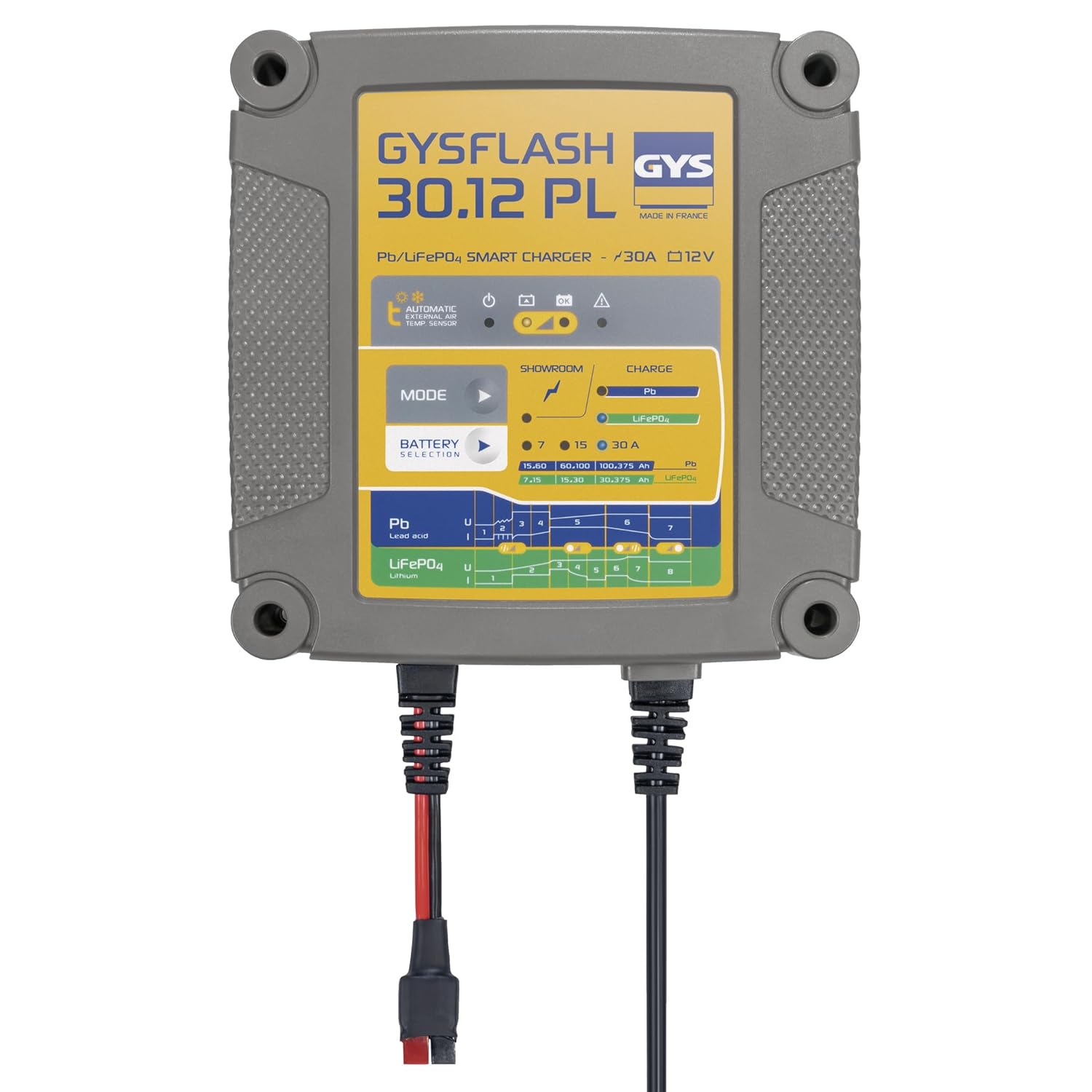

Figure 1: Front panel of the GYSFLASH 30.12 PL charger, displaying mode selection, battery type indicators, and charging current options.

4. الإعداد والاتصال

4.1 فك التعبئة

Carefully unpack the GYSFLASH 30.12 PL charger and inspect for any visible damage. Retain the packaging for future storage or transport.

4.2 توصيل البطارية

1. Ensure the charger's power cord is disconnected from the mains power outlet.
2. قم بتوصيل أحمر (+) شحن clamp بأمان إلى إيجابي (+) طرف البطارية.
3. قم بتوصيل أسود (-) شحن clamp بأمان إلى سلبي (-) طرف البطارية.
4. Verify that both connections are firm and free from corrosion.

4.3 Connecting to Mains Power

مرة واحدة البطارية clamps are securely connected, plug the charger's power cord into a suitable 230V AC, 50/60Hz power outlet.

Figure 2: GYSFLASH 30.12 PL connected to a vehicle battery for charging or support.

5. تعليمات التشغيل

5.1 الشحن التلقائي

The GYSFLASH 30.12 PL features an integrated temperature sensor that automatically adjusts charging parameters based on the ambient temperature, optimizing charging efficiency and battery life.

5.2 اختيار الوضع

استخدم "MODE" button on the charger's front panel to select the appropriate charging program for your battery type:

• الرصاص (Pb-حمض الرصاص): Select this mode for 12V lead-acid batteries, including GEL, AGM, liquid, and calcium types. Suitable for capacities from 15 Ah to 375 Ah.
• LiFePO4 (Lithium Iron Phosphate): Select this mode for 12V lithium iron phosphate batteries. Suitable for capacities from 7 Ah to 375 Ah.

5.3 Charging Current Selection

After selecting the battery type, choose one of the three available charging currents (7 A, 15 A, or 30 A) based on the battery's capacity and desired charging speed. Higher currents charge faster but should be appropriate for the battery's specifications.

5.4 وضع صالة العرض

This mode is designed to provide a stable power supply of up to 30A. It is ideal for maintaining the battery charge in vehicles displayed in showrooms or during diagnostic procedures, preventing battery drain without overcharging.

5.5 وضع الإمداد

The Supply Mode provides a stable on-board power supply to the vehicle's electrical system. This is particularly useful for maintaining power to vehicle electronics when the battery is being changed or during software updates, preventing loss of settings or data.

6. عملية الشحن

1. Connect the charger to the battery terminals, ensuring correct polarity (red to positive, black to negative).
2. Plug the charger's power cord into a mains power outlet.
3. اضغط على "MODE" button to select the appropriate battery type (Pb for lead-acid or LiFePO4 for lithium).
4. Select the desired charging current (7 A, 15 A, or 30 A) based on your battery's requirements.
5. The charger will automatically begin the charging cycle. Monitor the progress indicators on the display.
6. Once the charging cycle is complete, first disconnect the charger from the mains power outlet.
7. Then, disconnect the black (-) clamp from the battery, followed by the red (+) clamp.

7. الصيانة

• حافظ على الشاحن نظيفًا وجافًا. امسح الشاحنasing مع لينة، damp قماش. لا تستخدم كيماويات مركزة أو مواد كاشطة.
• قم بتخزين الشاحن في مكان بارد وجاف عندما لا يكون قيد الاستخدام، بعيدًا عن أشعة الشمس المباشرة ودرجات الحرارة القصوى.
• Do not attempt to open the charger casing or perform any internal repairs. Refer all servicing to qualified personnel.
• افحص كابلات الشحن والمشابك بانتظامamps for any signs of damage, wear, or corrosion. Replace damaged components immediately.

8. استكشاف الأخطاء وإصلاحها

If you encounter issues with your GYSFLASH 30.12 PL, refer to the table below for common problems and solutions.

9. المواصفات الفنية

10. الضمان والدعم

The GYSFLASH 30.12 PL is covered by a ضمان محلي لمدة عام واحد. For technical assistance, warranty claims, or service inquiries, please contact your authorized GYS dealer or the official GYS support center. Please retain your proof of purchase for warranty validation.

For additional information and resources, please visit the official GYS webموقع.
