مقدمة
This manual provides detailed instructions for the safe and effective operation of your Donner DJ Par Light. Please read this manual thoroughly before use and retain it for future reference. This device is designed to produce various lighting effects for events, parties, and stagالعروض ه.
معلومات السلامة
- تأكد من حجم امدادات الطاقةtagيتوافق مع متطلبات الجهاز.
- Do not expose the device to rain or moisture to prevent electric shock or fire.
- افصل دائمًا مصدر الطاقة قبل التنظيف أو الصيانة.
- تجنب تعريض العين مباشرة لمصدر الضوء، لأنه قد يسبب تلفًا للعين.
- تأكد من التهوية المناسبة لمنع ارتفاع درجة الحرارة. لا تسد فتحات التهوية.
- تعامل مع الجهاز بحذر. تجنب سقوطه أو تعريضه لصدمات قوية.
- يحفظ بعيدًا عن متناول الأطفال.
محتويات الحزمة
تأكد من وجود جميع العناصر عند فك العبوة:
- Donner DJ Par Light (1 unit)
- جهاز التحكم عن بعد (وحدة واحدة)
- حامل تثبيت (وحدة واحدة)
- كابل الطاقة (وحدة واحدة)
- دليل المستخدم (هذا المستند)
مميزات المنتج
- 18 RGB LEDs: Features 18 x 3W RGB LED lights (6 Red, 6 Green, 6 Blue) for a wide range of color effects.
- Multi-mode Operation: Includes Static Color, Color Changing, Color Fade, Auto, Sound-activated, Master-slave, and DMX modes.
- جهاز التحكم عن بعد: Easy control via the included IR remote.
- متوافق مع DMX512: For professional lighting control.
- مروحة تبريد مدمجة: Ensures stable operation and extends lifespan.
- Adjustable Dual Brackets: Allows for flexible mounting on trusses, walls, or standing on the floor.
يثبت
- فك التعبئة: Carefully remove the light and all accessories from the packaging.
- تركيب القوس: Attach the dual brackets to the sides of the light using the provided screws and knobs. Ensure they are securely fastened.
- التركيب:
- منصة أرضية: Position the light on a flat, stable surface using the brackets as a stand. Adjust the angle as desired.
- Hanging/Truss Mount: استخدم clamps (not included) to secure the light to a truss or ceiling. Always use a safety cable (not included) when hanging the unit.
- توصيل الطاقة: Connect the power cable to the light's power input and then to a suitable power outlet.
أوضاع التشغيل

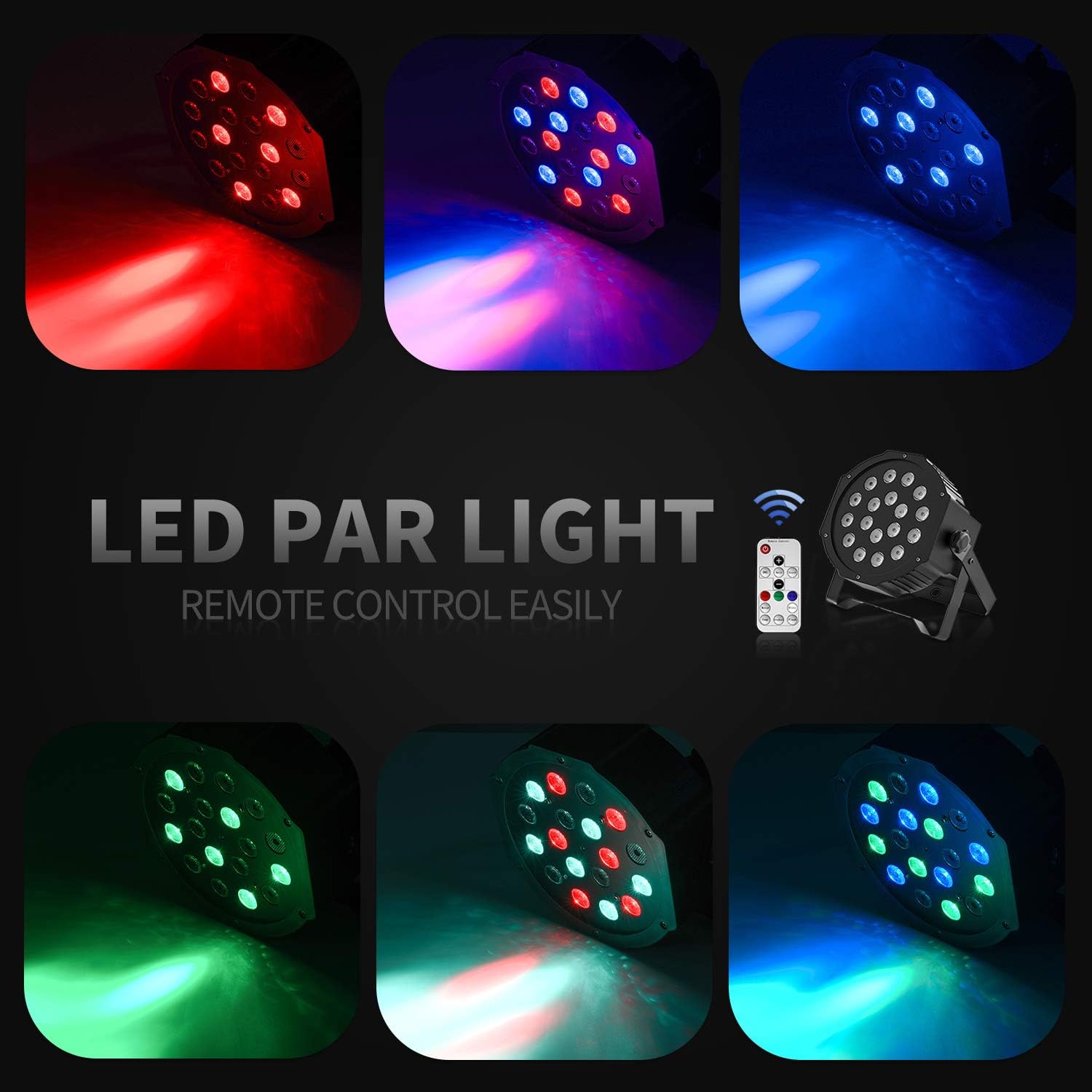

The Donner DJ Par Light offers multiple operating modes, selectable via the remote control or the control panel on the back of the unit.
- وضع اللون الثابت: Displays a single, constant color. Use the remote's color buttons (Red, Green, Blue) or the control panel to select specific colors or mix RGB values.
- Color Changing (Jump) Mode: The light rapidly switches between different colors. The speed of the color change can be adjusted.
- Color Fade (Gradual) Mode: The light smoothly transitions from one color to another. The transition speed can be adjusted.
- نظام آلي: The light cycles through various pre-programmed lighting effects automatically.
- وضع تنشيط الصوت: The light reacts to ambient sound or music, changing colors and patterns in sync with the beat. Ensure the built-in microphone is not obstructed.
- وضع السيد والعبد: Connect multiple lights using DMX cables. One unit acts as the master, controlling all connected slave units, ensuring synchronized lighting effects.
- وضع DMX: For advanced control using a DMX512 controller. This mode allows precise control over individual light parameters such as color intensity, strobe, and mode selection.
تشغيل التحكم عن بعد
The included IR remote control provides convenient access to the light's functions:
- تشغيل/وضع الاستعداد: Press to power on or put the device in standby mode.
- دمكس: Activates DMX mode. Use '+' and '-' to adjust the DMX address.
- آلي: Activates Auto mode.
- صوت: Activates Sound-Activated mode.
- احمر اخضر ازرق: Selects static red, green, or blue color.
- أبيض: Selects static white color.
- القفز: Activates Color Changing (Jump) mode.
- Gradual: Activates Color Fade (Gradual) mode.
- فلاش: Activates Strobe mode.
- +/- الأزرار: Adjust speed in Jump/Gradual/Flash modes, or DMX address in DMX mode.
تحكم DMX
The Donner DJ Par Light supports DMX512 protocol for professional control. Connect a DMX controller to the DMX IN port using a 3-pin XLR cable. For multiple units, daisy-chain them by connecting the DMX OUT of one unit to the DMX IN of the next.
DMX Channel Functions (Example for 7-channel mode):
| قناة | وظيفة | نطاق القيمة | وصف |
|---|---|---|---|
| 1 | سيد الخافت | 0-255 | Overall brightness (0=off, 255=max) |
| 2 | كثافة حمراء | 0-255 | Red LED brightness (0=off, 255=max) |
| 3 | كثافة خضراء | 0-255 | Green LED brightness (0=off, 255=max) |
| 4 | كثافة اللون الأزرق | 0-255 | Blue LED brightness (0=off, 255=max) |
| 5 | ستروب | 0-255 | Strobe speed (0=off, 255=fastest) |
| 6 | اختيار الوضع | 0-255 | Selects various internal programs (Auto, Sound, Jump, Gradual) |
| 7 | سرعة البرنامج | 0-255 | Adjusts speed of selected program (0=slow, 255=fast) |
صيانة
- تنظيف: Regularly clean the lens and housing with a soft, lint-free cloth. Do not use abrasive cleaners.
- تخزين: قم بتخزين الجهاز في بيئة جافة وخالية من الغبار عندما لا يكون قيد الاستخدام.
- تقتيش: قم بفحص كابل الطاقة ووصلات DMX بشكل دوري بحثًا عن أي علامات تلف.
استكشاف الأخطاء وإصلاحها
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| الضوء لا يعمل. | No power, faulty cable, device in standby. | Check power connection. Ensure outlet is functional. Press ON/STANDBY button on remote or control panel. |
| جهاز التحكم عن بعد لا يعمل. | Low battery, remote not aimed correctly, IR sensor blocked. | Replace remote battery. Point remote directly at the IR sensor on the front of the light. Ensure no obstructions. |
| Light not responding in DMX mode. | Incorrect DMX address, faulty DMX cable, incorrect DMX mode selected. | Verify DMX address matches controller. Check DMX cable connections. Ensure DMX mode is active on the light. |
| Sound-activated mode not working. | Microphone obstructed, sound level too low. | Ensure the microphone on the back panel is clear. Increase music volume or move the light closer to the sound source. |
تحديد
| نموذج: | Remote Control/DMX |
| مصدر الضوء: | 18 x 3W RGB LEDs (6 Red, 6 Green, 6 Blue) |
| مصدر الطاقة: | كهرباء سلكية |
| وسائط التحكم: | Static Color, Color Changing, Color Fade, Auto, Sound-activated, Master-slave, DMX512 |
| مادة: | بلاستيك |
| أبعاد المنتج: | 7.48 بوصة طول × 5.12 بوصة عرض × 7.48 بوصة ارتفاع |
| وزن السلعة: | 1.45 رطل |
الضمان والدعم
Donner provides a 12-month warranty for this product, covering manufacturing defects from the date of purchase. For warranty claims, technical support, or service inquiries, please contact Donner customer service through the retailer where the product was purchased or visit the official Donner webموقع لمعلومات الاتصال.
