1. انتهى المنتجview
The Retevis Noise Reduction Walkie Talkie Headset is designed for clear communication in noisy environments. It features foam sound insulation to block external noise, an adjustable head size for comfortable wear, and multiple controls for easy operation.

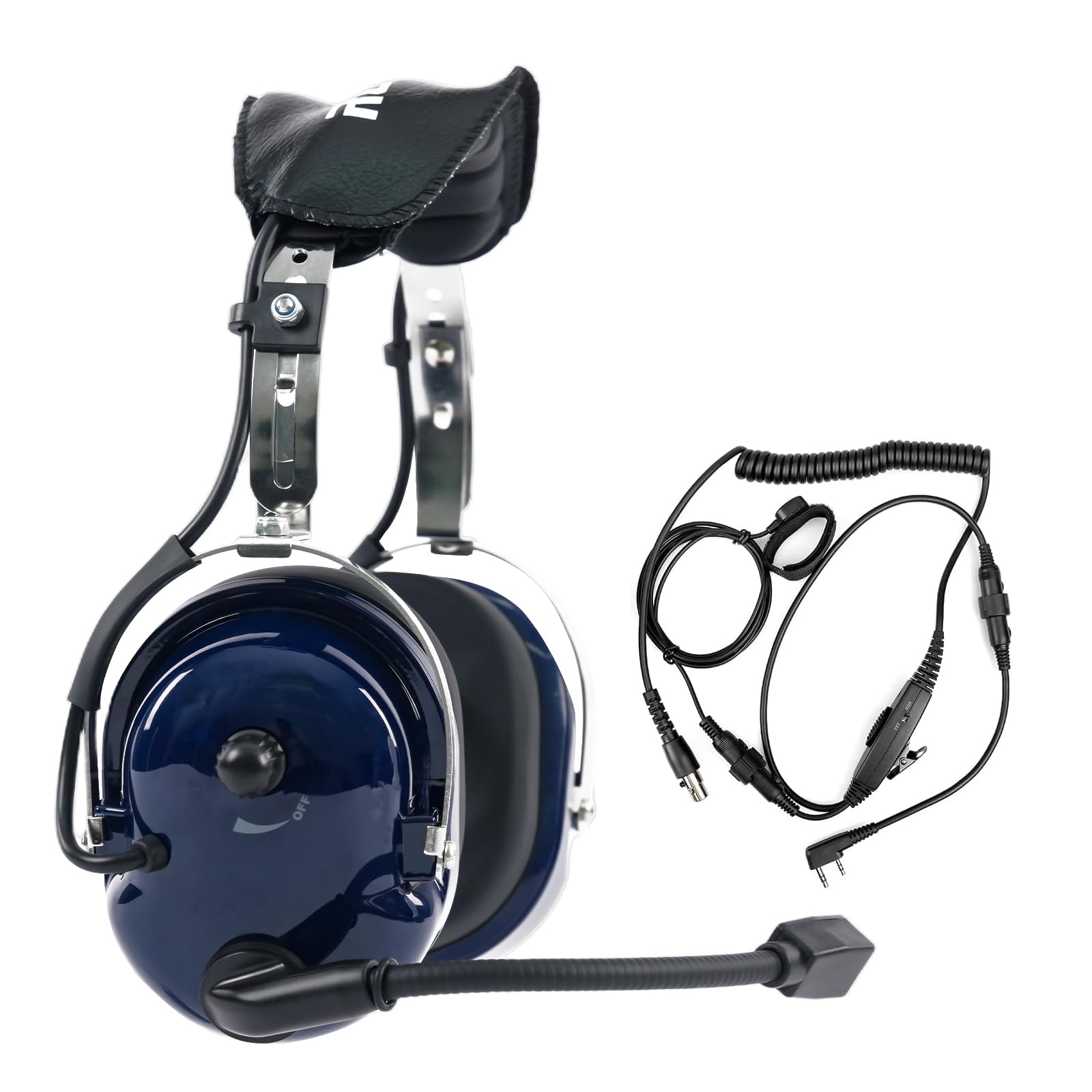

Image 1.1: The Retevis Noise Reduction Walkie Talkie Headset, showcasinبفضل تصميمه المتين.
Image 1.2: The adjustable headband mechanism, allowing for a customized and comfortable fit for various head sizes.
Image 1.3: Close-up of the comfortable, noise-isolating earmuffs designed to fit snugly and block external sounds.
2. الإعداد
To set up your Retevis headset, ensure your walkie-talkie is turned off before connecting the headset. Locate the K-head 2-pin connector on your walkie-talkie and firmly insert the headset's connector. Once connected, you can power on your walkie-talkie.
Image 2.1: The K-head 2-pin connector, which ensures compatibility with various two-way radios.
3. تعليمات التشغيل
3.1 ضبط مستوى الصوت
The headset features two volume adjustment knobs for precise control. One knob is located directly on the earmuff, and another is on the inline cable. Adjust both to your desired listening level. For initial use, turn both up to hear audio, then fine-tune with either knob.
Image 3.1: Illustration of the two volume adjustment knobs, one on the earmuff and one on the cable, for convenient audio control.
3.2 أزرار الضغط للتحدث (PTT)
The headset is equipped with three PTT buttons for flexible communication. These are located in different positions to suit various usage habits:
- Main PTT Button: Typically found on the inline cable unit.
- Headset PTT Button: Located on one of the earmuffs for quick access.
- Finger PTT Button: A smaller, remote button that can be attached to your finger or clothing for discreet activation.
Press and hold any PTT button to transmit your voice, and release to listen.
Image 3.2: Visual representation of the three PTT buttons, highlighting their placement for user convenience.
3.3 وظيفة VOX (نظام تبادل يعمل بالصوت)
The VOX function allows for hands-free transmission. When enabled, the headset automatically detects your voice and begins transmitting without needing to press a PTT button. To activate VOX, locate the PTT/VOX switch on the inline cable unit and slide it to the 'VOX' position. Adjust the VOX sensitivity on your walkie-talkie if available, to prevent accidental transmissions or missed speech.
Image 3.3: Diagram illustrating the VOX function, which automatically identifies voice volume for hands-free operation.
4. التوافق
The Retevis Noise Reduction Walkie Talkie Headset uses a standard K-head 2-pin connector, ensuring broad compatibility with many two-way radio models.
4.1 جهاز متوافق
- Retevis: H-777, RT21, RT22, RT-5R, RT-5RV, RT1, RT2, RT5, RT7, RT23, RT26, RT27, H-777S, RT28, RT15, RT46, RT50, RT52, RA79, RA89, RT68, RT68H
- Baofeng: UV-5R, 5RM, 888S, BF-F8HP
- سامكوم
- كينوود
- اركشيل
4.2 الأجهزة غير المتوافقة
هذه السماعة غير متوافق with Midland or Motorola walkie talkies.
Image 4.1: Visual guide to the K-head 2-pin connector and compatible brands.
Video 4.1: An official video demonstrating the Retevis Noise Reduction Walkie Talkie Headset, including its features and compatibility.
5. الصيانة
تضمن الصيانة المناسبة طول عمر سماعات الرأس والأداء الأمثل لها.
- تنظيف: امسح أسطح سماعة الرأس بقطعة قماش ناعمة و...amp cloth. Avoid using harsh chemicals or abrasive cleaners. Ensure no moisture enters the speaker or microphone areas.
- منصات الأذن: Regularly inspect ear pads for wear and tear. Replace them if they become damaged or lose their sound-isolating properties.
- العناية بالكابلات: Avoid sharp bends or excessive pulling on the cables and connectors to prevent internal damage.
- تخزين: Store the headset in a dry, cool place away from direct sunlight and extreme temperatures.
6. استكشاف الأخطاء وإصلاحها
إذا واجهت مشكلات مع سماعة الرأس الخاصة بك، فراجع المشكلات والحلول الشائعة التالية:
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| لا يوجد صوت من سماعة الرأس | Volume too low; Headset not fully connected; Radio issue | Increase both volume knobs; Re-insert connector firmly; Test radio with another accessory |
| جودة صوت رديئة / تشويش | Loose connection; Interference; Damaged cable/connector | Check connection; Move away from electronic devices; Inspect cable for damage |
| الميكروفون لا يرسل | PTT not pressed; VOX not enabled/sensitive enough; Microphone position | Ensure PTT is pressed; Check VOX switch and sensitivity; Adjust microphone closer to mouth |
| سماعة الرأس غير مريحة | Improper adjustment; Ear pads worn out | Adjust headband for a better fit; Consider replacing ear pads if they are compressed or damaged |
7. المواصفات
Key technical specifications for the Retevis Noise Reduction Walkie Talkie Headset (Model FC9067A):
| ميزة | التفاصيل |
|---|---|
| رقم الموديل | FC9067A |
| التحكم في الضوضاء | عزل الصوت |
| حساسية | 121 ديسيبل |
| مقبس سماعات الرأس | Kenwood 2 Pin |
| تكنولوجيا الاتصال | سلكي |
| مادة | Plastic (ABS Shell) |
| وزن العنصر | 1.52 رطل (حوالي 0.69 كجم) |
| أبعاد المنتج | 4.61 × 10.79 × 9.09 بوصة |
| وضع الأذن | فوق الأذن |
| مقاومة | 8 أوم |
| المكونات المضمنة | 1 x Retevis Noise Reduction Walkie Talkie Headset |
8. الضمان والدعم
For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Retevis website. You can also contact the seller directly through the platform where the product was purchased for assistance with any issues or inquiries.
