مقدمة
This manual provides detailed instructions for the installation, operation, and maintenance of your FVTLED WiFi RGBW LED Controller. This controller is designed for wireless smart control of FVTLED RGBW LED Deck lights via a dedicated mobile application on Android and iOS devices. Please read this manual thoroughly before use to ensure proper functionality and safety.
معلومات السلامة
- تأكد من فصل مصدر الطاقة قبل التثبيت أو الصيانة.
- This controller is designed for use with FVTLED RGBW LED Deck lights only. Do not connect to other lighting systems.
- تحقق من المجلد الصحيحtage (120 Volts) and wattage (15 watts) compatibility.
- احتفظ بالجهاز بعيدًا عن الماء والرطوبة الزائدة.
- لا تحاول تفكيك وحدة التحكم أو تعديلها. قم بإحالة جميع أعمال الصيانة إلى فنيين مؤهلين.
محتويات الحزمة
يرجى التحقق من الحزمة للعناصر التالية:
- 1 x FVTLED WiFi RGBW LED Controller
- 1 x Remote Control (Batteries not included: Requires 2 AAA batteries)
- دليل المستخدم (هذا المستند)
المنتج انتهىview
The FVTLED WiFi RGBW LED Controller allows you to manage your FVTLED RGBW deck lights with ease, offering both a physical remote control and a comprehensive mobile application for advanced features.
Image: FVTLED WiFi RGBW LED Controller and its accompanying remote control.
Image: Detailed layout of the remote control buttons, indicating functions such as ON/OFF, brightness adjustment, color temperature control, and RGB color cycling.
يثبت
1. توصيل الأسلاك
The controller features two connection ends:
- ال 2-pin end connects to your power supply.
- ال 5-pin end connects directly to your FVTLED RGBW LED deck lights.
Ensure all connections are secure and properly aligned before applying power.
2. Mobile Application Download
To utilize the smart control features, download the official FVTLED application. بحث عن "FVTLED" in your device's app store:
- For Android devices: Google Play Store
- For iOS devices: Apple App Store
Image: Visual guide for downloading the FVTLED application and an overview of its key features, including 16 million colors, music sync, voice control, and scheduling.
3. Connecting the Controller to Wi-Fi
Follow these steps within the FVTLED app to connect your controller to your home Wi-Fi network:
- Open the FVTLED app.
- اشتراك for a new account or تسجيل الدخول إذا كان لديك بالفعل واحدة.
- From the main screen, tap the "Add device" button (often represented by a '+' icon).
- The app will automatically search for nearby devices. Select your controller (e.g., "DeviceBCF2").
- Enter your Wi-Fi network name and password when prompted.
- Once connected, you can name your device and assign it to a specific room for better organization.
Image: Step-by-step screenshots illustrating the process of signing up, logging in, adding a device, connecting to Wi-Fi, and organizing the device within the FVTLED app.
تشغيل وحدة التحكم
1. استخدام جهاز التحكم عن بعد
The included remote control provides basic functions:
- تشغيل/إيقاف: قم بتشغيل الأضواء أو إيقاف تشغيلها.
- سطوع: Adjust light intensity (10 levels of dimming).
- درجة حرارة اللون: Adjust between warm white (3000K), neutral white (4000K), and cool white (6500K).
- RGB Buttons: Cycle through various RGB colors and modes (three speeds for color cycling).
- وضع الإضاءة الليلية: يقوم بتفعيل وضع إضاءة منخفض الشدة.
2. Using the FVTLED Mobile App
The mobile app unlocks the full potential of your RGBW LED Controller:
- 16 مليون لون: Select any color from a vast spectrum.
- Brightness & Saturation Control: اضبط شدة الإضاءة وحيوية الألوان بدقة.
- وضع الموسيقى: Lights can synchronize with music played through your device.
- التحكم الصوتي: Integrate with smart home systems (Wi-Fi, Alexa, Google Assistant) for voice commands.
- المؤقت والجدول الزمني: Set automated on/off times and lighting scenes.
- أوضاع متعددة: Access various pre-programmed lighting effects and scenes.
Image: A user demonstrating control of green deck lights using the FVTLED mobile application on a smartphone.

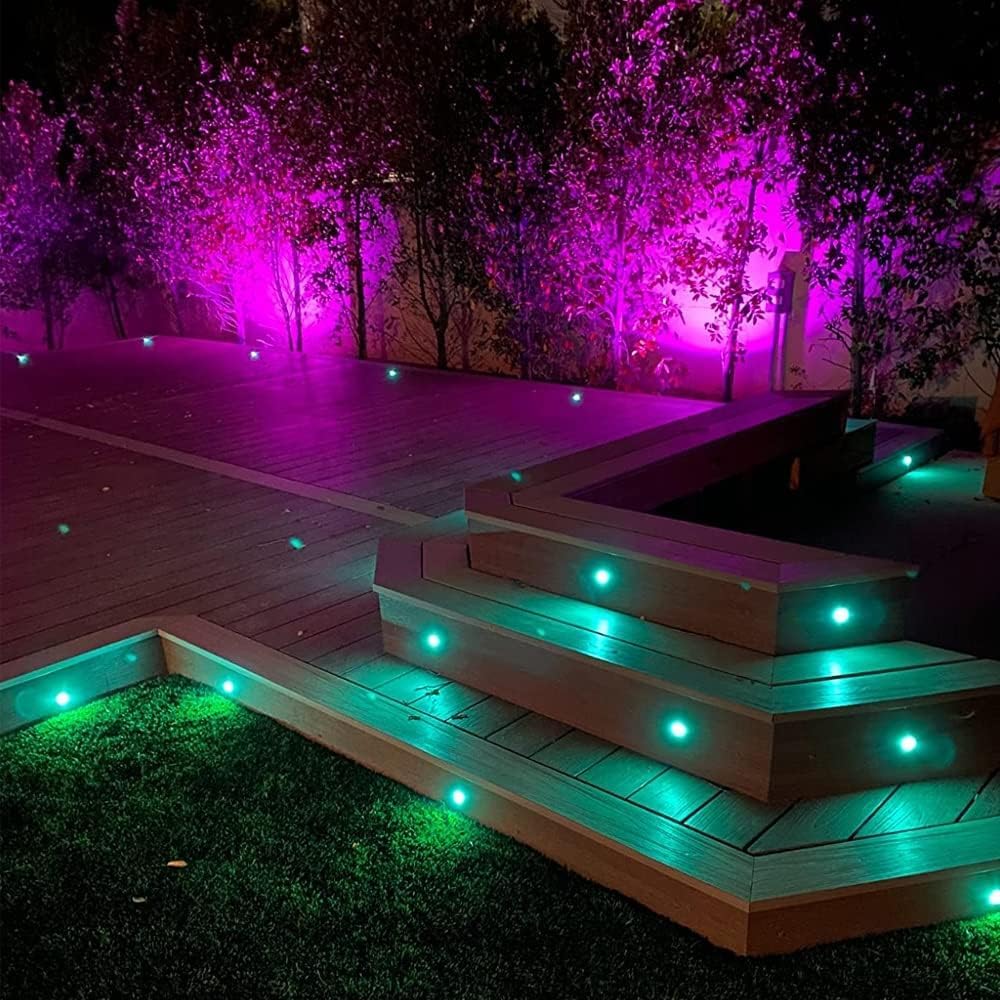

Image: An outdoor deck illuminated with FVTLED RGBW lights displaying vibrant purple and green colors, showcasing the controller's capabilities.
Image: An outdoor deck and stairs illuminated with warm white FVTLED deck lights, providing a cozy ambiance.
Image: A spacious outdoor deck area featuring FVTLED deck lights displaying a range of vibrant colors, demonstrating the RGB capabilities.
صيانة
The FVTLED WiFi RGBW LED Controller requires minimal maintenance:
- Keep the controller clean and free from dust and debris. Use a soft, dry cloth for cleaning.
- Ensure the controller is installed in a location that is protected from direct exposure to harsh weather conditions, although it is designed for outdoor use with appropriate protection.
- افحص توصيلات الأسلاك بانتظام بحثًا عن أي علامات تآكل أو تلف.
- Replace remote control batteries (2 x AAA) as needed to ensure proper function.
استكشاف الأخطاء وإصلاحها
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| الأضواء لا تعمل. | No power to controller; Loose connections; Incorrect wiring; Faulty lights. | Check power supply connection. Ensure 2-pin connector is secure. Verify 5-pin connector to lights is secure. Confirm lights are functional. |
| Controller not connecting to Wi-Fi. | Incorrect Wi-Fi password; Out of Wi-Fi range; Router issues. | Double-check Wi-Fi password. Move controller closer to router. Restart your Wi-Fi router. Ensure 2.4GHz network is used if applicable. |
| جهاز التحكم عن بعد لا يعمل. | Dead batteries; Remote out of range; Obstruction. | Replace AAA batteries. Ensure remote is within effective range of the controller. Remove any physical obstructions between remote and controller. |
| Lights not responding to app commands. | Controller offline; App glitch; Network interference. | Check app to confirm controller is online. Restart the app. Restart the controller by disconnecting and reconnecting power. Check for Wi-Fi interference. |
تحديد
| ميزة | التفاصيل |
|---|---|
| رقم الموديل | زد0039 |
| ماركة | ففتلد |
| الشركة المصنعة | SEVEN COLORS LIGHTING TECHNOLOGY CO., LTD |
| لون | Wifi RGBW Controller |
| مصدر الطاقة | DC امدادات الطاقة |
| المجلدtage | 120 فولت |
| واتtage | 15 واط |
| وزن العنصر | 1.58 أونصات |
| أبعاد الحزمة | 7 × 6.26 × 0.89 بوصة |
| الاتصال | واي فاي |
| التوافق | Android, iOS, Alexa, Google Assistant |
| المكونات المضمنة | WiFi RGB controller and RGBW LED lights (controller only in this package) |
| تاريخ أول توفر | 16 أكتوبر 2015 |
الضمان والدعم
For warranty information and customer support, please refer to the official FVTLED website or contact the manufacturer directly. Details regarding product registration, warranty claims, and technical assistance can typically be found through these channels.
الشركة المصنعة: SEVEN COLORS LIGHTING TECHNOLOGY CO., LTD
لمزيد من المساعدة، يرجى زيارة متجر FVTLED على أمازون.
