FVTLED WiFi RGB منخفض الصوتtage LED Deck Lights Kit

1. المقدمة

This manual provides detailed instructions for the installation, operation, and maintenance of your FVTLED WiFi RGB Low Voltage LED Deck Lights Kit. This kit is designed to provide versatile and customizable lighting for both indoor and outdoor environments, featuring RGB color options, smart control via WiFi, and compatibility with voice assistants.

2. معلومات السلامة

يرجى قراءة وفهم جميع تعليمات السلامة قبل تركيب هذا المنتج أو استخدامه. قد يؤدي عدم اتباع هذه التعليمات إلى صدمة كهربائية أو حريق أو مخاطر أخرى.

• تأكد من فصل مصدر الطاقة قبل التثبيت أو الصيانة.
• This product operates on DC12V low voltage. Do not connect directly to AC power without the provided power supply.
• All lights and cables are IP67 waterproof, suitable for outdoor use. However, ensure all connections are securely tightened to maintain water resistance.
• Do not modify the product or its components. Any modifications may void the warranty and create safety risks.
• Keep the power supply unit in a dry, protected area, away from direct water exposure.
• استشر كهربائيًا مؤهلًا إذا كنت غير متأكد من أي جزء من عملية التركيب.

3. محتويات العبوة

تأكد من أن جميع المكونات موجودة وغير تالفة عند فتح العبوة:

• 10 x LED Inground Lights (Model D45)
• 1 x 12W LED Power Supply
• 1 x LED WiFi Controller
• 1 x 24-Key IR Remote Controller

Image 3.1: Contents of the FVTLED Deck Lights Kit, including 10 LED lights, power supply, WiFi controller, and remote control.

4. الإعداد والتثبيت

Follow these steps for proper installation of your FVTLED deck lights:

1. تخطيط: Determine the desired layout for your lights. The distance between each light is approximately 1 meter (3.28 ft). Ensure the total length of connected lights does not exceed the capacity of the power supply.
2. حفر الثقوب: Drill mounting holes of approximately Φ1.38 inches (35mm) in diameter. The light fixture itself has a diameter of Φ1.77 inches (45mm) and a height of 1.02 inches (26mm).
3. إدراج الأضواء: Carefully insert each LED deck light into the drilled holes. The spring clips on the sides will secure the light in place.
4. توصيل الأضواء: Connect the lights in series using the male and female waterproof connectors. Ensure each connection is firmly pushed together and the screw cap is tightened to maintain the IP67 waterproof rating.
5. الاتصال بوحدة التحكم: Connect the string of lights to the LED WiFi Controller.
6. توصيل التيار الكهربائي: Connect the LED WiFi Controller to the 12W LED Power Supply.
7. تشغيل الطاقة: قم بتوصيل مصدر الطاقة بمأخذ كهربائي قياسي.

Image 4.1: Detailed dimensions for drilling and a diagram illustrating the series connection of the LED deck lights to the driver.

ملحوظة: The distance between the light and the controller should be less than 3 meters for optimal performance.

5. تعليمات التشغيل

5.1. عملية التحكم عن بعد

يتيح جهاز التحكم عن بعد بالأشعة تحت الحمراء المرفق ذو الـ 24 مفتاحًا إمكانية استخدام الوظائف الأساسية:

• تشغيل/إيقاف: قم بتشغيل الأضواء أو إيقاف تشغيلها.
• اختيار اللون: Choose from various preset colors.
• ضبط السطوع: زيادة أو تقليل شدة الإضاءة.
• اختيار الوضع: Cycle through different dynamic lighting modes.

The remote control has an effective range of up to 15 meters.

5.2. WiFi / Smart App Control

For advanced features and smart home integration, use the dedicated mobile application.

1. تنزيل التطبيق: بحث عن the companion app (e.g., 'Magic Home' or similar, as indicated in the product packaging or quick start guide) on your smartphone's app store (iOS or Android).
2. الاتصال بشبكة WiFi: Follow the in-app instructions to connect your LED WiFi Controller to your home WiFi network. This typically involves turning the lights on and off a few times to enter pairing mode, then selecting the controller from the app and entering your WiFi credentials.
3. اختيار اللون: Use the app's color wheel to select from 16 million colors.
4. ضبط السطوع: Precisely adjust the brightness level from 1% to 100%.
5. وظائف ديناميكية: Explore various lighting modes such as gradual changes, cross fades, and strobe effects. You can also adjust the speed of these functions.
6. وضع الموسيقى: Synchronize the lights with music played from your device or through the app's microphone sensitivity feature.
7. Camera Color Capture: Use your phone's camera to capture a color from your surroundings, and the lights will replicate it.
8. وظيفة المؤقت: Set schedules for the lights to automatically turn on/off, change colors, or activate specific functions at designated times.

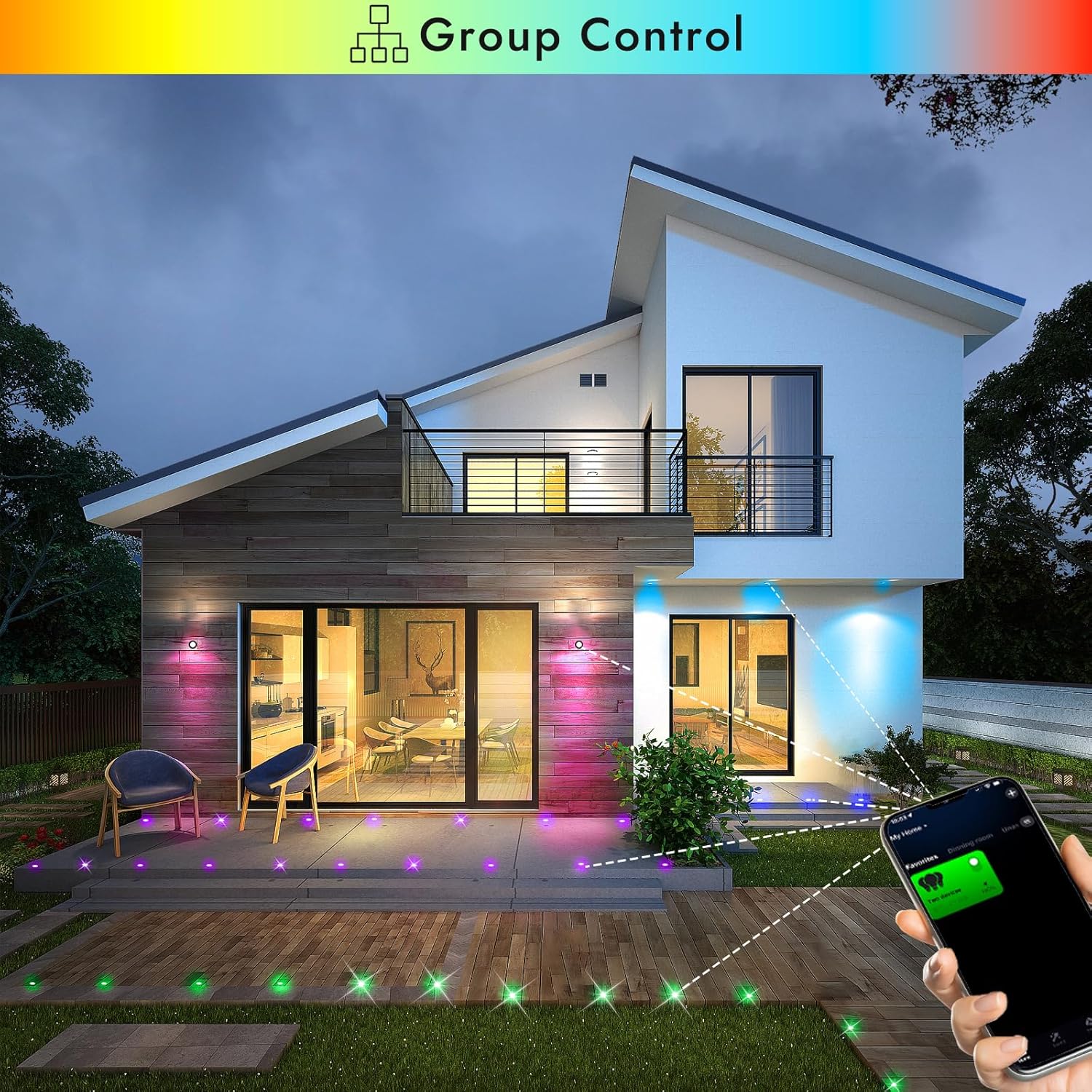

Image 5.1: Smartphone app demonstrating group control of multiple FVTLED deck lights.

Image 5.2: The app interface displaying the music mode feature, allowing lights to react to sound.

Image 5.3: The app interface demonstrating the timer function for scheduling light operations.

5.3. التحكم الصوتي (أليكسا وجوجل هوم)

The FVTLED WiFi RGB Deck Lights are compatible with Amazon Alexa and Google Home for convenient voice control.

1. تفعيل المهارة/الإجراء: In your Alexa or Google Home app, search for and enable the corresponding skill or action for your FVTLED lights (e.g., 'Magic Home' or similar).
2. ربط الحساب: Link your FVTLED app account with your Alexa or Google Home account.
3. اكتشاف الأجهزة: اطلب من أليكسا أو جوجل هوم اكتشاف أجهزة جديدة.
4. الأوامر الصوتية: You can now control your lights using voice commands such as:
   "Alexa, turn on the deck lights."
   "Hey Google, change deck lights to blue."
   "Alexa, dim the deck lights to 50%."

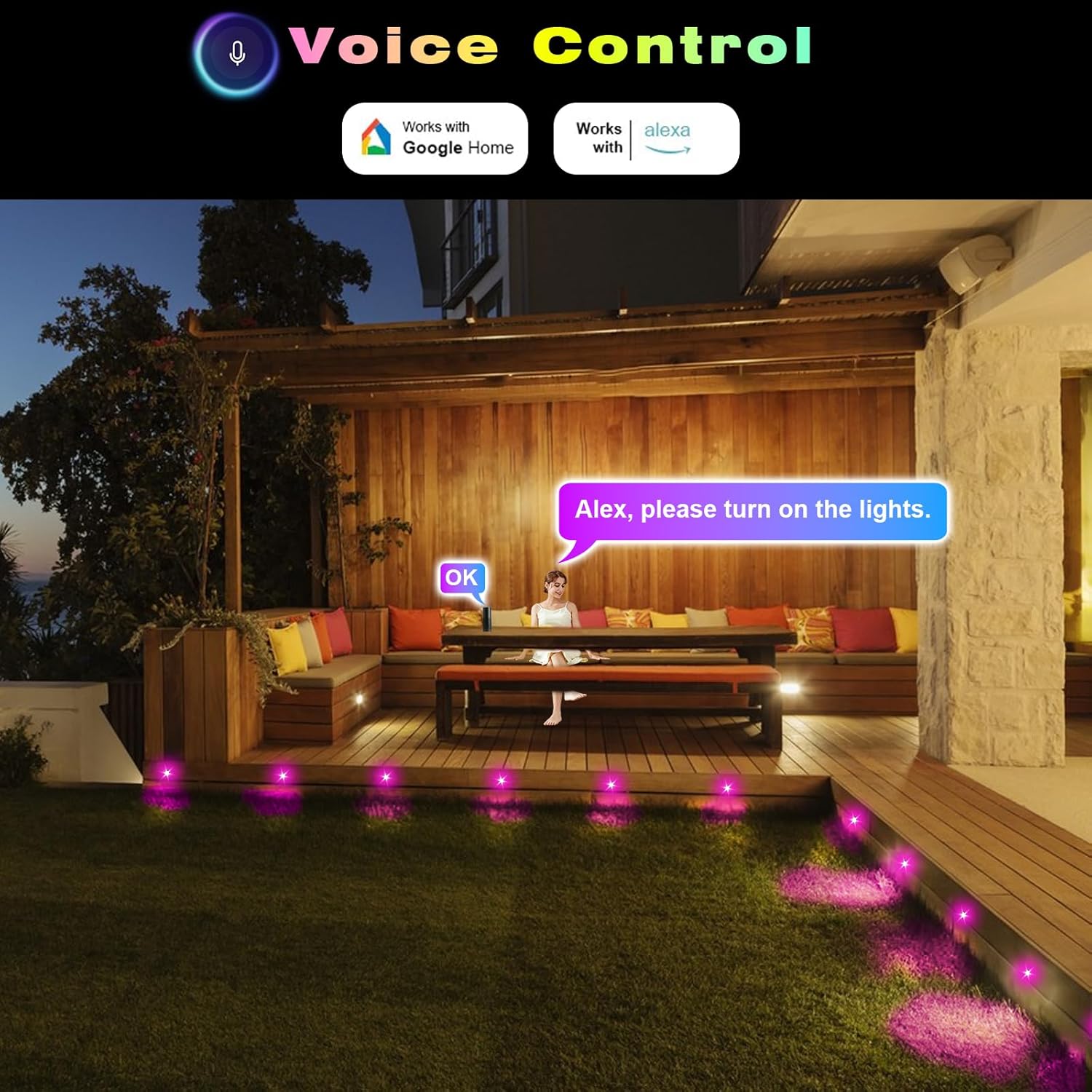

الصورة 5.4: سابقample of using voice commands with Alexa to control the FVTLED deck lights in an outdoor setting.

5.4. Video Demonstration: WiFi Controller and App Features

6. الصيانة

To ensure the longevity and optimal performance of your FVTLED deck lights, follow these maintenance guidelines:

• تنظيف: Periodically clean the surface of the lights with a soft, damp استخدم قطعة قماش لإزالة الأوساخ والشوائب. تجنب استخدام المنظفات الكاشطة أو المذيبات.
• فحص الاتصال: Annually inspect all cable connections to ensure they remain tight and free from corrosion. Re-tighten waterproof caps if necessary.
• فحص الكابلات: Check cables for any signs of damage, cuts, or fraying. Replace damaged cables immediately to prevent electrical hazards.
• مزود الطاقة: Ensure the power supply unit is kept in a well-ventilated area and is not covered, to prevent overheating.

7. استكشاف الأخطاء وإصلاحها

If you encounter issues with your FVTLED deck lights, refer to the following common problems and solutions:

• الأضواء لا تعمل:
  • Check if the power supply is properly plugged into a working outlet.
  • Verify all cable connections are secure and tightened.
  • Ensure the remote control or app is sending the 'ON' command.
  • Test the power supply with another compatible device if possible.
• مشاكل الاتصال بشبكة WiFi:
  • Ensure your smartphone is connected to a 2.4GHz WiFi network (5GHz networks are often not supported by smart devices).
  • Confirm the WiFi controller is within range of your router.
  • Try resetting the WiFi controller (refer to app instructions for specific reset procedures, often involves cycling power).
  • Verify that location services are enabled on your phone and allowed for the app during setup.
• جهاز التحكم عن بعد لا يعمل:
  • Check the battery in the remote control (1 CR2 battery required, included).
  • Ensure there are no obstructions between the remote and the WiFi controller.
  • Confirm the remote is pointed directly at the IR receiver on the controller.
• Inconsistent Light Colors/Brightness:
  • This can sometimes occur with long cable runs due to voltage drop. Ensure your setup adheres to recommended cable lengths.
  • Check for any loose connections that might be affecting power delivery to individual lights.

8. المواصفات

9. الضمان والدعم

This FVTLED product comes with a Limited Warranty. For specific warranty details, claims, or technical support, please refer to the warranty card included in your package or contact FVTLED customer service directly through their official webالموقع أو بائع التجزئة الذي تم شراء المنتج منه.
