مقدمة
This user manual provides comprehensive instructions for the installation, operation, and maintenance of your TECE Square II 9240833 Toilet Flush Plate. Designed for TECE cisterns, this metal flush plate features dual flush technology and can be operated from either the front or the top. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.
محتويات الحزمة
تأكد من وجود جميع المكونات في العبوة:
- 1x TECE Square II Metal Toilet Flush Plate (Black Matte)
- Actuation Rods
- مواد التركيب
- أداة الإزالة
تحديد
| يصف | التفاصيل |
|---|---|
| رقم الموديل | 9240833 |
| ماركة | يجري |
| لون | أسود مطفي |
| الأبعاد (العرض × الارتفاع × العمق) | 220 × 150 × 3 ملم (تقريبًا 8.66 × 5.91 × 0.12 بوصة) |
| وزن العنصر | 2.64 رطل (حوالي 1.2 كجم) |
| نوع التشغيل | Dual Flush Technology |
| عملية | Front or Top Actuation |
| التوافق | TECE Cisterns, Compatible with Cleaning Tabs Slot |
الإعداد والتثبيت
Installation of the TECE Square II flush plate requires careful attention to detail. It is recommended that installation be performed by a qualified professional. Ensure the TECE cistern is correctly installed and accessible before proceeding.
فحوصات ما قبل التثبيت
- Confirm the cistern is a compatible TECE model.
- Ensure the wall opening for the flush plate is clean and free of debris.
- Have all included mounting materials and tools readily available.
خطوات التثبيت
- Prepare the Cistern: Ensure the cistern's internal mechanism is correctly positioned and ready to receive the actuation rods.
- Attach Actuation Rods: Carefully attach the provided actuation rods to the flush plate mechanism. Ensure they are securely fastened and move freely.
- Position the Flush Plate: Align the flush plate with the opening in the wall, ensuring the actuation rods correctly engage with the cistern's flush mechanism. The plate is designed for extra flat metal actuation.
- تأمين اللوحة: Use the provided mounting material to secure the flush plate firmly to the wall or cistern frame. Follow the specific instructions provided with your TECE cistern for precise mounting.
- وظيفة الاختبار: Once secured, gently press both flush buttons to ensure the dual flush mechanism operates smoothly and returns to its original position without obstruction.

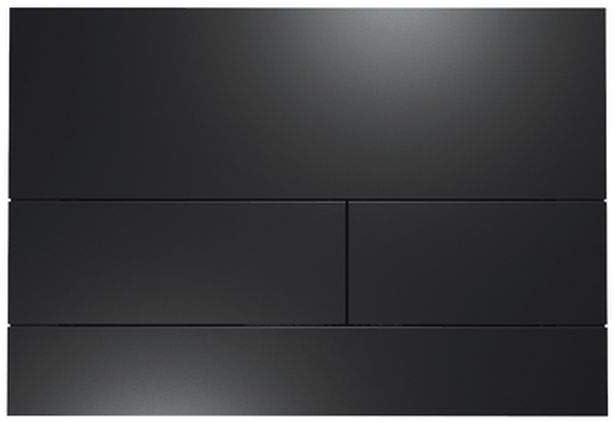

Image: The TECE Square II 9240833 Toilet Flush Plate in black matte finish. This image displays the sleek design and the two distinct flush buttons for dual flush operation.
تعليمات التشغيل
The TECE Square II flush plate features dual flush technology, allowing for water-efficient operation.
عملية تدفق مزدوج
- Small Flush: Press the smaller of the two buttons for a reduced water volume flush, ideal for liquid waste.
- Large Flush: Press the larger of the two buttons for a full water volume flush, suitable for solid waste.
The flush plate can be operated from either the front or the top, depending on your cistern installation and preference.
Cleaning Tab Compatibility
This control plate is compatible with a slot for cleaning tabs. Refer to your TECE cistern's manual for instructions on how to insert cleaning tabs into the designated compartment, typically accessible behind the flush plate.
الصيانة والعناية
Proper care will ensure the longevity and aesthetic appeal of your TECE Square II flush plate.
التنظيف العام
- Clean the surface of the flush plate regularly with a soft, damp قطعة قماش.
- Use only mild, non-abrasive cleaning agents. Avoid harsh chemicals, abrasive pads, or solvents, as these can damage the matte black finish.
- قم بتجفيف السطح جيدًا بعد التنظيف لمنع ظهور بقع الماء.
الرعاية طويلة الأمد
- Periodically check the actuation rods for smooth movement. If resistance is felt, ensure no debris is obstructing their path.
- If the flush plate needs to be removed for cistern maintenance, use the provided removal tool carefully to avoid damage.
استكشاف الأخطاء وإصلاحها
This section addresses common issues you might encounter with your TECE Square II flush plate. For problems related to the cistern itself, refer to the cistern's specific manual.
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| Flush buttons stick or are difficult to press. | Debris behind the plate; misaligned actuation rods; plate not seated correctly. | Remove the plate using the removal tool and check for obstructions. Realign actuation rods. Re-seat the plate firmly. |
| Flush plate appears loose. | Mounting screws/clips are loose. | Carefully tighten mounting screws or re-engage clips. Do not overtighten. |
| No flush action when buttons are pressed. | Actuation rods not engaging cistern mechanism; cistern mechanism fault. | Ensure actuation rods are correctly connected to the cistern. If the issue persists, consult the cistern's manual or a professional plumber. |
الضمان والدعم
TECE products are manufactured to high quality standards. For specific warranty information regarding your TECE Square II 9240833 Toilet Flush Plate, please refer to the warranty documentation included with your purchase or visit the official TECE webموقع.
For technical support, spare parts, or further assistance, please contact TECE customer service or your local authorized dealer. Contact details can typically be found on the TECE webالموقع أو في وثائق المنتج الخاص بك.
