DIGOO PPT1 Rechargeable Waterproof Remote Dog Training Collar User Manual

1. المقدمة

Thank you for choosing the DIGOO PPT1 Remote Dog Training Collar. This manual provides detailed instructions for the safe and effective use of your training system. Please read this manual thoroughly before operating the device to ensure proper function and to maximize training effectiveness for your dog. This system is designed to assist in training dogs and correcting undesirable behaviors through beep, vibration, and static stimulation modes.

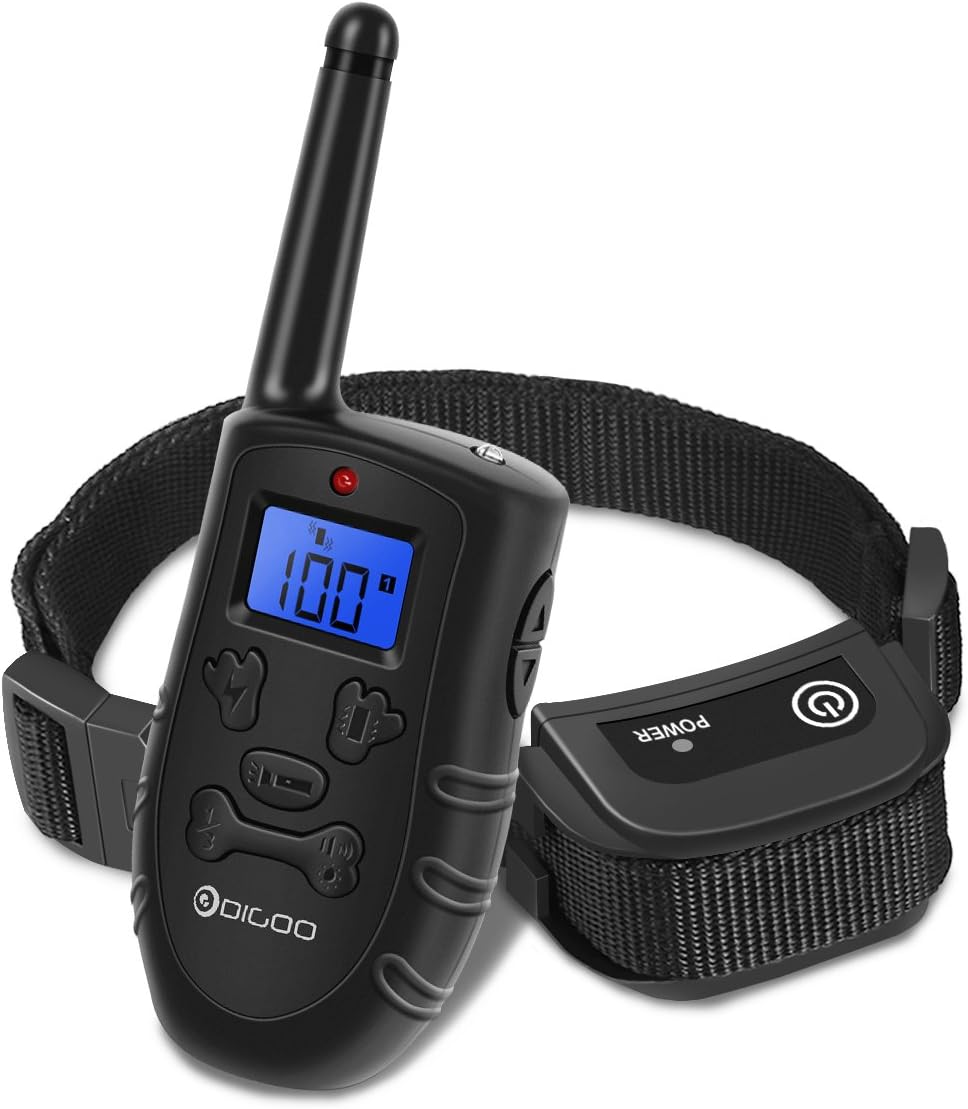

Image: The DIGOO PPT1 remote dog training collar system, showing the handheld remote transmitter and the receiver collar.

2. محتويات العبوة

تأكد من تضمين جميع العناصر المدرجة أدناه في الحزمة الخاصة بك:

• 1 x DIGOO DG-PPT1 Remote Transmitter
• 1 x DIGOO DG-PPT1 Waterproof Receiver Collar
• 4 x DIGOO DG-PPT1 Contact Screws (two sizes)
• 1 x DIGOO DG-PPT1 USB Charge Cable (Y-splitter)
• 1 x DIGOO DG-PPT1 Test Light
• 1 × دليل المستخدم (هذه الوثيقة)

3. انتهى المنتجview

3.1 جهاز الإرسال عن بعد

Image: Detailed diagram of the remote transmitter, highlighting its components such as the LCD screen, antenna, LED light, indicator, up/down buttons for vibration/shock, vibration button, shock button, LED light button, channel switch button, light/sound button, and charging port.

• الهوائي: لنقل الإشارة.
• ضوء LED: Indicates operation and battery status.
• مؤشر: Shows current mode and level.
• شاشة LCD: Blue backlit display for day and night visibility, showing channel, mode, level, and battery status.
• أزرار أعلى / أسفل: Adjust vibration and static stimulation levels (0-100).
• زر الاهتزاز: Activates vibration mode.
• زر الصدمة: Activates static stimulation mode.
• زر ضوء LED: Activates the receiver's LED light.
• Channel Switch Button (1-2-3): Selects the receiver collar to control (up to 3 collars).
• Light/Sound Button: Activates beep sound mode.
• فتحة الشحن: منفذ شحن USB.

3.2 طوق جهاز الاستقبال

• نقاط الاتصال: Deliver static stimulation.
• زر الطاقة: يقوم بتشغيل/إيقاف جهاز الاستقبال.
• منفذ الشحن: منفذ شحن USB.
• مؤشر الضوء: Shows power and operational status.
• حزام قابل للتعديل: Fits neck sizes from 11.8 inches (30cm) to 23.6 inches (60cm).
• تصميم مقاوم للماء: Allows use in wet conditions, including swimming.

4. الإعداد

4.1 شحن الأجهزة

Both the remote transmitter and receiver collar use rechargeable lithium-ion batteries. Use the provided Y-splitter USB charging cable to charge both devices simultaneously.

1. Connect the Y-splitter USB cable to a standard USB power adapter (not included) or a computer USB port.
2. Plug one micro-USB end into the charging port of the remote transmitter.
3. Plug the other micro-USB end into the charging port of the receiver collar.
4. Charge for approximately 3-4 hours until fully charged. The indicator lights will change to indicate full charge (refer to device indicators for specific behavior).

Note: A full charge typically provides up to 2 weeks of use, depending on frequency.

4.2 تشغيل / إيقاف

• الارسال عن بعد: Press any button to activate. It will automatically enter standby mode after 5 minutes of inactivity to save power.
• طوق المتلقي:
  • لتشغيل: Press and hold the power button on the receiver until the working indicator light illuminates.
  • لإيقاف التشغيل: When the working indicator is not shining, press and hold the power button for a few seconds until the working indicator flashes twice, then release.

4.3 Pairing the Remote and Receiver

The remote and receiver are typically pre-paired from the factory. If re-pairing is needed or if you are adding additional collars:

1. Ensure both devices are fully charged and turned off.
2. Turn on the remote transmitter. Select the desired channel (1, 2, or 3) using the channel switch button.
3. اضغط مع الاستمرار على زر الطاقة الموجود على طوق جهاز الاستقبال حتى يومض ضوء المؤشر بسرعة.
4. Within 10 seconds, press the "Shock" or "Vibration" button on the remote transmitter.
5. If pairing is successful, the receiver's indicator light will stop flashing and remain solid for a moment, then flash slowly.
6. To pair additional collars, repeat the process, selecting a different channel on the remote for each new collar.

Image: Illustration demonstrating how one remote transmitter can be paired with and control up to three separate receiver collars, each on its own channel.

4.4 تركيب الياقة

Proper fit of the receiver collar is crucial for effective and safe operation. The contact points must have direct contact with your dog's skin.

Image: Visual guide for adjusting the collar strap and selecting the appropriate contact screw length (6mm or 14mm) to ensure proper fit for dogs of various sizes, from 10 to 150 lbs.

1. تأكد من أن طوق قبالة.
2. Select the appropriate length of contact screws (6mm or 14mm) based on your dog's coat length. Longer screws are for thicker coats.
3. Attach the chosen contact screws securely to the receiver.
4. Place the receiver collar around your dog's neck, ensuring the contact points are positioned underneath the neck.
5. Adjust the strap so it is snug but not too tight. You should be able to fit two fingers comfortably between the strap and your dog's neck.
6. The collar should not be worn for more than 12 hours a day to prevent skin irritation. Regularly check your dog's neck for any signs of irritation.

5. تعليمات التشغيل

The DIGOO PPT1 offers three training modes: Beep, Vibration, and Static Stimulation.

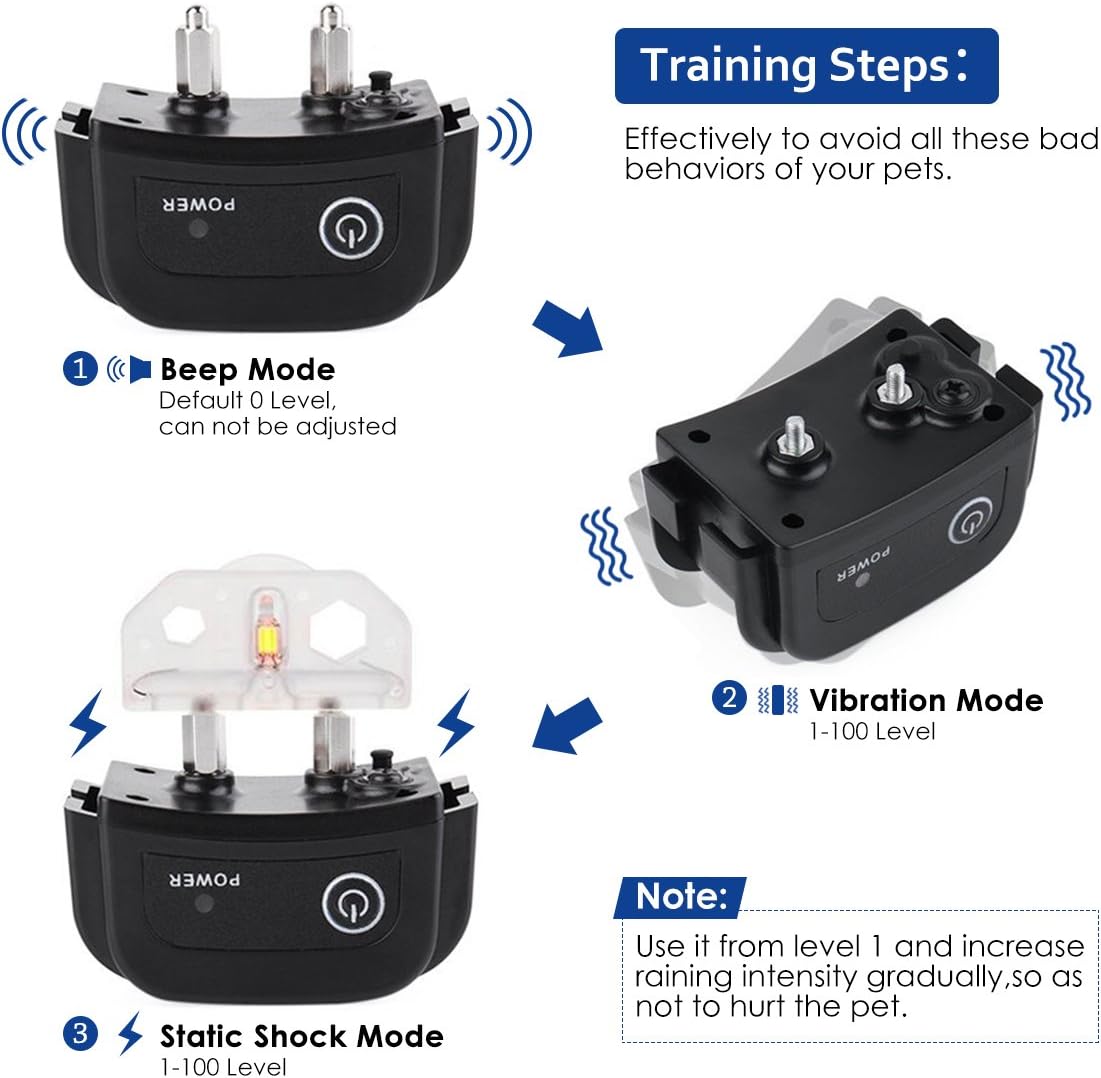

Image: Visual representation of the three training modes: Beep (default level 0, not adjustable), Vibration (levels 1-100), and Static Shock (levels 1-100). A note advises to start with level 1 and gradually increase intensity.

5.1 Beep Mode

• اضغط على Light/Sound Button على جهاز التحكم عن بعد.
• The receiver will emit an audible beep sound.
• This mode is ideal for giving warnings or attracting your dog's attention. The beep level is fixed and not adjustable.

5.2 وضع الاهتزاز

• اضغط على زر الاهتزاز على جهاز التحكم عن بعد.
• استخدم أزرار أعلى / أسفل to select a vibration level from 0 to 100.
• The receiver will vibrate according to the selected intensity.
• Start with the lowest effective level and gradually increase if necessary.

5.3 Static Stimulation Mode

• اضغط على زر الصدمة على جهاز التحكم عن بعد.
• استخدم أزرار أعلى / أسفل to select a static stimulation level from 0 to 100.
• The receiver will deliver a static pulse according to the selected intensity.
• Always start with the lowest effective level (level 1) and increase gradually. Use the included test light to verify static function.
• This mode should be used cautiously and only when necessary for correcting serious undesirable behaviors.

5.4 Remote Control Range

The remote control has an effective range of up to 330 yards (approximately 300 meters) in open areas. Environmental factors and obstacles can affect this range.

Image: Visual representation of the remote control's effective range, showing a dog being trained in an open field up to 330 yards away, and a smaller range of 165 yards in areas with barriers.

6. نصائح التدريب

• الاتساق هو المفتاح: Use the collar consistently for specific behaviors you want to correct.
• التعزيز الإيجابي: Always pair corrections with positive reinforcement when your dog performs the desired action.
• ابدأ منخفضًا: Begin with the lowest effective stimulation level and only increase if your dog does not respond.
• Short Sessions: Keep training sessions short and positive to maintain your dog's engagement.
• الإشراف: Never leave the collar on an unsupervised dog for extended periods.
• Not for Punishment: This device is a training aid, not a punishment tool. Use it responsibly and humanely.

7. الصيانة

7.1 التنظيف

• Wipe the remote and receiver with a damp قماش. لا تستخدم كيماويات مركزة.
• Regularly clean the contact points on the receiver to ensure proper function and prevent skin irritation.

7.2 العزل المائي

The receiver collar is designed to be waterproof, allowing your dog to swim or be in rainy conditions while wearing it. The remote transmitter is not waterproof and should be kept dry.

Image: A golden retriever splashing in water, wearing the DIGOO PPT1 waterproof receiver collar. A close-up inset shows the special rubber cover on the receiver, ensuring its waterproof capability even during swimming.

7.3 العناية بالبطارية

• Charge the devices fully before first use.
• قم بإعادة الشحن عندما يشير مؤشر البطارية إلى انخفاض الطاقة.
• If storing for extended periods, charge the devices every few months to maintain battery health.

8. المواصفات

9. استكشاف الأخطاء وإصلاحها

10. الضمان والدعم

DIGOO offers a 1-year worry-free return/refund policy for the dog training collar. For any problems or questions, please contact customer support at support@mydigoo.com. Responses are typically provided within 24 hours.
