1. المقدمة
The ThermoPro TP50 is a compact and highly accurate digital indoor thermometer and hygrometer designed to help you monitor the temperature and humidity levels in your living spaces. This device provides essential information for maintaining a comfortable and healthy indoor environment, displaying current conditions, maximum and minimum records, and a comfort level indicator.
Its versatile design allows for easy placement in various locations, making it suitable for homes, offices, baby rooms, greenhouses, and more. Understanding the information provided by the TP50 can assist in managing conditions for personal comfort, plant care, and pet well-being.
2. مواصفات المنتج
- تصميم مضغوط: Approximately 8.0 cm (height) x 7.0 cm (width) x 2.2 cm (depth). Made from durable ABS resin.
- شاشة كبيرة وواضحة: Features a large LCD screen with clear digits for easy readability of current temperature and humidity.
- الحد الأقصى/الحد الأدنى للتسجيل: Automatically records and displays the highest and lowest temperature and humidity values measured since the last reset. This feature is useful for tracking environmental changes over time.

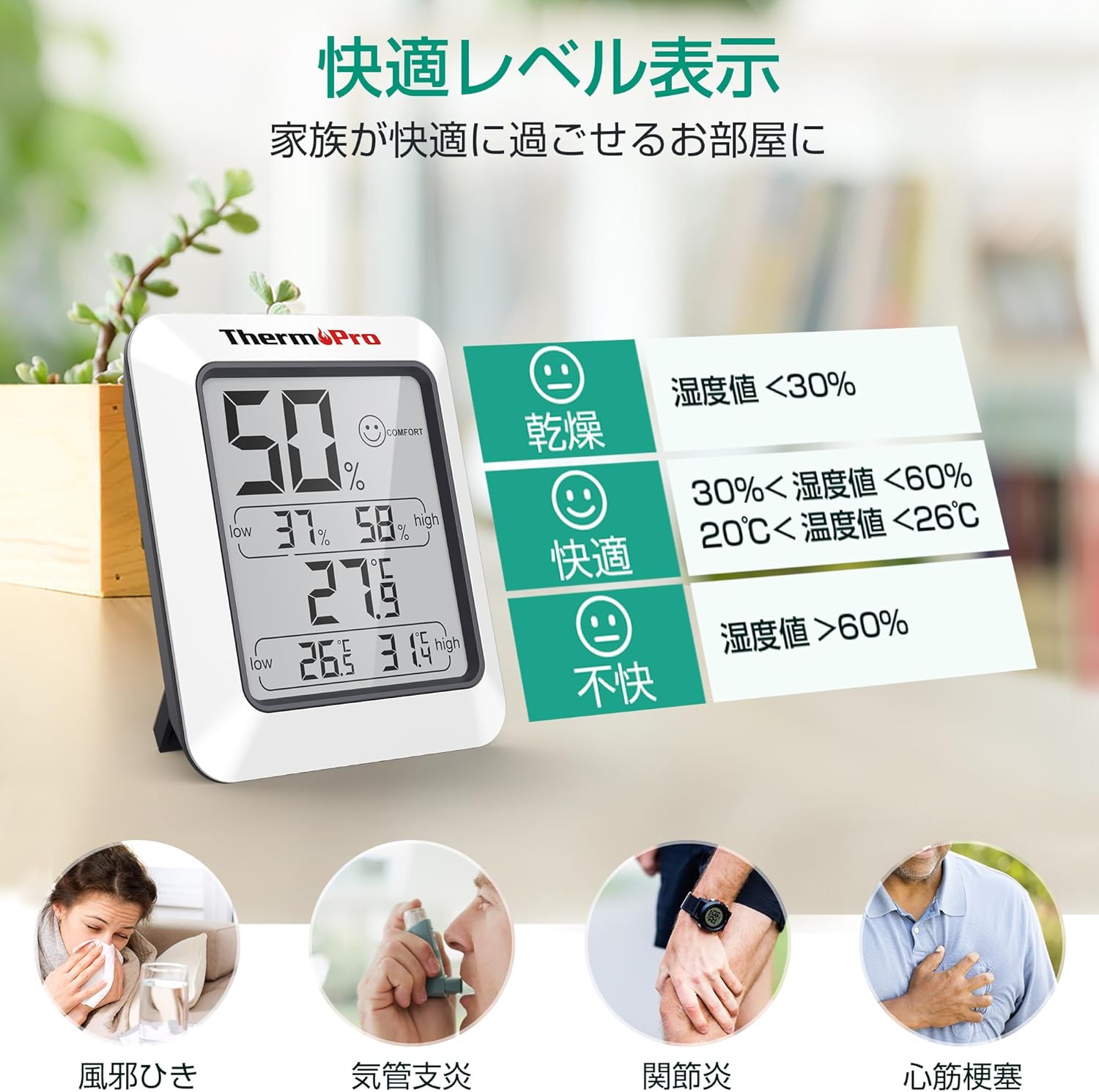

- مؤشر مستوى الراحة: Utilizes a simple face icon to indicate one of three comfort levels: Dry, Comfort, or Uncomfortable, based on the current temperature and humidity.
- التنسيب متعدد الاستخدامات: Equipped with a strong magnet for attachment to metallic surfaces like refrigerators, and a foldable stand for tabletop use.
- دقة عالية: Provides precise measurements for effective environmental monitoring.
3. الإعداد
3.1 تركيب البطارية
- حدد مكان حجرة البطارية في الجزء الخلفي من الوحدة.
- افتح غطاء حجرة البطارية.
- Insert one (1) AAA 1.5V battery, ensuring the correct polarity (+/-) as indicated inside the compartment.
- أغلق غطاء حجرة البطارية جيدًا.
3.2 الاستقرار الأولي
Upon initial power-on or after battery replacement, the sensor requires time to stabilize and accurately reflect the surrounding environment. Due to the small air intake hole on the back of the unit, it may take approximately 30 minutes for the device to display stable and accurate readings. Please allow this period for the device to calibrate before relying on the measurements.
4. تعليمات التشغيل
4.1 قراءة الشاشة
The large LCD screen displays the following information:
- الرطوبة الحالية: تظهر كنسبة مئويةtage (%) at the top of the display.
- درجة الحرارة الحالية: Shown in degrees Celsius (°C) or Fahrenheit (°F) in the middle of the display.
- الرطوبة القصوى/الدقيقة: The highest and lowest humidity recorded since the last reset are displayed below the current humidity.
- درجة الحرارة القصوى/الدقيقة: The highest and lowest temperature recorded since the last reset are displayed below the current temperature.
- Comfort Level Icon: A face icon (Dry, Comfort, Uncomfortable) is displayed next to the current humidity reading.
4.2 Switching Temperature Units (°C/°F)
To switch between Celsius (°C) and Fahrenheit (°F), locate the '°F/°C' button on the back of the unit and press it. The display will instantly change the temperature unit.
4.3 Resetting Max/Min Records
The maximum and minimum temperature and humidity records are automatically updated every 10 seconds. To clear the recorded maximum and minimum values and start a new recording cycle, press and hold the 'CLEAR' button located on the back of the unit for approximately 3 seconds. The display will show the current readings as the new starting point for max/min tracking.
5. الصيانة
5.1 التنظيف
لتنظيف الوحدة، امسحها بقطعة قماش ناعمة.amp cloth. Do not use abrasive cleaners or immerse the unit in water. Ensure the device is dry before re-using.
5.2 استبدال البطارية
When the display becomes dim or shows inaccurate readings, it may be time to replace the battery. Follow the battery installation steps in Section 3.1 to replace the AAA battery.
5.3 التخزين
If storing the unit for an extended period, remove the battery to prevent leakage and damage to the device.
5.4 Important Note on Water Resistance
هذا الجهاز هو لا ماء. Please avoid using it in wet environments such as bathrooms, washrooms, or near sinks, as exposure to water can damage the unit.
6. استكشاف الأخطاء وإصلاحها
6.1 قراءات غير دقيقة
- الإعداد الأولي: As mentioned in Section 3.2, allow 30 minutes for the device to stabilize after initial setup or battery replacement.
- الموقع: Ensure the device is placed in a location with good air circulation, away from direct sunlight, heat sources, or drafts, which can affect readings.
- إعاقة: The small air intake hole on the back should not be obstructed.
6.2 Display is Dim or Blank
- فحص البطارية: The battery may be low or depleted. Replace the AAA battery with a new one.
- تركيب البطارية: Ensure the battery is installed correctly with the proper polarity.
7. المواصفات
| مواصفة | التفاصيل |
|---|---|
| نموذج | TP50 |
| أبعاد | تقريبًا 8.0 سم (ارتفاع) × 7.0 سم (عرض) × 2.2 سم (عمق) |
| وزن | حوالي 60 جرام |
| مادة | راتينج ABS |
| مصدر الطاقة | 1 x AAA 1.5V Battery (included) |
| عمر البطارية | تقريبا. سنة واحدة |
| مدى درجة الحرارة | -50 درجة مئوية إلى 70 درجة مئوية (-58 درجة فهرنهايت إلى 158 درجة فهرنهايت) |
| نطاق الرطوبة | 10% إلى 99% رطوبة نسبية |
| دقة درجة الحرارة | ±1 درجة مئوية (±1.8 درجة فهرنهايت) |
| دقة الرطوبة | ±2% RH (30%-80% RH), ±3% RH (10%-30% & 80%-99% RH) |
| معدل التحديث | كل 10 ثواني |
| نوع العرض | شاشة الكريستال السائل |
| مقاومة الماء | No (Not waterproof) |
8. الضمان والدعم
ThermoPro products are designed for reliability and performance. This product comes with a 1-year warranty from the date of purchase, covering defects in materials and workmanship under normal use.
For technical assistance, troubleshooting, or warranty claims, please contact ThermoPro customer support. Our friendly customer support team is available to assist you with any questions or concerns regarding your device.
ThermoPro is committed to providing high-quality products and support to its community of over 20 million users worldwide.
For more information and support, please visit the official ThermoPro brand store: ThermoPro Brand Store
