دليل مستخدم مقياس حرارة اللحوم اللاسلكي ThermoPro TP09B

المنتج انتهىview

The ThermoPro TP09B Wireless Meat Thermometer is designed to monitor the internal temperature of your meat from a distance, providing convenience and precision for grilling, smoking, and cooking. It features a wireless receiver that alerts you when your food reaches the desired temperature, ensuring perfectly cooked meals every time.

Key features include a 300-foot wireless range, preprogrammed temperature settings for various meats, a wide temperature measurement range, and a durable stainless steel probe.

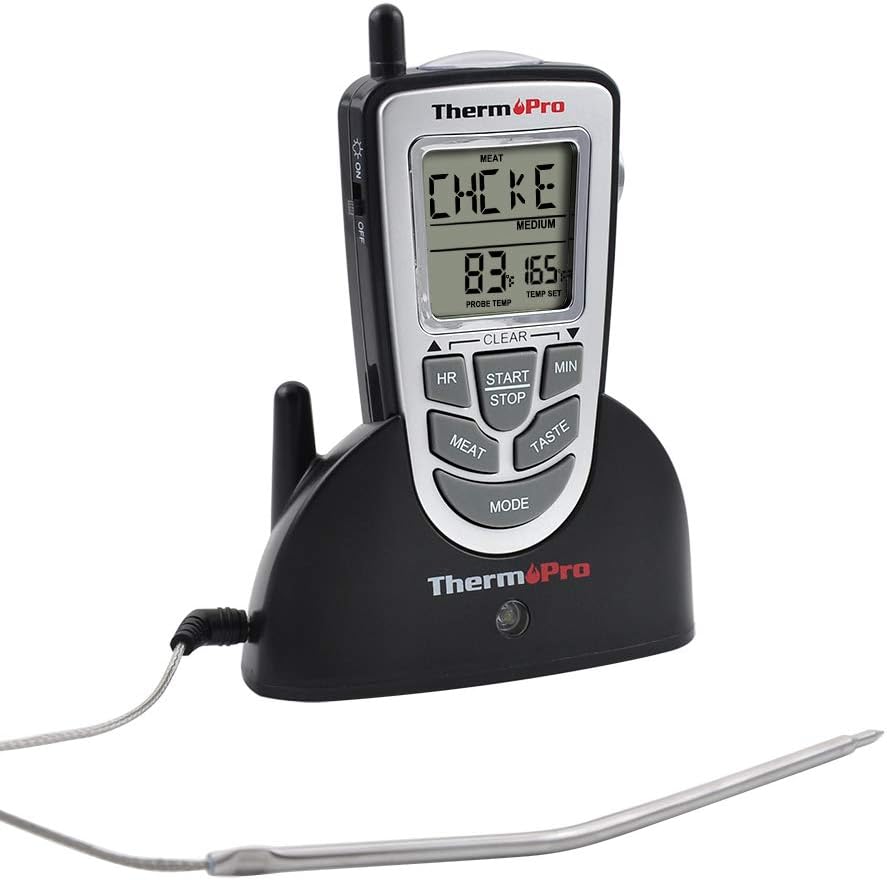

Image: The ThermoPro TP09B wireless meat thermometer system, showing the main receiver unit, the separate transmitter base, and the stainless steel temperature probe. The receiver displays "CHCKC" (Chicken) and a temperature of 83 degrees Fahrenheit, with a target temperature of 165 degrees Fahrenheit.

محتويات الحزمة

• 1 x Thermometer Receiver
• 1 x Thermometer Transmitter
• 1 x Stainless Steel Temperature Probe
• 4 × بطاريات AAA (مضمنة)

الإعداد والاستخدام الأولي

1. تركيب البطارية

Insert the included AAA batteries into both the receiver and the transmitter units. Ensure correct polarity as indicated in the battery compartments.

2. Probe Connection

Plug the stainless steel temperature probe into the designated port on the transmitter unit. Ensure the connection is secure.

3. Power On and Synchronization

Turn on both the receiver and the transmitter. The units should automatically synchronize. If they do not sync, turn the remote off, then start the flashing of the base using the side button, and turn the remote back on within 30 seconds. This typically resolves synchronization issues.

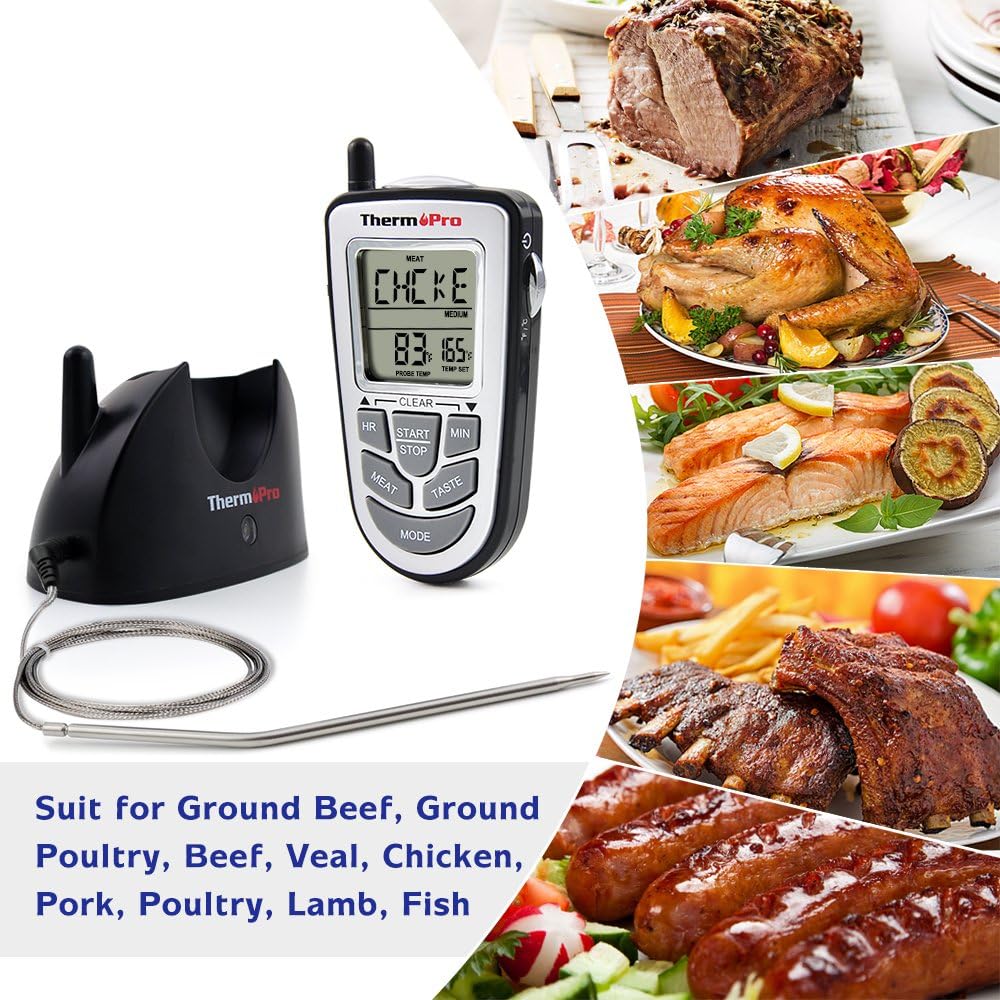

Image: A collage showing the ThermoPro TP09B thermometer and probe alongside various cooked meats such as roast beef, whole chicken, salmon, ribs, sausages, and lamb, illustrating its versatility for different food types.

تعليمات التشغيل

مراقبة درجة الحرارة

Insert the probe into the thickest part of the meat, avoiding bone or gristle. The current internal temperature will be displayed on the receiver.

تحديد درجة الحرارة المستهدفة

The TP09B comes with preprogrammed temperatures for 9 types of meat and poultry. You can also customize these settings to your preference.

• زر اللحوم: Press to cycle through preprogrammed meat types (e.g., Ground Beef, Ground Poultry, Beef, Veal, Chicken, Pork, Poultry, Lamb, Fish).
• زر التذوق: Press to select the desired doneness level (e.g., Rare, Medium Rare, Medium, Medium Well, Well Done).
• Custom Temperature: Use the HR (Hour) and MIN (Minute) buttons to manually adjust the target temperature if needed.

Image: A diagram illustrating the functions of the MEAT and TASTE buttons on the ThermoPro TP09B receiver. The MEAT button allows selection of various meat types (PROG, GBEEF, GPOUL, BEEF, VEAL, CHCKC, PORK, POULT, LAMB, FISH), while the TASTE button allows selection of doneness levels (RARE, MED RARE, MEDIUM, MED WELL, WELL DONE).

وظيفة المؤقت

The unit includes a count-up and count-down timer for timed cooking. Use the HR and MIN buttons to set the timer, and START/STOP to control it.

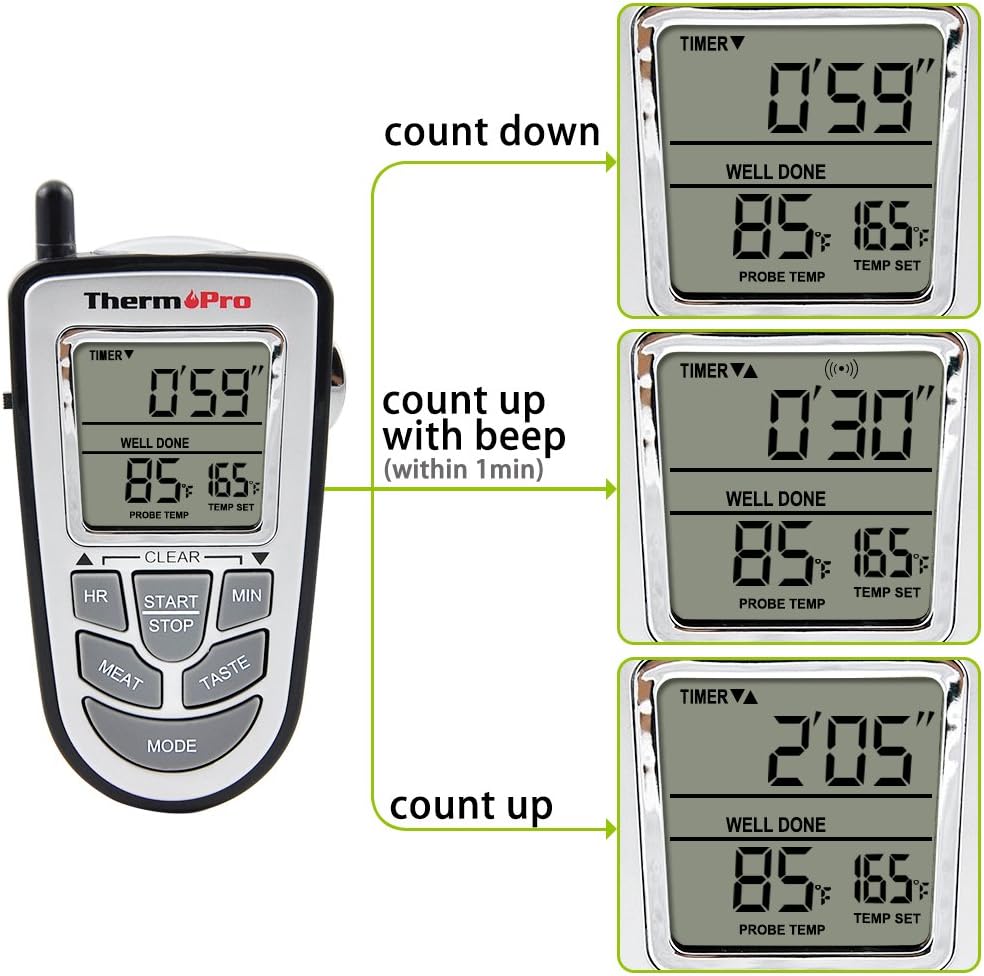

Image: A sequence of three displays from the ThermoPro TP09B receiver, demonstrating the timer functions. The first shows a countdown timer (0'59"), the second shows a count-up timer with a beep (0'30"), and the third shows a continuous count-up timer (2'05").

لاسلكي المدى

The wireless remote allows you to monitor your meat from up to 300 feet away. The receiver will beep when the meat temperature reaches your programmed target.

Image: A person chopping vegetables on a cutting board, with the ThermoPro TP09B receiver in the foreground displaying "CHCKC" and a temperature of 158 degrees Fahrenheit. In the background, an oven with a roasting chicken is visible, illustrating the 300-foot wireless monitoring capability.

صيانة

تنظيف

The stainless steel probe can be wiped clean. The main unit and transmitter should be wiped with a damp cloth. Do not immerse the main unit or transmitter in water. The probe and wire are oven safe up to 716°F (380°C).

استبدال البطارية

Replace batteries when the low battery indicator appears on the display. Use 4 AAA batteries.

تخزين

Store the thermometer in a dry place when not in use. Avoid kinking the probe wire to prolong its lifespan.

استكشاف الأخطاء وإصلاحها

• No Signal/Synchronization Issues: Ensure both units are powered on and within range. Try turning the receiver off, then activate the base's flashing mode (usually a side button), and turn the receiver back on within 30 seconds to re-sync.
• قراءات غير دقيقة: Perform an ice bath test (should read close to 32°F/0°C) and a boiling water test (should read close to 212°F/100°C at sea level) to check probe accuracy. If readings are consistently off, the probe may need replacement.
• Slow Temperature Updates: The unit updates the remote with the current temperature approximately every 10-11 seconds. This is normal operation and not a defect.
• عمر البطارية قصير: Ensure both units are turned off completely when not in use. If the base unit's light is blinking, it is still transmitting and consuming power.

تحديد

الضمان والدعم

ThermoPro offers a lifetime warranty on the temperature probe, covering wear and tear. For any issues or support, please refer to the official ThermoPro webالموقع أو الاتصال بخدمة العملاء الخاصة بهم.

Additional user guides and support documents may be available on the manufacturer's website. A PDF user manual is also available for download: دليل المستخدم (PDF).
