1. المقدمة
This manual provides essential information for the safe and effective operation, setup, and maintenance of your Antari S-100X Artificial Snow Machine. Please read this manual thoroughly before operating the device to ensure proper function and to prevent damage or injury. Keep this manual for future reference.
الشكل 1: بزاوية view of the Antari S-100X snow machine, showing the output nozzle, fluid reservoir, and carrying handle.
2. معلومات السلامة
Always observe the following safety precautions to reduce the risk of electric shock, fire, or personal injury:
- اقرأ جميع التعليمات: Before operating the machine, read and understand all safety and operating instructions.
- التأريض: This unit must be properly grounded. Connect only to a grounded power outlet.
- سلك الطاقة: Do not damage or modify the power cord. If the power cord is damaged, it must be replaced by the manufacturer or a qualified service agent.
- نوع السائل: Use only Antari brand snow fluid. Using other fluids may damage the machine and void the warranty.
- تهوية: Ensure adequate ventilation around the machine. Do not block ventilation openings.
- رُطُوبَة: Do not expose the machine to rain or moisture. Do not operate in wet conditions.
- الأطفال والحيوانات الأليفة: احتفظ بالجهاز بعيدًا عن متناول الأطفال والحيوانات الأليفة.
- صيانة: يُرجى إحالة جميع أعمال الصيانة إلى فنيين مؤهلين. لا تحاول إصلاح الجهاز بنفسك.
- الموقع: Place the machine on a stable, level surface. Do not operate on an unstable surface.
- Output Nozzle: Do not obstruct the output nozzle. Keep a safe distance from the nozzle during operation.
3. الإعداد
3.1 فك التعبئة
Carefully remove the snow machine from its packaging. Inspect the unit for any signs of damage during transit. If damage is found, contact your dealer immediately.
3.2 التنسيب
Position the snow machine on a flat, stable surface. Ensure there is sufficient space around the unit for proper ventilation. Do not place the machine directly on carpet or other soft materials that could block air vents. Ensure the output nozzle is directed away from people and sensitive equipment.
3.3 Filling the Fluid Reservoir
- Unscrew the cap from the fluid reservoir.
- Carefully pour Antari brand snow fluid into the reservoir. Do not overfill.
- Securely replace the cap on the fluid reservoir.
- Ensure the fluid hose inside the reservoir is fully submerged in the fluid.
الشكل 2: بزاوية خلفية view of the Antari S-100X snow machine, showing the fluid reservoir and power input area.
3.4 توصيل الطاقة
قم بتوصيل سلك الطاقة بمأخذ كهربائي مؤرض ذي جهد مناسبtage. Refer to the specifications section for voltagالمتطلبات.
4. تعليمات التشغيل
4.1 التشغيل
Flip the main power switch to the 'ON' position. The machine will begin its warm-up cycle. The indicator light (if present) will illuminate, typically red, during this phase.
4.2 Warm-up Time
Allow approximately 5-7 minutes for the machine to reach its optimal operating temperature. The indicator light will change color (e.g., green) or turn off when the machine is ready to produce snow.
4.3 Activating Snow Effect
Once the machine is ready, use the integrated control or optional remote control (if applicable) to activate the snow output. Press and hold the button to produce snow. Release the button to stop.

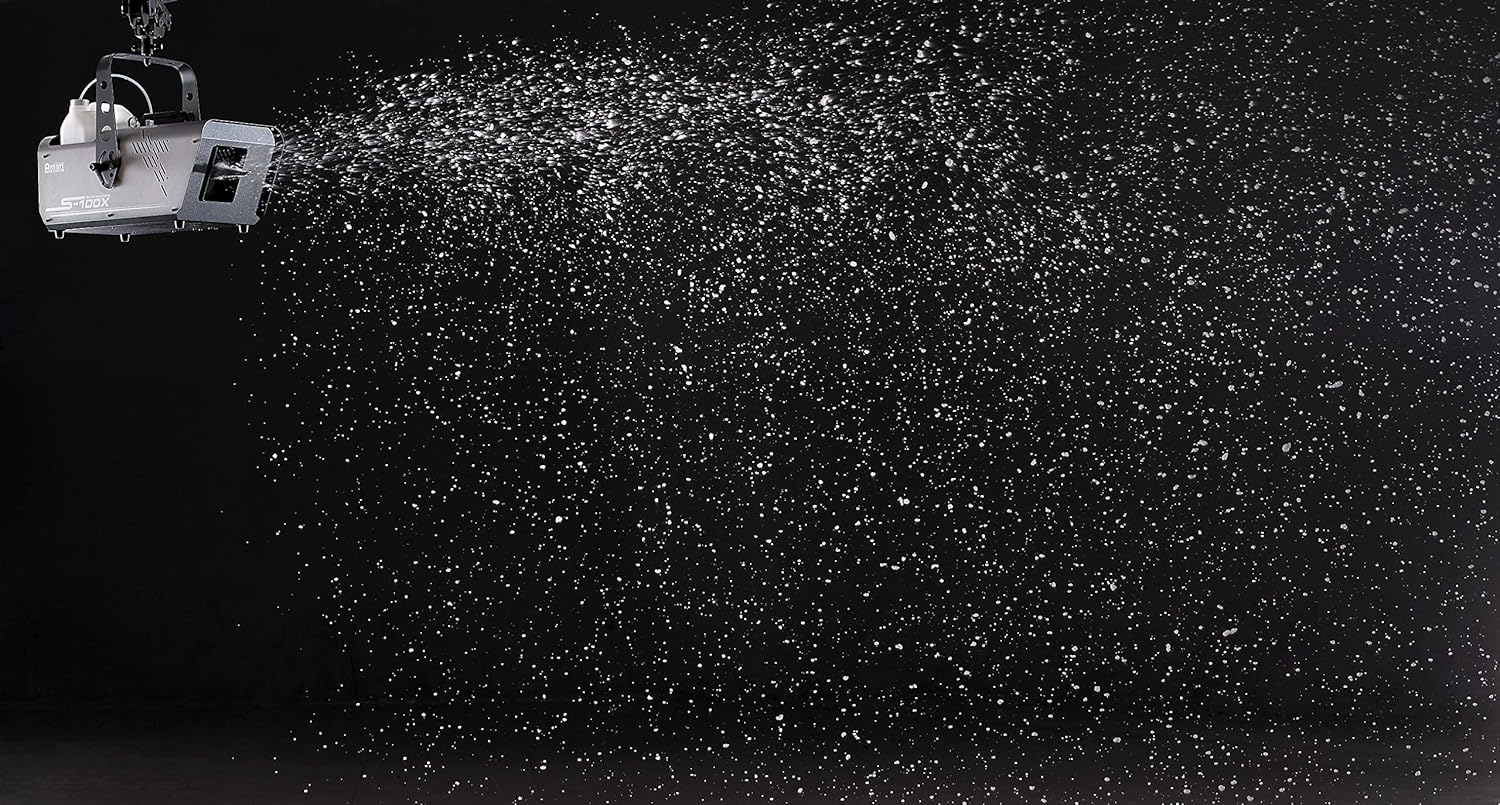

Figure 3: The Antari S-100X snow machine in operation, emitting artificial snow against a dark background.
4.4 إيقاف التشغيل
After use, turn the main power switch to the 'OFF' position. Disconnect the power cord from the outlet. Allow the machine to cool down completely before storing.
5. الصيانة
5.1 التنظيف
Regularly clean the exterior of the machine with a dry, soft cloth. Do not use abrasive cleaners or solvents. Ensure all ventilation openings are free from dust and debris.
5.2 Fluid Storage
If the machine will not be used for an extended period, drain any remaining snow fluid from the reservoir. Store snow fluid in a cool, dark place, away from direct sunlight and extreme temperatures. Always use fresh fluid for optimal performance.
5.3 تنظيف الفوهة
If snow output appears weak or inconsistent, the nozzle may be partially clogged. With the machine unplugged and cooled, gently clean the nozzle opening with a small brush or compressed air. Do not insert sharp objects into the nozzle.
6. استكشاف الأخطاء وإصلاحها
This section addresses common issues you might encounter with your Antari S-100X snow machine.
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| لا يوجد طاقة | Power cord not connected; Power outlet faulty; Main switch off | Check power cord connection; Test outlet with another device; Ensure main switch is ON. |
| لا يوجد إخراج الثلوج | No fluid in reservoir; Machine not warmed up; Nozzle clogged; Pump malfunction | Fill reservoir with fluid; Wait for warm-up indicator; Clean nozzle (see 5.3); Contact service if pump suspected. |
| Weak snow output | Low fluid level; Partially clogged nozzle; Incorrect fluid type | Refill fluid; Clean nozzle; Ensure only Antari snow fluid is used. |
| ارتفاع درجة حرارة الآلة | Blocked ventilation; Prolonged continuous operation | Ensure clear ventilation; Allow machine to cool down periodically. |
7. المواصفات
- نموذج: S-100X (also known as S-100II)
- وزن السلعة: 28.6 رطل
- أبعاد الحزمة: 24.02 × 16.14 × 15.35 بوصة
- ASIN: B01745SSKC
- نوع المادة: Cotton (referring to internal components or packaging)
- اسم اللون: رمادي
- أول متاح: 9 مارس 2015
8. الضمان والدعم
The Antari S-100X Artificial Snow Machine comes with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions. For technical support, service, or replacement parts, please contact your authorized Antari dealer or the manufacturer directly. Do not attempt to service the unit yourself, as this may void your warranty.
