Troy-Bilt 020344 Pressure Washer Pump Instruction Manual

مقدمة

This manual provides essential instructions for the safe and effective installation, operation, and maintenance of your Troy-Bilt 020344 pressure washer pump. Please read this manual thoroughly before attempting to install or operate the pump. Retain this manual for future reference.

معلومات هامة حول السلامة

Always observe basic safety precautions when installing, operating, or maintaining this pressure washer pump to reduce the risk of injury or damage.

• اقرأ جميع التعليمات: Familiarize yourself with the pump's components and functions before use.
• ارتدِ معدات السلامة المناسبة: Eye protection, gloves, and sturdy footwear are recommended.
• فصل الطاقة: Ensure the pressure washer engine is off and cooled before performing any installation or maintenance.
• اتصالات آمنة: Verify all hose and pump connections are tight to prevent leaks and ensure proper operation.
• تجنب الأسطح الساخنة: The pump and engine can become hot during operation. Allow to cool before handling.
• يُفضل استخدامه في المناطق جيدة التهوية: If the pressure washer is gasoline-powered, ensure adequate ventilation to prevent carbon monoxide buildup.

مواصفات المنتج

تعليمات التثبيت

Follow these steps to properly install your new pressure washer pump. Ensure the pressure washer engine is turned off and completely cooled before beginning installation.

1. تجهيز غسالة الضغط: Disconnect the spark plug wire to prevent accidental starting. Drain any remaining water from the old pump and hoses.
2. إزالة المضخة القديمة: Locate the bolts securing the old pump to the engine. Typically, there are three bolts. Carefully remove these bolts and detach the old pump from the engine shaft. You may need to gently pry the old pump off if it is seized.
3. فحص عمود المحرك: Clean the engine shaft thoroughly. Ensure there is no rust or debris. Check the keyway for any damage.
4. Install Shaft Key: If your engine shaft requires a key, insert the shaft key into the keyway on the engine shaft.


   Image: A small, rectangular metal shaft key. This key ensures the pump is correctly aligned and driven by the engine shaft.

5. تركيب مضخة جديدة: Align the new Troy-Bilt 020344 pump with the engine shaft, ensuring the keyway on the pump aligns with the shaft key. Slide the pump onto the shaft until it sits flush against the engine mounting surface.


   الصورة: الجبهة view of the Troy-Bilt 020344 pump, highlighting its 7/8" vertical shaft compatibility and key dimensions.

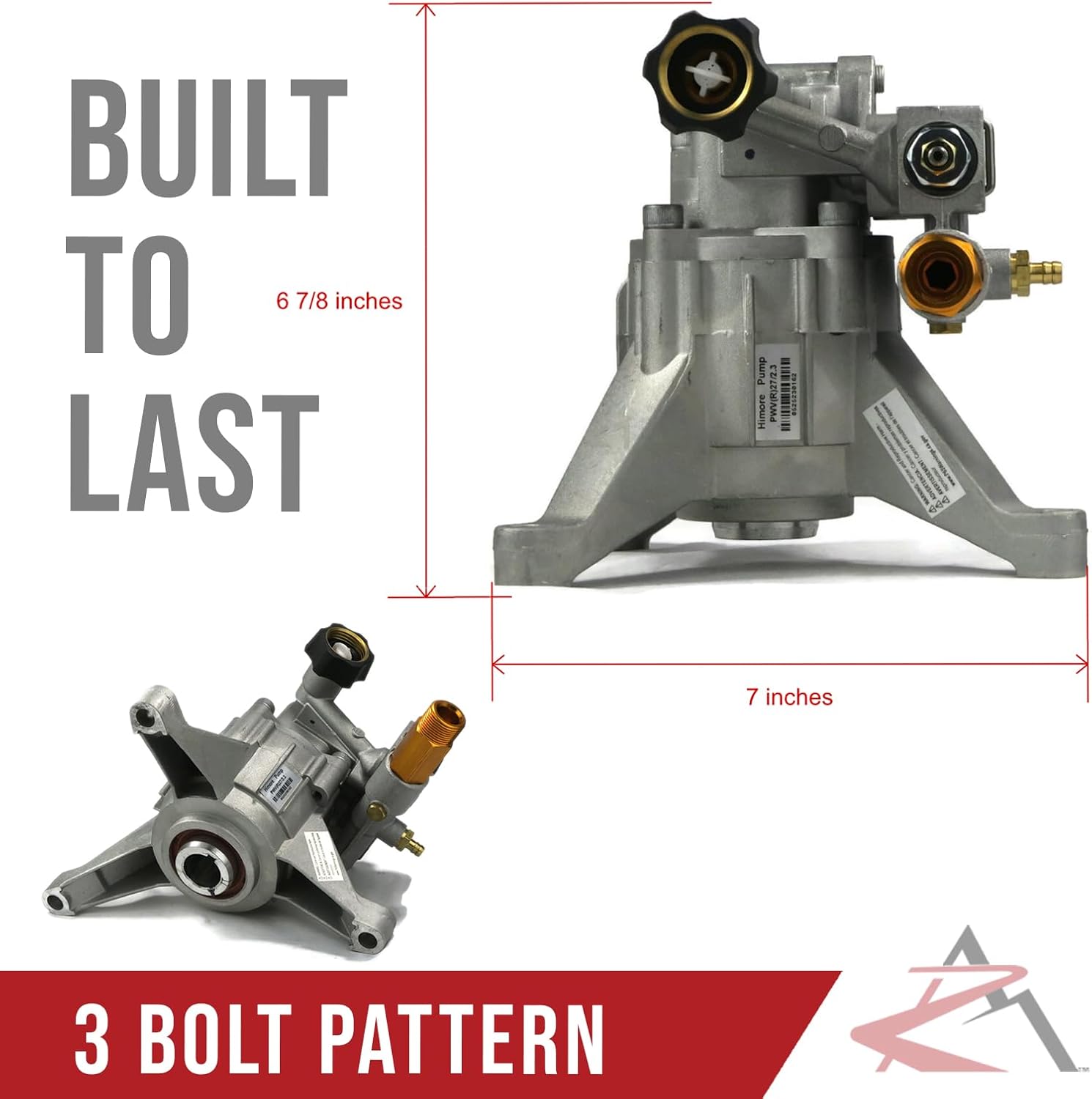

   الصورة: الجانب view of the pump, illustrating the robust construction and the standard 3-bolt mounting pattern for secure attachment to the engine.

6. تأمين المضخة: Reinsert and tighten the three mounting bolts to secure the pump to the engine. Ensure they are tightened evenly to prevent stress on the pump housing.
7. ربط الخراطيم:
   • Connect your garden hose to the standard garden hose inlet on the pump.
   • Connect your high-pressure hose to the 22mm male high-pressure outlet.


   Image: Close-up of the pump's connection points, clearly labeling the 22mm male high-pressure outlet, standard garden hose inlet, unloader, chemical injector, and thermal release valve.


   Image: Rear perspective of the pump, demonstrating how the water inlets and outlets are positioned at the rear for efficient hose management.

8. التحقق من التسريبات: Before starting the engine, turn on the water supply to the pump and check all connections for leaks. Tighten any leaking connections.
9. أعد توصيل شمعة الإشعال: Once all connections are secure and leak-free, reconnect the spark plug wire.

المنتج انتهىview فيديو

عملية

Once the pump is installed, follow your pressure washer's engine starting procedure. Ensure a continuous water supply to the pump before starting the engine to prevent damage.

• إمدادات المياه: Always connect the garden hose to a reliable water source and turn it on fully before starting the pressure washer engine. Running the pump dry will cause severe damage.
• بدء تشغيل المحرك: Follow the manufacturer's instructions for starting your specific pressure washer engine.
• تشغيل مسدس الرش: Squeeze the trigger on the spray gun to release air from the system and allow water to flow smoothly.
• ضبط الضغط/الفوهة: Use appropriate nozzles for your cleaning task. The pump delivers 2500-2800 PSI, suitable for various cleaning applications.
• Chemical Injection: If using the chemical injector, ensure the detergent siphon tube is placed into a pressure washer safe detergent container. The chemical injector typically operates at low pressure.

Image: A person operating a pressure washer to clean a patio, illustrating the pump's capability for effective outdoor cleaning.

صيانة

Regular maintenance ensures the longevity and optimal performance of your pressure washer pump.

• بعد كل استخدام:
  • Turn off the water supply and engine.
  • اضغط على زناد مسدس الرش لتحرير أي ضغط متبقٍ.
  • Disconnect hoses and drain all water from the pump and hoses.
• تجهيز المناطق الباردة لفصل الشتاء:
  • To prevent freezing and damage, flush the pump with an RV antifreeze solution or pump protector before storing in freezing temperatures.
  • Consult your pressure washer's engine manual for engine-specific winterization procedures.
• تخزين: Store the pressure washer and pump in a dry, protected area.

استكشاف الأخطاء وإصلاحها

راجع هذا القسم للتعرف على المشكلات الشائعة وحلولها المحتملة.

الضمان والدعم

This Troy-Bilt 020344 pressure washer pump comes with a ضمان لمدة سنة واحدة against manufacturing defects. For warranty claims or technical support, please contact Troy-Bilt customer service or the retailer where the product was purchased. Ensure you have your model number (020344) and proof of purchase available.

For additional resources and product information, you may visit the official Troy-Bilt webموقع.
