1. المقدمة
This manual provides essential information for the proper installation, operation, and maintenance of the Hella 8KA 340 845-031 EasyConn Combination Rearlight Harness. This product is designed for use in 24V trailer systems, offering a flexible and reliable wiring solution. Please read these instructions carefully before proceeding with installation or use to ensure safety and optimal performance.
2. انتهى المنتجview
The Hella 8KA 340 845-031 is an 8-core spiral adapter cable specifically developed for 24V trailer applications. It facilitates the connection between the main supply cable and the rear or front adapter cable within the EasyConn wiring and lighting system.
2.1 الميزات الرئيسية
- 3 meters long spiral cable (working length).
- 8-core adapter cable (7 x 1 mm² / 1 x 2.5 mm²).
- Equipped with 15-pole EasyConn plug housing and 15-pole EasyConn receptacle housing, assembled and overmoulded.
- Designed for use as an adapter cable between main supply cable and rear or front adapter cable.
- ECE approved (ADR/GGVS Checked).
- Waterproof design for enhanced durability.
2.2 صورة المنتج

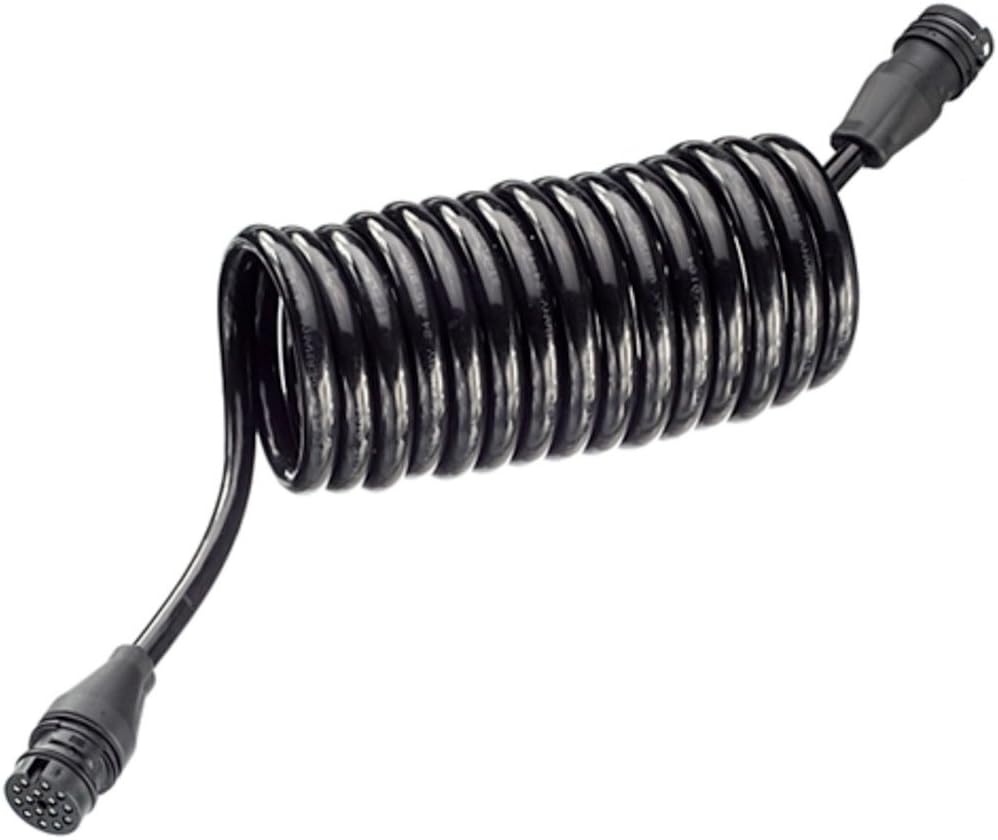

Image: The Hella 8KA 340 845-031 EasyConn Combination Rearlight Harness. This image displays the black spiral cable with a 15-pole plug on one end and a 15-pole receptacle on the other, designed for robust trailer wiring connections.
3. الإعداد والتثبيت
Installation of the Hella EasyConn harness should be performed by qualified personnel familiar with trailer electrical systems. Ensure the vehicle's power supply is disconnected before beginning any wiring work.
- السلامة أولاً: Always disconnect the battery or main power source of the trailer and towing vehicle before handling electrical components.
- تحديد نقاط الاتصال: Locate the main supply cable and the rear or front adapter cable connection points on your 24V trailer system.
- Connect the Harness:
- Connect the 15-pole EasyConn plug housing of the 8KA 340 845-031 harness to the corresponding receptacle on the main supply cable.
- Connect the 15-pole EasyConn receptacle housing of the 8KA 340 845-031 harness to the corresponding plug on the rear or front adapter cable.
- اتصالات آمنة: Ensure all connections are firm and properly seated to prevent accidental disconnections or electrical faults. The overmoulded design provides a secure fit.
- توجيه الكابلات: Route the spiral cable in a manner that prevents chafing, pinching, or excessive stretching during vehicle movement. Allow sufficient slack for turns and articulation.
- نظام اختبار: Once installed, reconnect the power supply and test all lighting and electrical functions of the trailer to confirm correct operation.
This harness is designed to integrate seamlessly into the modular, distributor box-free EasyConn wiring and lighting system.
4. تعليمات التشغيل
The Hella 8KA 340 845-031 harness functions as a passive adapter within the trailer's electrical system. Once correctly installed, it facilitates the transmission of electrical signals and power for the combination rearlight and other connected components. No specific user operation is required beyond ensuring secure connections and proper system functionality.
Regularly verify that all trailer lights and electrical accessories are functioning as expected, especially before and during travel.
5. الصيانة
Proper maintenance ensures the longevity and reliability of your Hella EasyConn harness.
- التفتيش الدوري: Periodically inspect the entire length of the spiral cable and its connections for any signs of wear, damage, cuts, or corrosion.
- نظافة: Keep the connectors and cable free from dirt, moisture, and road debris. Use a clean, dry cloth to wipe down the cable. Avoid harsh chemicals that could damage the insulation.
- سلامة الاتصال: Ensure that the 15-pole plug and receptacle housings remain securely connected. Loose connections can lead to intermittent electrical issues or damage.
- تخزين: When not in use, store the harness in a clean, dry environment, protected from extreme temperatures and direct sunlight.
- ميزة مقاومة للماء: While the harness is waterproof, avoid submerging connectors in water for extended periods. Ensure caps or covers are in place if applicable.
6. استكشاف الأخطاء وإصلاحها
If you experience issues with your trailer's electrical system after installing the Hella EasyConn harness, consider the following troubleshooting steps:
- انقطاع التيار الكهربائي/انقطاع التيار الكهربائي بشكل متقطع: Check all connections for tightness and corrosion. Ensure the 15-pole plug and receptacle are fully engaged. Inspect the cable for visible damage.
- Incorrect Lighting Function: Verify that the correct harness is being used for your specific trailer and towing vehicle configuration. Check for proper pin assignments if you suspect a mismatch.
- Damaged Cable: If the cable insulation is cut or frayed, it may lead to short circuits or open circuits. The harness should be replaced if significant damage is present.
- توافق النظام: Ensure that all components of your trailer's wiring system are compatible with a 24V EasyConn setup.
If problems persist after performing these checks, it is recommended to consult a professional automotive electrician or contact Hella customer support.
7. المواصفات
| مواصفة | التفاصيل |
|---|---|
| ماركة | Hella |
| رقم الموديل | 8KA 340 845-031 |
| نوع الكابل | Spiral Adapter Cable |
| تكوين النواة | 8-core (7 x 1 mm² / 1 x 2.5 mm²) |
| الموصلات | 15-pole EasyConn plug housing, 15-pole EasyConn receptacle housing |
| طول العمل | 3 متر |
| المجلدtagالنظام الإلكتروني | 24 فولت |
| استخدامات محددة | Trailer wiring, combination rearlight |
| ميزة خاصة | ضد للماء |
| شارع الموافقةamp | ECE - ADR/GGVS Checked |
| لون | أسود |
| أبعاد المنتج | 15.67 × 11.73 × 6.89 بوصة (التغليف) |
| وزن العنصر | 3.1 رطل |
| مطلوب التجميع | لا |
8. الضمان والدعم
Hella products are manufactured to high-quality standards. For information regarding the warranty period and terms for the 8KA 340 845-031 EasyConn Combination Rearlight Harness, please refer to the documentation provided with your purchase or visit the official Hella webموقع.
For technical assistance, installation queries, or warranty claims, please contact Hella customer support directly. Ensure you have your product model number (8KA 340 845-031) and purchase details available when seeking support.
الشركة المصنعة: هيلا كيجا هيوك وشركاه
