هانزجروهي 26530400

hansgrohe Raindance Select S 125 Hand Shower User Manual

الموديل: 26530400

مقدمة

This manual provides detailed instructions for the hansgrohe Raindance Select S 125 hand shower. It covers essential information regarding its features, proper installation, daily operation, routine maintenance, and technical specifications. Please read this manual thoroughly before installation and use to ensure safe and efficient operation of your hand shower.

hansgrohe Raindance Select S 125 hand shower in white and chrome

The hansgrohe Raindance Select S 125 hand shower, featuring a white and chrome finish.

مميزات المنتج

  • وضعين للرش: Easily switch between RainAir, Rain, and WhirlAir spray modes with the touch of a button.
  • Generous Shower Head: The 125 mm large shower head provides a broad and comfortable water flow.
  • تقنية التنظيف السريع: Flexible silicone nozzles allow for easy removal of limescale deposits by simply rubbing them with your finger.
  • بناء متين: مواد عالية الجودة تضمن أداءً يدوم طويلاً.
  • High Pressure Compatibility: مصمم للاستخدام مع أنظمة المياه ذات الضغط العالي.

الإعداد والتثبيت

The hansgrohe Raindance Select S 125 hand shower is designed for straightforward installation. It connects to standard shower hoses with a G 1/2 thread.

  1. Ensure your water supply is turned off before beginning installation.
  2. Unscrew your existing hand shower from the shower hose.
  3. Check that the rubber washer is correctly seated in the new hand shower's connection.
  4. Screw the hansgrohe Raindance Select S 125 hand shower onto your shower hose by hand until it is snug. Avoid overtightening.
  5. Turn on the water supply and check for any leaks. If leaks occur, tighten slightly more or re-seat the washer.

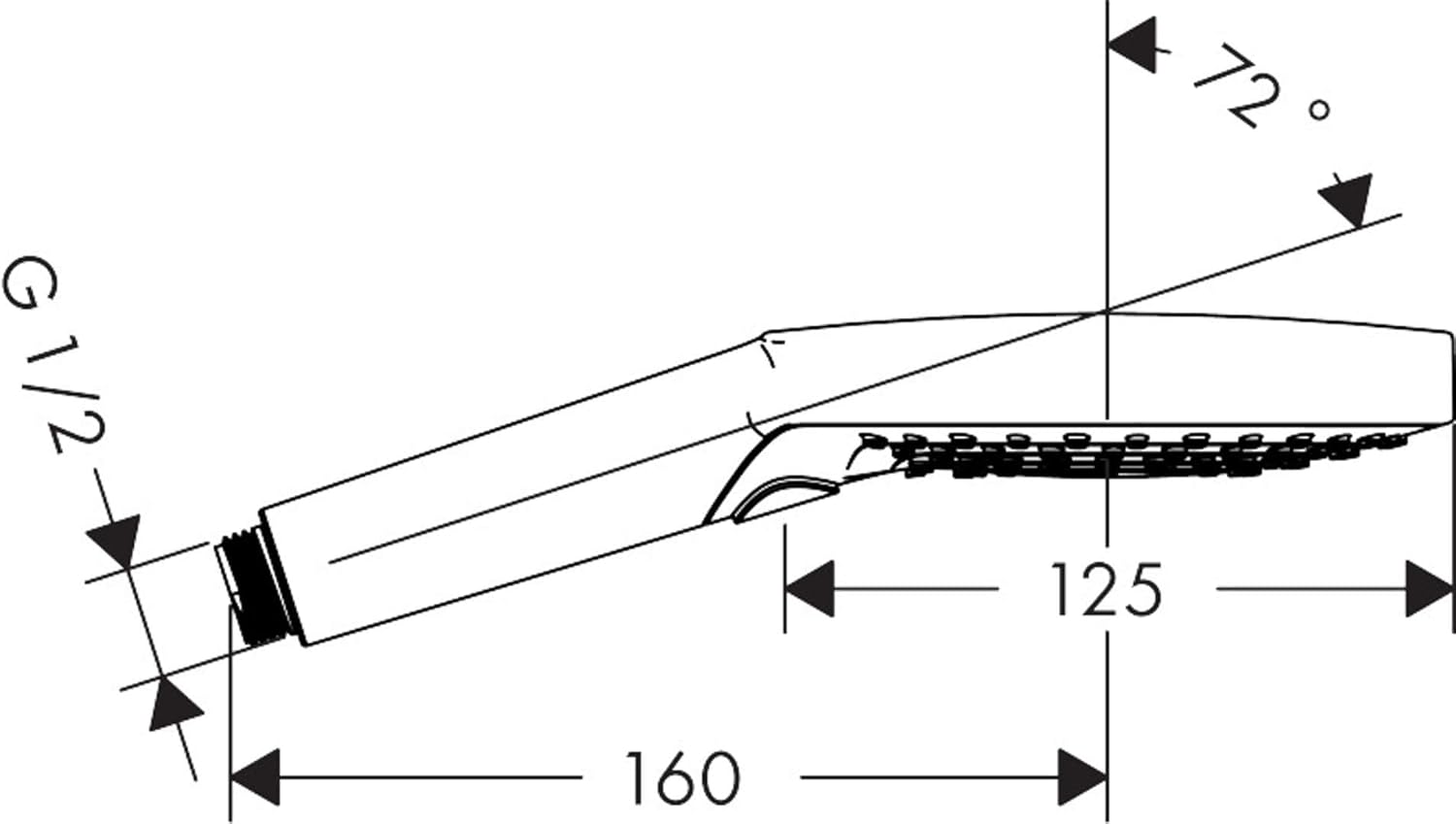

Technical drawing showing dimensions and G 1/2 connection for the hansgrohe Raindance Select S 125 hand shower.

Technical drawing illustrating the dimensions and G 1/2 connection point of the hand shower.

تعليمات التشغيل

Your hansgrohe Raindance Select S 125 hand shower offers three distinct spray modes for a personalized shower experience.

Changing Spray Modes

To switch between the different spray modes, simply press the 'Select' button located on the shower head handle. Each press will cycle through the available modes:

  • رين إير: A soft, voluminous rain spray enriched with air, providing a gentle and relaxing sensation.
  • مطر: A powerful, invigorating rain spray, ideal for rinsing shampoo and a refreshing start to the day.
  • ويرل إير: A concentrated, rotating massage spray, perfect for targeting specific areas and relieving tension.

Official hansgrohe video demonstrating the three spray modes (RainAir, Rain, WhirlAir) and the QuickClean function of the Raindance Select S 125 hand shower.

معدل تدفق المياه

The water flow rate varies depending on the selected spray mode and water pressure. The diagram below illustrates typical flow rates for each mode.

Flow rate diagram for hansgrohe Raindance Select S 125 hand shower, illustrating water consumption for RainAir, Rain, and WhirlAir spray modes.

Flow rate diagram showing water consumption (Q) in liters per minute (l/min) and liters per second (l/sec) against pressure (MPa/bar) for RainAir (1), Rain (2), and WhirlAir (3) spray modes.

الصيانة والتنظيف

Regular cleaning ensures the longevity and optimal performance of your hansgrohe hand shower. The integrated QuickClean technology makes limescale removal simple.

QuickClean Function

The flexible silicone nozzles on the spray face are designed to prevent limescale buildup. To clean them:

  1. After each use, or as needed, gently rub your fingers across the silicone nozzles on the spray face.
  2. This action dislodges any accumulated limescale, ensuring an even spray pattern.
Close-up of hansgrohe Raindance Select S 125 hand shower head, showing silicone nozzles being cleaned with a finger.

Demonstration of the QuickClean feature, showing how to remove limescale from the silicone nozzles.

التنظيف العام

For general cleaning of the hand shower's surface:

  • Use only mild cleaning agents specifically designed for bathroom fixtures.
  • Apply the cleaner to a soft cloth, then wipe the shower surface.
  • اشطفيه جيدًا بالماء النظيف وجففيه بقطعة قماش ناعمة لمنع بقع الماء.
  • Avoid abrasive cleaners, scouring pads, or cleaners containing harsh chemicals like hydrochloric acid, formic acid, chlorine bleach, or acetic acid, as these can damage the finish.

استكشاف الأخطاء وإصلاحها

If you encounter issues with your hand shower, refer to the following common problems and solutions:

مشكلةالسبب المحتملحل
انخفاض تدفق المياهLimescale buildup in nozzles or filter screen.Clean nozzles using QuickClean. Check and clean the filter screen at the hose connection.
تسرب عند توصيل الخرطوموصلة مفكوكة أو حلقة مانعة للتسرب تالفة.Tighten the hose connection. Replace the rubber washer if it is worn or damaged.
Spray modes not changingDebris or limescale affecting the Select button mechanism.Rinse the shower head thoroughly. If the issue persists, contact customer support.

تحديد

مواصفةالتفاصيل
ماركةهانسجروهي
رقم الموديل26530400
أسلوب3 spray modes (RainAir, Rain, WhirlAir)
شكلدائري
مادةSilicone (nozzles), Chrome (finish)
نوع التشطيبالكروم
نوع التثبيتHandheld (G 1/2 connection)
لونأبيض/كروم
أبعاد المنتج4.92"L x 1.97"W (125 mm diameter)
عدد الإعدادات3
كفاءةتوفير المياه
وزن العنصر9.2 أونصات
طول الخرطوم (المكونات المضمنة)120 Millimeters (referring to the shower head size, not hose length)

الضمان والدعم

Your hansgrohe Raindance Select S 125 hand shower comes with a ضمان لمدة 5 سنوات, covering manufacturing defects under normal use and service.

For warranty claims, technical assistance, or further inquiries, please visit the official hansgrohe website or contact their customer support directly. Ensure you have your product model number (26530400) and proof of purchase available.
