NORDRIVE N40011 Nordic King Ski Rack User Manual

مقدمة

This manual provides detailed instructions for the installation, operation, and maintenance of the NORDRIVE N40011 Nordic King Ski Rack. This universal ski carrier is designed to securely transport up to 6 pairs of skis or 4 snowboards on your vehicle's roof rack system. Please read all instructions carefully before installation and use to ensure safe operation.

الإعداد والتثبيت

The NORDRIVE N40011 Nordic King Ski Rack is designed for universal fit on most vehicle roof rack crossbars. Ensure your vehicle is equipped with a compatible roof rack system before proceeding with installation.

محتويات الحزمة:

• NORDRIVE N40011 Nordic King Ski Rack unit
• تركيب طقم الأجهزة
• Anti-theft keys

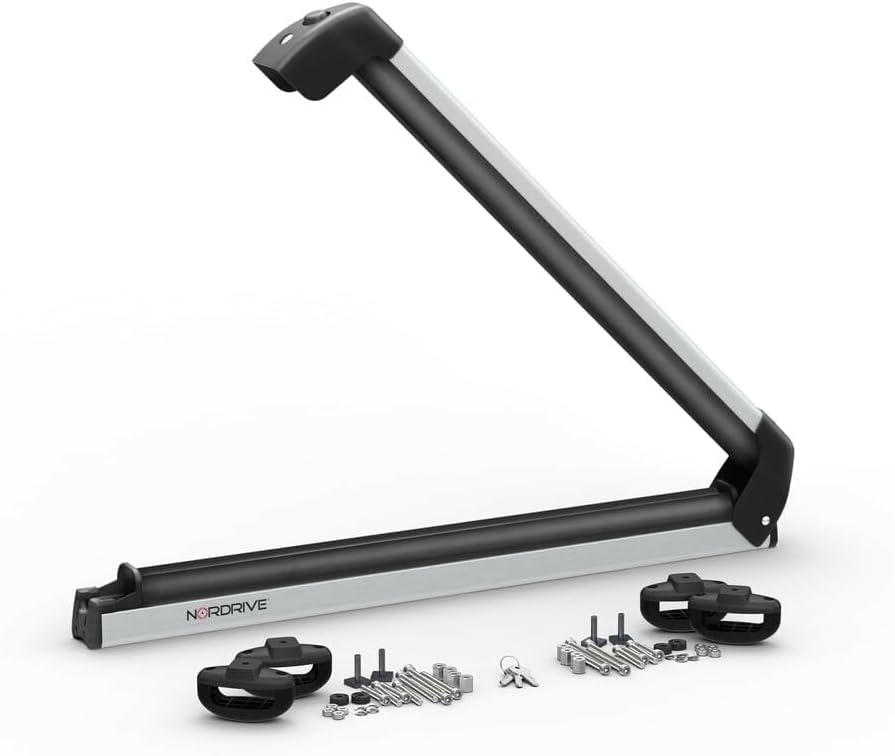

Image: The NORDRIVE N40011 Nordic King Ski Rack shown with all included components, including the main rack unit, mounting brackets, bolts, and anti-theft keys.

خطوات التثبيت:

1. Prepare Roof Rack: Ensure your vehicle's roof rack crossbars are clean and free of debris. Position the crossbars according to your vehicle's manual for optimal weight distribution.
2. إرفاق تصاعد بين قوسين: Place the ski rack unit onto the crossbars. Secure the mounting brackets to the underside of the crossbars and through the designated slots on the ski rack. Use the provided bolts and tighten them evenly.
3. Secure the Rack: Ensure all bolts are tightened firmly to prevent any movement of the ski rack during transit. Do not overtighten.
4. اختبار الأمان: Gently shake the ski rack to confirm it is securely attached to the roof rack. There should be no significant play or wobbling.

Image: The NORDRIVE N40011 Nordic King Ski Rack securely mounted and closed on a vehicle's roof rack, ready for use.

تعليمات التشغيل

Follow these steps to safely load and unload your skis or snowboards.

Loading Skis/Snowboards:

1. فتح وفتح: Insert the anti-theft key into the lock mechanism and turn to unlock. Press the release button or lever to open the upper arm of the ski rack.

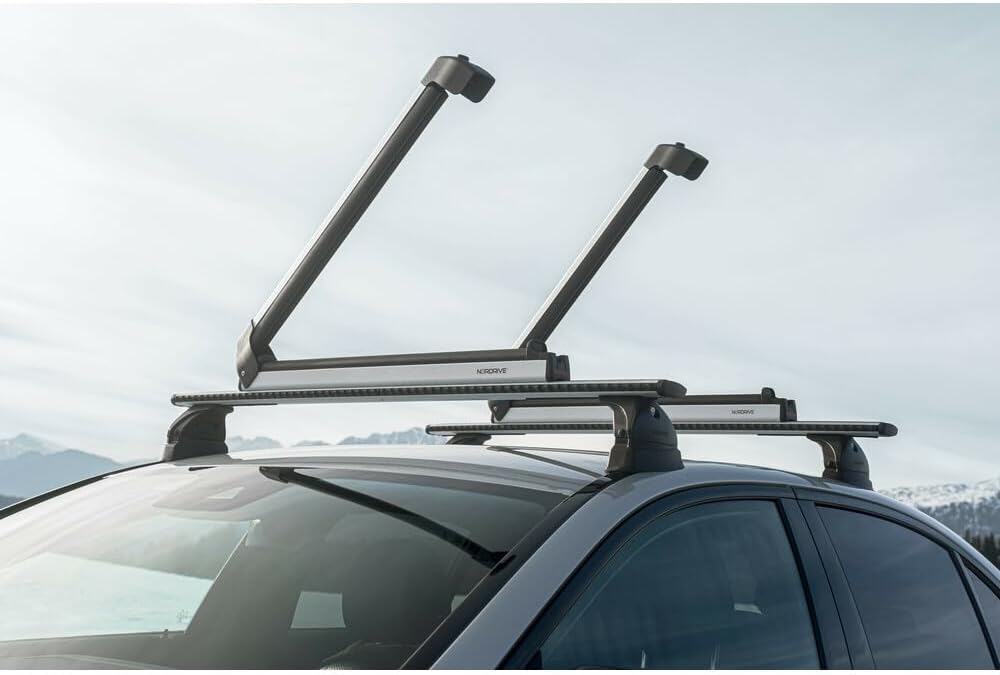

Image: The NORDRIVE N40011 Nordic King Ski Rack shown in its open position, ready to receive skis or snowboards.

2. وضع المعدات: Carefully place your skis or snowboards between the soft EPDM rubber grips. Ensure bindings are facing upwards and positioned to minimize contact with the vehicle roof. Distribute the weight evenly across the rack.


Image: A person demonstrating the loading of skis onto the NORDRIVE N40011 Nordic King Ski Rack, which is mounted on a vehicle's roof.

3. أغلق وأحكم الإغلاق: Gently press the upper arm down until it clicks securely into place. Remove the key and ensure the lock is engaged to prevent theft and accidental opening.

Unloading Skis/Snowboards:

1. فتح وفتح: Insert the anti-theft key and turn to unlock. Press the release button or lever to open the upper arm.
2. Remove Equipment: Carefully remove your skis or snowboards from the rack.
3. Close and Lock (Optional): If not immediately reloading, close the rack and lock it to prevent accidental opening during travel or to secure the empty rack.

صيانة

Regular maintenance ensures the longevity and safe operation of your ski rack.

• تنظيف: After each use, especially in snowy or salty conditions, clean the rack with mild soap and water. Rinse thoroughly and dry to prevent corrosion.
• Inspect Rubber Grips: Periodically check the soft EPDM rubber grips for any signs of wear, tears, or damage. Replace if necessary to ensure proper grip on your equipment.
• التحقق من المثبتات: Before each trip, verify that all mounting bolts and fasteners are tight. Retighten if any looseness is detected.
• تشحيم: Apply a small amount of silicone-based lubricant to the lock mechanism and hinges periodically to ensure smooth operation, especially in cold weather.
• تخزين: When not in use for extended periods, remove the ski rack from your vehicle and store it in a dry, protected area to prolong its lifespan.

استكشاف الأخطاء وإصلاحها

فيما يلي حلول للمشاكل الشائعة التي قد تواجهها:

• يبدو الرف غير ثابت بعد التركيب:
  Ensure all mounting bolts are tightened evenly and securely. Check that the ski rack is correctly seated on the vehicle's crossbars.
• Difficulty opening or closing the rack:
  Check for any obstructions in the hinge mechanism. Apply a small amount of lubricant to the hinges and lock mechanism. Ensure the key is fully inserted and turned correctly.
• Key is stuck or difficult to turn:
  Do not force the key. Apply a small amount of graphite lubricant or a specialized lock lubricant into the keyhole. Ensure the lock mechanism is clean and free of debris.
• Skis/snowboards are not held securely:
  Verify that the equipment is properly positioned within the rubber grips. Ensure the rack is fully closed and locked. Check the condition of the EPDM rubber grips for wear.

تحديد

Image: Technical drawing of the NORDRIVE N40011 Nordic King Ski Rack showing key dimensions in millimeters.

الضمان والدعم

For warranty information, claims, or technical assistance regarding your NORDRIVE N40011 Nordic King Ski Rack, please contact NORDRIVE customer support directly. Keep your purchase receipt as proof of purchase for any warranty-related inquiries.
