1. المقدمة
The Generac GP17500E is a robust 17500-watt gas-powered portable generator designed to provide reliable power for emergencies, job sites, and recreational activities. Featuring an electric start and a durable OHVI engine, this unit is built for extended run times and long-lasting performance. Its design prioritizes ease of use and durability in various environments.
Figure 1: Generac GP17500E Portable Generator overview.
2. معلومات السلامة
Always read and understand the entire instruction manual before operating the generator. Failure to follow safety instructions can result in serious injury or death.
- خطر أول أكسيد الكربون: Generators produce carbon monoxide, a colorless, odorless, poisonous gas. Operate the generator outdoors only, far away from windows, doors, and vents. Never operate indoors or in partially enclosed spaces.
- خطر الصدمة الكهربائية: Do not operate the generator in wet conditions. Ensure all connections are dry and properly insulated. Use ground fault circuit interrupter (GFCI) protected outlets.
- خطر الحريق: الوقود شديد الاشتعال. أعد التزود بالوقود في مكان جيد التهوية مع إيقاف تشغيل المحرك وتركه ليبرد. لا تدخن أو تسمح بوجود لهب مكشوف بالقرب من المولد. خزّن الوقود في حاويات معتمدة.
- الأسطح الساخنة: Engine and muffler components become extremely hot during operation and remain hot for a period after shutdown. Avoid contact to prevent burns.
- أجزاء متحركة: احتفظ باليدين والقدمين والشعر والملابس بعيدًا عن الأجزاء المتحركة لمنع الإصابة.
3. الإعداد
Before first use, ensure the generator is properly assembled and prepared for operation.
- التفريغ والتركيب: Remove the generator from its packaging. Attach the wheels and support legs as per the assembly guide. The sturdy steel frame and heavy-duty wheels facilitate easy transport.
- إضافة زيت المحرك: The generator is shipped without engine oil. Fill the engine with the recommended type and amount of oil. The OHVI engine features full pressure lubrication and an automotive-style spin-on oil filter for enhanced longevity.
- إضافة الوقود: Fill the large-capacity steel fuel tank with fresh, unleaded gasoline. The tank includes a built-in fuel gauge for convenient monitoring. Ensure the fuel cap is securely fastened.
- توصيل البطارية: Connect the included battery for electric starting. Follow the positive (+) and negative (-) terminal connections carefully.
الشكل 2: الجانب view of the generator, showing the engine and wheel assembly.
4. تعليمات التشغيل
Follow these steps to safely start and operate your Generac GP17500E generator.
- الموقع: Position the generator on a level surface outdoors, away from any structures, windows, or vents.
- الفحوصات قبل بدء السباق: Verify oil and fuel levels. Ensure all electrical loads are disconnected from the generator before starting.
- بدء تشغيل المحرك:
- بدء التشغيل الكهربائي: أدر مفتاح التشغيل إلى وضع "التشغيل". حرر المفتاح بمجرد بدء تشغيل المحرك.
- Manual Start (Recoil): If the electric start fails, use the recoil starter by pulling the rope firmly.
- توصيل الأحمال الكهربائية: Once the engine is running smoothly, connect your electrical devices to the appropriate outlets. The generator features covered outlets for added protection.
- Idle Control: The idle control feature reduces noise and conserves fuel, extending run times. Engage this feature when full power is not continuously required.
- إيقاف المحرك: Disconnect all electrical loads. Turn the ignition key to the 'OFF' position or use the engine stop switch.

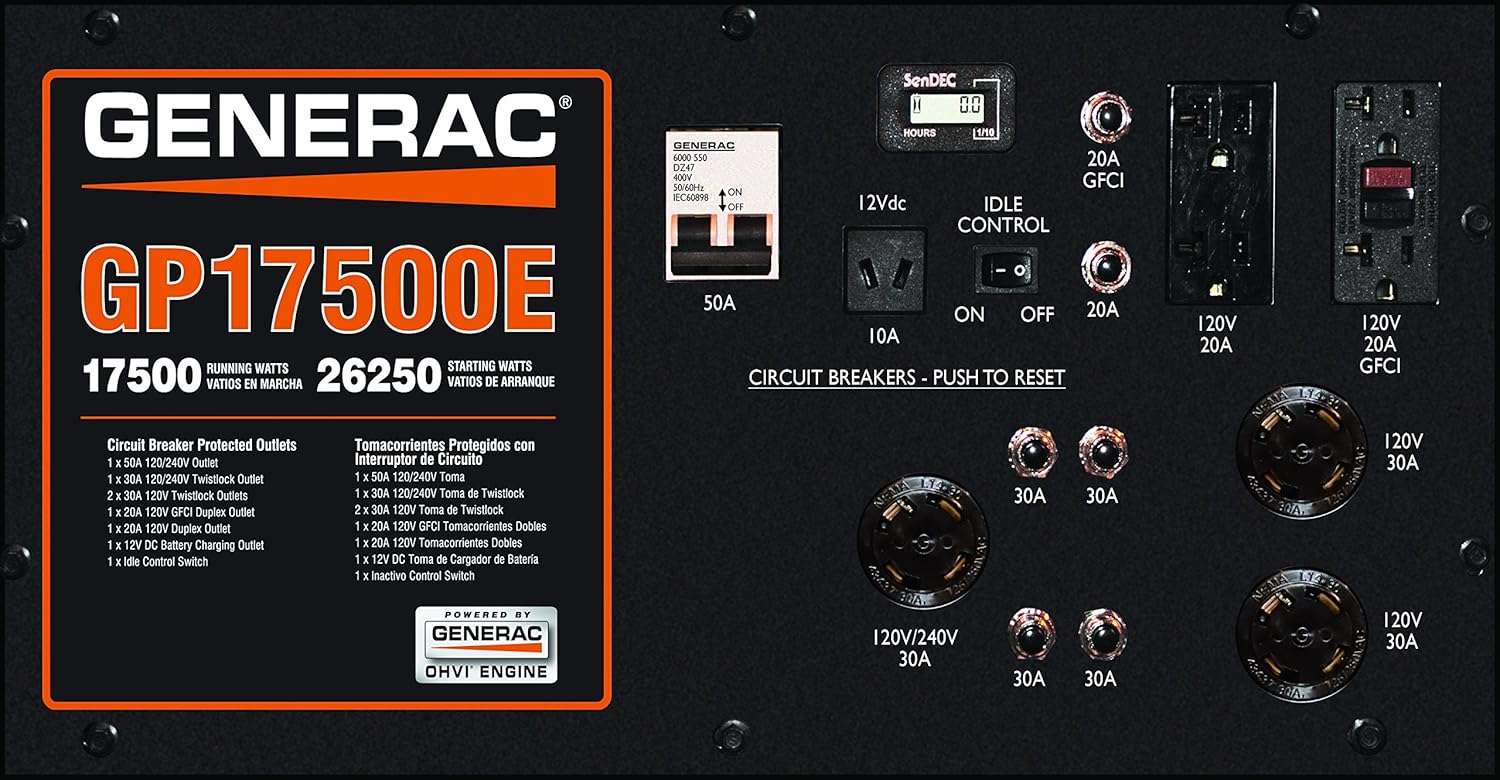

Figure 3: Control panel with outlets, idle control, and hour meter.
5. الصيانة
تضمن الصيانة الدورية الأداء الأمثل وتطيل عمر المولد الكهربائي الخاص بك.
- عداد الساعات: The integrated hour meter tracks maintenance intervals, helping you keep the generator in top shape. Refer to the maintenance schedule in the full manual.
- تغيير الزيت: Regularly check and change the engine oil as indicated by the hour meter or usage. The automotive-style spin-on oil filter simplifies this process.
- Low-Oil Level Shutdown: The generator is equipped with a low-oil level shutdown feature that automatically safeguards the engine from damage by shutting it off if oil levels are too low.
- فلتر الهواء: افحص ونظف أو استبدل فلتر الهواء بشكل دوري.
- ولاعة: Check and clean or replace the spark plug as needed.
Figure 4: Engine detail highlighting the low oil shutdown feature.
6. استكشاف الأخطاء وإصلاحها
If your generator experiences issues, consult this basic troubleshooting guide. For complex problems, contact Generac customer support.
- المحرك لا يبدأ:
- التحقق من مستوى الوقود.
- Ensure engine oil is at the correct level (low-oil shutdown prevents starting).
- Verify battery connections for electric start.
- افحص شمعة الإشعال بحثًا عن أي تلوث أو تلف.
- لا يوجد مخرج للطاقة:
- Check circuit breakers on the control panel and reset if tripped.
- تأكد من أن جميع التوصيلات آمنة.
- Verify that the generator is running at the correct RPM (idle control might be engaged).
- المحرك يعمل بشكل غير منتظم:
- Check for stale fuel; use fresh gasoline.
- افحص فلتر الهواء للتأكد من عدم وجود انسدادات.
- تحقق من شمعة الإشعال.
7. المواصفات
Key technical specifications for the Generac GP17500E Portable Generator.
| مواصفة | قيمة |
|---|---|
| ماركة | جينيراك |
| اسم الموديل | GP17500E |
| تشغيل واتtage | 17500 واط |
| بدء واتtage | 26250 واط |
| نوع الوقود | الغازولين |
| نوع المحرك | 4 Stroke OHVI |
| حجم الخزان | 16 جالون |
| وزن العنصر | 390 رطل |
| أبعاد المنتج (الطول × العرض × الارتفاع) | 48.5 بوصة طول × 31 بوصة عرض × 39.5 بوصة ارتفاع |
| إجمالي منافذ الطاقة | 16 |
| ميزة خاصة | بدء التشغيل الكهربائي |
Figure 5: Generator dimensions for planning placement and storage.
8. الضمان والدعم
For detailed warranty information, please refer to the warranty card included with your product or visit the official Generac website. For technical support, replacement parts, or service inquiries, contact Generac customer service through their official channels. Always provide your model number (GP17500E) and serial number when seeking support.
