Urmet 1055/101 Infrared Detector with Swivel Joint and 3.6V Battery User Manual

1. المقدمة

This manual provides detailed instructions for the installation, operation, and maintenance of your Urmet 1055/101 Infrared Detector. Please read this manual thoroughly before using the device to ensure proper functionality and safety. Keep this manual for future reference.

2. معلومات السلامة

• لا تعرض الجهاز لدرجات حرارة عالية، أو أشعة الشمس المباشرة، أو الرطوبة العالية.
• Ensure the device is installed in a stable location to prevent accidental falls.
• Handle batteries with care. Do not short-circuit, recharge (if non-rechargeable), or dispose of batteries in fire.
• احفظ الجهاز والبطاريات بعيدًا عن متناول الأطفال.
• Refer to local regulations for proper disposal of electronic waste and batteries.

3. محتويات العبوة

تأكد من وجود جميع العناصر في العبوة:

• Urmet 1055/101 Infrared Detector
• بطارية 3.6 فولت
• Mounting Hardware (screws, wall plugs - assumed)
• دليل المستخدم (هذا المستند)

4. انتهى المنتجview

The Urmet 1055/101 is a battery-powered infrared detector designed for motion sensing. It features a swivel joint for flexible positioning.

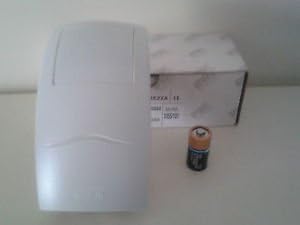

الشكل 1: Urmet 1055/101 Infrared Detector, 3.6V battery, and product packaging. This image displays the Urmet 1055/101 Infrared Detector, a white rectangular device with a slightly curved front. Beside it is a 3.6V battery, and in the background, a white product box is partially visible. The detector appears compact and designed for indoor use.

المكونات الرئيسية:

• Infrared Sensor Lens: Detects changes in infrared radiation caused by motion.
• حجرة البطارية: يحتوي على بطارية 3.6 فولت.
• Swivel Joint: Allows for adjustment of the detector's angle.
• قاعدة التركيب: For securing the detector to a surface.

5. الإعداد

5.1 تركيب البطارية

1. Carefully open the battery compartment cover, typically located on the back or side of the detector.
2. Insert the provided 3.6V battery, ensuring the correct polarity (+ and -) as indicated inside the compartment.
3. أغلق غطاء حجرة البطارية جيدًا.

5.2 التركيب

1. Choose a suitable location for the detector, ensuring it has a clear line of sight to the area you wish to monitor. Avoid placing it near heat sources or in direct airflow.
2. Using the mounting base as a template, mark the positions for drilling holes on the wall or ceiling.
3. Drill the marked holes and insert the wall plugs (if required).
4. Secure the mounting base to the surface using the provided screws.
5. Attach the detector to the mounting base, utilizing the swivel joint to adjust the detection angle as needed.

6. التشغيل

Once the battery is installed and the detector is mounted, it will typically enter an operational state. The Urmet 1055/101 is designed to detect infrared changes caused by movement within its detection zone. Specific operational indicators (e.g., LED flashes) may be present to confirm detection or battery status. Refer to any markings on the device for these indicators.

7. الصيانة

7.1 استبدال البطارية

When the battery level is low (indicated by a specific LED pattern or system notification, if applicable), replace the 3.6V battery by following the installation steps in Section 5.1. Always use a battery of the same type and voltage.

7.2 التنظيف

To clean the detector, gently wipe the exterior with a soft, dry cloth. Do not use abrasive cleaners, solvents, or excessive moisture, as these can damage the device or its sensor lens.

8. استكشاف الأخطاء وإصلاحها

• Device not detecting motion: Check battery level and ensure correct installation. Verify the sensor lens is clean and unobstructed. Adjust the detector's angle using the swivel joint.
• الإنذارات الكاذبة: Ensure the detector is not placed near heat sources (e.g., vents, radiators) or in areas with strong air currents that could cause false readings.
• عمر بطارية قصير: Ensure you are using the correct 3.6V battery type. Extreme temperatures can affect battery performance.

9. المواصفات

10. الضمان والدعم

Specific warranty information for the Urmet 1055/101 Infrared Detector is typically provided with the product packaging or available on the official Urmet website. Please refer to these sources for details regarding warranty coverage and terms.

For technical support or further assistance, please contact Urmet customer service through their official webالموقع الإلكتروني أو معلومات الاتصال الموجودة على عبوة المنتج.
