Hunter 44760 Multi-Stage Heat Pump Thermostat User Manual

1. المقدمة

Thank you for choosing the Hunter 44760 Multi-Stage Heat Pump Thermostat. This device is designed to provide efficient and precise control over your home's heating and cooling system. It is compatible with single and multi-stage heat pump systems, controlling one stage of cooling and two stagوفاق من الحرارة.

Key features of your Hunter 44760 thermostat include:

• تغيير موسم السيارات: Automatically switches between heating and cooling modes.
• INDIGLO Backlit Display: يوفر رؤية واضحة في مختلف ظروف الإضاءة.
• Pre-Programmed Temperature & Vacation Overrides: Allows temporary adjustments or extended holds.
• جهاز مراقبة الطاقة: Tracks system usage time to help manage energy consumption.
• مؤشر تغيير الفلتر: Reminds you when to replace your system's air filter.
• الاسترداد التلقائي: Helps maintain comfort while optimizing energy use.
• تحذير انخفاض البطارية: Alerts you when batteries need replacement.
• بطارية احتياطية: يحتفظ بالإعدادات أثناء تشغيل الطاقةtag(يتطلب بطاريتين AAA، غير مرفقتين).

2. التثبيت

The Hunter 44760 thermostat is designed for easy do-it-yourself installation. Please follow these instructions carefully to ensure proper setup and operation.

2.1 قبل أن تبدأ

• اغلاق الطاقة to your heating and cooling system at the main circuit breaker or fuse box before beginning installation.
• Ensure you have the necessary tools: screwdriver, wire stripper/cutter, and electrical tape.
• Confirm your system is compatible with a multi-stagه ترموستات مضخة الحرارة.

2.2 Removing Your Old Thermostat and Wiring

1. Carefully remove the cover of your existing thermostat.
2. Before disconnecting any wires, label each wire with the corresponding terminal letter from your old thermostat. This is crucial for correct wiring of the new thermostat.
3. افصل الأسلاك وأزل لوحة الحائط الخاصة بمنظم الحرارة القديم.

Image: Hunter 44760 Thermostat packaging illustrating key features and simplified installation steps. The top right corner shows a visual guide for removing the existing thermostat, labeling wires, installing the new wall plate, and attaching the cover.

2.3 تركيب منظم الحرارة الجديد

4. Install the new wall plate provided with your Hunter 44760 thermostat. Secure it to the wall using the included screws.
5. Connect the labeled wires to the corresponding terminals on the new wall plate. Refer to the wiring diagram in the full manual for specific connections.
6. Insert 2 AAA batteries (not included) into the battery compartment.
7. Attach the thermostat cover to the wall plate, ensuring it clicks securely into place.
8. قم باستعادة الطاقة إلى نظام التدفئة والتبريد الخاص بك من خلال قاطع الدائرة.

3. التشغيل

This section details how to operate your Hunter 44760 thermostat, including basic controls and programming features.

3.1 عرض أكثرview

The thermostat features an INDIGLO backlit display that shows the current temperature, set temperature, time, and system status. The display is designed for clear readability.

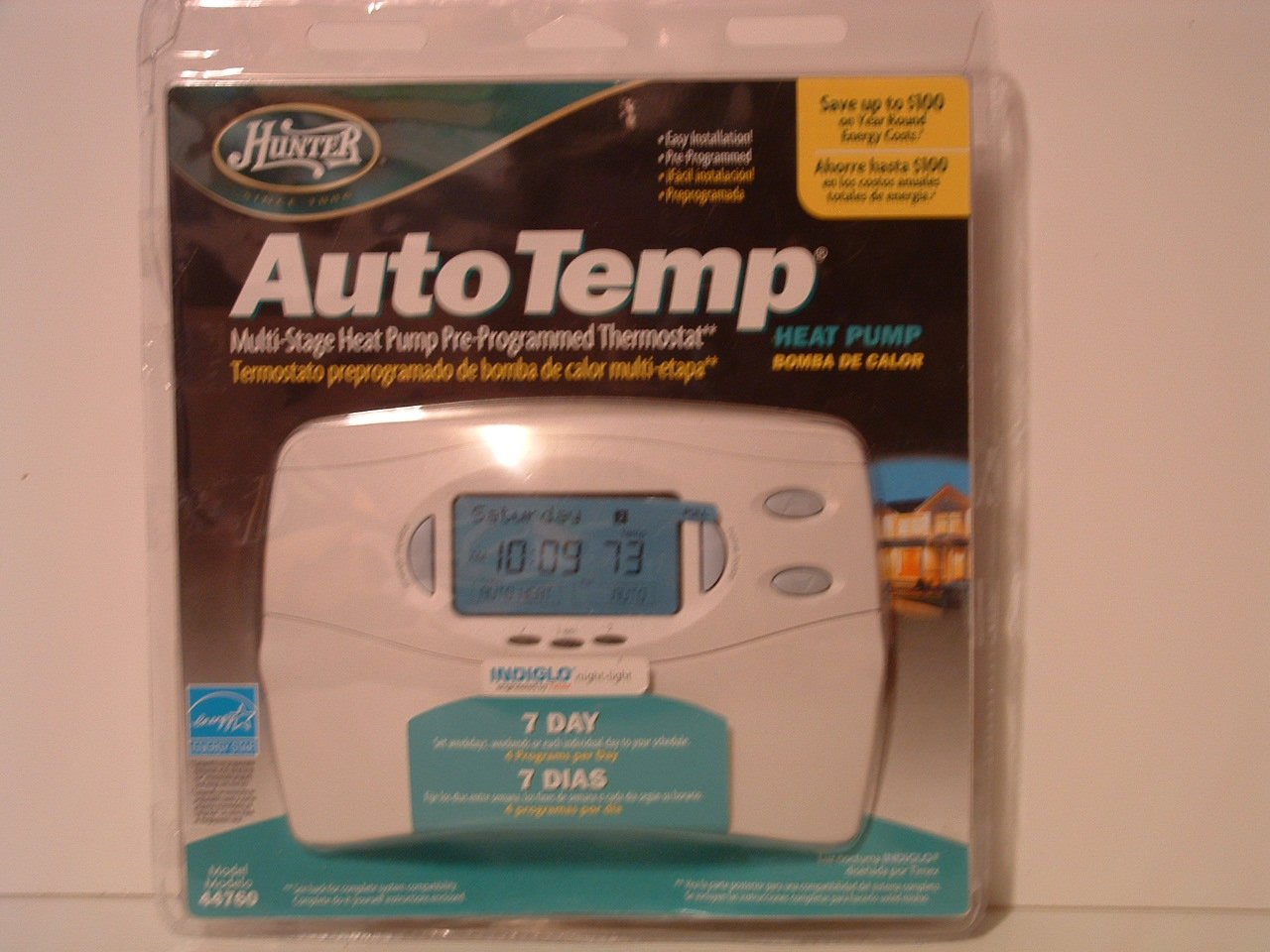

Image: Hunter 44760 Thermostat packaging showing the thermostat's front panel with its digital display (showing 10:09 and 73 degrees) and various control buttons below it.

3.2 الضوابط الأساسية

• Temperature UP/DOWN Buttons: Use these buttons to adjust the desired temperature setting.
• تبديل المروحة:
  • تلقاءي: The fan runs only when the heating or cooling system is operating.
  • على: تستمر المروحة في العمل بشكل مستمر، بغض النظر عما إذا كان نظام التدفئة أو التبريد نشطًا.
• تبديل النظام:
  • حرارة: يتحكم منظم الحرارة في نظام التدفئة.
  • بارد: يتحكم منظم الحرارة في نظام التبريد.
  • OFF: تم إيقاف تشغيل أنظمة التدفئة والتبريد.

3.3 Programming Features

The Hunter 44760 offers advanced programming options for energy efficiency and comfort.

• تغيير موسم السيارات: This feature automatically switches between heating and cooling modes as needed, eliminating the need for manual adjustment.
• Home Today & Vacation Overrides: Use these functions for temporary temperature adjustments or to set an extended hold for vacation periods.
• جهاز مراقبة الطاقة: الوصول إلى هذه الميزة ل view the run time of your heating and cooling system, helping you understand and manage energy usage.
• مؤشر تغيير الفلتر: A reminder will appear on the display when it's time to check or replace your system's air filter.
• الاسترداد التلقائي: This intelligent feature ensures your home reaches the desired temperature by the start of a programmed period, optimizing system operation.
• Permanent and Vacation Hold: These settings allow you to maintain a specific temperature indefinitely or for a set vacation duration, overriding the regular program.
• Returns to Programmed Settings: The thermostat can easily revert to your pre-programmed schedule.

4. الصيانة

تضمن الصيانة المناسبة طول عمر جهاز تنظيم الحرارة وأدائه الأمثل.

4.1 استبدال البطارية

The thermostat requires two AAA batteries (not included) for operation and to maintain settings during power outages. A low battery warning will appear on the display when replacement is needed.

1. Gently pull the thermostat body away from the wall plate to access the battery compartment.
2. Remove the old batteries and insert two new AAA alkaline batteries, ensuring correct polarity (+/-).
3. Reattach the thermostat body to the wall plate.

4.2 التنظيف

نظف الجزء الخارجي من الترموستات بقطعة قماش ناعمة.amp لا تستخدم المنظفات أو المذيبات الكاشطة، لأنها قد تؤدي إلى إتلاف الطبقة النهائية أو المكونات الداخلية.

5. استكشاف الأخطاء وإصلاحها

إذا واجهت مشاكل مع منظم الحرارة الخاص بك، فراجع المشاكل والحلول الشائعة التالية.

• Thermostat Display is Blank:
  • Check if the power to your HVAC system is on at the circuit breaker.
  • Replace the AAA batteries in the thermostat.
• النظام لا يستجيب (لا يوجد تدفئة/تبريد):
  • تأكد من ضبط مفتاح النظام على وضع التدفئة أو التبريد، وليس وضع الإيقاف.
  • Verify the fan switch is set to AUTO or ON.
  • Check if the set temperature is above (for heat) or below (for cool) the current room temperature.
  • تأكد من أن جميع توصيلات الأسلاك محكمة.
• قراءة درجة الحرارة غير صحيحة:
  • تأكد من عدم تعرض منظم الحرارة لأشعة الشمس المباشرة أو التيارات الهوائية أو مصادر الحرارة.
  • Allow time for the thermostat to acclimate to the room temperature after installation.
• Filter Change Indicator Remains On:
  • Replace your system's air filter.
  • Reset the filter change indicator through the thermostat's settings menu (refer to the full manual for specific steps).

6. المواصفات

Below are the technical specifications for the Hunter 44760 Multi-Stage Heat Pump Thermostat.

7. معلومات الضمان

The Hunter 44760 Multi-Stage Heat Pump Thermostat comes with a ضمان محدود لمدة عام واحد from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For full details regarding warranty terms and conditions, refer to the documentation included with your product or contact Hunter Fan Company customer support.

8. دعم العملاء

If you have any questions, require technical assistance, or need further support regarding your Hunter 44760 thermostat, please contact the Hunter Fan Company customer service. Contact information can typically be found on the manufacturer's webالموقع أو في العبوة الأصلية للمنتج.
