1. المقدمة
This manual provides detailed instructions for the proper installation, operation, and maintenance of your Lanzar VIBE211 Vibe 360 Watt 2 Channel Mosfet Ampيرجى قراءة هذا الدليل بعناية قبل محاولة تثبيت أو تشغيل جهاز amplifier to ensure optimal performance and safety.
2. معلومات السلامة
يجب دائمًا مراعاة احتياطات السلامة التالية أثناء التثبيت والتشغيل:
- Disconnect the vehicle's negative battery terminal before any wiring connections are made.
- تأكد من توجيه جميع الأسلاك وتأمينها بشكل صحيح لمنع حدوث أي تلف أو ماس كهربائي.
- استخدم الأسلاك ذات القياس المناسب لاتصالات الطاقة والأرض كما هو موضح في قسم التثبيت.
- قم بتركيب ampيجب تخزين المبرد بشكل آمن في مكان يسمح بالتهوية الكافية ومحمي من الرطوبة والحرارة الزائدة.
- لا تقم بتشغيل amplifier if it is damaged or malfunctioning. Refer to the troubleshooting section or seek professional assistance.
3. انتهى المنتجview
The Lanzar VIBE211 is a 2-channel Mosfet amplifier designed for car audio systems. It features a bridgeable design, allowing for flexible configuration, and incorporates a regulated Mosfet power supply for stable performance. Key features include variable high/low pass crossover controls and a remote subwoofer bass control.

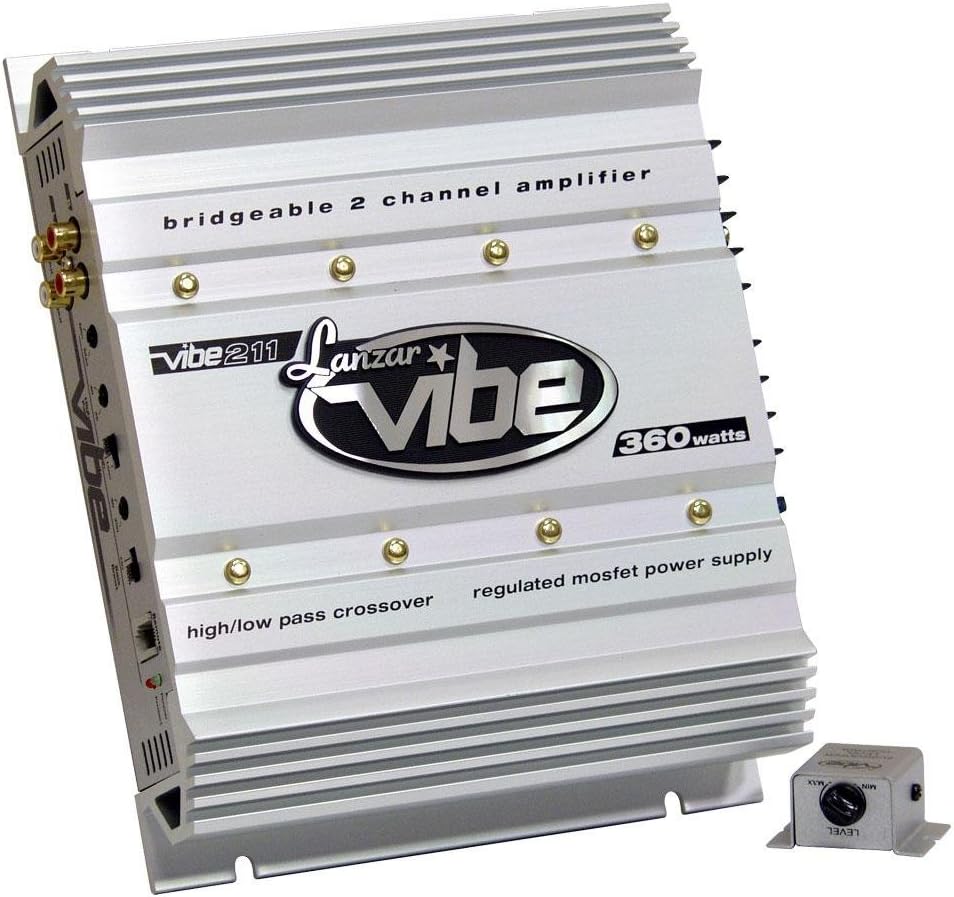

زاوية view of the silver Lanzar VIBE211 Vibe 360 Watt 2 Channel Mosfet Ampمُلَفِّتُ، مُشْرِكasing its finned heatsink design, RCA inputs, and control panel. The amplifier features text indicating 'bridgeable 2 channel amplifier', 'vibe 211', 'Lanzar vibe', '360 watts', 'high/low pass crossover', and 'regulated mosfet power supply'. A small, separate remote bass level control unit is visible in the foreground.
4. الإعداد والتثبيت
4.1 تركيب Ampالقمامة
Choose a secure mounting location that provides adequate air circulation around the amplifier's heatsink. Avoid mounting in direct sunlight or areas prone to moisture. Use the provided mounting hardware to secure the ampقم بتثبيته بإحكام على سطح صلب.
4.2 توصيلات الأسلاك
Ensure all connections are tight and properly insulated to prevent short circuits.
- Power (B+): Connect a heavy-gauge wire (e.g., 8 AWG or larger) directly from the positive terminal of the vehicle's battery to the amplifier's B+ terminal. Install an appropriate fuse (15A) within 18 inches of the battery.
- الأرض (GND): Connect a heavy-gauge wire of the same size as the power wire from the amplifier's GND terminal to a clean, unpainted metal surface of the vehicle chassis. Ensure a good electrical connection.
- البعيد (ريم): Connect a smaller gauge wire (e.g., 18 AWG) from the ampوصل طرف REM الخاص بمكبر الصوت بمخرج التشغيل عن بُعد لوحدة الرأس. يحول هذا السلك ampتشغيل وإيقاف مكبر الصوت باستخدام جهاز الاستريو الخاص بك.
- مدخلات RCA: Connect the RCA audio cables from your head unit's pre-amp المخرجات إلى amplifier's Gold RCA Inputs. The amplifier includes Line Outs for Left and Right Channels for daisy-chaining to other ampالقاتلون.
- مخرجات السماعات: Connect your speakers to the amplifier's speaker terminals. Observe correct polarity (+ to + and - to -). The amplifier is 2 Ohm stereo stable and bridgeable at 4 Ohms.
- Remote Subwoofer Bass Control: Connect the remote bass control unit to the designated port on the amplifier. Mount the control unit in an accessible location for easy adjustment.
5. تعليمات التشغيل
5.1 التشغيل الأولي
After all connections are made, reconnect the vehicle's negative battery terminal. Turn on your head unit. The amplifier features Soft Turn On/Off circuitry to prevent pops and clicks. Power Protection LED Indicators will illuminate to show operational status.
5.2 Adjusting Input Level Controls
ال amplifier has Variable Input Level Controls. Start with the amplifier's input level set to minimum. Play a familiar piece of music through your head unit at about 75% of its maximum volume. Slowly increase the amplifier's input level until you hear slight distortion, then back it off slightly. This ensures the ampيستقبل مكبر الصوت إشارة مثالية دون تشويه.
5.3 إعدادات التقاطع
ال amplifier features Variable High Low Pass Crossover Controls. These allow you to filter specific frequencies to your speakers or subwoofers.
- مرشح الترددات العالية (HPF): Used for full-range speakers to prevent low frequencies from reaching them, improving clarity.
- مرشح الترددات المنخفضة (LPF): Used for subwoofers to allow only low frequencies to pass, enhancing bass response.
Adjust these controls to match the frequency response characteristics of your speakers and subwoofers.
5.4 Bass Boost Circuit
The built-in Bass Boost Circuit allows for an increase in bass output at specific frequencies. Use this feature sparingly and adjust to your preference, avoiding excessive boosting that could lead to distortion or speaker damage.
5.5 Bridged Mode Operation
ال amplifier can be bridged at 4 Ohms to combine the power of both channels into a single, higher-power output, typically for driving a subwoofer. Refer to the wiring diagram for specific instructions on bridging the ampمكبر.
6. الصيانة
The Lanzar VIBE211 amplifier requires minimal maintenance. Periodically inspect the wiring connections for tightness and corrosion. Keep the amplifier's heatsink clean and free of dust or debris to ensure proper cooling. Use a soft, dry cloth for cleaning the exterior.
7. استكشاف الأخطاء وإصلاحها
إذا واجهت مشاكل مع ampللمُحفِّز، راجع الجدول التالي قبل طلب الخدمة المهنية:
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| لا يوجد طاقة / لا يوجد صوت | Blown fuse; Loose power/ground/remote wire; Faulty head unit. | Check and replace fuse; Verify all power, ground, and remote connections; Test head unit functionality. |
| صوت مشوه | Input level too high; Speaker impedance too low; Damaged speakers. | Adjust input level; Verify speaker impedance (2 Ohm stereo stable, 4 Ohm bridged); Inspect speakers for damage. |
| Amplifier Goes into Protection Mode | ارتفاع درجة الحرارة؛ ماس كهربائي في أسلاك السماعة؛ مستوى صوت منخفضtage. | Ensure adequate ventilation; Check speaker wires for shorts; Verify battery voltagهـ ونظام الشحن. |
| No Bass from Subwoofer | LPF not enabled or set too high; Phase issue; Remote bass control set to minimum. | Adjust LPF setting; Check subwoofer phase; Increase remote bass control level. |
8. المواصفات
Technical specifications for the Lanzar VIBE211 ampمكبر:
- Power Output (RMS @ 4 Ohms): ٢ × ٦ واط
- Power Output (Max @ 4 Ohms): ٢ × ٦ واط
- Power Output (Max Bridged @ 4 Ohms): ٢ × ٦ واط
- Power Output (RMS @ 2 Ohms): ٢ × ٦ واط
- Ampنوع مكبر: 2 Channel Mosfet
- استجابة التردد: 15 Hz - 35 kHz
- نسبة الإشارة إلى الضوضاء (S / N): 90 ديسيبل
- تقييم المصهر: 15A
- الأبعاد (العرض × الارتفاع × الطول): 10.25 بوصة × 2 بوصة × 8 بوصة
- ضوابط مستوى الإدخال: عامل
- ضوابط كروس: Variable High/Low Pass
- استقرار: 2 Ohm Stereo Stable, Bridgeable at 4 Ohms
- دائرة الحماية: Advanced Power Protection LED Indicators
- مميزات اضافية: Remote Subwoofer Bass Control, Electronic Crossover Network, Bass Boost Circuit, Soft Turn On/Off
9. الضمان والدعم
9.1 معلومات الضمان
The Lanzar VIBE211 ampيأتي الليف مع أ 1 سنوات limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by improper installation, accident, misuse, abuse, negligence, or unauthorized modification.
9.2 دعم العملاء
For technical assistance, troubleshooting beyond this manual, or warranty service, please contact Lanzar customer support. Refer to the official Lanzar webالموقع أو عبوة المنتج للحصول على معلومات الاتصال الحالية.
