دليل مستخدم شوين 733 متعدد المحطات

1. المقدمة

Thank you for choosing the Schwinn 733 Multi Station. This comprehensive home gym is designed to provide a full-body workout, allowing you to perform a variety of strength training exercises in a compact space. To ensure safe and effective use, please read this manual thoroughly before assembly or operation. Keep this manual for future reference.

2. تعليمات السلامة الهامة

WARNING: Serious injury or death can occur if precautions are not followed.

• استشارة الطبيب قبل البدء في أي برنامج رياضي.
• Keep children and pets away from the equipment. This equipment is not a toy.
• Place the multi station on a flat, stable surface. Ensure adequate clearance around the equipment for safe operation.
• Inspect the equipment before each use for loose parts, worn cables, or damaged components. Do not use if any part is damaged.
• Do not exceed the maximum user weight recommendation of 100 kg (220 lbs).
• ارتدِ ملابس رياضية مناسبة وأحذية رياضية. تجنب ارتداء الملابس الفضفاضة التي قد تعلق بالأجزاء المتحركة.
• Perform exercises slowly and in a controlled manner. Avoid sudden or jerky movements.
• Do not modify the equipment. Use only manufacturer-approved replacement parts.
• Always use a spotter when lifting heavy weights, especially for exercises where you might become trapped.

3. Parts List and Overview

Before assembly, ensure all components are present and undamaged. Refer to the diagram below for a visual overview of the Schwinn 733 Multi Station's main components.

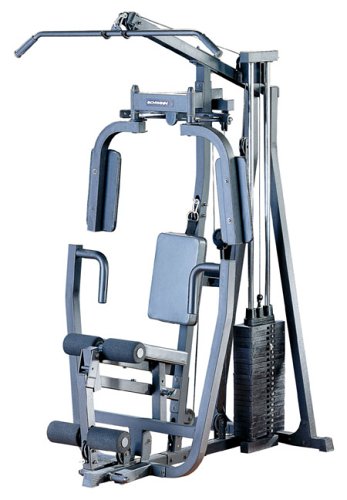

Figure 3.1: Fully assembled Schwinn 733 Multi Station. This image shows the complete home gym unit, including the weight stack, various exercise stations like the lat pulldown, chest press, and leg developer, and the overall steel frame construction.

A detailed list of all nuts, bolts, washers, and frame components can be found in the separate assembly guide included with your purchase. Key components include:

• Main Frame Assembly (Steel Alloy)
• Weight Stack and Selector Pin
• Cable and Pulley System
• شريط السحب للأسفل
• Chest Press/Pec Deck Arms
• Leg Developer with Foam Rollers
• Adjustable Seat and Backrest Pads

4. التجميع والإعداد

Assembly of the Schwinn 733 Multi Station requires two people and approximately 3-5 hours. Please follow the step-by-step instructions provided in the separate دليل التجميع. Ensure you have all necessary tools, typically including adjustable wrenches, hex keys, and a rubber mallet.

1. فك وتنظيم: Carefully unpack all components and lay them out. Verify all parts against the parts list in the Assembly Guide.
2. تجميع الإطار الأساسي: Begin by assembling the main base frame components, ensuring all bolts are finger-tight initially.
3. Install Uprights and Supports: Attach the vertical uprights and support beams to the base frame.
4. Mount Weight Stack Guide Rods: Securely install the guide rods for the weight stack.
5. Assemble Weight Stack: Carefully slide the weight plates onto the guide rods, ensuring the selector pin mechanism functions correctly.
6. تركيب البكرات والكابلات: Route the cables through the various pulleys as per the diagram in the Assembly Guide. Pay close attention to the correct routing to ensure smooth operation.
7. Attach Exercise Arms and Pads: Secure the chest press arms, pec deck arms, lat pulldown bar, and leg developer. Attach all seat and backrest pads.
8. الشد النهائي: Once all components are assembled, go back and securely tighten all nuts and bolts. Do not overtighten.
9. عملية الاختبار: Before first use, perform a full range of motion with light or no weight to ensure all cables run smoothly and all moving parts operate correctly.

For detailed diagrams and specific bolt sizes, refer to your Schwinn 733 Assembly Guide.

5. Operating Instructions and Exercises

The Schwinn 733 Multi Station offers a variety of exercises. Always warm up before exercising and cool down afterwards. Adjust the weight by inserting the selector pin into the desired weight plate.

5.1. محطة سحب لاس

This station targets your back muscles (latissimus dorsi) and biceps.

• يثبت: Sit on the seat facing the weight stack. Grab the lat pulldown bar with an overhand grip, slightly wider than shoulder-width.
• تنفيذ: Pull the bar down towards your upper chest, squeezing your shoulder blades together. Control the movement as you slowly return the bar to the starting position.

5.2. Chest Press / Pec Deck Station

This station works your chest (pectorals) and shoulders (deltoids).

• Setup (Chest Press): Sit with your back firmly against the backrest. Grab the handles with an overhand grip.
• Execution (Chest Press): Push the handles forward until your arms are almost fully extended, then slowly return to the starting position.
• Setup (Pec Deck): Adjust the arms so that your forearms rest against the pads.
• Execution (Pec Deck): Bring the pads together in front of your chest, squeezing your pectoral muscles. Control the return movement.

5.3. Leg Developer Station

This station targets your quadriceps (leg extensions) and hamstrings (leg curlس).

• Setup (Leg Extension): Sit on the seat with your shins under the foam rollers.
• Execution (Leg Extension): Extend your legs fully, contracting your quadriceps. Slowly lower the rollers back down.
• Setup (Leg Curl): Lie face down on the bench (if applicable, or adjust the machine for seated leg curls) with your Achilles tendons against the foam rollers.
• Execution (Leg Curl): Curl your legs upwards, bringing your heels towards your glutes. Control the movement as you extend your legs.

Always maintain proper form and breathing during exercises. If you experience pain, stop immediately.

6. الصيانة والعناية

Regular maintenance will extend the life of your Schwinn 733 Multi Station and ensure safe operation.

• تنظيف: Wipe down the frame, pads, and handles with a damp cloth after each use to remove sweat and dirt. Use a mild soap solution if necessary, then wipe dry. Do not use abrasive cleaners.
• تشحيم: Periodically apply a silicone-based lubricant to the guide rods of the weight stack to ensure smooth movement. Do not use oil-based lubricants.
• فحص الكابلات: Regularly inspect all cables for fraying, kinks, or wear. If any damage is observed, replace the cable immediately. Do not use the machine with damaged cables.
• فحص البكرة: افحص البكرات للتأكد من دورانها بسلاسة وتأكد من خلوها من الحطام.
• ضيق الترباس: Every 3-6 months, check all nuts and bolts for tightness. Retighten as necessary, but do not overtighten.
• Pad Condition: Inspect upholstery pads for tears or excessive wear.

7. استكشاف الأخطاء وإصلاحها

8. مواصفات المنتج

• نموذج: Schwinn 733 Multi Station
• مادة: إطار من سبائك الصلب
• الحد الأقصى لوزن المستخدم: 100 كيلوغرامًا (220 رطلاً)
• الأبعاد (مجمعة): (Refer to Assembly Guide for exact dimensions, typically H x W x D)
• كومة الوزن: (Specific weight not provided, but it's a multi-station with a stack)
• سمات: Lat Pulldown, Chest Press, Pec Deck, Leg Extension, Leg Curl

9. الضمان والدعم

Schwinn warrants this product to be free from defects in material and workmanship under normal use and service conditions. The warranty period typically covers the frame, parts, and labor for a specified duration from the date of original purchase. Please refer to the separate معلومات الضمان document included with your product for full details, terms, and conditions.

For technical support, replacement parts, or warranty claims, please contact Schwinn Customer Service:

• Webموقع: www.schwinnfitness.com/support (مثالample URL, actual URL قد تختلف)
• هاتف: 1-800-SCHWINN (Example number, actual number may vary)
• بريد إلكتروني: support@schwinnfitness.com (Exampالبريد الإلكتروني، قد يختلف البريد الإلكتروني الفعلي)

When contacting support, please have your product model (733) and serial number (located on the main frame) ready.
