1. المقدمة والمنتجview
Thank you for choosing the COBIZI 16x16 Hexagonal Pop-up Gazebo. This manual provides essential information for the safe assembly, operation, and maintenance of your gazebo. Please read these instructions carefully before use and retain them for future reference.
This gazebo offers an ultra-large 256 sq.ft coverage, designed to comfortably accommodate 14-18 guests. Its innovative 6-sided hexagonal design provides more usable space compared to traditional square canopies. Key features include a heavy-duty steel frame, 360° bug-proof mosquito netting, adjustable height settings, and a double-vented roof for improved air circulation and stability.

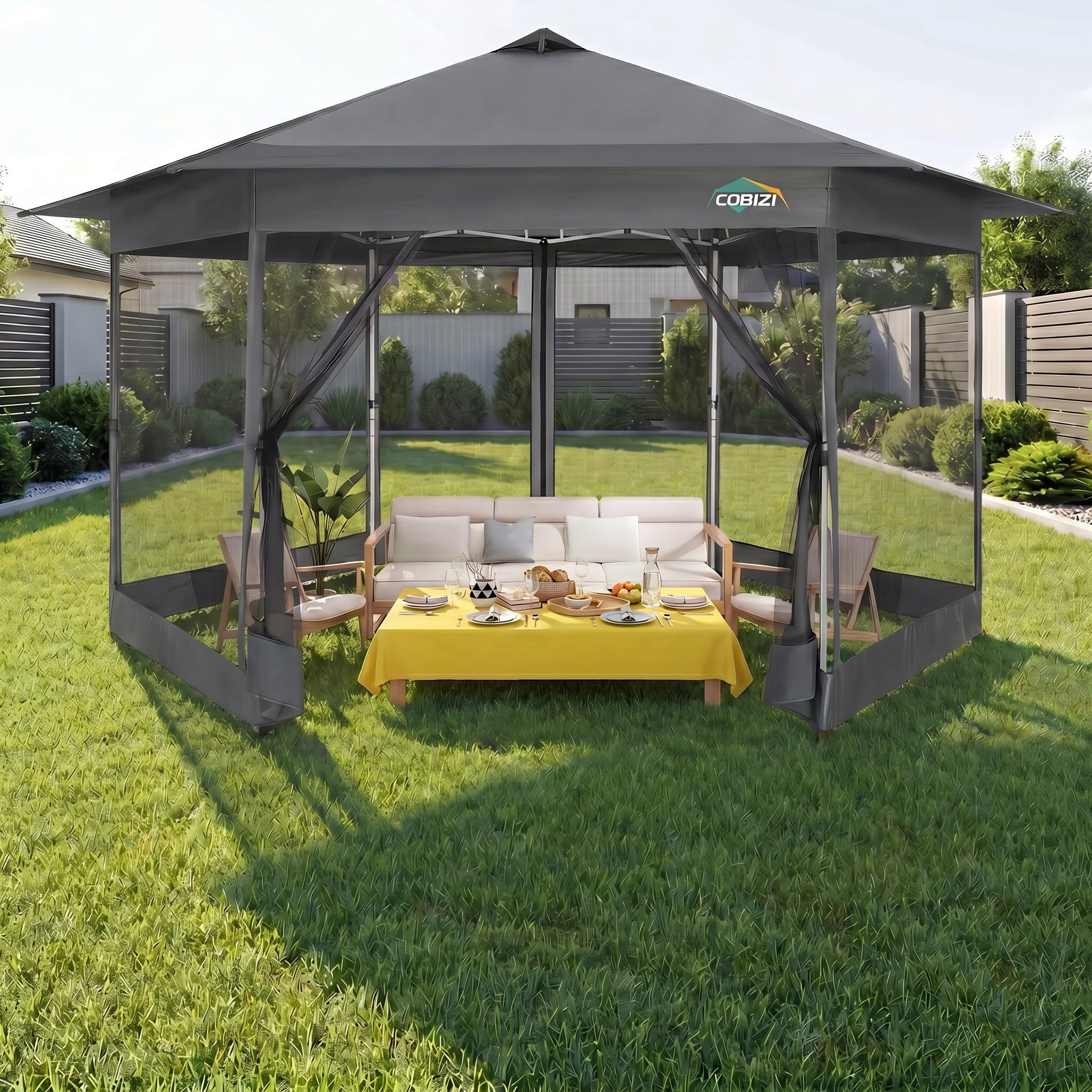

Image 1.1: The COBIZI 16x16 Hexagonal Pop-up Gazebo set up in a backyard.
2. معلومات السلامة
- حالة الطقس: Do not use the gazebo in severe weather conditions such as heavy rain, strong winds (exceeding 25 mph), hail, or snow. Disassemble and store the gazebo to prevent damage and ensure safety.
- ترسيخ: Always secure the gazebo firmly to the ground using the provided stakes and ropes. For additional stability, use sandbags or other weights on the legs.
- حَشد: Ensure at least two adults are present for assembly and disassembly to prevent injury. Follow all steps carefully.
- التخليص: Set up the gazebo on level ground, away from overhead power lines, trees, and other obstructions.
- السلامة من الحرائق: Keep all heat sources and open flames away from the gazebo fabric. The material is not fireproof.
- الأطفال والحيوانات الأليفة: Keep children and pets away from the assembly area. Do not allow them to play unsupervised around the gazebo.
- تقتيش: افحص جميع المكونات بانتظام للتأكد من عدم وجود تآكل أو تلف أو وصلات مفكوكة. لا تستخدم المنتج إذا كان أي جزء منه تالفًا.
3. قائمة التعبئة
Before assembly, verify that all components listed below are present in your package.
Image 3.1: Contents of the COBIZI Gazebo package.
- 1 x Waterproof Carry Bag
- 1 x Adjustable Height Frame
- 2 x Mosquito Netting (for hexagonal structure)
- 1 x Canopy Top
- 6 حبال
- 6 أكياس رمل
- 12 × حصص
- 1 × دليل التعليمات
4. تعليمات الإعداد
Assembly typically requires two people. Follow these steps for quick and easy setup.
Image 4.1: Visual guide for gazebo assembly steps.
- Step 1: Unfold the Frame and Attach Canopy Top
With a partner, gently pull the frame legs outwards to begin unfolding the structure. Place the canopy top over the partially opened frame, ensuring it is correctly oriented. Secure the canopy to the frame corners.
- Step 2: Engage the Central Lock Mechanism
From underneath the canopy, push the central lock mechanism upwards until it clicks into place. This will fully extend the canopy frame.
- الخطوة 3: ضبط الارتفاع والتأمين
Press the pinch-free buttons on each leg to adjust the gazebo to your desired height. There are 3 adjustable height settings. Once the height is set, secure the gazebo to the ground using the provided stakes and ropes. Attach sandbags to the legs for additional stability, especially in breezy conditions.
- الخطوة الرابعة: تركيب ناموسية
Attach the mosquito netting panels to the gazebo frame using the integrated zippers and fasteners. Ensure all panels are securely connected to provide 360° insect protection.
Image 4.2: Details of the gazebo's construction, including frame, zipper, height adjustment, and foot plate.
5. تعليمات التشغيل
5.1 تعديل الارتفاع
The gazebo features an innovative pinch-free button system allowing for effortless height adjustment. Each leg has a button that, when pressed, releases the locking mechanism. Adjust the center pole height up to 9 feet in 3 distinct positions to suit your needs on various terrains or for different events. Ensure all legs are adjusted to the same height for stability.
5.2 Mosquito Netting Usage
The premium 210D PU-coated Oxford mosquito netting provides comprehensive insect protection while maintaining airflow and clear visibility. Use the smooth zippers to open and close the netting panels as needed. When not in use, the netting can be tied back to the legs or removed for storage.
Image 5.1: Detail of the durable Oxford cloth and mosquito netting.
5.3 Vented Top Functionality
The gazebo is equipped with a double-tier vented roof. This design is crucial for improving air circulation, allowing hot air to escape, and reducing wind stress on the canopy. This helps keep the interior cooler on warm days and enhances the gazebo's overall stability and wind resistance.
Image 5.2: Illustration of the vented top for air circulation.
5.4 Disassembly and Storage
To disassemble, reverse the assembly steps. Lower the height, disengage the central lock, and carefully fold the frame. Ensure the canopy and netting are clean and dry before folding and placing them into the included carry bag. Store in a cool, dry place to prolong product life.
Image 5.3: Gazebo dimensions and compact folding size for transport. Note: Dimensions shown are for a 13x13FT model, refer to Section 8 for 16x16FT model dimensions.
6. الصيانة
- تنظيف: Clean the canopy and netting with mild soap and water. Do not use harsh chemicals or abrasive cleaners. Rinse thoroughly and allow to air dry completely before storage.
- العناية بالإطار: امسح الإطار الفولاذي بالإعلانamp cloth to remove dirt and debris. Inspect for any signs of rust or damage. Apply a rust-inhibiting spray if necessary.
- تخزين: When not in use for extended periods, or during adverse weather, disassemble the gazebo and store all components in the carry bag in a dry, protected area.
- التفتيش الدوري: Periodically check all connections, ropes, and stakes for security and wear. Replace any worn or damaged parts immediately.
7. استكشاف الأخطاء وإصلاحها
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| الشرفة غير مستقرة أو متذبذبة. | Not properly anchored; uneven ground; legs not fully extended/locked. | Ensure all stakes and ropes are securely fastened. Use sandbags for extra weight. Verify all legs are locked at the same height. Relocate to level ground if possible. |
| Difficulty extending/retracting frame. | Frame joints are stiff; central lock mechanism is stuck. | Apply a silicone-based lubricant to moving parts. Ensure no fabric is caught in the frame. Gently wiggle the frame while pushing/pulling. |
| Mosquito netting zippers are sticking. | Dirt or debris in zipper teeth; zipper alignment issue. | Clean zipper teeth with a small brush. Apply zipper lubricant or wax. Ensure netting is not pulled too tight. |
| تجمع المياه على المظلة. | Canopy not taut enough; frame not fully extended. | Ensure the frame is fully extended and locked. Adjust canopy tension if possible. Do not use in heavy rain. |
8. المواصفات
- ماركة: كوبيزي
- رقم الموديل: 143-SPC000266
- رمز المنتج العالمي: 840561214535
- أبعاد المنتج (الطول × العرض × الارتفاع): 192 بوصة طول × 192 بوصة عرض × 106 بوصة ارتفاع (16 قدم × 16 قدم × 8.8 قدم)
- مساحة الأرضية: 256 قدم مربع
- الإشغال: 14-18 أشخاص
- شكل: سداسي الشكل
- مادة الإطار: Metal (Powder-coated Steel)
- مادة المظلة: 210D PU-coated Oxford fabric
- مستوى مقاومة الماء: ضد للماء
- الحماية من الأشعة فوق البنفسجية: 100% (UPF 50+)
- التجميع مطلوب: No (Pop-up design, minimal assembly)
- لون: رمادي غامق
9. معلومات الضمان
COBIZI products are manufactured to high-quality standards. For specific warranty details regarding your COBIZI 16x16 Hexagonal Pop-up Gazebo, please refer to the warranty card included with your purchase or contact COBIZI customer support directly. Please retain your proof of purchase for any warranty claims.
A 30-day return policy is typically offered for this product. Please check with your retailer for their specific return guidelines.
10. دعم العملاء
Should you have any questions, require assistance with assembly, or need to report a missing or damaged part, please contact COBIZI customer support.
- الشركة المصنعة: كوبيزي
- بائع: COBIZI Direct
- متجر على الانترنت: Visit the COBIZI Store on Amazon
- For further assistance, please refer to the contact information provided in your product packaging.
