Moimhear Loft Bed Instruction Manual

1. المقدمة

Thank you for choosing the Moimhear Loft Bed. This manual provides essential information for the safe assembly, operation, and maintenance of your new loft bed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

This loft bed is designed to maximize space, offering a sleeping area, integrated desk, storage shelves, drawers, and a hanging rail. It features a robust metal frame and MDF components, complete with integrated LED lighting.

معلومات هامة حول السلامة:

• اتبع دائمًا تعليمات التجميع بدقة لضمان السلامة الهيكلية.
• Do not exceed the maximum weight capacity of 150 kg for the upper bed.
• Ensure the recommended mattress thickness (10 cm) is used for the upper bed to maintain safety rail effectiveness.
• قم بفحص جميع البراغي والوصلات بشكل منتظم للتأكد من أنها تبقى محكمة.
• Keep children away from the assembly area until the bed is fully assembled.
• هذا المنتج مخصص للاستخدام الداخلي فقط.

2. انتهى المنتجview والمكونات

The Moimhear Loft Bed is a multi-functional furniture piece designed for efficiency and style. Key features include:

• Elevated Sleeping Area: A secure upper bed with safety rails.
• مكتب متكامل: A spacious workspace located beneath the bed.
• حلول التخزين: Includes open shelves, two drawers, and a hanging rail for clothes or accessories.
• Staircase with Storage: Rectangular steps that double as additional storage compartments.
• إضاءة LED: Integrated LED strips under the bed and desk for adjustable ambiance.
• بناء متين: Sturdy metal frame combined with MDF panels for a modern industrial aesthetic.

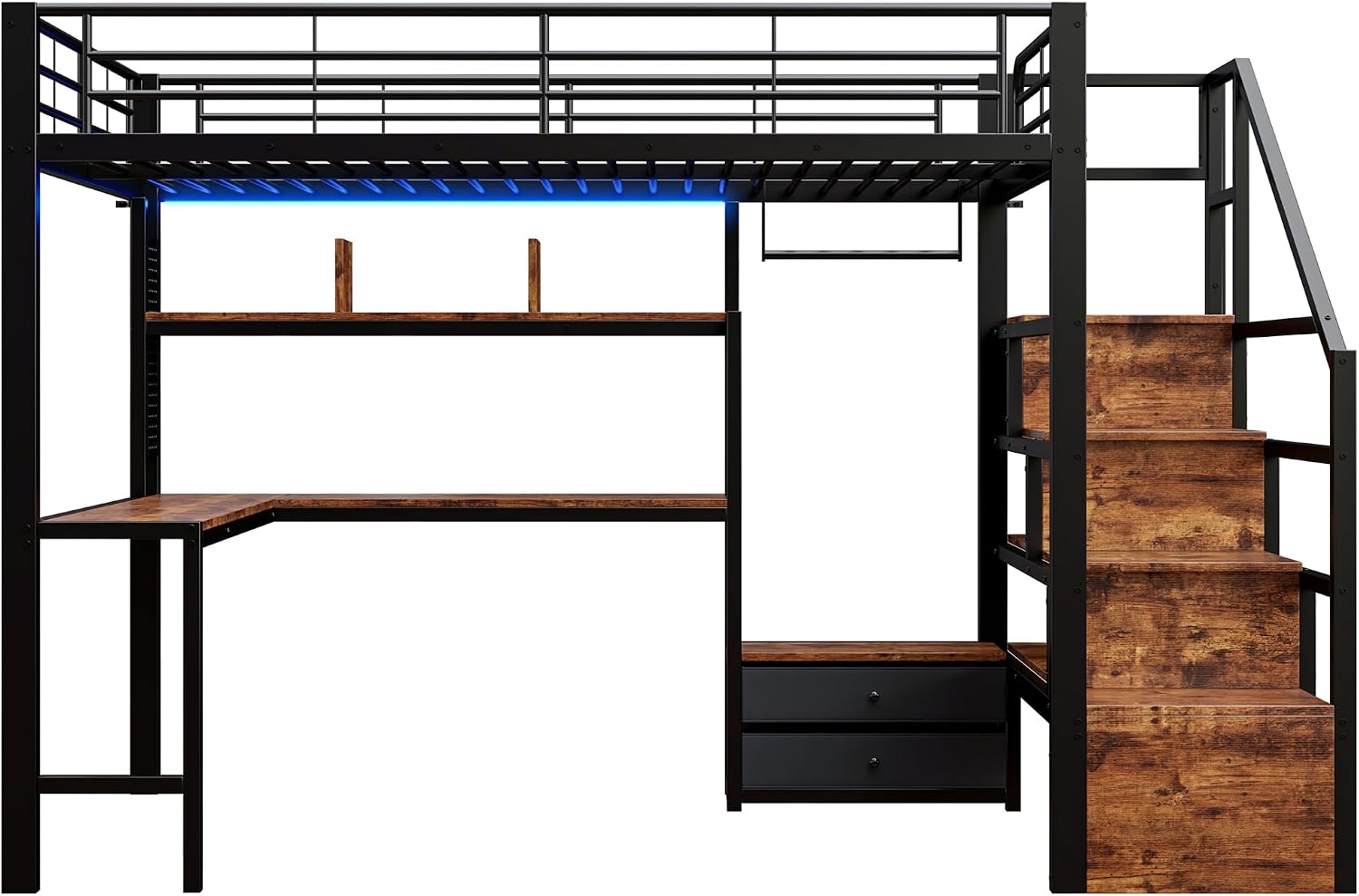

الشكل 2.1: بشكل عام view of the Moimhear Loft Bed, showcasing the elevated bed, integrated desk, and staircase with storage.

Figure 2.2: Detailed dimensions of the Moimhear Loft Bed in centimeters.

الشكل 2.3: الصورة عن قرب view of the integrated staircase, highlighting the storage compartments within each step.

Figure 2.4: Detail of the integrated desk and the two storage drawers located beneath the bed.

3. تعليمات الإعداد والتجميع

Assembly of the Moimhear Loft Bed requires careful attention to detail. It is recommended that two adults assemble this product. Please ensure you have sufficient space and all components before starting.

3.1 محتويات العبوة

Your Moimhear Loft Bed is shipped in three separate packages. Due to logistics, these packages may arrive at different times or on different days. Please verify all packages have arrived before beginning assembly.

• All necessary metal frame components
• MDF panels for desk, shelves, drawers, and staircase steps
• LED light strips and controller
• أدوات التجميع (البراغي، والصواميل، وما إلى ذلك).
• دليل التثبيت (هذا المستند)
• Assembly tools (basic wrenches, Allen keys)

3.2 الأدوات المطلوبة (غير متضمنة)

• فيليبس رئيس مفك
• مطرقة مطاطية (اختيارية، للطرق الخفيف)

3.3 خطوات التجميع

Follow the detailed diagrams and instructions provided in the separate installation manual included in your package. General steps include:

1. فك الحزمة وتحديد الهوية: Carefully unpack all components and lay them out. Compare them with the parts list in the separate manual to ensure all pieces are present.
2. تجميع الإطار الأساسي: Begin by assembling the main metal frame structure according to the diagrams. Ensure all bolts are finger-tight initially.
3. Attach Bed Platform: Secure the upper bed platform to the main frame.
4. Install Desk and Shelves: Mount the desk surface and open shelves to the designated frame sections.
5. Assemble Staircase: Construct the staircase, ensuring each step is securely fastened and the storage compartments are correctly aligned.
6. تركيب الأدراج: Assemble and install the two storage drawers into their designated slots.
7. Attach Hanging Rail: Secure the hanging rail.
8. تركيب إضاءة LED: Adhere the LED strips to the underside of the bed and desk as indicated in the manual. Connect them to the controller.
9. الشد النهائي: بعد وضع جميع المكونات في مكانها، قم بربط جميع البراغي والصواميل بشكل منهجي باستخدام الأدوات المرفقة. لا تفرط في الربط.
10. التحقق من السلامة: Before use, ensure the bed is stable, all connections are secure, and safety rails are firmly in place.

4. تعليمات التشغيل

4.1 LED Lighting Operation

The integrated LED lighting system can be controlled via a physical button or a dedicated smartphone application. Refer to the separate LED lighting manual (if provided) for specific app download and pairing instructions.

• التحكم في الزر: A button is typically located near the LED strip connection point. Pressing it cycles through different colors, brightness levels, or turns the lights on/off.
• التحكم في التطبيق: The smartphone app allows for more advanced customization, including precise color selection, brightness adjustment, dynamic lighting modes, and scheduling.

الشكل 4.1: View of the integrated desk area with the LED lighting activated, providing ambient illumination.

4.2 Storage Usage

• أدراج: Use the two integrated drawers for storing smaller items, clothing, or personal belongings.
• الرفوف: The open shelves and staircase compartments are ideal for books, decorative items, or frequently used essentials.
• قضيب التعليق: Utilize the hanging rail for clothes, bags, or other items that can be hung.

5. الصيانة

5.1 التنظيف

• اطار معدني: امسح الأسطح المعدنية بقطعة قماش ناعمة و...amp القماش. تجنب المنظفات الكاشطة أو المواد الكيميائية القاسية التي قد تلحق الضرر بالطبقة النهائية.
• MDF Surfaces: Clean MDF panels (desk, shelves, drawers) with a soft, dry or slightly damp cloth. Do not use excessive water or harsh cleaning agents.
• شرائط LED: Gently wipe the LED strips with a dry, soft cloth if dusty. Do not use liquids directly on the lights.

5.2 الشيكات المنتظمة

Periodically inspect all bolts, screws, and connections to ensure they are tight. Loose connections can compromise the bed's stability and safety. Tighten as necessary, but do not overtighten.

6. استكشاف الأخطاء وإصلاحها

• السرير غير ثابت بعد التركيب: Ensure all bolts and screws are fully tightened. Re-check assembly steps to confirm all components are correctly installed.
• أضواء LED لا تعمل: Check if the power adapter is securely plugged into both the wall outlet and the LED controller. Verify the controller is properly connected to the LED strips. If using app control, ensure the app is correctly paired and updated.
• الأدراج لا تنزلق بسلاسة: Check for any obstructions in the drawer slides. Ensure the drawer slides are correctly installed and aligned.
• اجزاء مفقودة: If you find any parts missing during unpacking, please refer to the "Warranty and Support" section to contact customer service.

7. المواصفات

8. الضمان والدعم

For any questions, concerns, or assistance with your Moimhear Loft Bed, please do not hesitate to contact our customer service department. Please have your model number (WX005005-ZHX) and purchase information ready when contacting support.

Contact information can typically be found on your purchase receipt or the retailer's webالموقع الذي تم شراء المنتج منه.
