مقدمة
This manual provides instructions for the safe and effective use of your TEMOLA 12V 10A Smart Battery Charger. This device is designed for charging and maintaining 12V batteries, including AGM, GEL, SLA, Flooded, and LiFePO4 types. Please read this manual thoroughly before operation to ensure proper use and to prevent damage to the charger or battery.
الميزات الرئيسية
- Smart Fast Charging: Automatically detects battery status and delivers optimized charging current for faster recovery and longer battery life.
- وظيفة 3 في 1: Integrates charging, battery maintenance, and trickle charging for versatile use.
- Pulse Repair Technology: Rejuvenates old, idle, and sulfated lead-acid batteries to improve performance.
- حماية السلامة الذكية: Features reverse polarity, overcharge, short circuit, overheat, and spark-proof protection.
- LCD Display with Temperature Compensation: Provides real-time charging status, voltage, current, and battery mode, with automatic voltage adjustment based on ambient temperature.
تعليمات السلامة الهامة
اقرأ جميع التعليمات قبل استخدام هذا المنتج. قد يؤدي عدم اتباع هذه التعليمات إلى صدمة كهربائية أو حريق أو إصابة خطيرة.
- احرص دائمًا على ارتداء واقيات للعينين وملابس واقية عند العمل مع البطاريات.
- تأكد من وجود تهوية كافية أثناء عملية الشحن لمنع تراكم الغازات المتفجرة.
- لا تدخن مطلقًا أو تسمح بحدوث شرارة أو لهب بالقرب من البطارية أو المحرك.
- Connect the charger to the battery before plugging it into a power outlet. Disconnect from power before disconnecting from the battery.
- لا تشحن البطاريات المجمدة.
- لا تستخدم الشاحن في حالة سقوطه أو تلفه.
- يحفظ بعيدًا عن متناول الأطفال.
- This charger is designed for 12V batteries only. Do not attempt to charge other voltagالأنظمة الإلكترونية.
- The repair mode may improve battery status, but it cannot repair batteries that are completely damaged, have 0 voltage, or are LiFePO4 batteries.
Image: The TEMOLA Smart Battery Charger features multiple safety protections including over-discharge, reverse polarity, overload, overcharge, undervoltagالبريد ، overvoltage, overtemperature, and short circuit protection.
المنتج انتهىview
The TEMOLA 12V 10A Smart Battery Charger features an intuitive LCD display and robust construction for reliable performance.

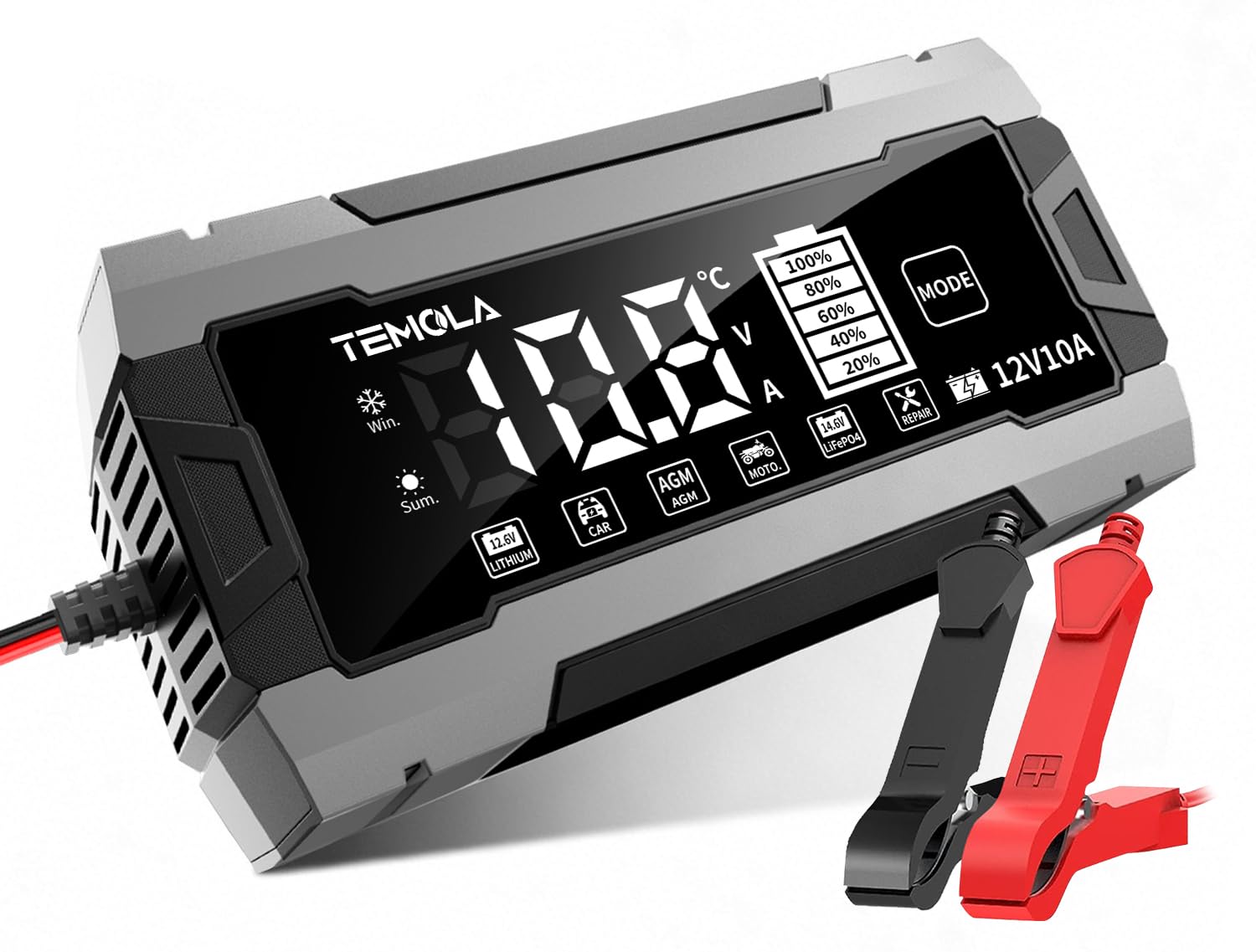

الصورة: الجبهة view of the TEMOLA 12V 10A Smart Battery Charger, showing its compact design and LCD screen.
مؤشرات شاشة LCD
الصورة: مفصلة view of the charger's LCD display, illustrating real-time charging status, voltage, current, and battery level indicators.
- درجة حرارة: Displays the ambient temperature, influencing the charging voltage.
- المجلدtage: يعرض مستوى شحن البطارية الحاليtage.
- حاضِر: Indicates the charging current being delivered.
- مستوى البطارية: A 5-level indicator showing the approximate charge percentage (20%, 40%, 60%, 80%, 100%).
- Charging End (FUL): يشير إلى أن البطارية مشحونة بالكامل.
- بصلح: Illuminates when the pulse repair mode is active.
- Reverse/Abnormal Connection (ERL): Warns of incorrect battery connection or other errors.
أوضاع قابلة للتحديد
The charger offers 6 selectable modes to optimize charging for different battery types and conditions. Press the 'MODE' button to cycle through them.
Image: Diagram illustrating the six selectable charging modes available on the TEMOLA battery charger.
- الليثيوم: For 12V Lithium (LiFePO4) batteries.
- سيارة: For 12V standard lead-acid batteries (e.g., automotive batteries).
- الجمعية العامة العادية: For 12V AGM and GEL batteries.
- موتو: لبطاريات الدراجات النارية 12 فولت.
- ليفبو4: Specific mode for 12V Lithium Iron Phosphate batteries.
- بصلح: Pulse repair mode for desulfation and rejuvenation of old, idle, or sulfated lead-acid batteries.
يثبت
Follow these steps to set up your TEMOLA Smart Battery Charger for use.
Image: Visual guide demonstrating the three simple steps to connect and operate the battery charger.
الخطوة 1: توصيل الطاقة
Insert the battery charger's AC plug into a standard power outlet (100-240V AC). The LCD display will illuminate.
الخطوة 2: توصيل البطارية
Connect the red positive (+) alligator clip to the positive terminal of the battery. Connect the black negative (-) alligator clip to the negative terminal of the battery. Ensure a secure connection. If connected incorrectly, the charger will display "ERL" and will not charge.
الخطوة 3: اختيار الوضع
Press the "MODE" button on the charger to select the appropriate charging mode for your battery type (Lithium, Car, AGM, Moto, LiFePO4, or Repair). The charging process will begin automatically after mode selection.
تعليمات التشغيل
Once connected and a mode is selected, the charger will automatically detect the battery status and begin the 3-stagعملية الشحن.
Understanding the Charging Process
Image: A graph depicting the three stages of the charging process: constant current, constant pressure (voltage), and floating charge.
- Stage 1: Constant Current - The charger delivers a steady, high current to rapidly charge the battery until it reaches a predetermined voltagالمستوى الإلكتروني.
- Stagهـ 2: حجم ثابتtage - As the battery approaches full charge, the charger switches to a constant voltage, gradually reducing the current to prevent overcharging.
- Stage 3: Floating Charge - Once fully charged, the charger maintains a low, constant voltage to keep the battery at optimal capacity, acting as a maintainer.
تعويض درجة الحرارة
The built-in intelligent temperature compensation automatically adjusts the charging voltage based on ambient temperature. This prevents undercharging in cold climates (Winter Mode, <10°C) and overcharging under high-temperature conditions (Summer Mode, >28°C), optimizing battery life and performance.
Image: The charger's display showing automatic adjustment for Winter Mode (below 10°C) and Summer Mode (above 28°C) for precise charging.
وظيفة إصلاح النبض
The "Repair" mode uses pulse technology to rejuvenate old, idle, or sulfated lead-acid batteries. This can improve battery performance and extend its lifespan. To use, select the "Repair" mode after connecting the battery. The process may take several hours.
Note: This mode cannot repair completely damaged batteries, batteries with 0 voltage, or LiFePO4 batteries.
Image: The charger's capabilities including Repair (restores poor battery performance), Activate (revives old & unchargeable batteries), and Charge (stable charging even in cold winter).
صيانة
Proper care and maintenance will ensure the longevity and optimal performance of your TEMOLA Smart Battery Charger.
- حافظ على الشاحن نظيفًا وجافًا. امسحه بقطعة قماش ناعمة.amp قماش. لا تستخدم مواد كيميائية أو مذيبات قاسية.
- Store the charger in a cool, dry place when not in use, away from direct sunlight and moisture.
- Regularly inspect the charging cables and alligator clips for any signs of damage, such as cuts, fraying, or corrosion. Replace damaged components immediately.
- For long-term battery maintenance, ensure the charger is connected and set to the appropriate maintenance mode (e.g., floating charge) to keep the battery topped off.
دليل اصلاح الاخطاء
إذا واجهت مشاكل مع الشاحن الخاص بك، فراجع الجدول أدناه للاطلاع على المشاكل الشائعة وحلولها.
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| الشاحن لا يعمل | No power to the unit, faulty outlet, damaged power cable | Check power connection, try a different power outlet, inspect the power cable for damage. |
| "ERL" displayed on LCD | Reverse polarity connection, abnormal battery connection | Disconnect the charger immediately. Reconnect the red clip to the positive (+) terminal and the black clip to the negative (-) terminal. Ensure connections are secure. |
| البطارية لا تشحن | Incorrect mode selected, battery severely discharged or damaged, poor connection | Ensure the correct charging mode is selected for your battery type. For very low lead-acid batteries, try the "Repair" mode. Check all connections for security. If the battery is completely dead (0V) or severely damaged, it may be beyond repair. |
| يسخن الشاحن أثناء التشغيل | Normal operation, or insufficient ventilation | It is normal for the charger to get warm during operation. Ensure adequate ventilation around the unit. If it becomes excessively hot, disconnect and allow it to cool before resuming use. |
Video: A demonstration of the TEMOLA Car Battery Charger, showing its automatic smart trickle charging capabilities and ease of use. This video is provided by JPTECH US, the seller.
مواصفات المنتج
| ميزة | التفاصيل |
|---|---|
| ماركة | TEMOLA |
| رقم الموديل | رقم المنتج 3830 |
| لون | رمادي-أسود |
| أبعاد المنتج (العمق × العرض × الارتفاع) | 9.05 بوصة × 2.67 بوصة × 4.52 بوصة |
| حجم الإخراجtage | 12 فولت |
| حجم الإدخالtage | 100-240 فولت تيار متردد |
| التقييم الحالي | 10 أ |
| الأجهزة المتوافقة | Cars, SUVs, trucks, motorcycles, boats, RVs, lawn mowers |
| أنواع البطاريات المتوافقة | AGM, GEL, SLA, Flooded, LiFePO4 (12V) |
| رمز المنتج الموحد | 797541314856 |
معلومات الضمان
This TEMOLA product comes with a ضمان الشركة المصنعة لمدة 1 سنواتيغطي هذا الضمان عيوب المواد والتصنيع في ظل الاستخدام العادي. يُرجى الاحتفاظ بإيصال الشراء للمطالبة بالضمان.
The warranty does not cover damage caused by misuse, accident, unauthorized modification, or failure to follow the instructions in this manual. For full details and terms, please refer to the warranty card included with your product.
دعم العملاء
Should you require technical assistance, encounter issues not covered in this manual, or need to make a warranty claim, please contact TEMOLA customer support.
You can typically find contact information through the retailer where you purchased the product or by visiting the official TEMOLA website. Please have your product model number (SWT-3830) and proof of purchase ready when contacting support.
