CLABEL 221D Thermal Label Printer and T27H Barcode Scanner Instruction Manual

مقدمة

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your CLABEL POS Kit, which includes the 221D Thermal Label Printer and the T27H Omnidirectional Barcode Scanner. Please read this manual thoroughly before using the devices to ensure proper functionality and to maximize their lifespan.

المنتج انتهىview

The CLABEL POS Kit is designed to streamline your business operations, offering efficient label printing and rapid barcode scanning capabilities. The kit comprises two main components:

• CLABEL 221D Thermal Label Printer: A smart thermal printer that operates without ink, supporting Bluetooth connectivity for iOS/Android devices via the "Clabel trade" app, and USB connectivity for PC. It accommodates label rolls from 20-50 mm in width.
• CLABEL T27H Omnidirectional Barcode Scanner: A desktop scanner capable of decoding 1D, 2D, and QR codes in 0.1 seconds. It features a hands-free design with a 20° adjustable scanning head, automatic wake-up, and sleep modes, and connects via USB.

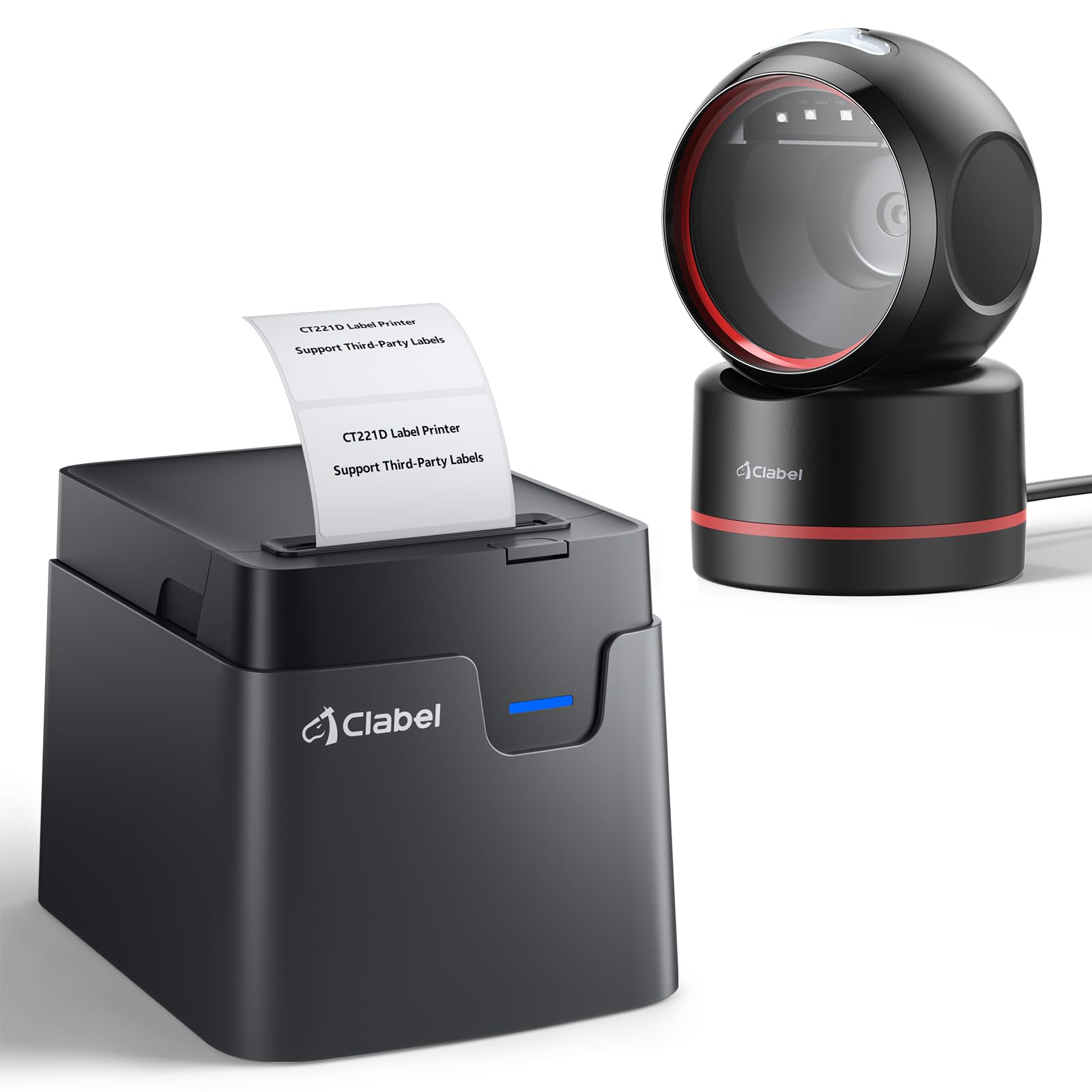

Image: The CLABEL 221D Thermal Label Printer and T27H Barcode Scanner Kit.

ماذا يوجد في الصندوق

Upon unpacking your CLABEL POS Kit, please verify that all the following components are included:

• CLABEL 221D Thermal Label Printer
• CLABEL T27H Omnidirectional Barcode Scanner
• Label paper roll (50x30mm)
• USB cable for the scanner
• USB-Type C cable (for printer, included in package)
• Power Adapter (not explicitly listed but implied for printer operation)

تعليمات الإعداد

221D Thermal Label Printer Setup

Follow these steps to set up your 221D printer for use with a smartphone or PC.

1. تحميل العلامات

1. افتح غطاء الطابعة.
2. Insert the label roll, ensuring the labels feed smoothly through the printing mechanism.
3. أغلق غطاء الطابعة بشكل آمن.

2. Connecting with a Smartphone (Bluetooth)

1. Download the "Clabel trade" app from the App Store (iOS) or Google Play Store (Android).
2. قم بتشغيل البلوتوث على هاتفك الذكي.
3. Open the "Clabel trade" app and search for available printers. Select your printer (e.g., CT221D-XXXX) to connect.

Image: Steps to connect the 221D printer to a smartphone via Bluetooth.

3. Connecting with a PC (USB)

1. قم بتشغيل الطابعة.
2. Connect the printer to your computer using the provided USB-Type C cable.
3. Download the "Clabel trade" software from the official CLABEL webموقع.
4. Install the software and follow the on-screen instructions to set up the printer.

Image: Steps to connect the 221D printer to a PC via USB.

T27H Barcode Scanner Setup

The T27H scanner is a plug-and-play device.

1. Connect the scanner to your cash register or computer using the provided USB cable.
2. No additional drivers are typically required. The device should be recognized automatically.

Image: The T27H scanner connected to a system, ready for use.

تعليمات التشغيل

221D Thermal Label Printer Operation

The 221D printer offers versatile label creation and printing.

1. Creating and Printing Labels (App/Software)

• Open the "Clabel trade" app on your smartphone or the software on your PC.
• Select "New" to create a new label.
• Utilize the app's features to customize your labels, including text, barcodes, QR codes, images, and various layouts.
• Once your label design is complete, select the print option and confirm the settings (e.g., number of copies).

Image: The "Clabel trade" app interface for label customization.

2. Adjusting Printing Width

The 221D printer supports label widths from 20mm to 50mm. Ensure your label roll matches the selected width in the software/app settings for optimal printing.

Image: Demonstrating the adjustable printing width of the 221D printer.

T27H Barcode Scanner Operation

The T27H scanner is designed for efficient and hands-free scanning.

1. مسح الباركود

• Position the item with the barcode in front of the scanner's window.
• The scanner will automatically detect and decode 1D, 2D, and QR codes.
• The decoded information will be transmitted to your connected system (cash register, computer).

Image: The T27H scanner's broad compatibility with various barcode types.

2. Hands-Free and Automatic Features

• The scanner's 20° adjustable stand allows for hands-free operation, freeing your hands for other tasks.
• It features an automatic wake-up function when a barcode is presented and an automatic sleep mode when idle, conserving energy.

Image: T27H scanner in hands-free mode with adjustable stand.

Image: T27H scanner demonstrating auto wake and auto sleep functionality.

التطبيقات

The CLABEL POS Kit is suitable for a wide range of business environments and applications:

• متاجر البيع بالتجزئة: For price tags, product labels, and checkout scanning.
• المستودعات: For inventory management, shipping labels, and logistics.
• Pharmacies: For labeling medications and scanning product codes.
• Boutiques: For custom product labels and pricing.
• المكتبات: For cataloging and tracking items.
• تنظيم المكتب: For classifying documents, cables, and storage.
• Food & Beverage: For ingredient labels, best-before dates, and pricing.

Image: Diverse label applications including workspace, cable, greeting, logo, and food labels.

Image: Additional label applications for beverages, price tags, address labels, warning labels, and file العلامات التجارية.

Image: T27H scanner in a retail store setting.

Image: T27H scanner in a pharmacy setting.

صيانة

Regular maintenance ensures the longevity and optimal performance of your CLABEL devices.

1. تنظيف الطابعة

• تأكد من إيقاف تشغيل الطابعة وفصلها عن الكهرباء قبل التنظيف.
• امسح الجزء الخارجي بلطف باستخدام قطعة قماش ناعمة وجافة.
• For the print head, use a specialized thermal printer cleaning pen or a cotton swab lightly dampمعقم بالكحول الأيزوبروبيلي. اتركه ليجف تماماً قبل الاستخدام.

2. تنظيف الماسح الضوئي

• Wipe the scanner's exterior and scanning window with a soft, lint-free cloth.
• تجنب استخدام المنظفات الكاشطة أو المذيبات التي قد تتلف السطح.

3. Label Storage

Store thermal labels in a cool, dry place away from direct sunlight and heat to prevent premature fading or damage to the thermal coating.

Image: Structure of high-quality thermal labels.

Image: CLABEL transparent thermal labels.

استكشاف الأخطاء وإصلاحها

If you encounter issues with your CLABEL POS Kit, refer to the following common troubleshooting steps:

• الطابعة لا تطبع: Check power connection, ensure label roll is correctly loaded, verify Bluetooth/USB connection, and confirm sufficient label supply. Restart the printer and the connected device.
• جودة الطباعة رديئة: Clean the print head (refer to Maintenance section), ensure you are using high-quality thermal labels, and check label orientation.
• الماسح الضوئي لا يقرأ الرموز الشريطية: Ensure the scanner is properly connected via USB. Check if the barcode is damaged, smudged, or too reflective. Adjust the scanning angle.
• مشاكل الاتصال: For Bluetooth, ensure the printer is discoverable and within range. For USB, try a different USB port or cable. Restart both devices.
• مشاكل التطبيقات/البرامج: Ensure your app/software is updated to the latest version. Reinstall if necessary.

If problems persist after attempting these steps, please contact CLABEL customer support for further assistance.

تحديد

معلومات الضمان

CLABEL products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official CLABEL webالموقع. احتفظ بإثبات الشراء الخاص بك لاستخدامه في أي مطالبات بالضمان.

يدعم

For technical support, troubleshooting assistance, or general inquiries regarding your CLABEL 221D Thermal Label Printer and T27H Barcode Scanner, please contact CLABEL customer service through the following channels:

• رسمي Webموقع: Visit the CLABEL official webالموقع الخاص بالأسئلة الشائعة وتنزيلات برامج التشغيل ومعلومات الاتصال.
• دعم البريد الإلكتروني: راجع عبوة المنتج أو الموقع الرسمي webموقع مخصص لعنوان البريد الإلكتروني لدعم العملاء.

When contacting support, please have your product model numbers (221D, T27H) and a detailed description of the issue ready.
