REKKOG R4D7G04 DC 12V Multifunction I/O Expansion Module User Manual

1. المقدمة

This user manual provides essential information for the installation, operation, and maintenance of the REKKOG R4D7G04 DC 12V Multifunction I/O Expansion Module. Please read this manual thoroughly before using the device to ensure proper functionality and safety. This specific variant is the 12V only board.

2. معلومات السلامة

احرص دائمًا على مراعاة احتياطات السلامة التالية:

• Ensure the power supply matches the module's voltage requirements (DC 12V for this model).
• Disconnect power before making any wiring connections or performing maintenance.
• تجنب تعريض الوحدة للرطوبة أو درجات الحرارة القصوى أو البيئات المسببة للتآكل.
• Do not attempt to modify the module. Unauthorized modifications can lead to damage or malfunction.
• يجب أن يتم التثبيت بواسطة موظفين مؤهلين.

3. انتهى المنتجview

The REKKOG R4D7G04 is a multifunction I/O expansion module designed for industrial control applications. It features 4 Digital Outputs (DO), 2 Digital Inputs (DI), and 3 Analog Inputs (AI). This module is compact and designed for reliable performance.

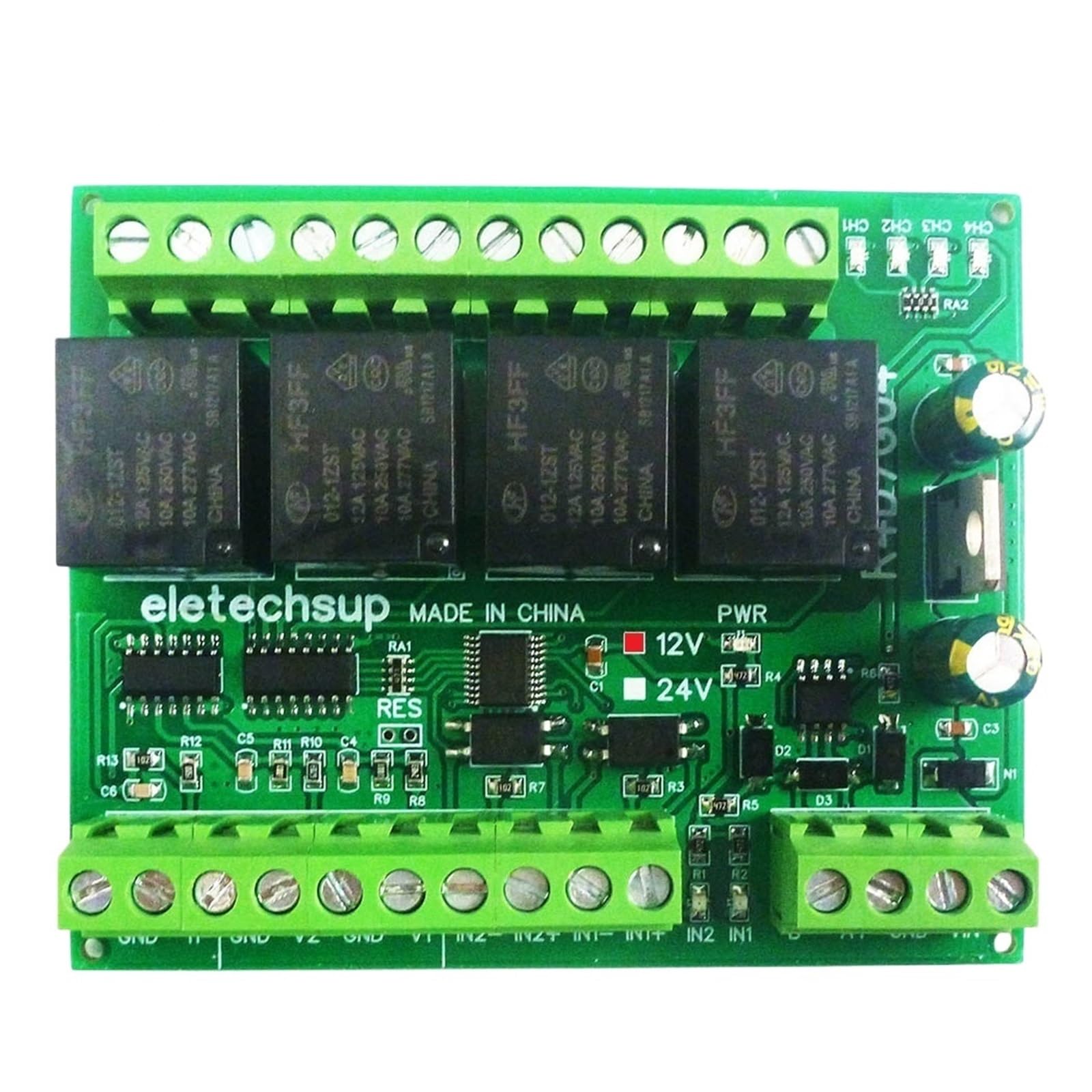

الشكل 3.1: الجزء العلوي view of the REKKOG R4D7G04 DC 12V I/O Expansion Module (12V only board).

الشكل 3.2: متعدد views of the REKKOG R4D7G04 module, showing the PCB layout, terminal blocks, and relays. This image also illustrates the optional DIN rail box components (not included with the 'only board' variant).

4. الإعداد

اتبع هذه الخطوات للإعداد الأولي:

1. التركيب: Secure the PCB in a suitable enclosure or mounting location, ensuring adequate ventilation.
2. توصيل الطاقة: Connect a stable DC 12V power supply to the designated power input terminals. Observe polarity.
3. المدخلات الرقمية (DI): Connect your digital input signals (e.g., switches, sensors) to the DI terminals. Refer to the module's pinout for specific DI assignments.
4. Digital Outputs (DO): Connect the devices to be controlled (e.g., relays, indicators) to the DO terminals. Ensure the load current does not exceed the module's specifications.
5. Analog Inputs (AI): Connect analog sensors or signal sources to the AI terminals. The module supports 3 analog inputs.
6. تواصل: If applicable, connect the module to your control system via the appropriate communication interface (e.g., RS485, if available on your specific variant).
7. تَحَقّق: تأكد من جميع توصيلات الأسلاك قبل توصيل الطاقة.

5. تعليمات التشغيل

Once the module is correctly wired and powered, it can be operated through your control system. The specific operation will depend on the programming and configuration of your system.

• Digital Output Control: Digital outputs can be switched ON/OFF via commands from your controller.
• Digital Input Monitoring: The status of digital inputs can be read by your controller to detect external events.
• Analog Input Reading: Analog input values can be read and processed by your controller for measurement and control purposes.
• Refer to the programming guide or software documentation for your specific control system for detailed operational procedures.

6. الصيانة

The R4D7G04 module is designed for low maintenance. However, periodic checks are recommended:

• تنظيف: حافظ على نظافة الوحدة من الغبار والأوساخ. استخدم قطعة قماش ناعمة وجافة للتنظيف. لا تستخدم المنظفات السائلة.
• فحص الاتصال: قم بفحص جميع توصيلات الأسلاك بشكل دوري للتأكد من أنها آمنة وخالية من التآكل.
• الظروف البيئية: تأكد من أن بيئة التشغيل تظل ضمن نطاقات درجة الحرارة والرطوبة المحددة.
• تحديثات البرامج الثابتة: تحقق من الشركة المصنعة website for any available firmware updates, if applicable to your model.

7. استكشاف الأخطاء وإصلاحها

إذا واجهت مشاكل، فضع في اعتبارك خطوات استكشاف الأخطاء وإصلاحها التالية:

• لا يوجد طاقة: Verify the DC 12V power supply is connected correctly and providing the specified voltage. Check for blown fuses if applicable.
• Incorrect I/O Readings: Check all wiring for correct connections and continuity. Ensure sensors and actuators are functioning correctly.
• الوحدة لا تستجيب: Disconnect power, wait a few seconds, and then reconnect. Verify communication settings if using a serial interface.
• ارتفاع درجة الحرارة: Ensure the module has adequate ventilation and is not operating in an excessively hot environment. Reduce load if possible.
• إذا استمرت المشاكل، فاتصل بالدعم الفني.

8. المواصفات

9. معلومات الضمان

REKKOG products are covered by a limited warranty against defects in materials and workmanship. The warranty period typically begins from the date of purchase. Please retain your proof of purchase for warranty claims. This warranty does not cover damage caused by improper installation, misuse, unauthorized modification, or operation outside the specified environmental conditions. For specific warranty terms and conditions, please refer to the official REKKOG webالموقع أو الاتصال بدعم العملاء.

10. الدعم

For technical assistance, troubleshooting, or product inquiries, please contact REKKOG customer support. You may find additional resources, FAQs, and contact information on the official REKKOG webموقع.

Webموقع: REKKOG Official Page (via Amazon)

When contacting support, please have your product model (R4D7G04) and purchase details ready.
