JUSTHERO Foldable Electric Wheelchair User Manual

1. المقدمة

This manual provides essential information for the safe and effective operation, maintenance, and care of your JUSTHERO Foldable Electric Wheelchair. Please read this manual thoroughly before using the wheelchair to ensure proper understanding and to prevent injury or damage.

For any questions or assistance, please contact JUSTHERO customer support.

2. معلومات السلامة

WARNING: Failure to follow these safety instructions may result in serious injury or damage to the wheelchair.

• تأكد دائمًا من أن الكرسي المتحرك مفتوح بالكامل ومثبت بإحكام قبل الاستخدام.
• لا تتجاوز الحد الأقصى للوزن وهو 350 رطلاً (158 كجم).
• Always wear the safety belt when operating the wheelchair.
• Operate the wheelchair at a safe speed, especially in crowded areas or on uneven terrain.
• انتبه لما يحيط بك وتجنب العوائق.
• لا تقم بتشغيل الكرسي المتحرك تحت تأثير الكحول أو الأدوية التي تؤثر على القدرة على اتخاذ القرارات.
• Avoid steep inclines exceeding the specified climbing angle (12°).
• Ensure batteries are properly installed and charged before each use.
• حافظ على يديك وملابسك خالية من الأجزاء المتحركة.
• Use caution when switching between manual and electric modes.

Image: This image illustrates the intelligent electronic brake system and safety features, including dual anti-tip wheels and a safety belt, highlighting the wheelchair's 12° climbing ability.

3. انتهى المنتجview

The JUSTHERO Foldable Electric Wheelchair is designed for adults and seniors, offering mobility with comfort and convenience. Key features include:

• Widened Seat: 20.3-inch wide seat with ergonomic cushion for comfort.
• قدرة عالية: يدعم ما يصل إلى 350 رطلاً (158 كجم).
• تصميم خفيف الوزن: Frame weighs approximately 40 lbs (without battery).
• Dual Battery Slots: Allows for extended range; each battery provides 12 miles, totaling up to 24 miles with two batteries.
• محركات قوية: Dual 500W motors for a maximum climbing angle of 12°.
• إطارات متينة: 7.6-inch solid rubber front wheels and 13-inch pneumatic rear wheels for various terrains.
• Intelligent Brake System: Automatic braking upon joystick release.
• أوضاع التشغيل المزدوجة: Easy switch between electric and manual push modes.
• 360-degree Joystick: Highly sensitive control with 5-speed settings.
• ضوء LED متكامل: لتحسين الرؤية.
• USB/Type-C Charging Ports: مناسب لشحن الأجهزة المحمولة.
• تصميم قابل للطي: One-step folding for easy transport and storage.
• Adjustable Controller: Can be mounted on the right or left side.
• مساند الأذرع القابلة للطي: For easy access.

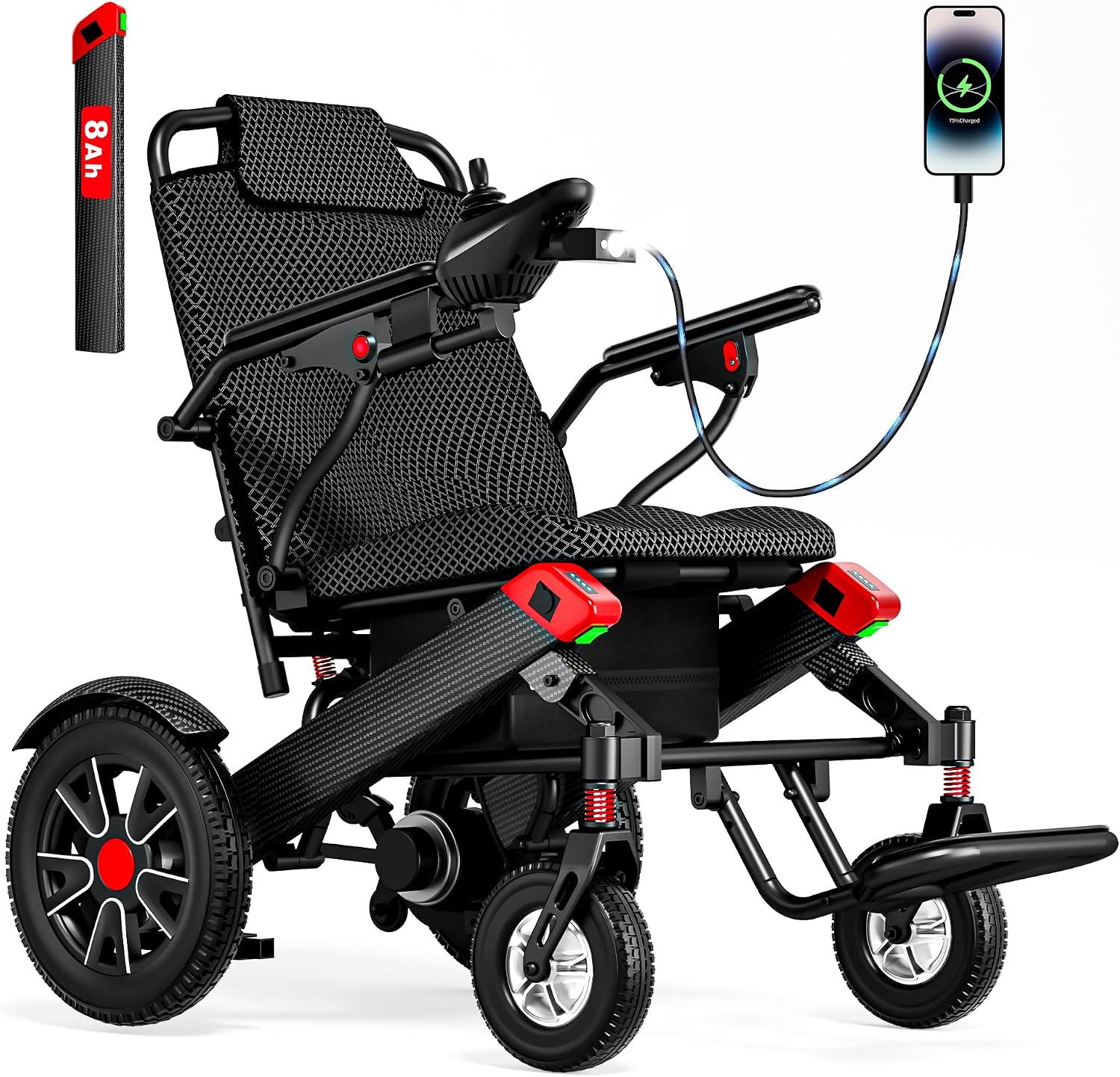

Image: This image displays the JUSTHERO Electric Wheelchair, highlighting its 20.3-inch wide seat and ergonomic cushion for user comfort.

الصورة: توفر هذه الصورة تفصيلاً view of the wheelchair's dimensions, including the 13-inch rear pneumatic tires, 7.6-inch solid rubber front tires, and the 40 lbs weight without battery, along with overall measurements.

4. الإعداد والاستخدام الأول

4.1 فتح الكرسي المتحرك

1. ضع الكرسي المتحرك المطوي على سطح مستوٍ وثابت.
2. Gently pull the armrests outwards until the frame fully expands.
3. Push down on the seat frame until it locks into place. Ensure all locking mechanisms are engaged.
4. اضبط مسند القدمين على الوضع المطلوب.

4.2 تركيب البطارية وشحنها

The wheelchair is equipped with dual battery slots. Each battery has a dedicated switch.

1. Locate the battery compartments, typically under the seat.
2. Insert the battery(ies) into the slots, ensuring a secure connection.
3. Connect the charger to the charging port on the joystick or directly to the battery if removable.
4. Plug the charger into a standard electrical outlet. The indicator light on the charger will show charging status.
5. اشحن البطارية بالكامل قبل الاستخدام الأول (حوالي 6-8 ساعات).
6. Always turn off the battery switch when not in use or during charging.

Image: This image illustrates the dual battery compartment design, showing how batteries are inserted and highlighting the 12-mile range per single battery and the lightweight nature of each battery (3.4 lbs).

4.3 Attaching the Joystick Controller

The joystick controller can be mounted on either the right or left armrest.

1. Select the preferred side for the joystick.
2. Securely attach the joystick bracket to the armrest.
3. Connect the joystick cable to the designated port on the wheelchair. Ensure a firm connection.

4.4 Folding for Storage or Transport

1. Ensure the wheelchair is powered off and the battery switches are in the "OFF" position.
2. ارفع المقعد إلى الأعلى من المركز.
3. Push the armrests inwards until the frame collapses.
4. Secure any locking mechanisms to keep the wheelchair in its folded state.

Image: This image demonstrates the one-step folding design of the electric wheelchair, showing its compact form for easy storage and transport.

5. تعليمات التشغيل

5.1 تشغيل/إيقاف التشغيل

1. Ensure the battery switch(es) are in the "ON" position.
2. Press the power button on the joystick controller to turn the wheelchair on. The battery display will illuminate.
3. لإيقاف التشغيل، اضغط على زر الطاقة مرة أخرى.

5.2 Using the 360-degree Joystick

The joystick provides precise control over the wheelchair's movement.

• إلى الأمام: Gently push the joystick forward.
• إلى الخلف: Gently pull the joystick backward.
• انعطف نحو اليسار واليمين: Push the joystick left or right.
• توقف: Release the joystick, and the intelligent electronic brake system will automatically engage.

Image: This image details the 360-degree joystick controller, pointing out features like the alarm horn, power switch, battery display, speed settings (+/-), speed display, LED light, and USB/Type-C charging ports.

5.3 إعدادات سرعة

The joystick controller features 5-speed settings.

• Press the "Speed +" button to increase speed.
• Press the "Speed -" button to decrease speed.
• The current speed level is indicated on the speed display.

5.4 Switching Between Manual and Electric Modes

The wheelchair can be operated in electric mode or pushed manually.

1. الوضع الكهربائي: Ensure the levers on the rear motors are pushed up. The joystick will control movement.
2. الوضع اليدوي: Push the levers on the rear motors تحت to disengage the motors. The wheelchair can now be pushed manually.

Image: This image demonstrates how to switch between electric and manual modes. Pushing the lever up engages electric mode, while pushing it down enables manual pushing.

5.5 Using the LED Light and USB Ports

• The LED light can be activated via a button on the joystick controller to illuminate the path.
• Use the integrated USB/Type-C ports on the joystick to charge compatible mobile devices.

6. الصيانة

6.1 العناية بالبطارية

• Charge batteries regularly, even if the wheelchair is not in frequent use, to prolong battery life.
• تجنب استنزاف البطارية تمامًا.
• قم بتخزين البطاريات في مكان بارد وجاف.
• If storing for an extended period, charge batteries to 50-70% and recharge every 1-2 months.

6.2 التنظيف

• امسح الإطار والمقعد بـamp قطعة قماش ومنظف خفيف.
• لا تستخدم المنظفات أو المذيبات الكاشطة.
• تجنب رش الماء مباشرة على المكونات الكهربائية.

6.3 صيانة الإطارات

• Regularly inspect tires for wear and tear.
• For pneumatic rear tires, check tire pressure periodically and inflate to the recommended PSI (refer to tire sidewall for details).
• Remove any debris or foreign objects from the tire treads.

6.4 التفتيش العام

• Periodically check all bolts, screws, and connections to ensure they are tight.
• Inspect cables and wiring for any signs of damage.
• تأكد من أن آلية الطي تعمل بسلاسة وتُقفل بإحكام.

7. استكشاف الأخطاء وإصلاحها

8. المواصفات

Image: This image highlights the powerful dual 500W motors (2x250W) of the electric wheelchair, emphasizing their ability to handle slopes and uneven terrain, and noting features like lightweight design, compact size, zero maintenance, and smooth power delivery.

9. الضمان والدعم

JUSTHERO provides customer support for its products. For warranty information, technical assistance, or service requests, please refer to the warranty card included with your purchase or contact JUSTHERO customer service directly.

Please have your model number (B0H82RJF69) and purchase date available when contacting support.
