1. المقدمة
This manual provides comprehensive instructions for the installation, operation, and maintenance of the Generic Washer Door Lid Switch, designed as a replacement part for various Kenmore washing machine models. This component is crucial for the safe and proper functioning of your appliance, ensuring that the washer operates only when the lid is securely closed.
موديلات غسالات كنمور المتوافقة:
- 110.26964502، 110.26964503، 110.26966500
- 110.27222600، 110.27224600
- 110.27322600، 110.27332600، 110.27342600
- 110.27422600، 110.27432600، 110.27442600
- 110.27522600، 110.27532600، 110.27542600
- 110.27612600، 110.27632600، 110.27642600
- 110.27721600، 110.27731600، 110.27741600، 110.27751700، 110.27761700، 110.27782700
- 110.27831600، 110.27841600، 110.27871600، 110.27872600، 110.27874600
- 110.28222700، 110.28222701
- 110.28322700، 110.28332700، 110.28352700
2. معلومات السلامة
تحذير: خطر التعرض لصدمة كهربائية وإصابة.
- Always disconnect the washer from its power supply before attempting any installation, maintenance, or repair. Failure to do so can result in serious injury or death.
- Wear appropriate personal protective equipment, such as gloves, to prevent cuts or scrapes.
- إذا لم تكن متأكدًا من أي خطوة، فاستشر فني إصلاح الأجهزة المؤهل.
- تأكد من أن جميع التوصيلات آمنة ومعزولة بشكل صحيح بعد التركيب.
3. انتهى المنتجview
The Washer Door Lid Switch is a safety mechanism that detects whether the washer lid is closed. It prevents the washer from operating, particularly from spinning, if the lid is open. This replacement part is designed to match the original specifications for Kenmore models.
الشكل 3.1: أمام view of the lid switch, showing the main housing, lever mechanism, and attached grounding wire (yellow and green).

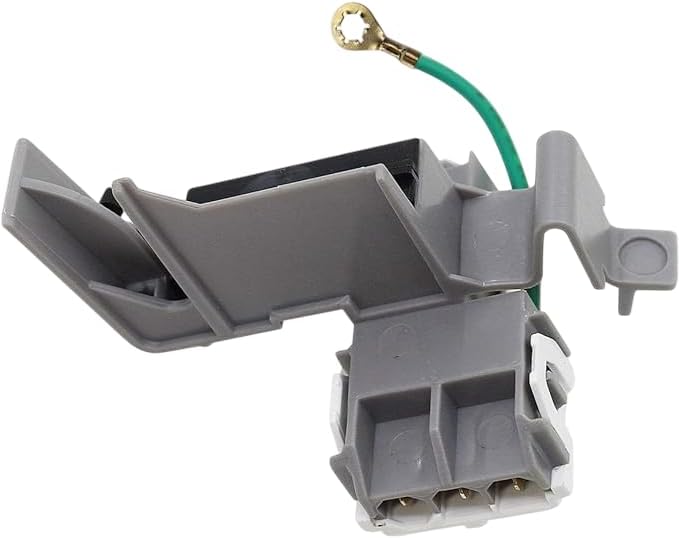

الشكل 3.2: مؤخرة view of the lid switch, highlighting the electrical connector and mounting points.

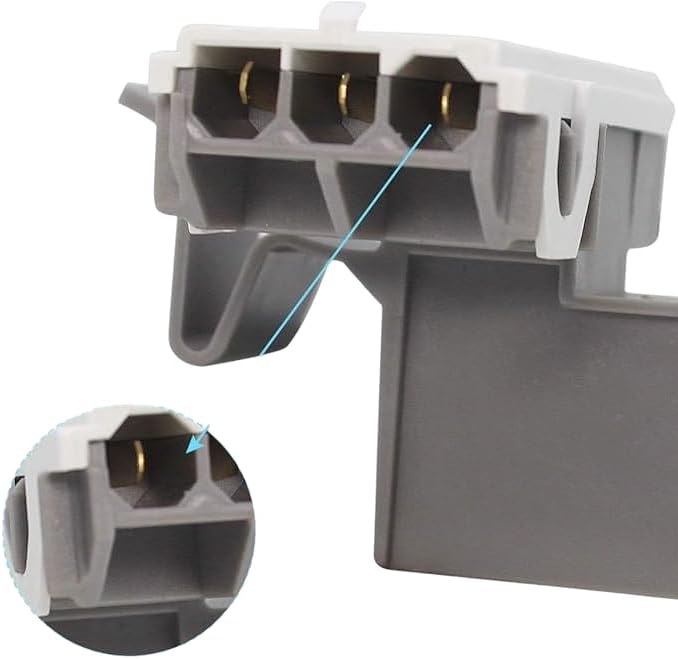

الشكل 3.3: مفصل view of the electrical connector pins, ensuring proper connection to the washer's wiring harness.
4. الإعداد والتثبيت
This section outlines the general steps for replacing a faulty washer door lid switch. Specific procedures may vary slightly depending on your exact Kenmore washer model. Always refer to your washer's service manual for detailed model-specific instructions if available.
- فصل الطاقة: Crucial Safety Step! Unplug the washer from the electrical outlet or turn off the circuit breaker supplying power to the washer.
- Access the Lid Switch: Depending on your washer model, you may need to:
- Lift the top panel of the washer.
- قم بإزالة لوحة التحكم.
- Remove the front panel of the washer.
- Locate and Disconnect Old Switch: Identify the existing lid switch. Carefully disconnect the electrical wiring harness from the switch. Note the orientation and connection points for reassembly.
- إزالة المفتاح القديم: Unfasten any screws, clips, or tabs holding the old lid switch in place. Gently remove the faulty switch from its mounting position.
- تثبيت مفتاح جديد: Position the new Generic Washer Door Lid Switch into the mounting location. Secure it with the original screws, clips, or tabs. Ensure it is firmly seated.
- إعادة توصيل الأسلاك: Connect the electrical wiring harness to the new lid switch. Ensure all connections are snug and correctly oriented. If there is a grounding wire, ensure it is properly attached.
- إعادة تجميع الغسالة: Reattach any panels or components that were removed to access the switch (e.g., control panel, top panel, front panel).
- وظيفة الاختبار: Plug the washer back into the electrical outlet or restore power. Close the washer lid and attempt to start a cycle. The washer should now operate correctly, including filling, agitating, and spinning. If the washer does not start or displays an error, refer to the Troubleshooting section.
5. مبدأ التشغيل
The washer door lid switch functions as a critical safety interlock. When the washer lid is closed, the switch is activated, signaling to the washer's control system that it is safe to proceed with operations such as agitation and spinning. If the lid is open or the switch is faulty, the washer will prevent these high-speed operations to protect the user from potential injury and to prevent water from splashing out.
A properly functioning lid switch ensures:
- The wash cycle can initiate and complete.
- The spin cycle engages only when the lid is closed.
- Prevention of error codes related to an open or unlatched lid.
6. الصيانة
The washer door lid switch is a sealed unit and generally requires no routine maintenance. However, periodic inspection can help ensure its longevity and proper function:
- التفتيش البصري: Occasionally inspect the area around the lid switch for any signs of physical damage, corrosion, or debris buildup.
- نظافة: Keep the area around the lid and the switch mechanism clean from detergent residue or lint, which could potentially interfere with its operation.
- محاذاة الغطاء: Ensure the washer lid closes properly and aligns correctly with the switch mechanism. A misaligned lid can prevent the switch from engaging.
If any issues are observed, refer to the Troubleshooting section or consider replacement.
7. استكشاف الأخطاء وإصلاحها
A faulty washer door lid switch is a common cause of various washer malfunctions. If your Kenmore washer exhibits any of the following symptoms, replacing the lid switch may resolve the issue:
| الأعراض | Possible Cause (Lid Switch Related) | دقة |
|---|---|---|
| Washer will not start or run a cycle. | The lid switch is not detecting that the lid is closed, preventing the cycle from initiating. | Inspect the lid switch for proper engagement. Replace the lid switch if it is faulty. |
| Washer fills with water but will not agitate or spin. | The lid switch is failing to signal "lid closed" after the fill cycle, preventing agitation and spin. | Replace the lid switch. |
| Washer displays an error code related to the lid or door. | The washer's control board is receiving an incorrect signal from the lid switch. | Consult your washer's manual for specific error code meanings. If it points to the lid switch, replace it. |
| Washer stops mid-cycle. | Intermittent failure of the lid switch during operation. | Replace the lid switch. |
Before replacing the switch, ensure the lid is fully closing and there are no obstructions preventing the switch from engaging. Always disconnect power before inspecting or replacing components.
8. المواصفات
| ميزة | التفاصيل |
|---|---|
| نوع المنتج | Washer Door Lid Switch (Sensing Switch) |
| ماركة | Generic (Compatible with Kenmore) |
| الموديلات المتوافقة | Refer to Section 1: Introduction for a comprehensive list. Primary models include 110.27522600, 110.27532600, 110.27542600, 110.27612600, 110.27632600, 110.27642600. |
| المجلدtage | 240 فولت |
| واتtage | 5400 واط |
| أبعاد | Approximately 1 x 1 x 1 inches (Product dimensions are often generalized for small parts; actual size may vary slightly) |
| الشركة المصنعة | hothuongparts |
9. الضمان والدعم
For specific warranty information regarding this Generic Washer Door Lid Switch, please refer to the purchase documentation or contact the seller directly. Warranty terms can vary based on the retailer and manufacturer.
For technical support or further assistance with installation, it is recommended to consult a certified appliance repair technician or refer to online resources specific to your Kenmore washer model.
