Dapper Supply DP-WBFS1218 20-inch Walk-Behind Floor Scrubber Polisher User Manual

1. المقدمة

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Dapper Supply DP-WBFS1218 Battery Powered Walk-Behind Floor Scrubber Polisher Machine. Please read this manual thoroughly before operating the machine to ensure proper use and to prevent injury or damage.

The Dapper Supply DP-WBFS1218 is designed for commercial floor cleaning, offering a 20-inch cleaning path, powerful scrubbing, and efficient drying for various hard floor surfaces.

2. تعليمات السلامة

تحذير: عدم اتباع تعليمات السلامة هذه قد يؤدي إلى إصابة خطيرة أو تلف الممتلكات.

• اقرأ وافهم الدليل بالكامل قبل تشغيل الجهاز.
• Ensure the machine is turned off and unplugged (if charging) before performing any maintenance, cleaning, or adjustments.
• Do not operate the machine in areas with flammable liquids, gases, or dust, as this may cause fire or explosion.
• Keep hands, feet, and loose clothing away from moving parts, especially the brush and squeegee.
• Use only approved brushes, pads, and cleaning solutions.
• Do not wash the operation panel with water.
• Charging should be carried out in a well-ventilated area, away from high temperatures and direct sunlight.
• When the brush plate is running, do not park the machine for a long time.
• Wear appropriate personal protective equipment (PPE) such as non-slip footwear and eye protection.
• Do not allow children or untrained personnel to operate the machine.
• Always operate on stable, level surfaces. The machine supports inclines up to 20 degrees, but caution is advised.

3. انتهى المنتجview

The Dapper Supply DP-WBFS1218 is a robust walk-behind floor scrubber designed for commercial use. Key features include:

• 20-inch Cleaning Path: Efficiently covers large areas with a 20-inch cleaning width and a 31.5-inch squeegee for streak-free drying.
• Heavy Brush Pressure: 66 lbs of brush pressure combined with a 200 RPM brush motor for deep scrubbing and removal of tough grime.
• إنتاجية عالية: Cleans up to 27,000 sq ft/hr, suitable for warehouses, retail, schools, and commercial buildings.
• Strong Vacuum System: 170 kPa suction and a 500W vacuum motor ensure floors are dry in seconds.
• Large Dual Tanks: Features a 14.5-gallon solution tank and a 17-gallon recovery tank for extended cleaning sessions.
• Long Runtime & Efficient Charging: Powered by a 24V / 85Ah battery, providing 3-4 hours of runtime per charge with an 8-hour full recharge cycle.
• Convenient Spray Hose: Integrated rear spray hose for spot cleaning, with a 0.92 ft reach and 22 lbs pressure.
• التشغيل الهادئ: يعمل بمستوى ضوضاء منخفض يبلغ 60 ديسيبل.
• متنوع القدرات: Supports operation on inclines up to 20 degrees.

عناصر

Familiarize yourself with the main components of your floor scrubber:

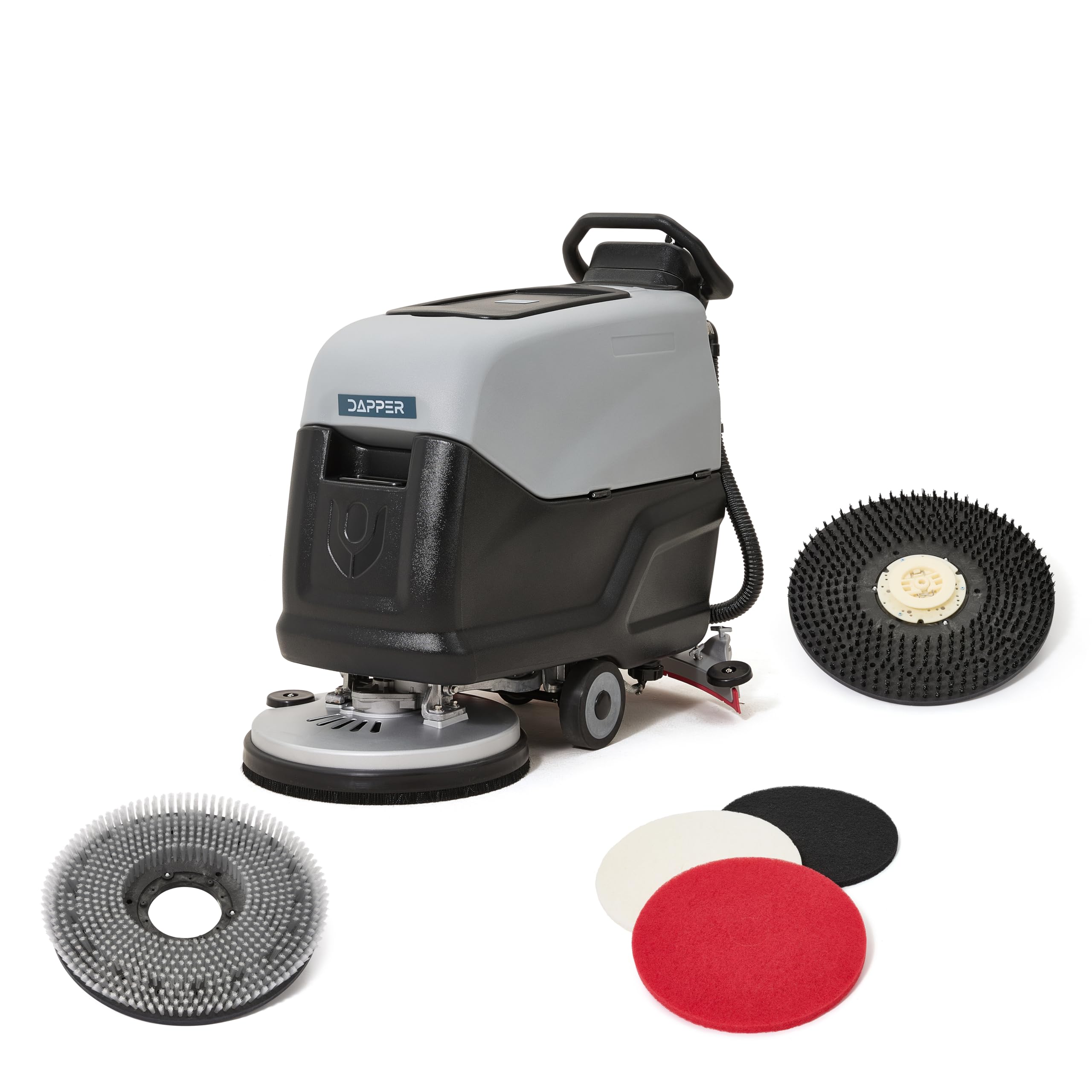

الشكل 3.1: إجمالي view of the Dapper Supply DP-WBFS1218 Walk-Behind Floor Scrubber Polisher Machine.

الشكل 3.2: سايد بروfile of the floor scrubber, showing the main body and handle.

الشكل 3.3: أمام view of the floor scrubber, highlighting the brush assembly.

الشكل 3.4: The robust construction of the Dapper Supply floor scrubber, built for durability.

4. الإعداد

1. فك التعبئة: أخرج الجهاز وجميع ملحقاته من العبوة بحرص. افحصها بحثًا عن أي تلف ناتج عن الشحن.
2. شحن البطارية:
   • Connect the charger to the machine's charging port and then to a suitable power outlet.
   • Allow approximately 8 hours for a full charge. The battery provides 3-4 hours of runtime.
   • Ensure charging is done in a well-ventilated area.
3. Attaching the Brush/Pads:
   • تأكد من إيقاف تشغيل الجهاز.
   • Align the brush or scouring pad (3 included) with the brush plate and secure it firmly.


   الشكل 4.1: عن قرب view of the brush assembly, showing how brushes or pads are attached.

4. ملء خزان المحلول:
   • Open the cap of the 14.5-gallon solution tank.
   • Fill with water and an appropriate, non-foaming cleaning solution according to the manufacturer's instructions. Do not overfill.


   الشكل 4.2: Filling the 14.5-gallon solution tank with water and cleaning solution.

5. Adjusting the Squeegee: Ensure the 31.5-inch squeegee is properly positioned and adjusted for optimal water recovery.

5. تعليمات التشغيل

1. بدء تشغيل الجهاز:
   • Insert the key into the ignition and turn it to the ON position.
   • ستضيء لوحة التحكم.
2. Engaging Scrubbing and Vacuum:
   • Press the brush button to start the 200 RPM brush.
   • Press the vacuum button to activate the 170 kPa suction system.
   • Adjust the handle to a comfortable operating height.

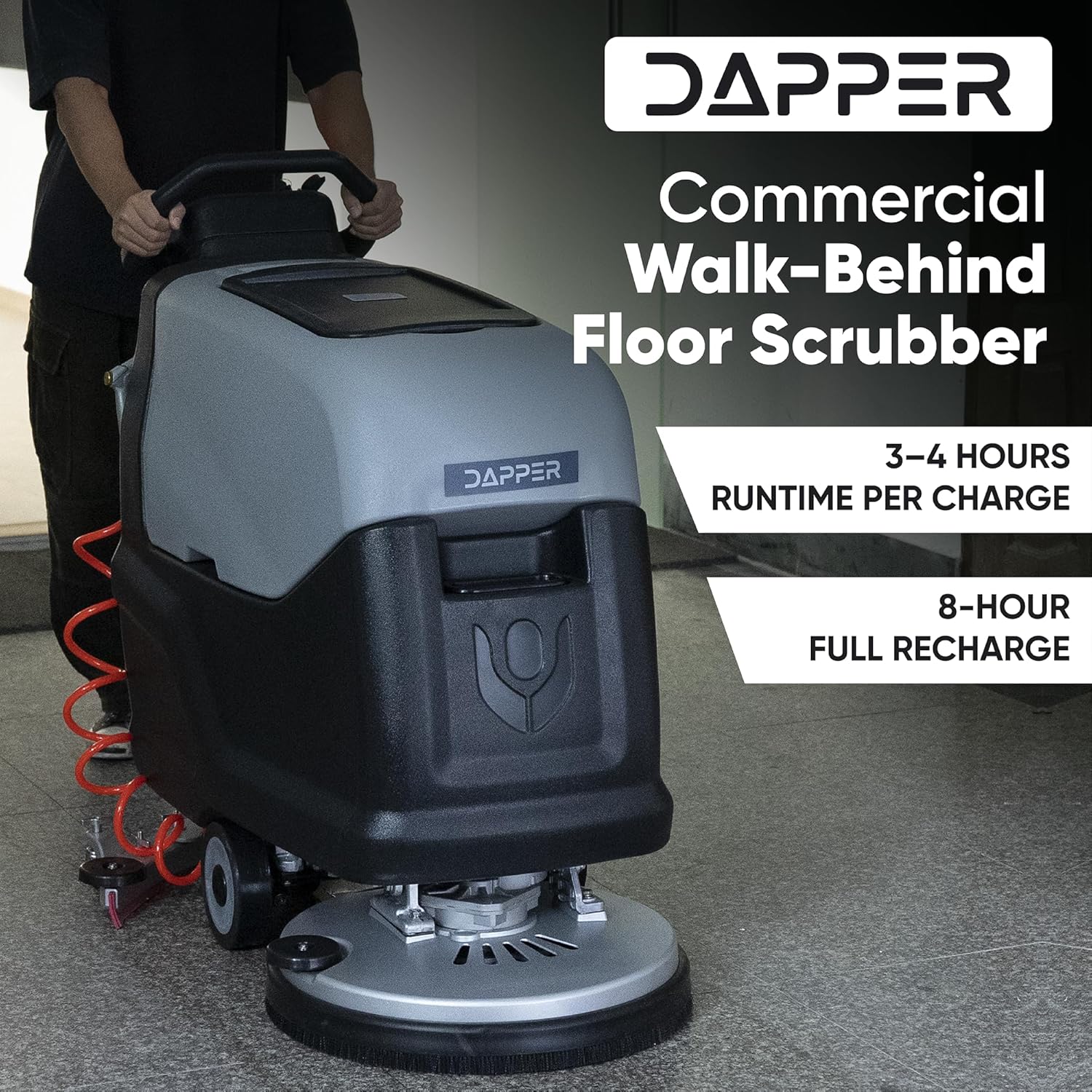

   الشكل 5.1: Operator using the Dapper Supply floor scrubber for cleaning.

3. عملية التنظيف:
   • Walk behind the machine at a steady pace, allowing the brush to scrub and the squeegee to recover the dirty solution.
   • The 20-inch cleaning path ensures efficient coverage.
   • For heavily soiled areas, a second pass may be required.
4. Using the Integrated Spray Hose:
   • To use the spray hose for spot cleaning or pre-treating, press the "Water gun button" located on the side panel.
   • Direct the spray nozzle towards the desired area.


   الشكل 5.2: Utilizing the integrated spray hose for targeted cleaning.

5. إيقاف الآلة:
   • Release the handle and turn the key to the OFF position.
   • Ensure all functions are disengaged.

6. الصيانة

Regular maintenance ensures the longevity and optimal performance of your floor scrubber.

1. بعد كل استخدام:
   • خزان تصريف المياه: Empty the 17-gallon recovery tank. Rinse it thoroughly with clean water.
   • Clean Squeegee: Inspect and clean the squeegee blades. Replace if worn or damaged.
   • Clean Brush/Pads: Remove and rinse the brush or pads. Allow them to air dry.
   • آلة المسح: قم بتنظيف الجزء الخارجي من الجهاز باستخدام الإعلانamp قطعة قماش.
2. العناية بالبطارية:
   • Recharge the battery after each use, regardless of remaining charge, to maximize battery life.
   • لا تسمح للبطارية بالتفريغ الكامل بشكل متكرر.
3. الفحوصات الدورية:
   • افحص جميع الخراطيم والوصلات بحثًا عن أي تسريبات أو تلف.
   • تأكد من إحكام جميع المثبتات.

7. استكشاف الأخطاء وإصلاحها

This section provides solutions to common issues. For problems not listed here, contact Dapper Supply support.

8. المواصفات

9. الضمان والدعم

Your Dapper Supply DP-WBFS1218 Floor Scrubber is backed by a ضمان لمدة 1 سنوات على الأجزاء والعمالة.

For technical assistance, parts availability, or warranty claims, please contact Dapper Supply's U.S.-based support team. Refer to your purchase documentation for contact details or visit the official Dapper Supply webموقع.
