دليل تعليمات خيمة الحفلات شديدة التحمل من كوبيزي 16x32

1. المقدمة

Thank you for choosing the COBIZI 16x32 Heavy Duty Party Tent. This manual provides essential information for the safe and correct assembly, operation, and maintenance of your tent. Please read these instructions carefully before setup and retain them for future reference. This tent is designed to provide a spacious, protected area for various outdoor events, featuring a waterproof and UV-resistant canopy, a robust metal frame, and versatile removable sidewalls.

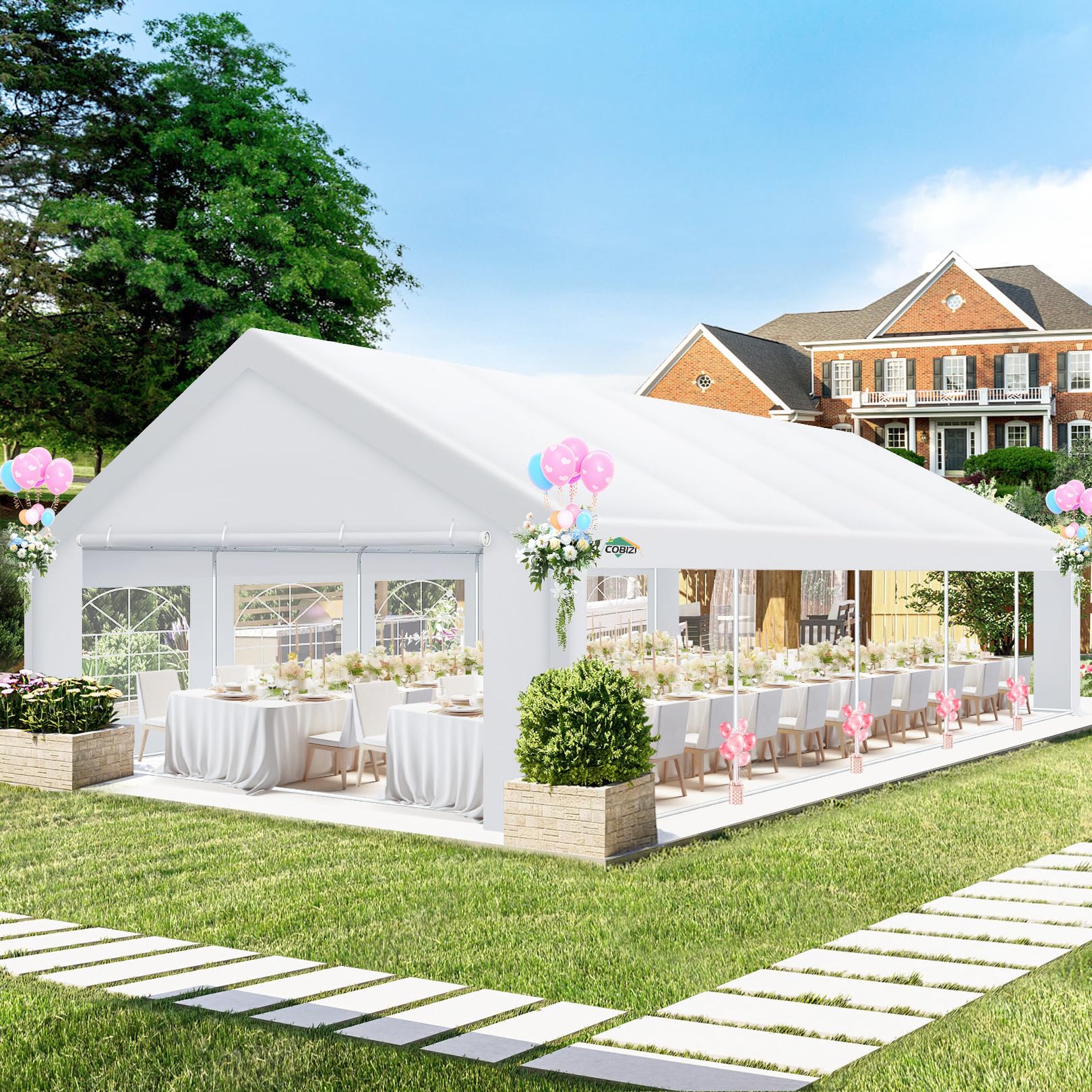

The COBIZI 16x32 Party Tent provides a spacious and elegant setting for events.

2. معلومات السلامة

• حالة الرياح: Do not use this tent in strong winds. Always secure the tent with the provided pegs and wind ropes. Failure to do so may result in damage to the tent or injury.
• حَشد: Assembly requires multiple people. Attempting to assemble alone may lead to difficulty or damage.
• ترسيخ: Ensure all ground bars are properly linked and the tent is securely anchored to the ground using all supplied pegs and ropes.
• السلامة من الحرائق: أبقِ جميع مصادر اللهب والحرارة بعيدة عن قماش الخيمة. القماش غير مقاوم للحريق.
• مراقبة الطقس: Regularly monitor weather conditions. In case of severe weather, disassemble the tent to prevent damage.
• السلامة الهيكلية: لا تعلق أشياء ثقيلة من إطار الخيمة.

3. محتويات العبوة

Your COBIZI 16x32 Party Tent ships in 3 separate boxes, which may arrive at different times. Please verify all components are present before beginning assembly.

Key components of the tent structure and covering.

قائمة المكونات:

• Main Frame Poles (1.5-inch diameter alloy steel)
• Connectors (Solid and seamless welded joints)
• Canopy Cover (160g PE material, waterproof, UV-resistant, tear-resistant)
• Removable Sidewalls (6 pieces, with transparent PVC windows and zippered doors)
• Ground Bars (Closed ground link design)
• حبال الرياح
• أوتاد تثبيت أرضية
• Built-in Sandbags (4 pieces)
• Elastic Ball Bungees

4. تعليمات الإعداد

Assembly of the COBIZI 16x32 Party Tent requires at least 4-6 people for efficient and safe setup. Follow these steps carefully:

4.1. تجميع الاطار

1. فك وفرز: Lay out all frame poles and connectors. Identify different types of poles (e.g., roof, leg, ridge) and connectors.
2. تجميع الإطار الأساسي: Connect the ground bars using the appropriate connectors to form the rectangular base of the tent. Ensure the closed ground link design is correctly assembled for maximum stability.
3. تركيب أعمدة الساق: Insert the leg poles into the base frame connectors.
4. Assemble Roof Structure: Begin assembling the roof frame on the ground. Connect the roof poles and ridge poles using the roof connectors.
5. Raise Frame: With multiple people, carefully lift the assembled roof frame and attach it to the top of the leg poles. Secure all connections.

Visual guide for assembling the tent frame and attaching sidewalls.

4.2. تركيب المظلة والجدار الجانبي

6. مظلة ستائرية: Carefully drape the main canopy cover over the assembled roof frame. Ensure it is centered and evenly distributed.
7. مظلة آمنة: Use the elastic ball bungees to secure the canopy to the frame poles. Ensure a snug fit to prevent water pooling and wind flapping.
8. تركيب الجدران الجانبية: Attach the removable sidewalls to the tent frame using the provided fasteners. The sidewalls feature transparent PVC windows and zippered doors for access and ventilation.

4.3. تأمين الخيمة

9. تثبيت الأرض: Drive the ground stakes/pegs through the footplates of the leg poles and into the ground.
10. حبال الرياح: Attach the wind ropes to the designated points on the tent frame and secure them to the ground using additional stakes, pulling them taut at an angle.
11. أكياس الرمل: Utilize the built-in sandbags for additional stability, especially in moderate wind conditions. Fill them with sand or other heavy material.

4.4. مرجع فيديو التثبيت

For a visual guide on the installation process, please refer to the following video:

5. تعليمات التشغيل

5.1. الاستخدام

• سعة: The 16x32 ft tent comfortably accommodates 8-10 tables, making it suitable for various events such as parties, weddings, and commercial gatherings.
• الجدران الجانبية: The 6 removable sidewalls can be installed or removed as needed to adapt to weather conditions or event requirements. They provide protection from sun, wind, and light rain.
• تهوية: The transparent PVC windows and zippered doors allow for natural light and cross-ventilation when desired.
• حماية من الأشعة فوق البنفسجية: The canopy material offers UV 50+ protection, shielding occupants from harmful sun rays.
• ضد للماء: The 160g PE tarpaulin is waterproof, providing shelter during light to moderate rain.

Product dimensions and capacity information.

5.2. Structural Stability Demonstration

The tent features a robust 1.5-inch diameter all-metal tube frame with a closed ground link structure for enhanced stability.

6. الصيانة

• تنظيف: Clean the canopy and sidewalls with mild soap and water. Do not use harsh chemicals or abrasive cleaners, as this can damage the PE material and UV coating. Allow all parts to dry completely before storage.
• العناية بالإطار: The metal frame has an elegant white paint coating to prevent chipping, peeling, rust, and corrosion. Inspect the frame periodically for any signs of damage or wear.
• تخزين: When not in use, disassemble the tent and store all components in a dry, cool place. Keep the original sturdy cardboard boxes for optimal storage during off-seasons.
• تقتيش: Before each use, inspect all poles, connectors, canopy, and sidewalls for any damage, tears, or missing parts. Replace any damaged components immediately.

7. استكشاف الأخطاء وإصلاحها

• عدم استقرار الخيمة: Ensure all ground bars are properly connected, leg poles are fully inserted, and the tent is securely anchored with all pegs and wind ropes. Verify sandbags are filled and in place.
• تجمع المياه على المظلة: Ensure the canopy is taut and evenly distributed over the frame. Adjust bungee cords if necessary. Proper tension helps water run off.
• الأجزاء المفقودة أو التالفة: If any parts are damaged or missing upon arrival or during assembly, please contact our customer service team immediately for assistance.
• صعوبة التجميع: Review the setup instructions and consider watching the installation video. Ensure you have enough people to assist with the assembly process.

8. المواصفات

9. الضمان والدعم

9.1. معلومات الضمان

• ضمان مدى الحياة: Connectors, ropes, and stakes are covered by a lifetime warranty.
• ضمان لمدة سنة واحدة: The canopy and main poles are covered by a 1-year warranty.

This warranty covers manufacturing defects under normal use. It does not cover damage caused by improper assembly, misuse, neglect, or extreme weather conditions.

9.2. دعم العملاء

For any questions, assistance with assembly, or to report damaged or missing parts, please contact our customer service team. We are committed to resolving your issues quickly and effectively.

معلومات الاتصال: Please refer to the contact details provided with your purchase or visit the official COBIZI webموقع.
