NBD 5K 64MP Digital Camera S110-WM Instruction Manual

1. المقدمة

This manual provides detailed instructions for the safe and efficient operation of your NBD 5K 64MP Digital Camera, model S110-WM. Please read this manual thoroughly before using the camera and retain it for future reference. This camera features 5K video recording, 64-megapixel still image capture, 16x digital zoom, autofocus, anti-shake functionality, a 3-inch 180-degree rotatable display, Wi-Fi connectivity, and includes wide-angle and macro lenses.

2. محتويات العبوة

تأكد من تضمين جميع العناصر المذكورة أدناه في طردك. في حال وجود أيٍّ منها مفقودًا أو تالفًا، يُرجى التواصل مع خدمة العملاء.

• NBD 5K 64MP Digital Camera Body (S110-WM)
• عدسة واسعة الزاوية
• عدسة ماكرو
• Rechargeable Lithium-ion Batteries (x2)
• شاحن البطارية
• كابل يو اس بي
• شنومكسب تف بطاقة
• حزام الكاميرا
• دليل المستخدم

Image: Contents of the NBD 5K 64MP Digital Camera package, including the camera body, lenses, batteries, charger, cables, TF card, and strap.

3. الإعداد

3.1. تركيب البطارية وشحنها

1. افتح غطاء حجرة البطارية الموجود في الجزء السفلي من الكاميرا.
2. Insert the lithium-ion battery, ensuring the correct orientation as indicated inside the compartment.
3. أغلق غطاء حجرة البطارية جيدًا.
4. To charge, connect the camera to a power source using the provided USB cable and charger. The charging indicator light will show the charging status.

The camera comes with two 1500mAh high-capacity lithium-ion batteries, allowing for extended shooting time. The advanced battery charger also functions as a charging station.

3.2. تركيب بطاقة TF

1. حدد مكان فتحة بطاقة الذاكرة TF على جانب الكاميرا.
2. Insert the 64GB TF card into the slot with the metal contacts facing down, aligning it with the icon.
3. Push the card gently until it clicks into place. To remove, push the card again until it springs out.

Image: Visual guide for inserting and removing the TF card. Push until it clicks to lock, push again to release.

3.3. تركيب العدسة

The camera includes a wide-angle lens and a macro lens. These 52mm detachable lenses can be screwed onto the front of the main camera lens.

• عدسة واسعة الزاوية: يوسع مجال view up to 120 degrees, suitable for landscapes and group shots.
• عدسة ماكرو: Allows for close-up photography, capturing fine details of small subjects.

Image: The NBD digital camera shown with its detachable wide-angle and macro lenses, highlighting their use for different photographic needs.

4. تعليمات التشغيل

4.1. تشغيل/إيقاف التشغيل

Press and hold the power button (usually marked with a power symbol) to turn the camera on or off.

4.2. أوضاع التصوير الأساسية

The camera offers various shooting modes accessible via the mode dial or menu. These include:

• وضع الصورة: لالتقاط الصور الثابتة.
• وضع الفيديو: لتسجيل الفيديو footage.
• الحركة البطيئة: يسجل الفيديو بمعدل إطارات أعلى لتشغيله بالحركة البطيئة.
• الفاصل الزمني: Captures a series of photos over time and combines them into a video.
• وضع التصفية: Applies various creative filters to your photos and videos.

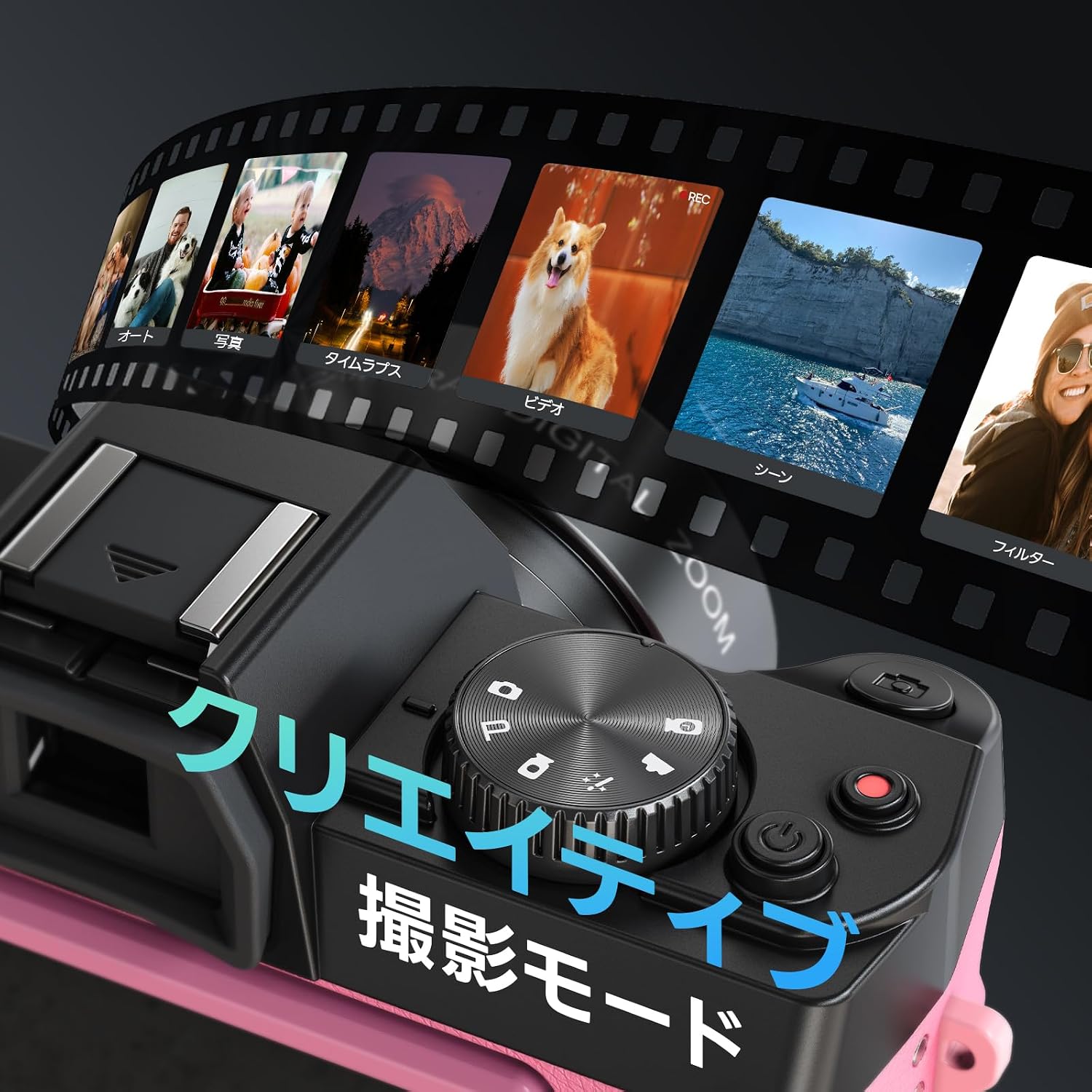

Image: The camera's display showing various creative shooting modes like Photo, Video, Time-Lapse, and Filters.

4.3. Autofocus and Anti-shake

The camera features autofocus and anti-shake functions to ensure clear and stable images.

1. ضبط تلقائي للصورة: Half-press the shutter button to activate autofocus. The camera will focus on the subject, indicated by a green frame on the screen.
2. المضادة للاهتزاز: This feature automatically stabilizes your shots, reducing blur caused by camera movement.

Image: Instructions on how to use autofocus by half-pressing the shutter button to achieve a clear focus.

Image: A comparison showing the effect of the anti-shake feature, with a clear image on the left and a blurred image on the right when anti-shake is off.

4.4. تقريب رقمي

The camera supports up to 16x digital zoom. Use the zoom controls (usually marked 'W' for wide and 'T' for telephoto) to adjust the magnification.

Image: Visual representation of the 16x digital zoom capability, showing different levels of magnification from 4x to 16x.

4.5. 180° Flip Screen

The 3-inch LCD screen can be rotated 180 degrees, making it ideal for selfies and vlogging. Adjust the screen to your desired angle for easy framing and monitoring.

Image: The NBD camera with its screen flipped 180 degrees, demonstrating its utility for self-recording or vlogging.

4.6. الاتصال بشبكة Wi-Fi والتحكم عبر التطبيق

The camera supports Wi-Fi for seamless transfer of photos and videos to your smartphone and remote control via a dedicated app.

1. Turn on Wi-Fi in the camera's settings menu.
2. Scan the QR code displayed on the camera screen or refer to the manual to download the companion app on your smartphone. تنزيل التطبيق
3. Connect your smartphone to the camera's Wi-Fi hotspot. The hotspot name and password will be displayed on the camera screen.
4. Once connected, you can use the app to remotely control shooting, adjust settings, preview in real-time, and transfer files.

Image: A step-by-step visual guide for connecting the camera to a smartphone via Wi-Fi and using the app for remote control and file نقل.

The camera can also function as a webكاميرا عند الاتصال بجهاز كمبيوتر عبر USB.

4.7. Adjusting Image and Video Quality

You can adjust the resolution and aspect ratio for both photos and videos through the camera's menu.

1. Press the 'Fn' (Function) key to access quick settings.
2. Navigate using the arrow keys to select "Image Resolution" or "Video Resolution".
3. Press 'OK' to confirm your selection.

Available photo resolutions include up to 64MP. Video resolutions include 5K 25FPS, 4K 30FPS, 2K 30FPS, 1080P 60FPS/30FPS, and 720P 120FPS/60FPS.

Image: A visual guide demonstrating how to access and change image and video quality settings using the 'Fn' button and navigation keys.

4.8. Continuous Shooting and Self-Timer

The camera supports continuous shooting for capturing fast-moving subjects and a self-timer for delayed shots.

• اطلاق النار مستمر: Allows you to capture multiple frames per second.
• مؤقت ذاتي: Options typically include 2s, 5s, and 10s delays before taking a photo.

Image: A sequence of images demonstrating the continuous shooting mode, capturing a person jumping with a basketball.

Image: Three images showing the self-timer function with 2-second, 5-second, and 10-second delay options for group photos.

4.9. فلاش مدمج

The camera includes a built-in flash for illuminating subjects in low-light conditions. It can be turned on or off as needed.

Image: The NBD camera with its built-in flash activated, illuminating a subject in a dark environment, compared to the same scene without flash.

5. الصيانة

• حافظ على نظافة الكاميرا بمسحها بقطعة قماش ناعمة وجافة. تجنب استخدام المواد الكيميائية القاسية أو المواد الكاشطة.
• Clean the lens gently with a lens cleaning cloth and solution. Do not touch the lens surface with your fingers.
• قم بتخزين الكاميرا في مكان جاف وبارد بعيدًا عن أشعة الشمس المباشرة ودرجات الحرارة القصوى.
• قم بإزالة البطارية إذا كنت لن تستخدم الكاميرا لفترة طويلة.

6. استكشاف الأخطاء وإصلاحها

7. المواصفات

8. الضمان والدعم

يأتي هذا المنتج مع ضمان لمدة 1 سنوات from the date of purchase. For warranty claims, technical support, or any inquiries regarding your NBD Digital Camera, please contact NBD customer service through the retailer where you purchased the product or visit the official NBD webموقع للحصول على معلومات الاتصال بالدعم.

يرجى الاحتفاظ بإثبات الشراء للتحقق من صحة الضمان.
