دليل تعليمات خيمة كوبيزي القابلة للطي مقاس 10x30

مقدمة

Thank you for choosing the COBIZI 10x30 Pop Up Canopy Tent. This manual provides essential information for the safe and efficient assembly, operation, maintenance, and troubleshooting of your canopy tent. Please read these instructions carefully before use and retain them for future reference.

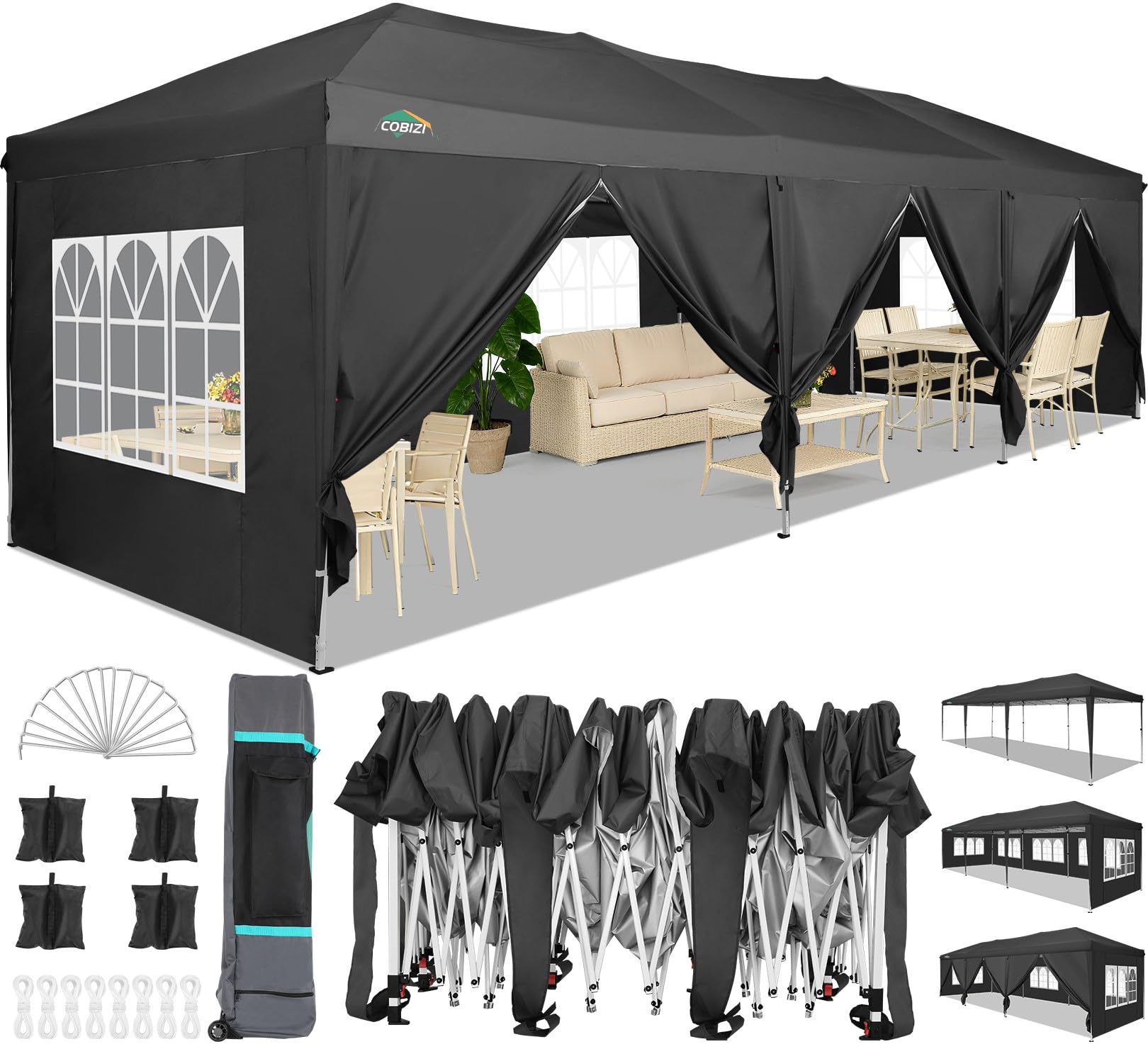

COBIZI 10x30 Pop Up Canopy Tent set up for an outdoor event.

معلومات السلامة

احتياطات السلامة الهامة:

• Always secure the tent with sandbags, ropes, and stakes when in use.
• Do not use the canopy in winds exceeding 20 mph or in heavy rain.
• Always follow local weather guidelines and regulations regarding outdoor shelters.
• Ensure all locking mechanisms are fully engaged during setup to prevent collapse.
• أبقِ الأطفال والحيوانات الأليفة بعيداً عن المظلة أثناء تركيبها وتفكيكها.
• Avoid placing heat sources or open flames inside or near the canopy.

محتويات الحزمة

تأكد من وجود جميع المكونات المذكورة أدناه وسلامتها قبل البدء بالتجميع. في حال وجود أي أجزاء مفقودة أو تالفة، يرجى التواصل مع خدمة العملاء.

• 1 x Folding Shelter Tent Frame
• 1 x Top Canopy Fabric
• 8 x Removable Sidewalls (5 with arched windows, 3 with central zippers)
• 4 أكياس رمل
• 8 حبال
• 16 × حصص
• 1 × حقيبة حمل

All components included in the COBIZI 10x30 Pop Up Canopy Tent package.

تعليمات الإعداد

Assembly requires a minimum of four people for safe and efficient setup. No tools are required.

تجميع خطوة بخطوة:

1. افتح الإطار: مع وجود شخص في كل طرف ، ارفع إطار المظلة واسحبه جزئيًا.


Step 1: Partially open the canopy frame.

2. Engage the Hub: Place one hand on the upper frame and use the other hand to push the hub straight up until it clicks into place.


Step 2: Secure the central hub mechanism.

3. تركيب الجزء العلوي من المظلة: Unfold the canopy top and place it over the frame. Secure the canopy top to the frame using the hook-and-loop fasteners.


Step 3: Place and secure the canopy top.

4. ضبط الارتفاع: Press the red button on each leg and raise or lower the canopy to your desired height. There are three adjustable height settings: 77 inches, 79 inches, and 81 inches.


Step 4: Adjust the canopy legs to the desired height.

5. تركيب الجدران الجانبية: Attach the desired number of sidewalls using the hook-and-loop fasteners.


Step 5: Attach sidewalls as needed.

6. تأمين المظلة: Insert a stake into the foot of each canopy leg. Measure out from the each leg to a proper distance and secure sixteen stakes to the ground. Tie the pre-attached ropes to the stakes in the ground. Fill the four sandbags with sand and attach them to the canopy legs for additional stability.


Step 6: Secure the canopy using stakes, ropes, and sandbags.

دليل إعداد الفيديو:

Detailed video guide demonstrating the complete setup process for the COBIZI 10x30 Pop Up Canopy Tent.

انتهى بسرعةview of the COBIZI 10x30 Pop Up Canopy Tent's pop-up functionality.

تعليمات التشغيل

ضبط الارتفاع:

The canopy features three adjustable height settings: 77 inches, 79 inches, and 81 inches. To adjust the height, press the red button on each leg and carefully slide the leg to the desired position until it locks into place. Ensure all four legs are set to the same height for stability.

تكوين الجدار الجانبي:

The canopy includes eight removable sidewalls: five with arched windows and three with central zippers. These can be attached or removed as needed using the hook-and-loop fasteners to adapt to different weather conditions or event requirements. The zippered sidewalls allow for easy entry and exit.

Various sidewall configurations for the canopy tent.

صيانة

تنظيف:

• Clean the canopy fabric with mild soap and water. Do not use harsh chemicals or abrasive cleaners.
• Rinse thoroughly and allow the fabric to air dry completely before storage to prevent mildew.
• امسح الإطار بالإعلانamp قطعة قماش لإزالة الأوساخ والحطام.

تخزين:

• Ensure the canopy tent is completely dry before folding and storing it in the carry bag.
• Store the canopy in a cool, dry place away from direct sunlight and extreme temperatures.
• Periodically inspect the frame, fabric, ropes, and stakes for wear or damage. Replace any damaged parts as needed.

استكشاف الأخطاء وإصلاحها

• Poles Snapping or Frame Damage: Ensure the canopy is properly secured with all provided anchoring equipment (stakes, ropes, sandbags). Avoid using the canopy in high winds or severe weather conditions. Improper setup or use in adverse weather can lead to frame damage.
• اجزاء مفقودة: Upon receiving your canopy, immediately check all package contents against the provided list. If any parts are missing, contact customer support with your purchase details for assistance.
• Water Accumulation on Top: Ensure the canopy top is taut and properly secured to the frame to prevent water pooling. The fabric is waterproof, but prolonged pooling can stress the material. The design includes features to help prevent waterlogging.


Detail of the canopy's anti-waterlogging design.

• صعوبة تعديل الارتفاع: Ensure the red release buttons on each leg are fully depressed when attempting to adjust the height. Do not force the legs; if they are stuck, check for any obstructions or debris in the locking mechanism.

تحديد

Illustration demonstrating the waterproof and UV protection features of the canopy fabric.

Diagram showing the dimensions of the 10x30 canopy tent.

الضمان والدعم

For warranty information, product support, or to inquire about replacement parts, please refer to the contact information provided at the point of purchase or visit the official COBIZI website. Please have your model number (10x30 canopy) and purchase date available when contacting support.
