CRAFTSMAN Horizontal Shed BMSC2550 Instruction Manual

المنتج انتهىview

This manual provides instructions for the assembly, operation, and maintenance of your CRAFTSMAN Horizontal Shed. This compact outdoor storage system is designed for durability and security, offering 34 cubic feet of storage capacity for various outdoor items.

معلومات هامة حول السلامة

• Always keep the shed locked when not in use.
• Ensure proper weight distribution when storing heavy items.
• Secure the shed to the ground to prevent tip-overs.
• اقرأ جميع التعليمات جيداً قبل التجميع والاستخدام.

الإعداد والتجميع

The CRAFTSMAN Horizontal Shed is designed for easy assembly with minimal tools required. Follow these general steps for proper installation:

1. إعداد الموقع: Choose a level, stable surface for your shed. Ensure the area is clear of debris and provides adequate drainage.
2. فك مكونات الحزمة: Carefully unpack all parts and verify against the parts list (refer to packaging for full list).
3. قاعدة التجميع: Construct the shed's base according to the diagrams. The reinforced floor is designed to support heavier items.
4. تركيب ألواح الجدران: Attach the multi-wall resin panels, ensuring they are securely interlocked for strength and stability.
5. Attach Doors and Lid: Install the double doors and the lid. Ensure metal hinges are properly aligned for smooth operation.
6. مزاليج آمنة: Verify that the lower foot latch and lid prop rod mechanisms are functioning correctly.

This diagram illustrates the main structural components and features of the shed, including its multi-wall panels for durability, low-profile design, and easy assembly. It also points out the lockable doors, metal hinges for smooth operation, and the lower latch for secure closure.

تشغيل سقيفة التخزين الخاصة بك

Your horizontal shed offers convenient access and secure storage.

• فتح الغطاء: The lid can be opened from the top. A prop rod is included to hold the lid open, making it easier to add or remove items.
• فتح الأبواب: The shed features double doors for wide access. Use the integrated handles to open and close the doors.
• تأمين السقيفة: The doors are pad-lockable (lock not included) to keep contents safe and secure. A lower foot latch ensures the doors remain closed when not locked.

This image shows the shed's lid in an open position, supported by the integrated prop rod. This feature allows for hands-free access to the shed's interior, simplifying the loading and unloading of items.

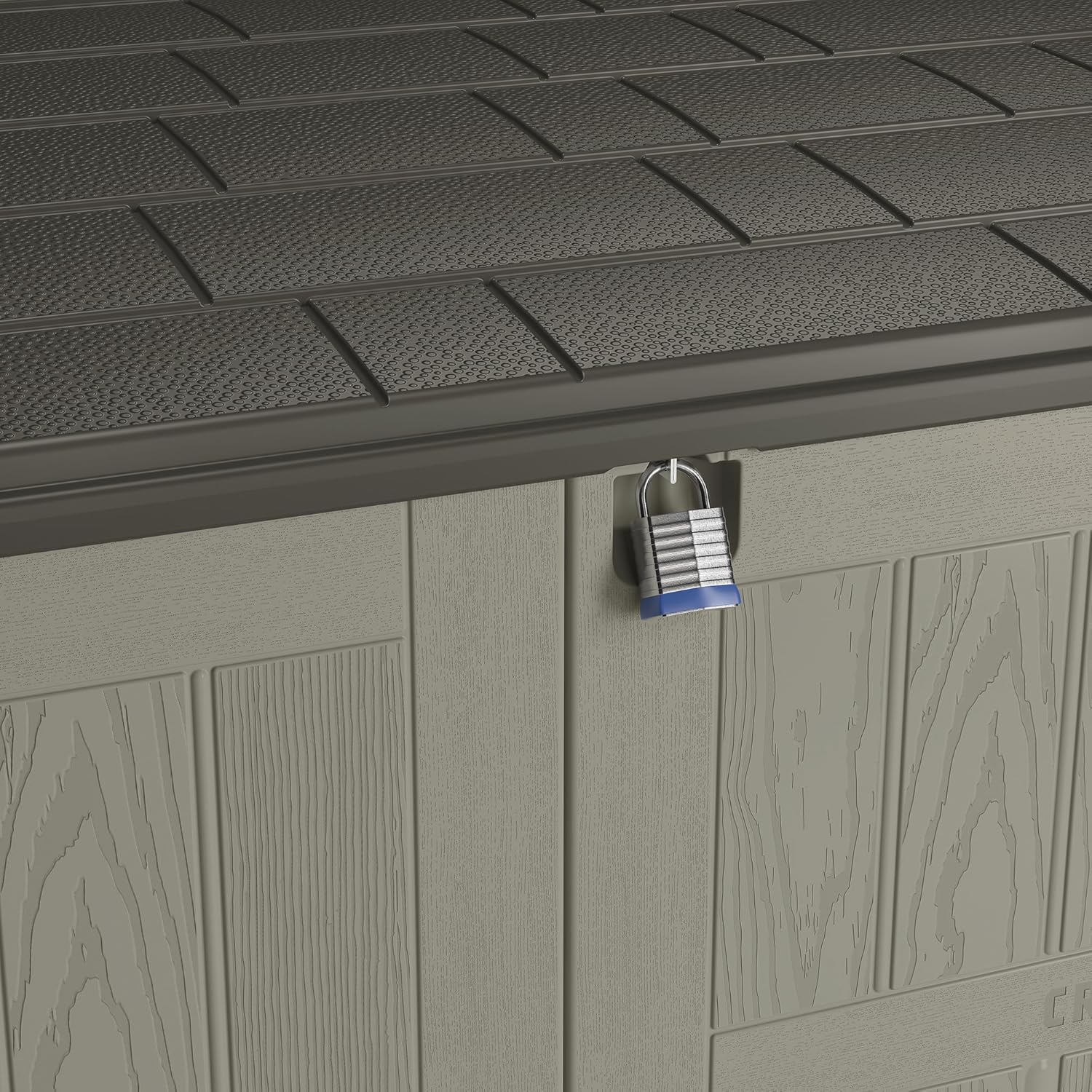

This image highlights the shed's lockable door mechanism, demonstrating how a padlock (not included) can be used to secure the contents. The design ensures enhanced security for stored items.

توفر هذه الصورة view of the shed's interior, showcasing its 34 cubic feet capacity. It demonstrates how various items such as potting mix, garden tools, and a small wheelbarrow can be efficiently stored.

العناية والصيانة

The CRAFTSMAN Horizontal Shed is designed for low maintenance and easy cleaning.

• تنظيف: To clean the shed, simply wipe down the multi-wall resin panels with a damp cloth and mild soap. Avoid abrasive cleaners that could damage the finish.
• تقتيش: Periodically check all hinges, latches, and panels for any signs of wear or damage. Ensure all connections remain secure.
• العناية بالشتاء: While durable, clearing heavy snow accumulation from the roof can prolong the shed's lifespan.

استكشاف الأخطاء وإصلاحها

If you encounter any issues with your shed, consider the following:

• صعوبة في إغلاق الأبواب/الغطاء: Ensure the shed is on a level surface. Check for any obstructions inside the shed that might prevent full closure.
• تسرب المياه: Verify that all panels are correctly assembled and sealed. Inspect the roof for any gaps or damage.
• عدم الاستقرار العام: Confirm that the shed is securely anchored to the ground, especially in windy conditions. Re-check all assembly points.

في حالة وجود مشكلات مستمرة، يرجى الاتصال بدعم العملاء.

مواصفات المنتج

This chart provides a visual guide to the storage capabilities of a horizontal shed compared to other shed types (storage shed, vertical shed) for common items like patio accessories, lawn care equipment, long-handled tools, firewood, mowers, ladders, patio furniture, waste containers, bicycles, wheelbarrows, and riding mowers. It indicates that the horizontal shed is suitable for a wide range of items.

معلومات الضمان

This CRAFTSMAN Horizontal Shed comes with a ضمان محدود لمدة عامين.

CRAFTSMAN will repair or replace only the parts that failed under the terms of the warranty. In some cases, the replacement parts may not be identical, but they shall be of equal or greater performance than the original part. Proof of purchase may be required, such as the original dated store receipt. Evidence of failure may include photographs or returning failed components to CRAFTSMAN.

This image confirms the product's 10-year limited warranty, assuring customers of CRAFTSMAN's commitment to quality and support for their product.

دعم العملاء

For further assistance, missing parts, or warranty claims, please contact CRAFTSMAN customer support. Refer to your product packaging or the official CRAFTSMAN webالموقع للحصول على أحدث معلومات الاتصال.
