1. المقدمة
This manual provides essential information for the installation, operation, and maintenance of your RCXAZ AM32 100A Electronic Speed Controller (ESC) and 3542 2250KV Brushless Outrunner Motor system. This system is designed for use in various remote control crawler vehicles, including models like the Traxxas SCX10, TRX-4, and TRX-6. The ESC is programmable and can be controlled independently, offering precise power management for your RC vehicle.
2. احتياطات السلامة
- Always disconnect the battery from the ESC when not in use to prevent accidental operation.
- تأكد من أن جميع التوصيلات آمنة ومعزولة بشكل صحيح لتجنب حدوث دوائر قصر.
- Operate your RC vehicle in open areas, away from people, pets, and obstacles.
- Avoid contact with rotating parts of the motor during operation.
- Do not expose the ESC or motor to water or excessive moisture unless specifically designed for waterproof operation.
- Use only compatible batteries and chargers. Refer to your battery manufacturer's guidelines for safe charging and handling.
- If the motor or ESC becomes excessively hot, discontinue use immediately and allow it to cool down.
3. محتويات العبوة
- AM32 100A Electronic Speed Controller (ESC)
- 3542 2250KV Brushless Outrunner Motor
4. انتهى المنتجview

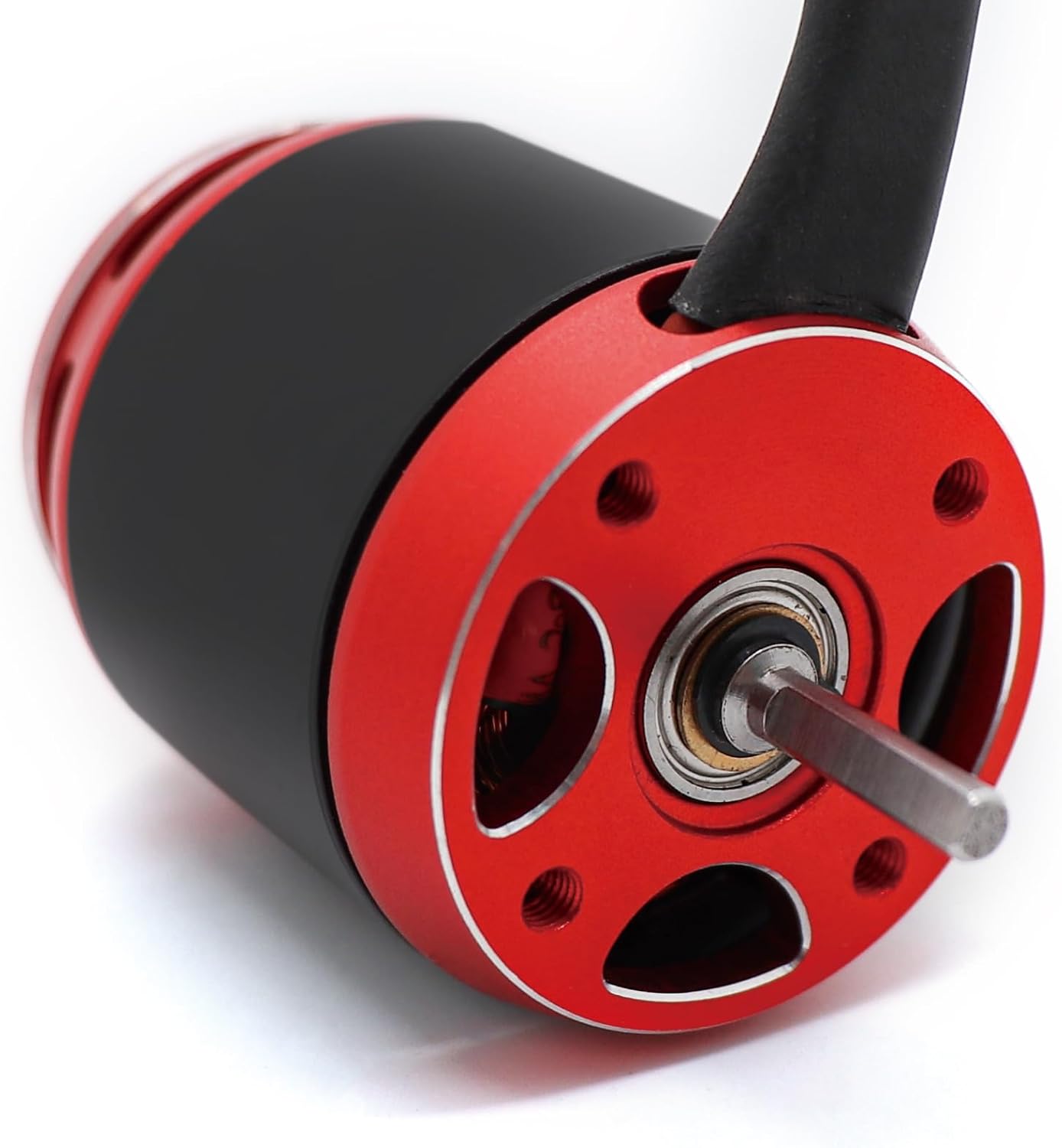

الصورة 1: عن قرب view of the RCXAZ 3542 brushless motor, highlighting its red and black casing and shaft.
Image 2: The RCXAZ 3542 brushless motor, showing its overall design and connection points.
5. الإعداد
5.1 تركيب المحرك
- Mount the 3542 brushless motor securely to your RC vehicle's motor mount using appropriate screws. Ensure proper gear mesh between the motor pinion and the spur gear.
- Connect the three motor wires to the corresponding output wires of the AM32 100A ESC. The order of connection may affect motor rotation direction. If the motor spins in the wrong direction, swap any two of the motor wires.
5.2 ESC Connection
- Connect the ESC's battery connector to your RC vehicle's battery pack. Ensure correct polarity (red to positive, black to negative).
- Plug the ESC's receiver cable into the throttle channel (usually channel 2) of your RC receiver.
- Securely mount the ESC in a location that allows for adequate airflow and protects it from impacts.
Image 3: The RCXAZ motor and ESC system installed within an RC crawler chassis, showing typical wiring and component placement.
6. تعليمات التشغيل
6.1 التشغيل الأولي
- قم بتشغيل جهاز الإرسال اللاسلكي الخاص بك.
- قم بتوصيل البطارية بوحدة التحكم الإلكترونية. ستصدر وحدة التحكم الإلكترونية سلسلة من الأصوات تشير إلى عدد خلايا البطارية وجاهزيتها.
- Calibrate the throttle range if necessary, following the specific instructions for your AM32 ESC (refer to the separate AM32 ESC programming guide for detailed steps).
6.2 التشغيل الأساسي
Once calibrated, the ESC will respond to your transmitter's throttle input. Gently apply throttle to move the vehicle forward or backward. The AM32 ESC is designed for smooth throttle response, crucial for crawler applications.
6.3 برمجة وحدة التحكم الإلكترونية في السرعة
The AM32 100A ESC is programmable. Programming options typically include throttle curves, braking force, motor timing, and battery cut-off voltage. Refer to the dedicated AM32 ESC programming manual or software for detailed instructions on how to access and adjust these parameters. Proper programming can optimize performance and protect your components.
7. الصيانة
- Regularly inspect all wiring and connectors for signs of wear, damage, or loose connections.
- Keep the motor and ESC clean from dirt, dust, and debris. Use compressed air or a soft brush for cleaning.
- Check motor bearings periodically for smooth operation. Replace if they feel rough or noisy.
- Ensure the ESC's cooling fan (if equipped) is free from obstructions and functioning correctly.
- قم بتخزين النظام في مكان جاف وبارد عند عدم استخدامه.
8. استكشاف الأخطاء وإصلاحها
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| المحرك لا يستجيب | وصلات مفكوكة، وحدة تحكم إلكترونية غير معايرة، بطارية فارغة، إشارة جهاز استقبال معيبة. | Check all wiring, recalibrate ESC, charge/replace battery, check receiver/transmitter. |
| المحرك يدور في الاتجاه المعاكس | توصيل أسلاك المحرك بشكل خاطئ. | قم بتبديل أي اثنين من أسلاك المحرك الثلاثة. |
| Motor stutters or lacks power | انخفاض مستوى البطاريةtage, incorrect motor timing, damaged motor/ESC. | Charge battery, adjust motor timing via ESC programming, inspect components for damage. |
| ارتفاع درجة حرارة وحدة التحكم الإلكترونية | Overgearing, excessive load, poor ventilation, incorrect motor timing. | Reduce gearing, lighten load, improve airflow, adjust motor timing. |
9. المواصفات
Image 4: Dimensional drawing of the 3542 brushless motor, showing key measurements in centimeters and inches.
Image 5: Detailed specifications table for the 3542-2250KV brushless motor, including weight, KV value, power, and physical dimensions.
المواصفات العامة:
- ماركة: RCXAZ
- اسم الموديل: 3542
- مادة: معدن
- المكونات المتضمنة: ESC and Motor
Motor (3542 2250KV) Specifics:
- قيمة كيلو فولت: 2250 كيلو فولت
- وزن: 149 جرام
- الحد الأقصى للطاقة: 2000 واط
- Motor Windings: 2+3 Delta
- طول: 41.8 ملم
- Stator Diameter: 28 ملم
- قطر السلك: 0.29 ملم
- Overall Length (Including Shaft): 56.8 ملم
- المقاومة الداخلية: 0.007 أوم
- تردد القيادة: 7 كيلو هرتز
- قطر العمود: 3.17 ملم
- Number Of Battery Sections: 3S-6S LiPo (implied by 100A ESC and 2250KV for crawlers, typical range)
- Number Of Stators: 12
- القطر الخارجي: 35 ملم
- No-Load Current (Io/11.1V): 4.5 Amps
- نهج النهج: 5-14 deg
- Stator Thickness: 20 ملم
- Maximum Stator Current: 90 Amps
- Number Of Stator Stagالعربية: 14
10. الضمان والدعم
RCXAZ products are manufactured to high standards. For warranty information and technical support, please refer to the documentation provided with your purchase or contact your retailer. Keep your proof of purchase for any warranty claims.
