1. انتهى المنتجview
The PSVANE Summit Series KT88 vacuum tubes are designed for high-fidelity audio amplifier applications. These tubes incorporate advanced manufacturing technologies to deliver balanced tonal performance, power, control, and dynamic headroom. Each tube undergoes rigorous selection processes to ensure superior electrical performance and consistency.
Figure 1: PSVANE Summit Series KT88 Vacuum Tubes (Matched Pair)
2. الميزات الرئيسية
- HPC Coating Technology: Features a proprietary multi-layer composite coating that enhances cathode electron emission efficiency, extends tube lifespan, and ensures consistent gain performance.
- Balanced Tonal Performance: Optimized for power, control, and dynamic headroom, delivering a clear and impactful soundstage with enhanced low-mid frequencies and defined highs.
- Rigorous Selection Process: Only the top 2–3% of tubes from each production batch, exhibiting superior electrical performance and consistency, are designated for the Summit Series.
- تطبيق متعدد الاستخدامات: Excels across various music genres, from orchestral works to rock and electronic music.
Figure 2: Internal structure of a PSVANE Summit Series KT88 tube, showcasing the HPC Coating.
3. الإعداد والتثبيت
3.1 فك التعبئة
- Carefully remove the vacuum tubes from their packaging.
- Inspect each tube for any visible damage.
- احتفظ بالتغليف الأصلي للتخزين أو النقل في المستقبل.
Figure 3: PSVANE Summit Series KT88 tubes and packaging.
3.2 التثبيت
- تأكد من amplifier is powered off and unplugged from the mains.
- السماح ل amplifier to cool down completely if it has been in use.
- Carefully grasp the base of the KT88 tube, avoiding contact with the glass envelope.
- Align the pins of the tube with the corresponding sockets on your amplifier. The pins are keyed to ensure correct orientation.
- Gently push the tube straight down into the socket until it is firmly seated. Do not force the tube.
- Repeat for all tubes in the matched pair.

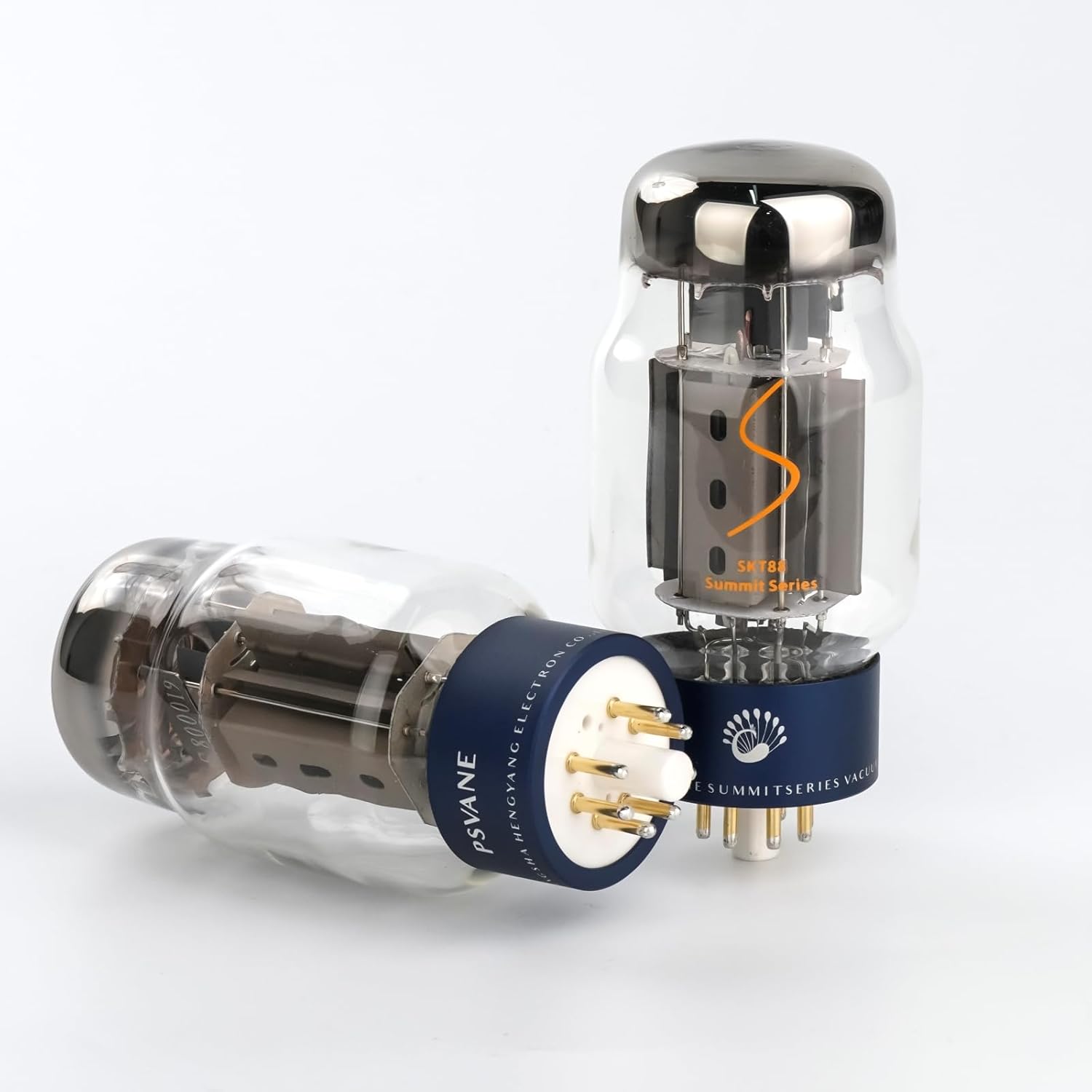

Figure 4: Base of the KT88 tube with pins for amplifier insertion.
Video 1: This video demonstrates the visual characteristics and internal components of the PSVANE Summit Series KT88 Vacuum Tube, providing a closer look at its design and construction.
4. تعليمات التشغيل
4.1 التشغيل الأولي
- After installation, plug your amplifier back into the mains.
- قم بتشغيل جهازك amplifier. The tubes will begin to glow as they warm up.
- فمن المستحسن أن تبدأ مع amplifier's volume at its lowest setting.
4.2 Warm-Up Period
Vacuum tubes require a warm-up period to reach optimal operating temperature and sound quality. Allow your amplifier to warm up for at least 15-30 minutes before critical listening. During this time, the sound quality will gradually improve, becoming richer and more detailed.
Figure 5: PSVANE tubes glowing during operation in an ampمكبر.
5. الصيانة والعناية
- التعامل: Always handle tubes by their base. Avoid touching the glass envelope with bare hands, as oils can create hot spots and reduce tube life. If touched, clean with a soft, lint-free cloth.
- تنظيف: Keep the tubes and amplifier free from dust. Use a soft brush or compressed air to gently remove dust.
- تخزين: If removing tubes for extended periods, store them in their original packaging in a cool, dry place.
- الاستبدال: Vacuum tubes have a finite lifespan. Replace tubes when you notice a degradation in sound quality, increased noise, or visible signs of wear.
Figure 6: Close-up of a glowing PSVANE Summit Series KT88 tube.
6. استكشاف المشكلات الشائعة وإصلاحها
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| لا يوجد صوت أو صوت ضعيف | Improper tube seating, faulty tube, ampقضية الليفيير | Re-seat tubes, test with known good tubes, check ampوصلات مكبر الصوت. |
| طنين أو ضجيج | Ground loop, faulty tube, external interference | Check grounding, try different power outlets, replace tubes if necessary. |
| صوت مشوه | Overdriven signal, faulty tube, amplifier bias issue | Reduce input signal, replace tubes, consult amplifier manual for bias adjustment. |
| Tubes not glowing | لا قوة ل amplifier, faulty tube, filament issue | Check power supply, ensure tubes are correctly seated, replace tube. |
7. مواصفات المنتج
| مواصفة | قيمة |
|---|---|
| وزن العنصر | 1.59 رطل |
| أبعاد الحزمة | 7.8 × 7.56 × 4.61 بوصة |
| رقم موديل العنصر | Summit Series KT88 |
| تاريخ أول توفر | 29 ديسمبر 2020 |
8. الضمان ودعم العملاء
PSVANE Summit Series KT88 Vacuum Tubes come with a ضمان لمدة 24 شهرًا. This extended warranty period reflects our confidence in the quality and durability of our Summit Series products. Should you encounter any issues or require assistance, please contact our customer support team. We are committed to ensuring your satisfaction and will assist with any problems you may experience.
For support, please refer to the contact information provided with your purchase or visit the official PSVANE webموقع.
