NEEWER BASICS BP66 Bicolor LED Video Panel Lighting Kit Instruction Manual

1. انتهى المنتجview

The NEEWER BASICS BP66 Bicolor LED Video Panel Lighting Kit is designed to provide versatile and high-quality illumination for various creative applications. This kit includes two LED video panels, two portable light stands, and four color filters (two white and two orange).

Each LED panel features 66 LEDs, delivering 10W of power and an illumination of 750 lux at 0.5 meters (with an attached filter). The panels offer a bicolor temperature range of 3200K to 5600K and boast a Color Rendering Index (CRI) greater than 95, ensuring accurate color reproduction.

The lights are ideal for makeup artists, aestheticians, tattoo artists, barbers, selfies, TikTok/YouTube video recording, podcasts, Facetime, Zoom calls, video conferencing, live streaming, vlogging, and general photography.

Image: NEEWER BP66 LED Video Panel Kit in various application scenarios including live streaming, studio creation, and Zoom meetings.

2. محتويات العبوة

يرجى التأكد من وجود جميع العناصر في الحزمة الخاصة بك:

• 2 x LED Video Lights
• 2 x Orange Color Filters
• 2 x White Color Filters
• حاملان للإضاءة

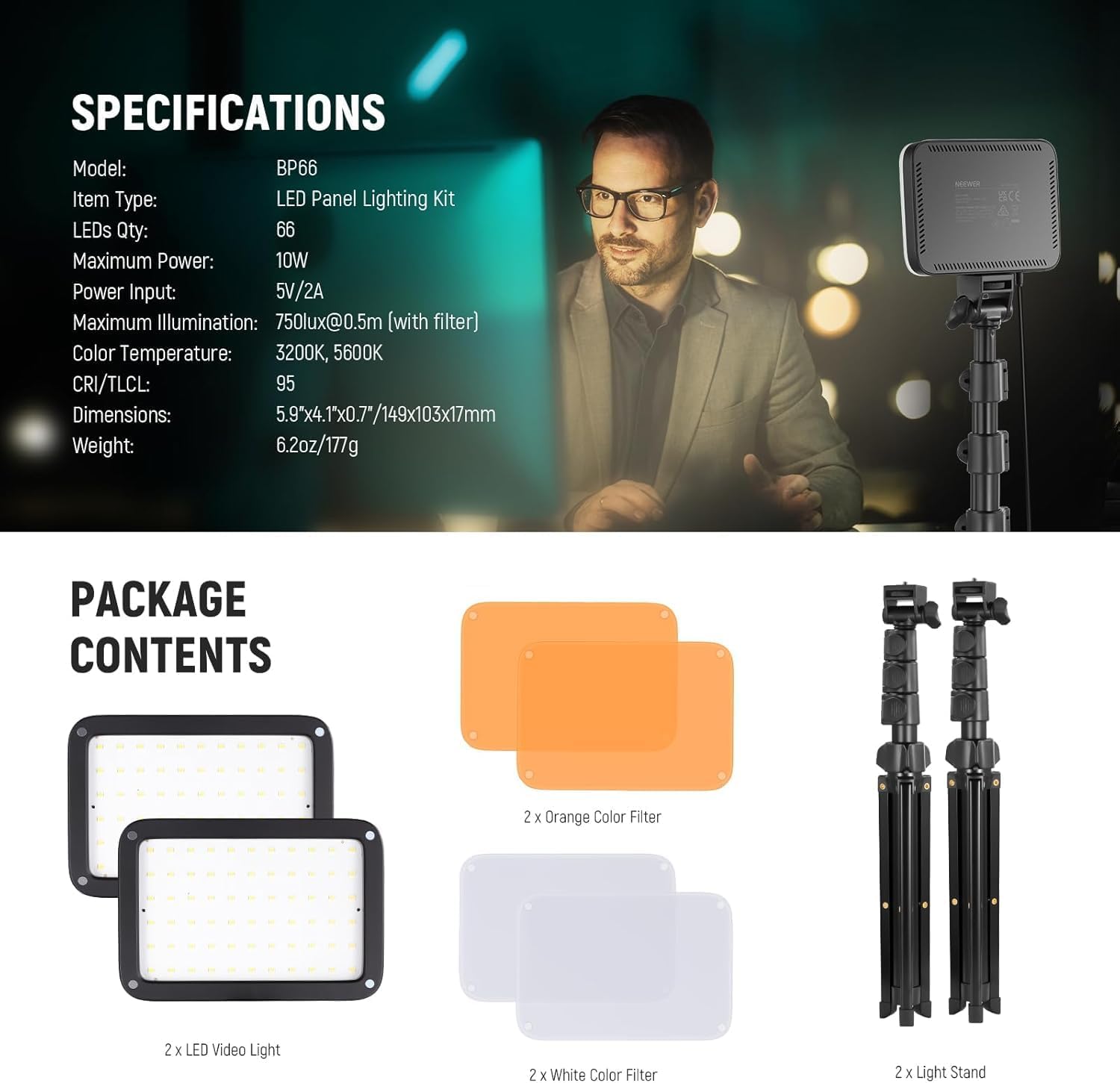

Image: Diagram showing the contents of the NEEWER BP66 LED Video Panel Kit: two LED lights, two orange filters, two white filters, and two light stands.

3. تعليمات الإعداد

3.1 Assemble Light Stands

1. قم بفتح أرجل حامل الإضاءة حتى تصبح ممتدة بالكامل وثابتة.
2. Loosen the locking knobs on the stand sections and extend the central column to your desired height.
3. Tighten all locking knobs securely to prevent the stand from collapsing.

3.2 Attach LED Panels

1. حدد مكان المسمار مقاس 1/4 بوصة الموجود أعلى حامل الإضاءة.
2. Align the 1/4" threaded hole on the bottom of the LED panel with the screw on the stand.
3. Screw the LED panel onto the stand until it is firmly attached.

Image: Close-up of the 1/4 inch threaded hole on the bottom of the LED panel, demonstrating its versatility for mounting on various accessories like tripods or camera hot shoes.

3.3 Attach Color Filters

The BP66 LED panels feature a magnetic design for easy filter attachment:

1. Select either a white filter for soft, diffused light or an orange filter for warm tones.
2. Simply place the filter onto the front of the LED panel; it will magnetically snap into place.

Image: Comparison of 3200K warm light with an orange diffuser and 5600K cool light with a white diffuser, demonstrating the magnetic dome diffuser feature.

3.4 توصيل الطاقة

Connect the integrated 2-meter USB charging cable to a 5V/2A power source. This can be a wall adapter, a laptop, a computer's USB port, or a portable power bank.

Image: NEEWER BP66 LED panel connected via USB for power, showing the inline controller for power and brightness adjustments.

4. تعليمات التشغيل

4.1 تشغيل/إيقاف التشغيل

Once connected to a power source, a blue LED indicator will light up. Press the power button on the inline controller to turn the LED panel on or off.

4.2 ضبط السطوع

The LED panel offers 10 levels of brightness. Short press the brightness adjustment button on the inline controller to adjust in steps, or long press for continuous dimming.

4.3 تعديل درجة حرارة اللون

The BP66 panels provide a fixed bicolor temperature of 3200K (warm) and 5600K (cool). To change the color temperature, attach the appropriate magnetic filter (orange for 3200K, white for 5600K).

4.4 Panel Angle Adjustment

The LED panel can be tilted 180 degrees forward and backward. Adjust the angle to direct the light as needed for your shooting setup.

4.5 Stand Height Adjustment

Adjust the height of the light stand from 50cm to 137cm. With the top platform, it can reach up to 153cm. The stand can also be used as a tabletop tripod or folded for use as a selfie stick.

Image: Diagram illustrating the 180-degree tilt capability of the NEEWER BP66 LED panel for flexible lighting angles.

5. الصيانة

5.1 التنظيف

To clean the LED panels and stands, use a soft, dry cloth. Do not use abrasive cleaners or solvents, as these may damage the product's surface or electronic components.

5.2 التخزين

When not in use, store the lighting kit in a cool, dry place, away from direct sunlight and excessive humidity. Ensure all components are properly packed to prevent damage.

5.3 العناية بالكابلات

Avoid bending, twisting, or crimping the USB power cable excessively. Always grasp the plug, not the cable, when disconnecting from a power source.

6. استكشاف الأخطاء وإصلاحها

6.1 الضوء لا يضيء

• Ensure the USB cable is securely connected to both the LED panel and a functioning 5V/2A power source.
• Verify that the power source is active (e.g., wall outlet is working, laptop is on).
• Check if the blue LED indicator on the cable is lit. If not, try a different USB port or power adapter.
• اضغط على زر التشغيل الموجود على وحدة التحكم المدمجة.

6.2 Insufficient Brightness

• Adjust the brightness level using the inline controller.
• Ensure the power source provides sufficient current (5V/2A recommended). Lower current may result in reduced brightness.
• The light is designed for short-distance supplementary lighting, ideally within 2 meters. For larger areas, consider additional lighting.

6.3 Color Not as Expected

• Verify that the correct color filter (white for cool, orange for warm) is attached magnetically to the LED panel.
• Ensure the filter is clean and free from obstructions.

6.4 Stand Instability

• Ensure the light stand legs are fully extended and the locking knobs are securely tightened.
• ضع الحامل على سطح مستوٍ ومستقر.
• Avoid extending the stand to its maximum height if stability is a concern, especially in windy conditions or high-traffic areas.

7. المواصفات

Image: Detailed specifications table for the NEEWER BP66 LED Video Panel, including model, LED quantity, power, illumination, color temperature, CRI, dimensions, and weight.

8. معلومات الضمان

This NEEWER BASICS BP66 LED Video Panel Lighting Kit is covered by a ضمان الشركة المصنعة لمدة عامين from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or external causes such as power surges.

يرجى الاحتفاظ بإثبات الشراء الخاص بك لمطالبات الضمان.
